Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber monocoque C2C geometry
Suspension Fork
Fork Alu Carbon
Drivetrain
Rear Derailleur
Shimano 105 10s
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 10s
Cassette
Shimano Tiagra 10s 12-28T
Crank
Shimano FC-R565-L 50/34T
Bottom Bracket
BSA
Chain
Fsa Team Issue CN-910 10s
Wheels
Tires
Hutchinson Equinox 2
Brakes
Brakes
Reparto Corse
Cockpit
Stem
Reparto Corse Alu
Handlebar
Reparto Corse Alu
Grips
La spirale Ribbon
Headset
Fsa Orbit
Seat
Saddle
Selle San Marco Ponza Power
Seatpost
Reparto Corse Alu
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 575 mm | 586 mm | 586 mm | 587 mm | 599 mm |
| Top Tube Length | 514 mm | 534 mm | 549 mm | 564 mm | 584 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 72.5 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 116 mm | 130 mm | 165 mm | 195 mm | 215 mm |
| Chainstay Length | 407 mm | 409 mm | 412 mm | 414 mm | 416 mm |
| Wheelbase | 972 mm | 985 mm | 988 mm | 991 mm | 1005 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

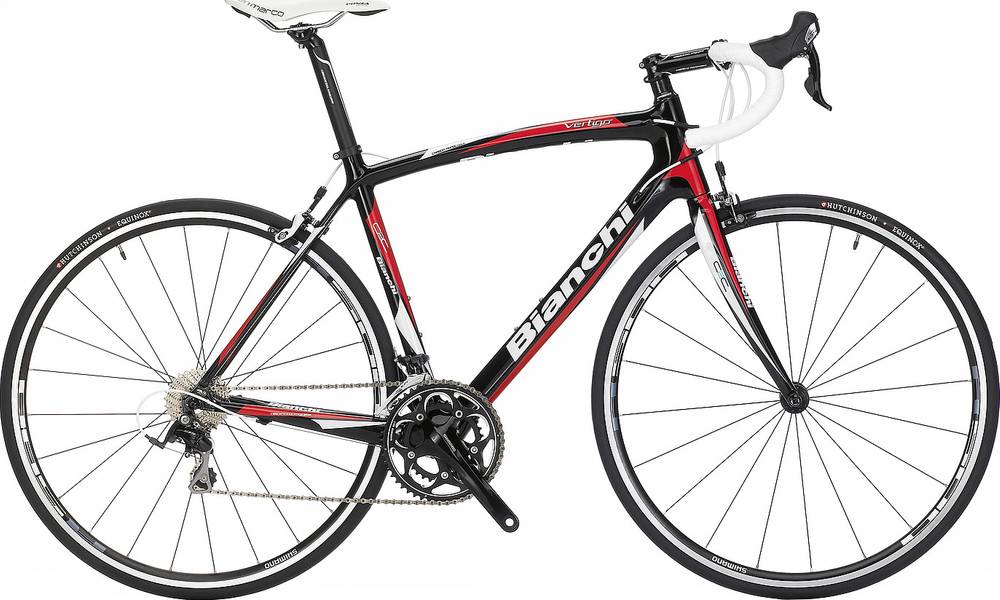

Vertigo 105 Compact belongs to the Bianchi Vertigo model. Bianchi released 3 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Road bikes average price
According to our math, the average price for a trustworthy General Road bike is 1915$. However, you could also get a good General Road bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Bianchi released this model in 2014, its price was 1899$. Doing a quick comparison, we notice that Vertigo 105 Compact price is 0.84% lower than the average cost of a General Road bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Vertigo 105 Compact 2014 bike is equipped with 700c wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Vertigo 105 Compact has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
