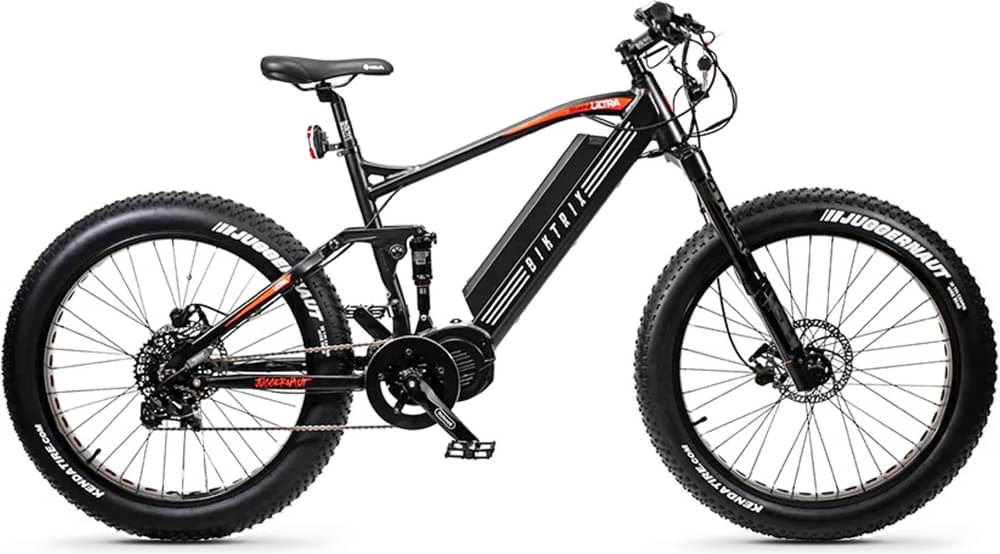

Biktrix Juggernaut Ultra FS 2020
2020 E-bike
Estimate price |
4,699$
Weight | 33.02 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Groupset NX -
Suspension Hardtail -
Motor Bafang 500W 160Nm mid-drive -
Battery Weight: 9 lbs (4.08 kg) (10.5lbs for 17.4Ah and 21.0Ah Batteries), Brand: Panasonic or Samsung, 18650 Cells, 2,900mAh or 3,500mAh, Voltage: 48 volts (Optional 52 Volt), Amp Hours: 14.5 ah (Optional 17.5Ah or 21Ah), Watt Hours: 696 wh (Optional 840Wh, 910Wh, or 1,008Wh), Chemistry: Lithium-ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy, Hydroformed
Suspension Fork
Biktrix Inverted Air Suspension, 100mm Travel, Compression Adjust, Rebound Adjust, 35mm Black or Gold Anodized Stanchions, Magnesium Uppers, 150mm Hub Spacing, 15mm Thru-Axle with 5mm Hex Bolt, Optional DNM USD-6 Inverted Air Fork 110mm Travel (Lighter), Optional WREN Inverted Air Fork 150mm Travel (Lighter, Adjustable Travel, Better Performance)
Drivetrain
Shift Levers
SRAM NX1 Trigger Shifter on Right (One-Way High, Four-Shift Low)
Cassette
11 Speed 1x11 SRAM NX Mid Cage Derailleur with Roller Clutch, SRAM NX 11-42 Tooth Cassette
Crank
Bafang Branded Lasco EB11, Forged Aluminum Alloy, 170mm Length, 40 Tooth Narrow-Wide Steel Chainring with Bash Guard Aluminum Alloy Guide
Pedals
Wellgo K79 Platform Aluminum Alloy with Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Wall, Punched Out, 80mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge, Black with Brass Nipples
Tires
Kenda Juggernaut Pro, 26” x 4.0” (98-559), Optional Kenda Havoc 27.5" x 3.0", Optional Schwalbe Super Moto-X 27.5" x 2.8"
Cockpit
Stem
Biktric Branded Promax, Aluminum Alloy, 90mm Length, 6° Rise, Two 10mm Spacers, One 5mm Spacer
Handlebar
Biktrix Branded Promax, Aluminum Alloy, 5° Rise, 5° Backsweep, 820mm Width
Grips
Flat, Rubber, Non-Locking, Optional Ergonomic Locking
Headset
Integrated, Sealed Cartridge, Tapered 1-1/8" to 1-1/2" (44mm to 56mm Outer Diameter)
Seat
Saddle
Velo Plush, Black with Reflective Patch Center Back
Seatpost
Biktrix Branded Rigid Aluminium Alloy (Single Bolt Forged Clamp), Optional Suspension Post Upgrade
Motor & Battery
Motor
Weight: 11.7 lbs (5.3 kg), Brand: Bafang M620 Ultra, Type: Mid-Mounted Geared Motor, Nominal Output: 1000 watts, Peak Output: 1500 watts, Torque: 160 Newton meters
Battery
Weight: 9 lbs (4.08 kg) (10.5lbs for 17.4Ah and 21.0Ah Batteries), Brand: Panasonic or Samsung, 18650 Cells, 2,900mAh or 3,500mAh, Voltage: 48 volts (Optional 52 Volt), Amp Hours: 14.5 ah (Optional 17.5Ah or 21Ah), Watt Hours: 696 wh (Optional 840Wh, 910Wh, or 1,008Wh), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 18cm |
|---|---|
| Wheels | 26" |
Model Overview
Juggernaut Ultra FS is a Biktrix E Juggernaut model. 2 e-bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2020 and its price was 4699$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that Juggernaut Ultra FS price is 91.56% higher.
Crosscountry e-bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Juggernaut Ultra FS weighs 33.02 kg (72.8 lbs) and is much heavier than the average. In other words, this model is 42.27% heavier than the average Crosscountry e-bike.
Juggernaut Ultra FS components
Fork material
Juggernaut Ultra FS has a magnesium fork, so, it’s a bit lighter than steel. However, it is not so resistant as a fork steel is.
Wheels
The wheels on Juggernaut Ultra FS are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Biktrix Juggernaut Ultra FS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
