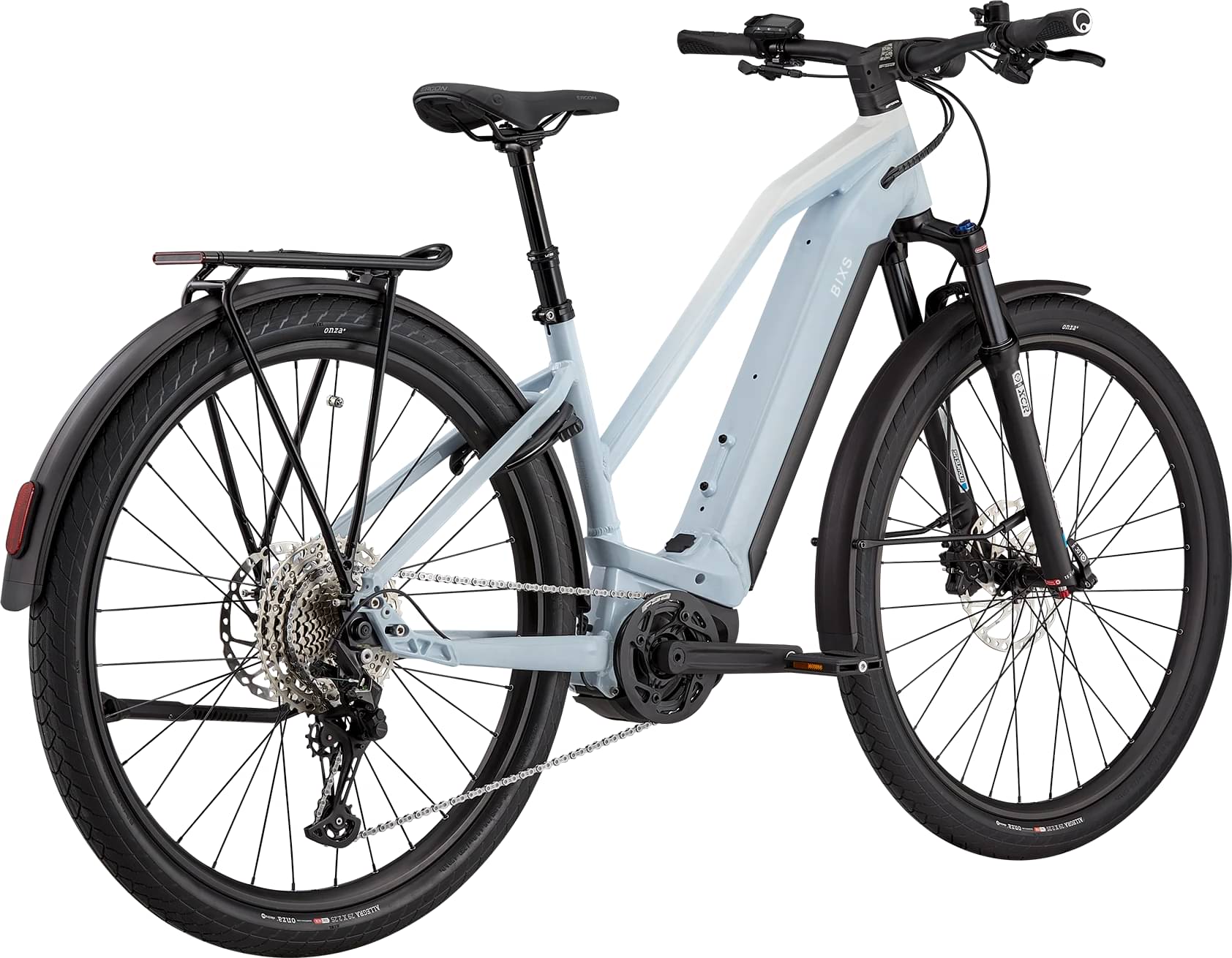

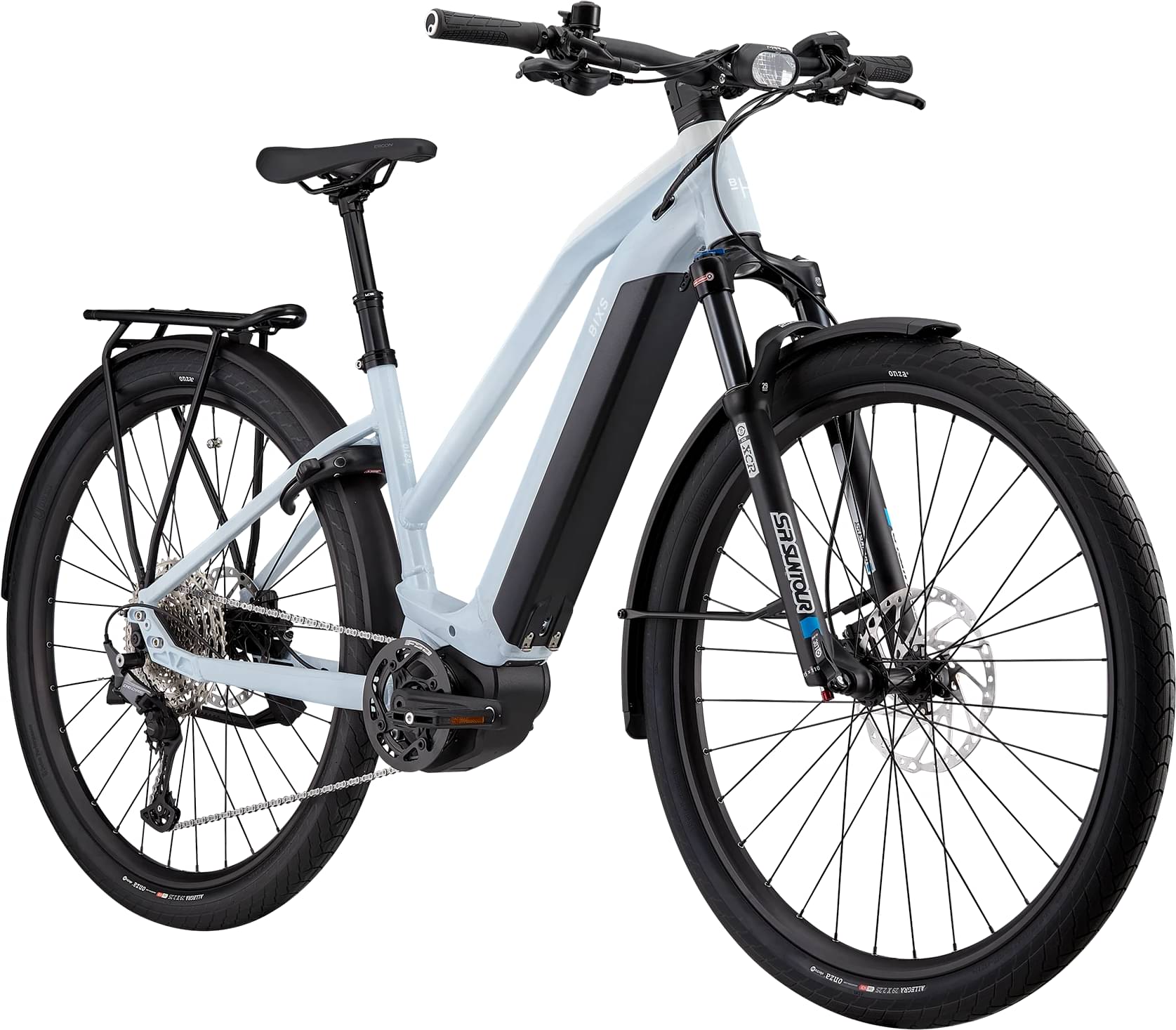

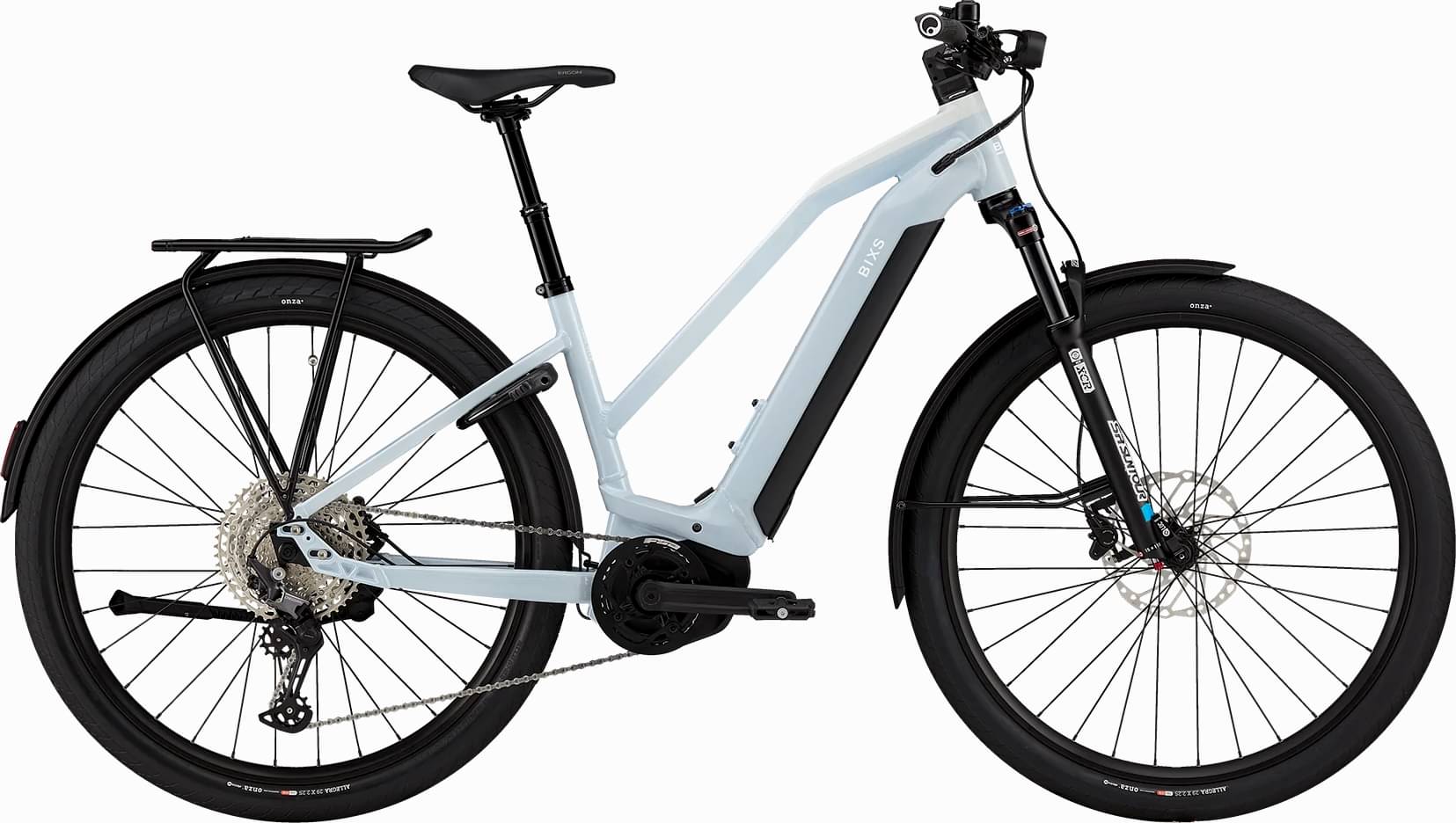

bixs Access-E10 Gor 2025
2025 E-bike
Estimate price |
6,284$
Weight | 27.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W mid-drive -
Battery SIMPLO, 36V, 630Wh -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-ACTIVE GEOMETRY SUV, ALLOY 6061 HYDROFORMED D.B. TUBES, Hardtail, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
SUNTOUR XCR34 AIR 29", LOR, 15x110mm AXLE, TAPERED, 100mm TRAVEL, REBOUND LOCKOUT
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100, CLAMP TYPE
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
FSA CK-320/ISIS, 34 TEETH
Chain
SHIMANO CN-M6100 12-SPEED
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear Hub
SHIMANO FH-TC500-MS-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Rims
ALEXRIMS EM-30, 32 HOLES, INNER WIDTH 30mm, 29"
Tires
ONZA ALLEGRA, 29x2.25"
Brakes
Brakes
SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:200mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-MT401
Cockpit
Stem
FSA CABLE INTEGRATION STEM, NS ICR, 31.8mm CLAMP
Handlebar
BIXS HB-RB12L RIZER BAR, 700mm, 9°ANGLE, 15mm RISE, 31.8mm
Headset
FSA NO.55R 1.5" / ICR / STD
Seat
Saddle
ERGON SFC30
Seatpost
KIND SHOCK RAGEi, S & M: 100mm, L: 125mm TRAVEL, SOUTHPAW-ALLOY REMOTE LEVER, 31.6mm
Motor & Battery
Motor
YAMAHA PW-X 2 SERIES, 250 WATT
Battery
SIMPLO, 36V, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.629 mm | 1.598 mm | 1.573 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 695 mm | 708 mm | 719 mm |
| Rake | 52 mm | 52 mm | 53 mm |
| Trail | 95 mm | 95 mm | 94 mm |
| Stack | 650 | 655 mm | 659 mm |
| Reach | 399 mm | 410 mm | 419 mm |
| Top Tube Length | 598 mm | 610 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 135 mm | 140 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1168 mm | 1181 mm | 1192 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
