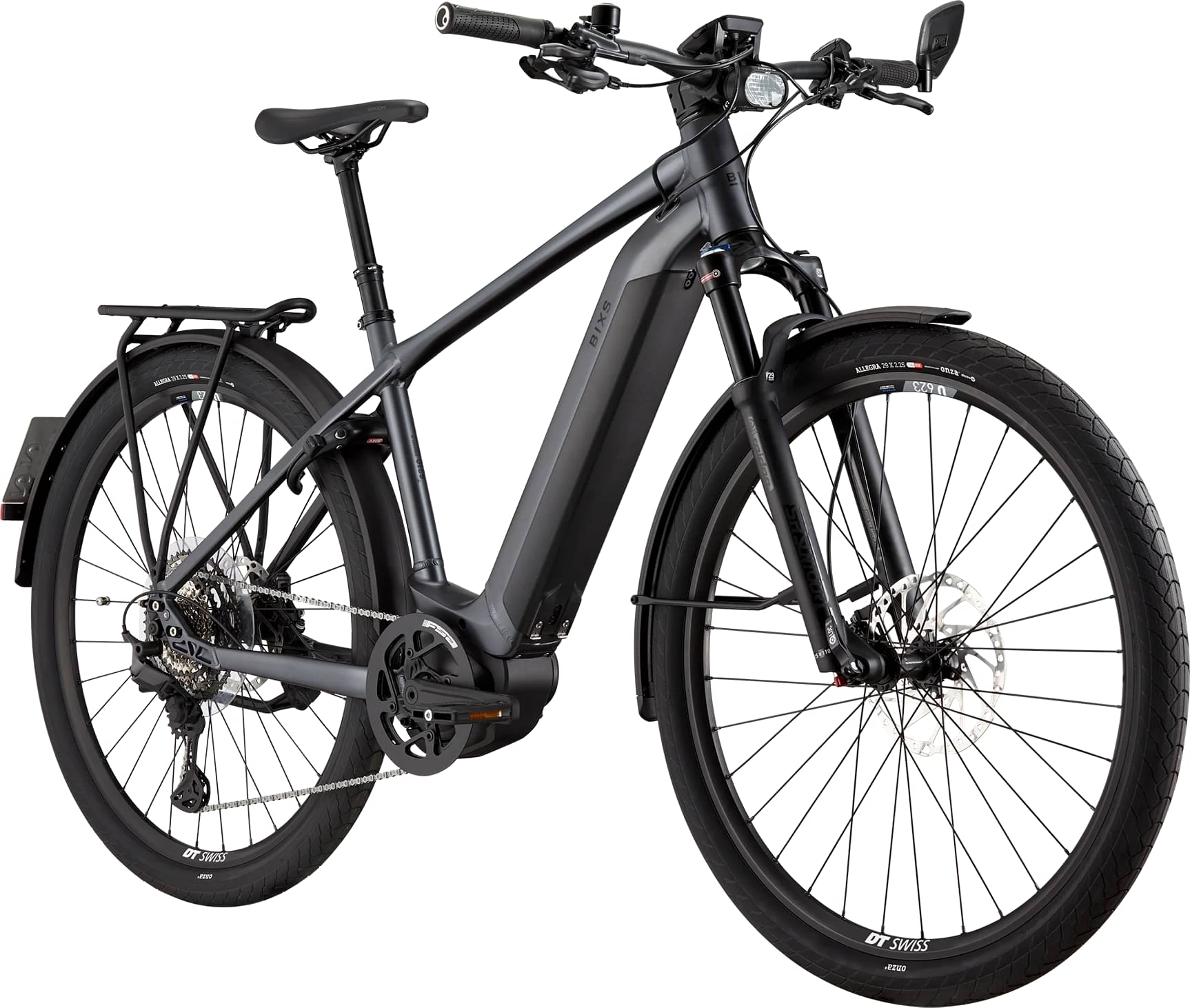

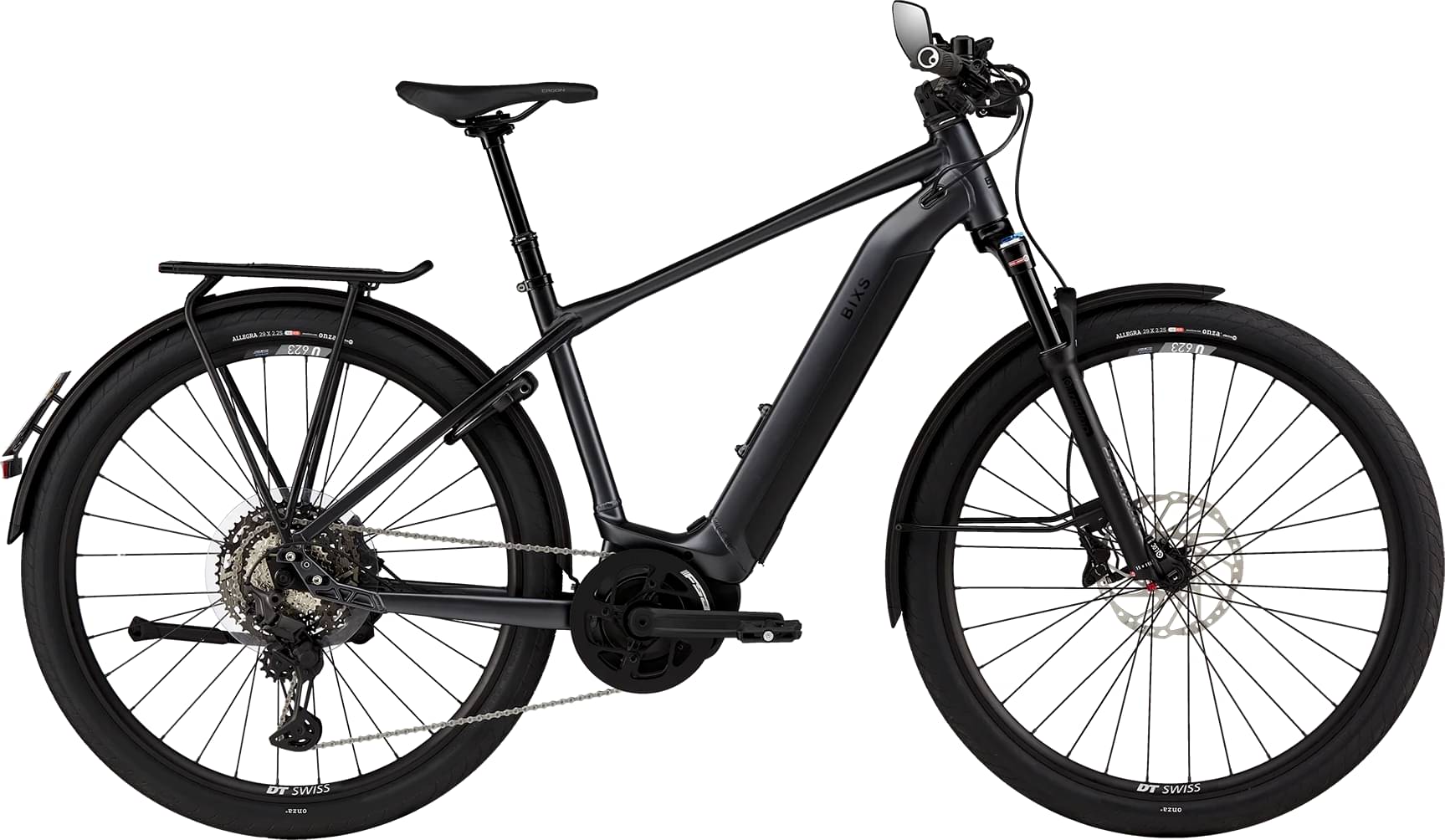

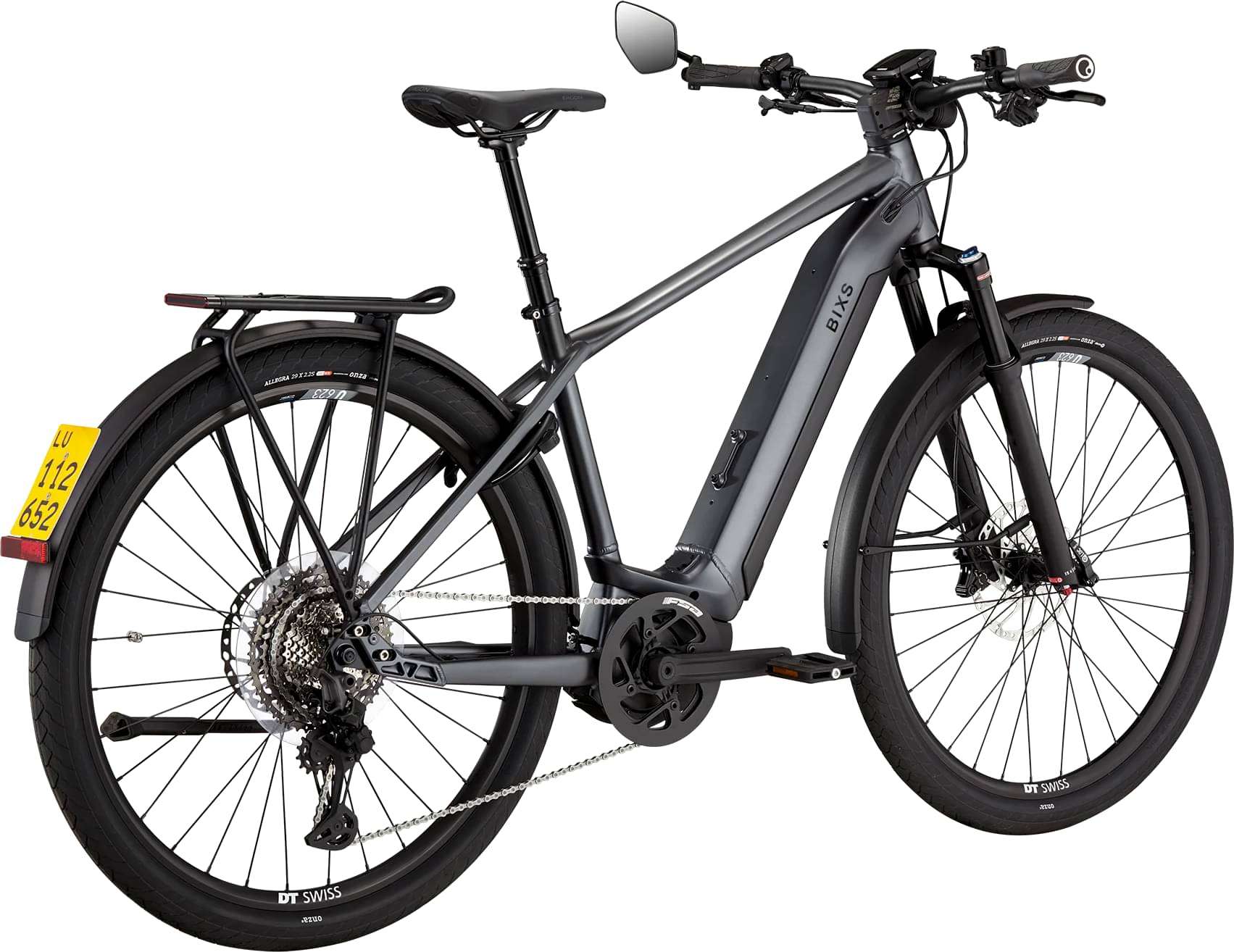

bixs Access-EX Black 2025
2025 E-bike
Estimate price |
6,901$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset XT -
Suspension Hardtail -
Motor Yamaha 500W mid-drive -
Battery SIMPLO, 36V, 630Wh -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-ACTIVE GEOMETRY SUV, ALLOY 6061 HYDROFORMED D.B. TUBES, Hardtail, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
SUNTOUR RAIDON 34 AIR 29" LOR, 15x110mm AXLE, TAPERED, 100mm TRAVEL, REBOUND, LOCKOUT
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8130 SGS SHADOW PLUS DESIGN, 11-SPEED
Shift Levers
SHIMANO XT SL-M8130, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-LG600, 11-50 THEETH, 11-SPEED
Crank
FSA CK-320/ISIS, 42 TEETH
Chain
SHIMANO CN-LG500 11-SPEED
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear Hub
SHIMANO FH-TC500-HM-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Rims
DT SWISS U 623, 32 HOLES, INNER WIDTH 25mm, 29"
Tires
ONZA ALLEGRA, 29x2.25"
Brakes
Brakes
SHIMANO BR-MT420, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-M4100, ISPEC EV
Cockpit
Stem
FSA CABLE INTEGRATION STEM, NS ICR, 31.8mm CLAMP
Handlebar
BIXS HB-RB12W RIZER BAR, 760mm, 9°ANGLE, 15mm RISE, 31.8mm
Headset
FSA NO.55R 1.5" / ICR / STD
Seat
Saddle
ERGON SFC30 GEL
Seatpost
KIND SHOCK RAGEi, M & L: 125mm, XL: 150mm TRAVEL, SOUTHPAW-ALLOY REMOTE LEVER, 31.6mm
Motor & Battery
Motor
YAMAHA PW-X 2 45 SERIES, 500 WATT
Battery
SIMPLO, 36V, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
