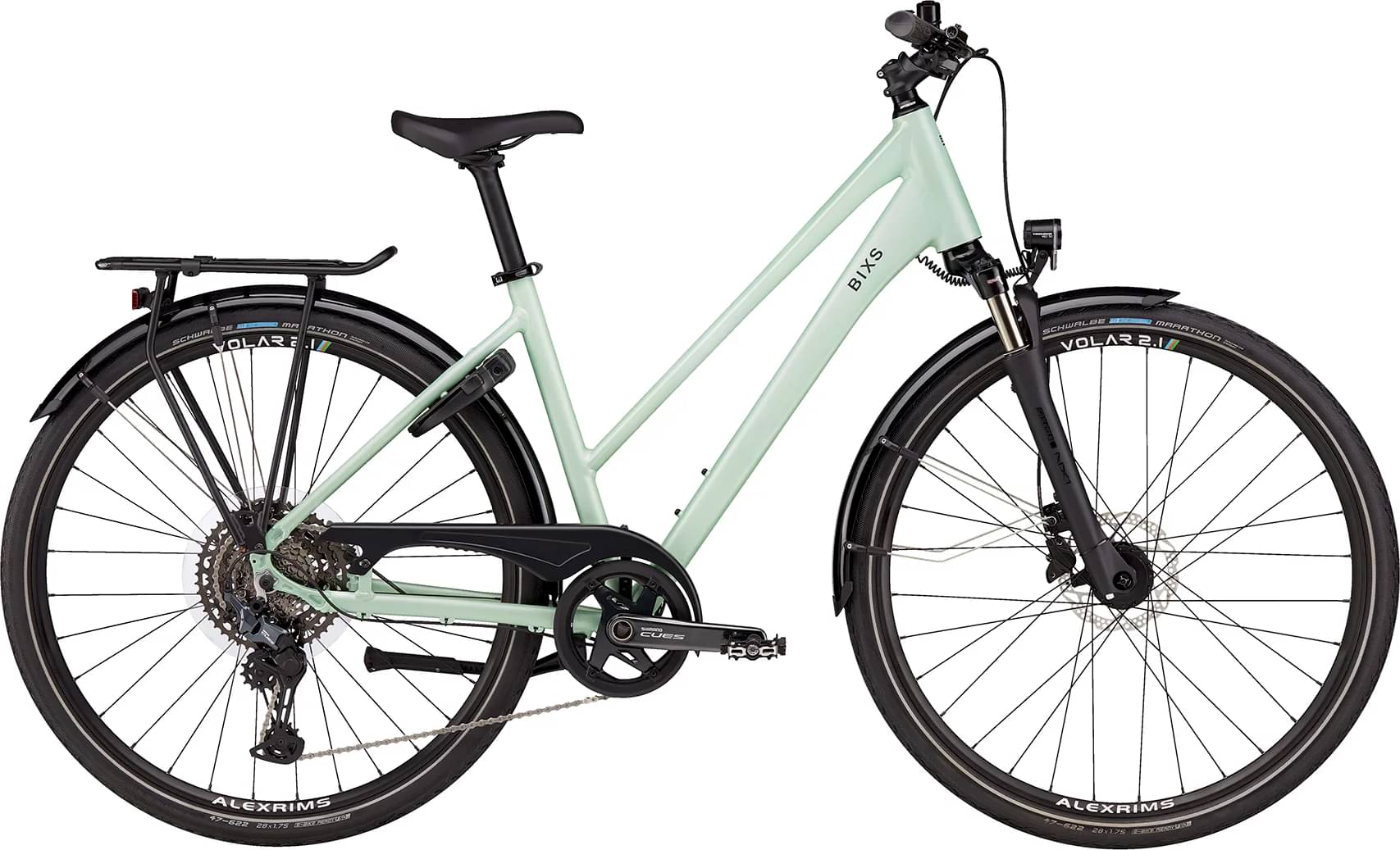

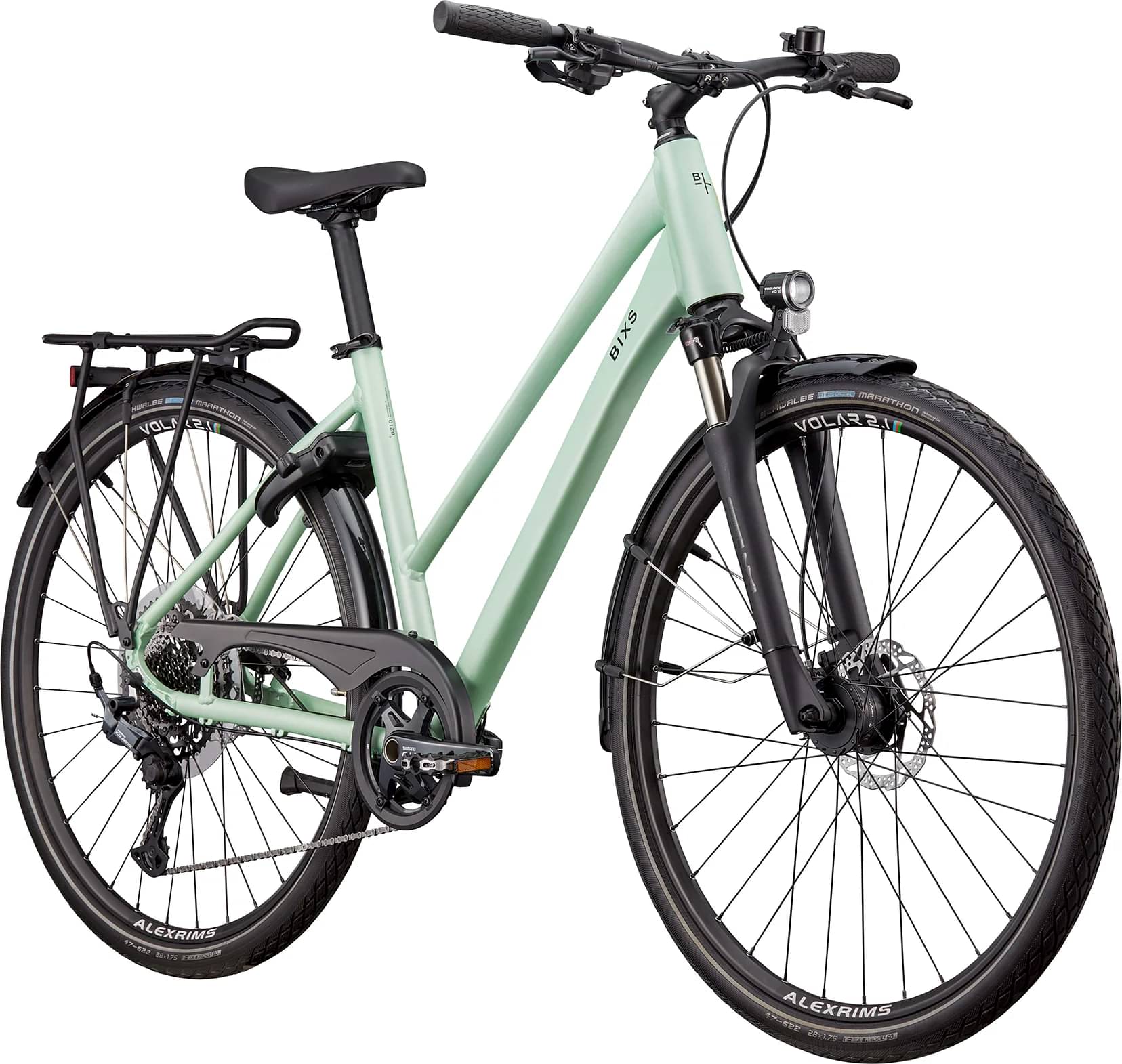

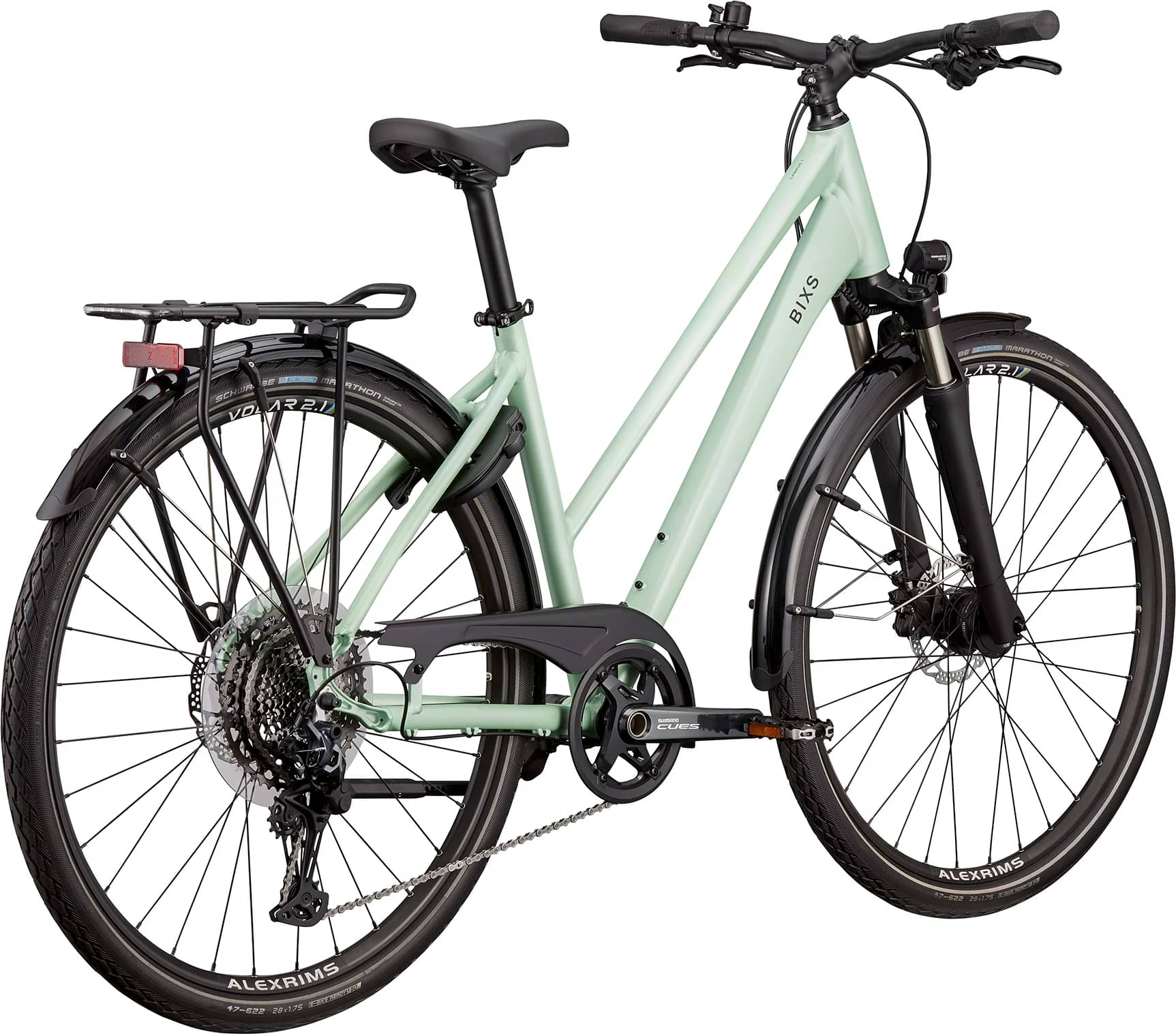

bixs Campus 1 Gor 2025
2025 Urban
Estimate price |
2,097$
Weight | 16.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NX 1
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CAMPUS PREMIUM ALLOY HARDTAIL, 5X135MM
Suspension Fork
SUNTOUR SF22-NX1 COIL, 63MM TRAVEL, 5X100MM
Drivetrain
Rear Derailleur
SHIMANO CUES RD-U8000, 11-SPEED
Shift Levers
SHIMANO CUES SL-U8000-11R
Cassette
SHIMANO CUES CS-LG700-11, 11-50T
Crank
SHIMANO CUES FC-U8000-1, CL50, 40T
Chain
SHIMANO CUES CN-LG500
Wheels
Front Hub
SHIMANO DH-3D37-QR DYNAMO HUB, 32 HOLES
Rear Hub
SHIMANO FH-UR600, 32 holes
Rims
ALEXRIMS VOLAR 2.1, 21MM INNER WIDTH
Tires
SCHWALBE MARATHON PERFORMANCE, 700X47C, GREEN, GUARD
Brakes
Brakes
SHIMANO BL-MT201, BR-MT200 2-PISTON
Cockpit
Stem
BIXS STEM, 17°, 31.8MM CLAMP
Handlebar
BIXS RIZER BAR, 15MM RISE, 680MM
Seat
Saddle
BIXS VL-4479
Seatpost
BIXS SEATPOST, Ø31.6MM, 350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.867 mm | 1.791 mm | 1.706 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Stack | 659 mm | 659 mm | 662 mm |
| Reach | 353 mm | 368 mm | 388 mm |
| Top Tube Length | 555 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1072 mm | 1087 mm | 1107 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
