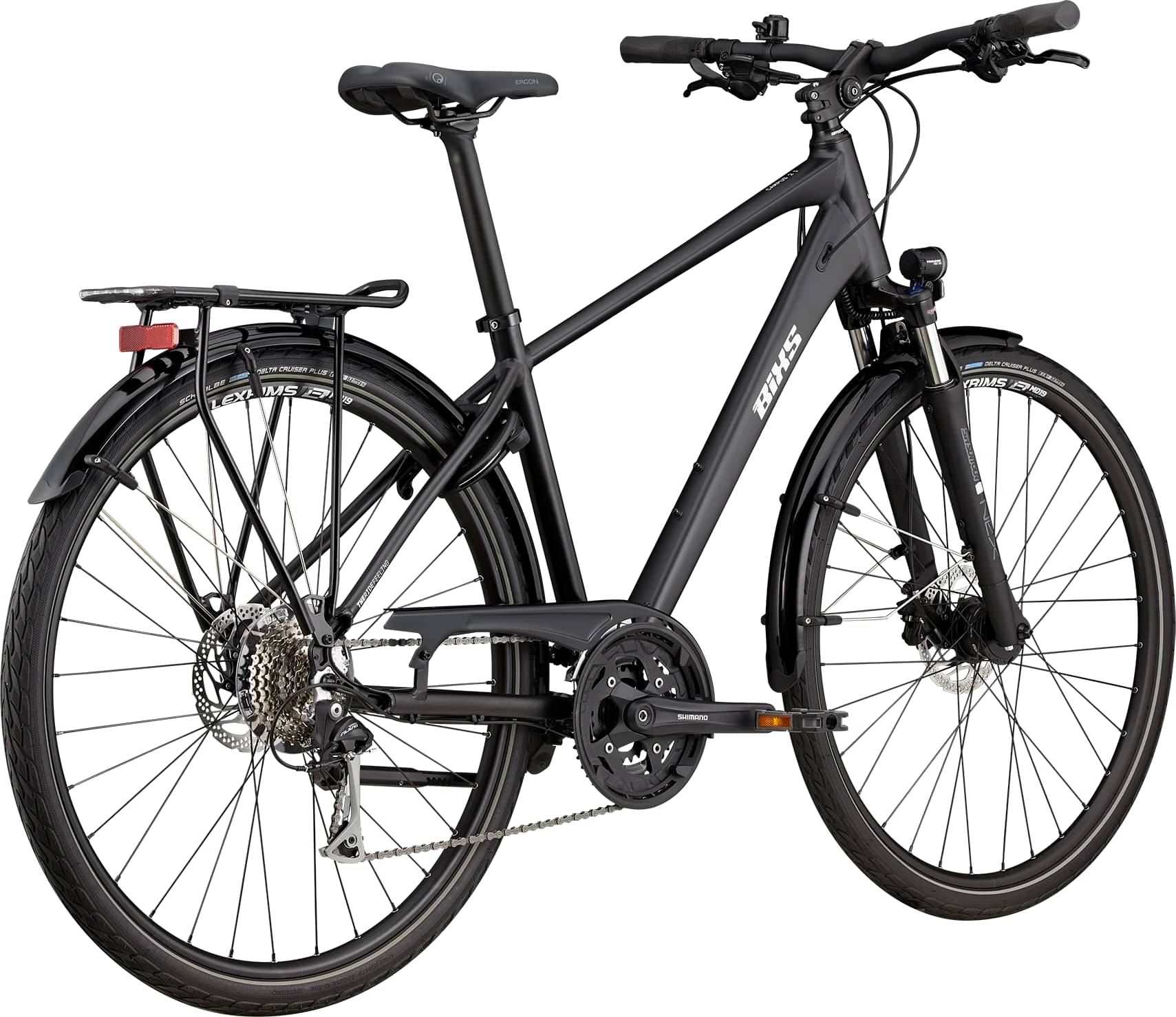

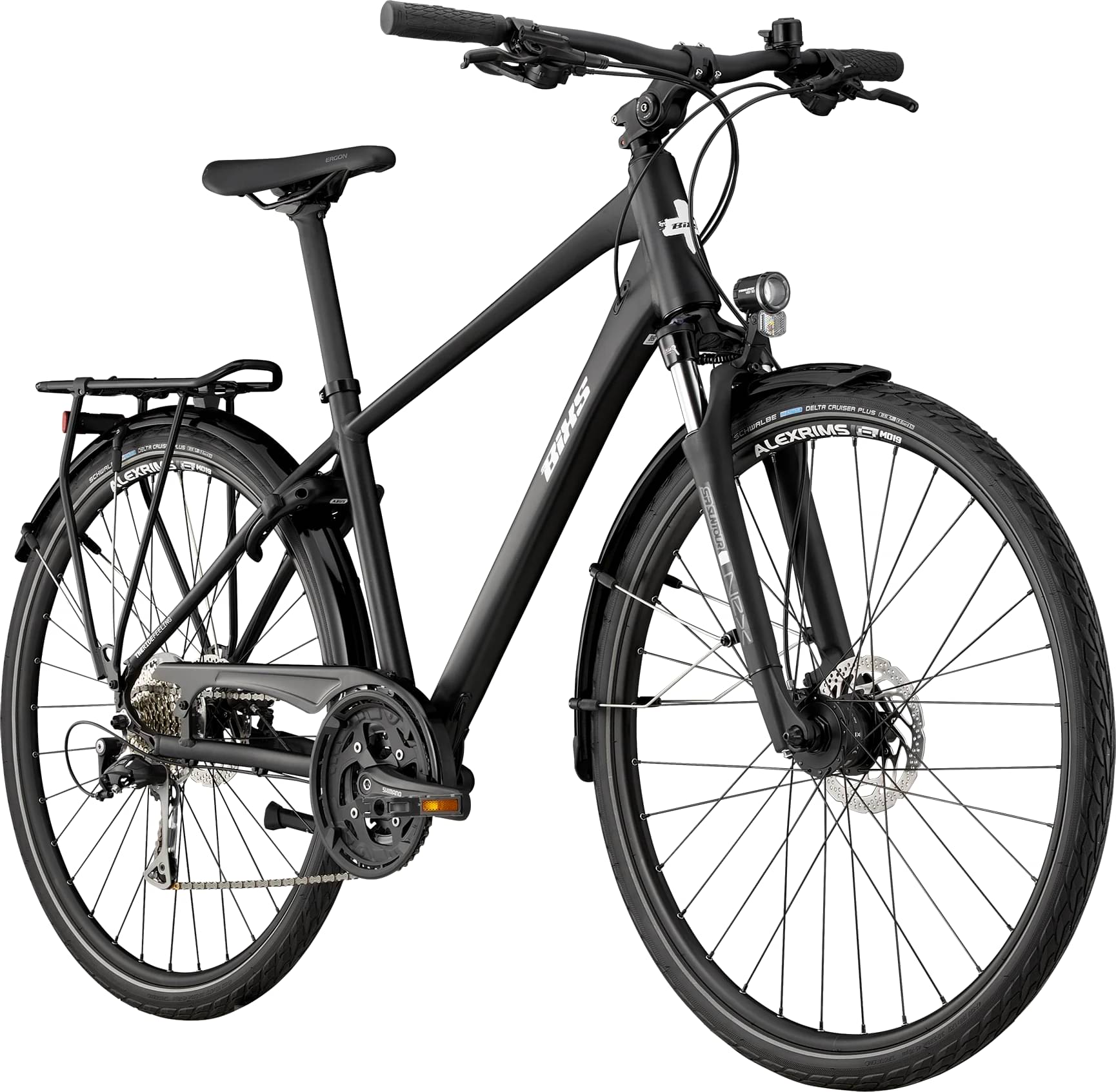

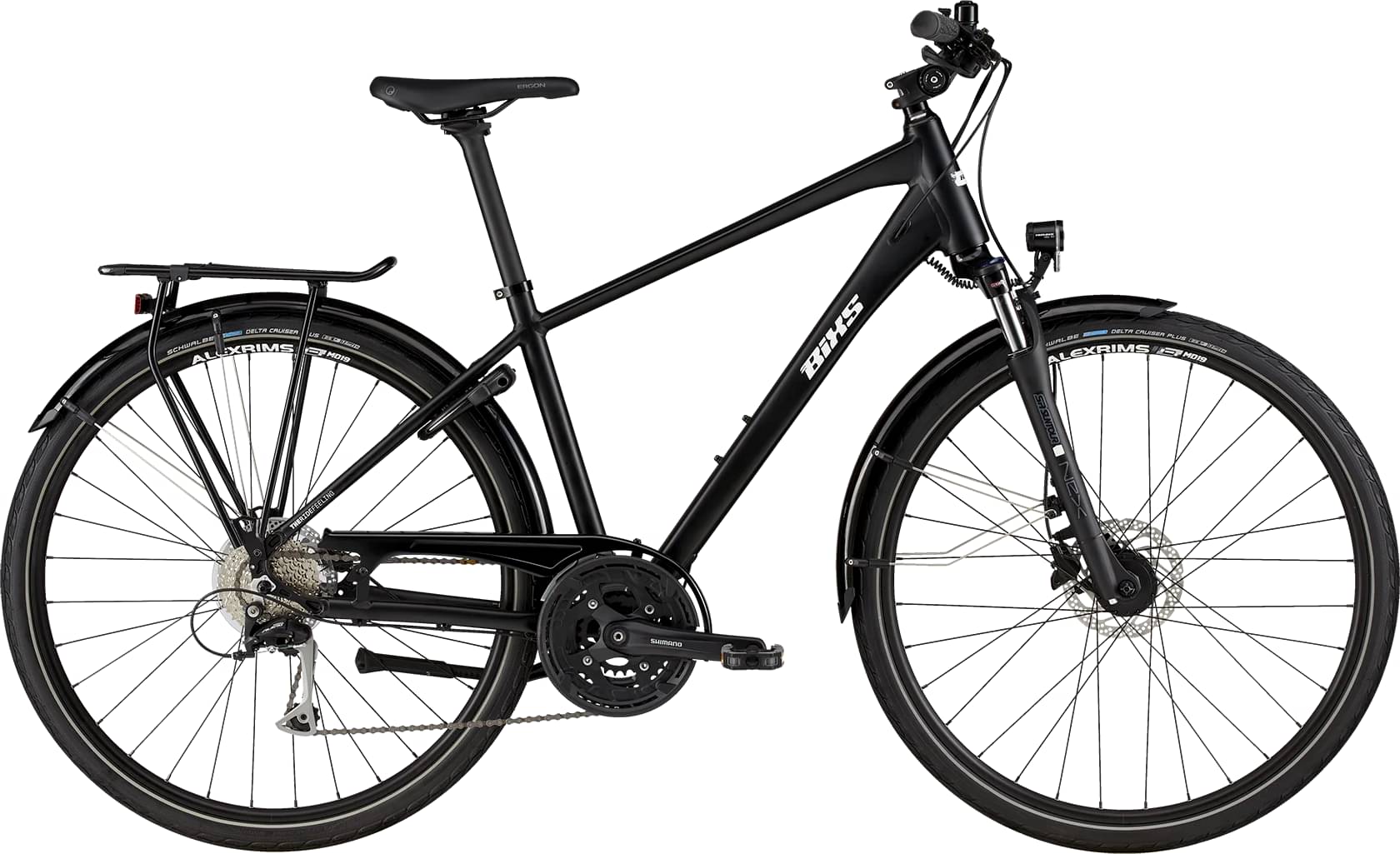

bixs Campus 2 Black 2025
2025 Urban
Estimate price |
1,727$
Weight | 16.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TOURING CONCEPT, ALLOY 6061, 700C
Suspension Fork
SUNTOUR SF20-NEX HLO DS, TAPERED, HYDRAULIC LOCKOUT, 63MM
Drivetrain
Rear Derailleur
SHIMANO ALIVIO RD-T4000 SGS, TOP NORMAL, 9-SPEED
Shift Levers
SHIMANO ALIVIO SL-M3100, WITH OPTICAL GEAR DISPLAY
Cassette
SHIMANO CS-HG400-9, 11-34 TEETH, 9-SPEED
Crank
SHIMANO ALIVIO FC-T4010, OCATLINK, 48-36-26 TEETH
Chain
SHIMANO CN-HG53 9-SPEED
Wheels
Front Hub
SHIMANO DH-3D37 HUB DYNAMO, 6V, 3W, 32 HOLES
Rear Hub
SHIMANO FH-QC400-HM, 32 HOLES
Rims
ALEXRIMS MD-19, 32 HOLES, INNER WIDTH 19mm, 700C
Tires
SCHWALBE DELTA CRUISER PLUS, PUNCTURE GUARD, 700x47C
Brakes
Brakes
SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:160mm, R:160mm ROTORS
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Handlebar
BIXS RIZER BAR, 700mm, 9°ANGLE, 15mm RISE, 31.8mm
Headset
FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat
Saddle
ERGON ST10 GEL
Seatpost
BIXS SP-3D2, M: 350mm, OTHERS: 400mm, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.714 mm | 1.701 mm | 1.685 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Stack | 646 mm | 660 mm | 674 mm |
| Reach | 377 mm | 388 mm | 400 mm |
| Top Tube Length | 575 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1086 mm | 1102 mm | 1118 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
