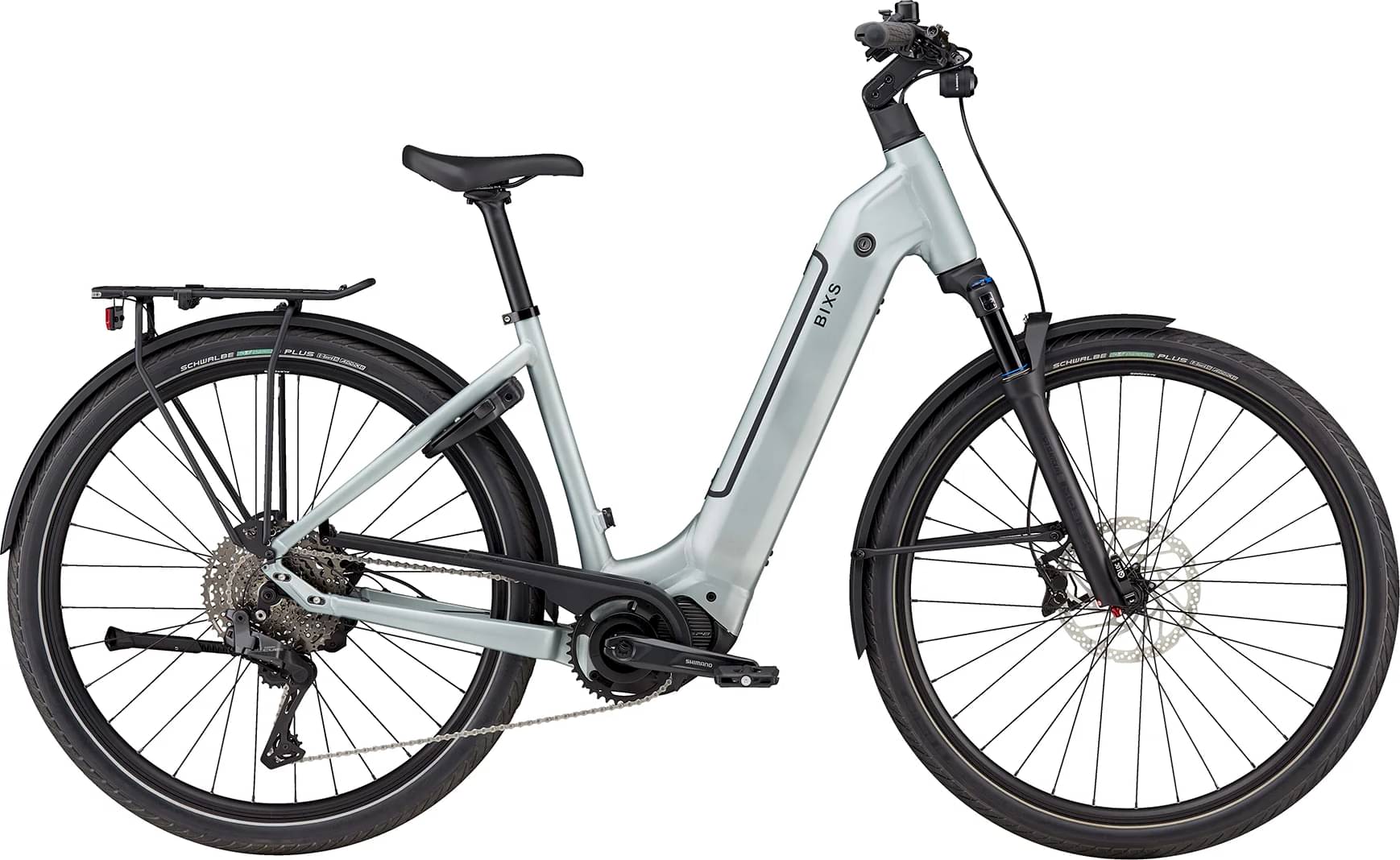

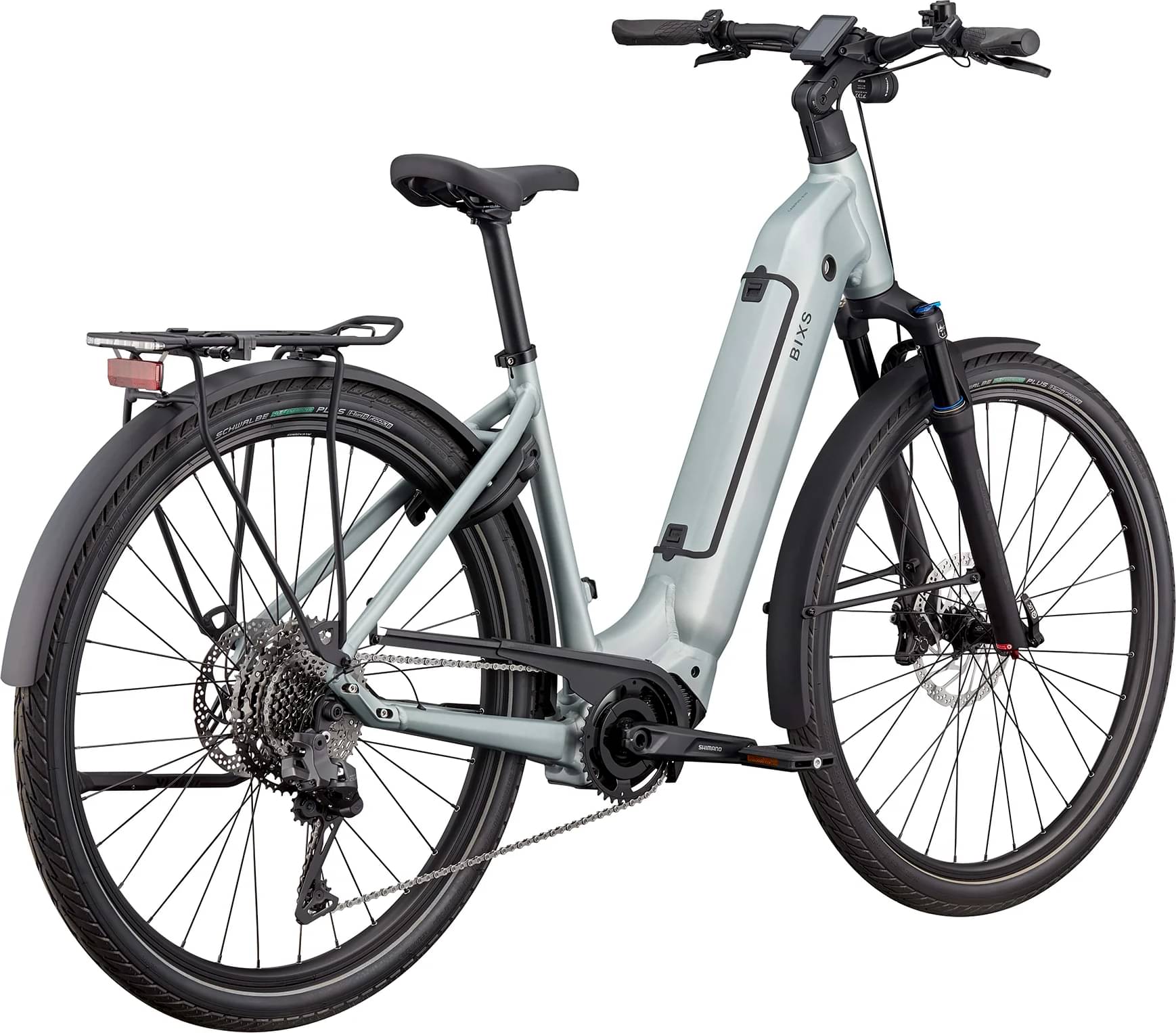

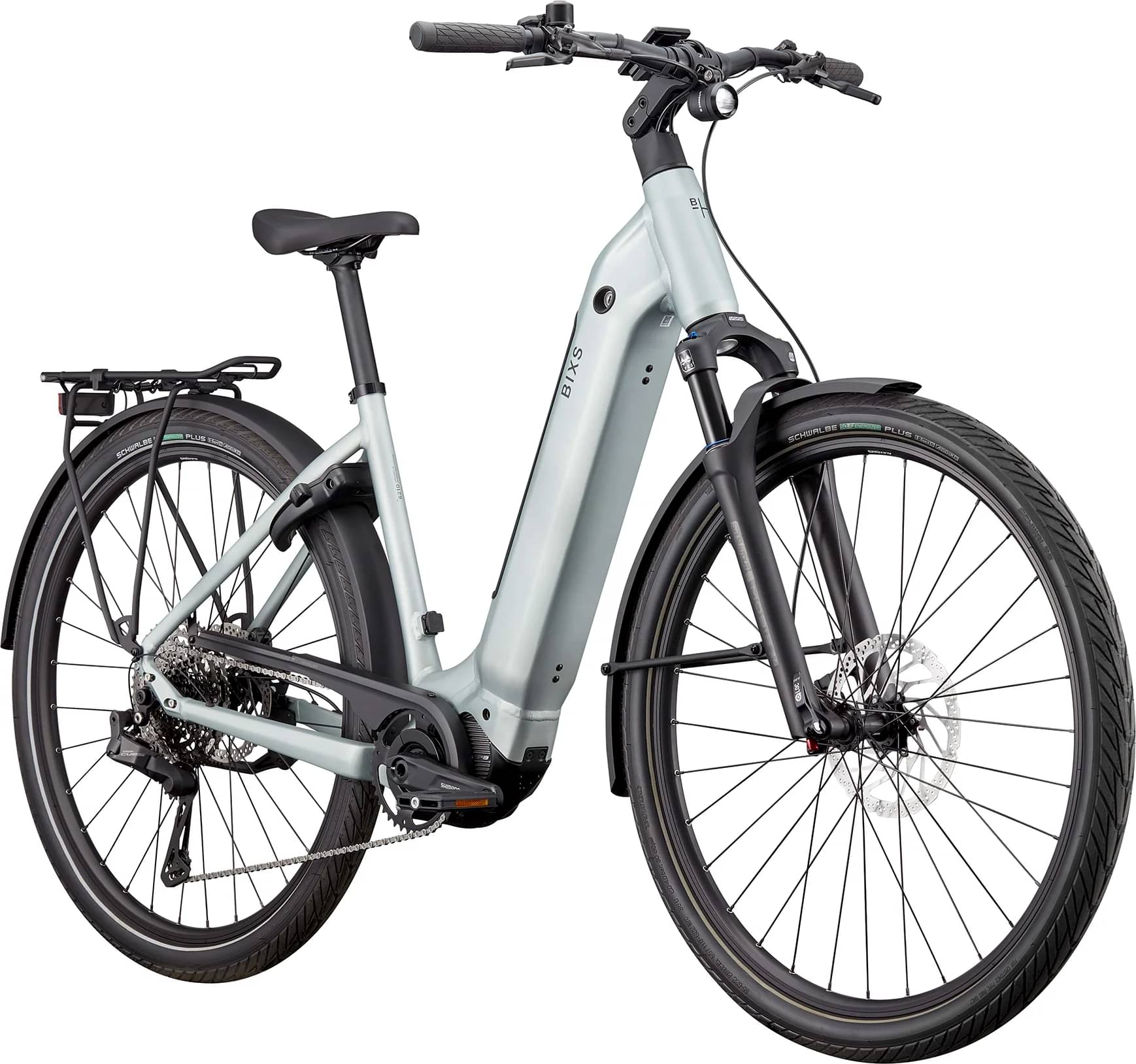

bixs Campus-E10 Di 2025
2025 E-bike
Estimate price |
5,913$
Weight | 28.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour
-
Groupset CUES Di2 -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery DARFON 600WH -
Drivetrain 1 × 11 Electronic -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CAMPUS-E PREMIUM ALLOY HARDTAIL, 12X142MM
Suspension Fork
SUNTOUR SF21-MOBBIE34 AIR DS, 80MM TRAVEL, 15X100MM
Drivetrain
Rear Derailleur
SHIMANO CUES RD-U6070, 11-SPEED, DI2 FREE SHIFT / AUTO SHIFT
Shift Levers
SHIMANO SW-EN600-R
Cassette
SHIMANO CUES CS-LG400-11, 11-50T
Crank
SHIMANO FC-EM600, CR-ET600, CL50, 38T
Chain
SHIMANO CUES CN-LG500
Wheels
Front Hub
SHIMANO HB-TC500-15, 32 holes
Rear Hub
SHIMANO FH-TC500-HM, 32 HOLES
Rims
ALEXRIMS DM21, 21MM INNER WIDTH
Tires
SCHWALBE ENERGIZER PLUS, 700X55C, PERFORMANCE, GREEN-GUARD ADDIX
Brakes
Brakes
SHIMANO BL-MT402-3, BR-MT420 4-PISTON
Cockpit
Stem
SATORI PYTHON, ANGLE ADJUSTABLE, 31.8MM CLAMP
Handlebar
BIXS RIZER BAR, 25MM RISE, 700MM
Seat
Saddle
BIXS VL-4479
Seatpost
BIXS SEATPOST, Ø31.6MM, 350MM
Motor & Battery
Motor
SHIMANO EP801, 85NM
Battery
DARFON 600WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
