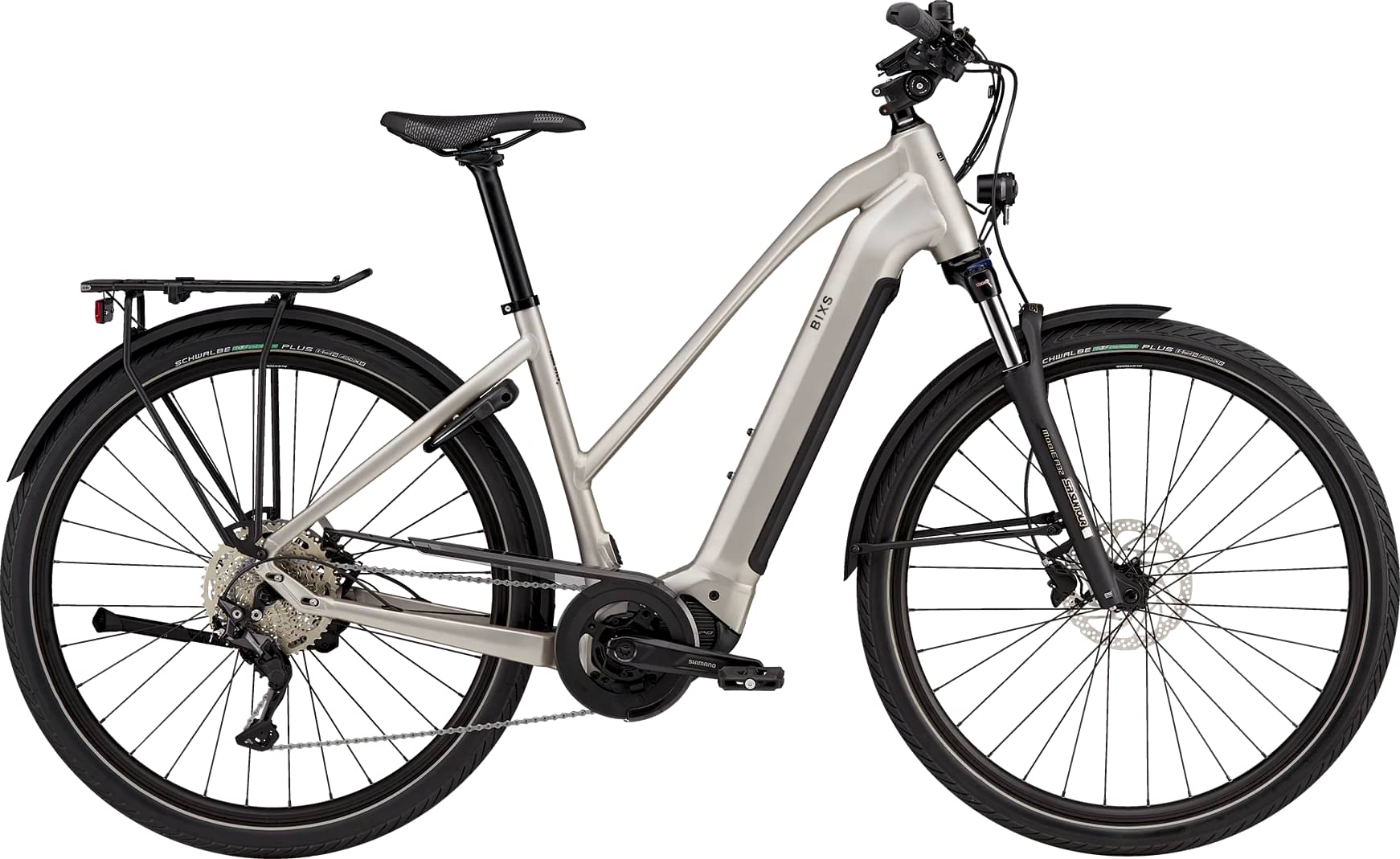

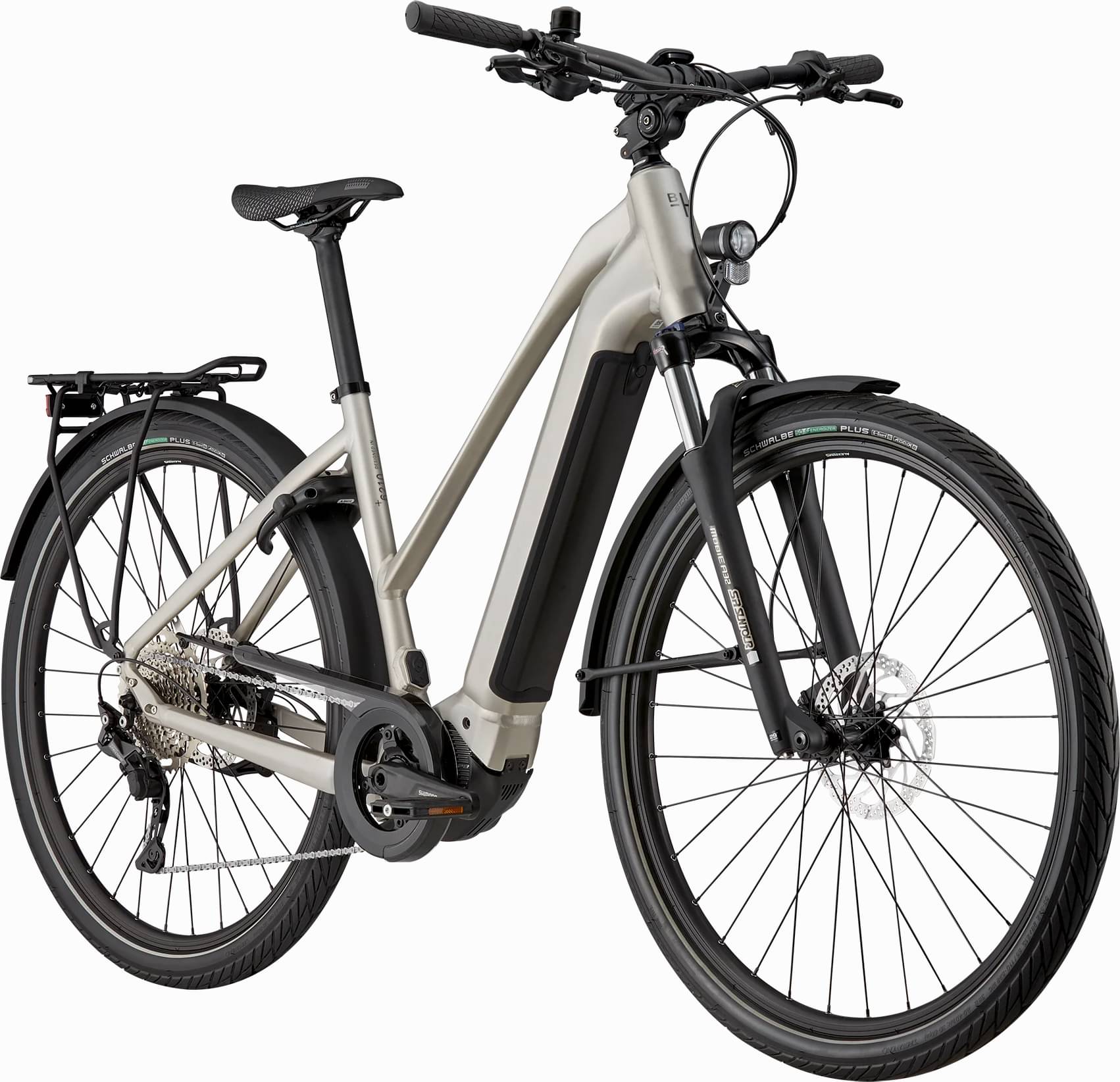

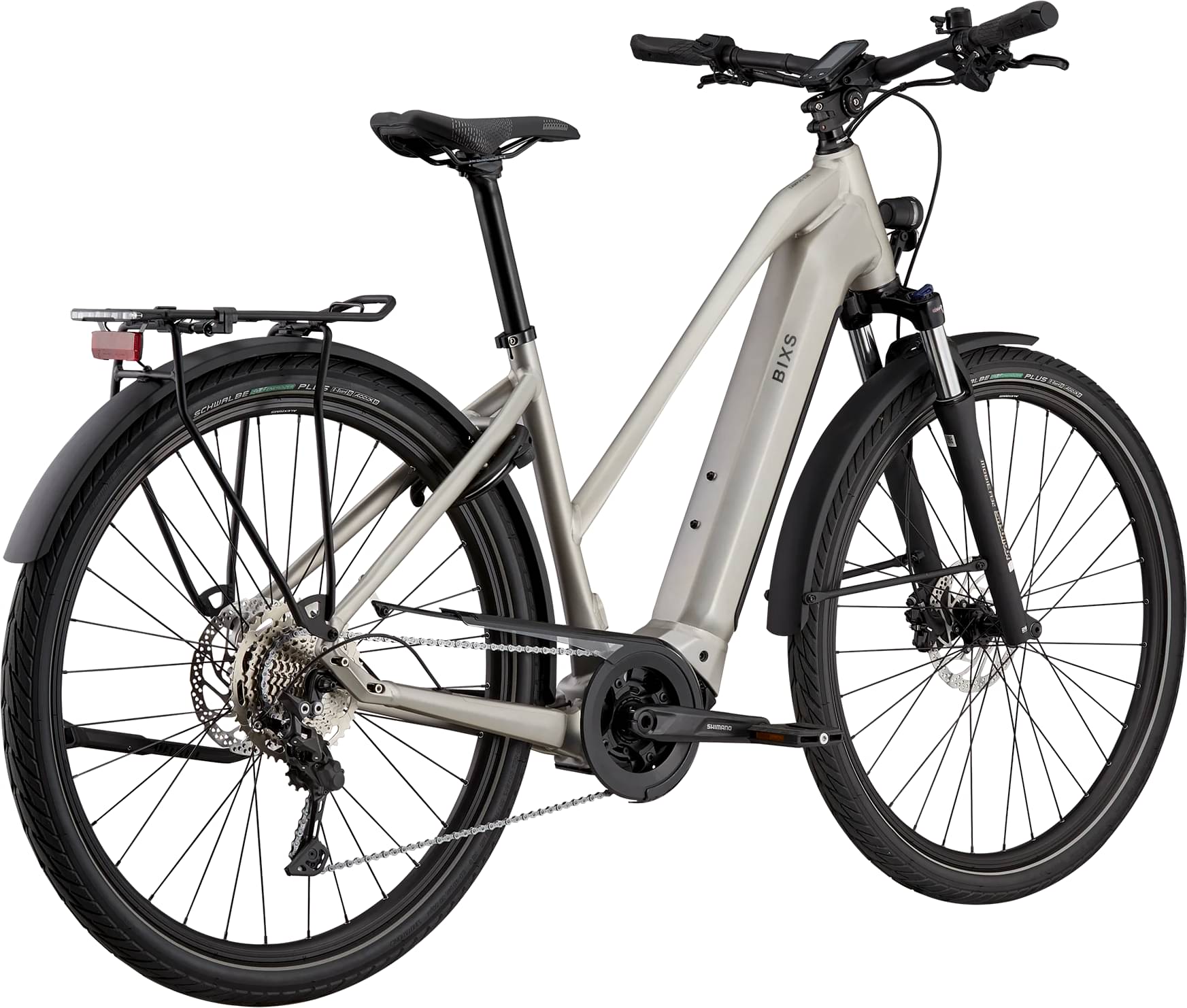

bixs Campus-E30 GOR Warm Silver 2025
2025 E-bike
Estimate price |
4,926$
Weight | 26.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 500Wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TOURING CONCEPT, ALLOY 6061, GOR 700C
Suspension Fork
SUNTOUR MOBIE A32 COIL 700C, LO, 15x100mm AXLE, TAPERED, 75mm TRAVEL, LOCKOUT
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED
Shift Levers
SHIMANO SL-M4100, WITH OPTICAL GEAR DISPLAY
Cassette
SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED
Crank
SHIMANO STEPS FC-EM600, 38 TEETH
Bottom Bracket
STEPS, press-fit
Chain
KMC E10T EPT TURBO POWER
Wheels
Front Hub
SHIMANO HB-TC500-15, 32 HOLES, 15x100mm THRU AXLE
Rear Hub
SHIMANO FH-QC400-HM, 32 HOLES, QR
Rims
ALEXRIMS DM-21, 32 HOLES, INNER WIDTH 21mm, 700C
Tires
SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Brakes
Brakes
SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Handlebar
BIXS HB-RB12L RIZER BAR, 700mm, 15°ANGLE, 15mm RISE, 31.8mm
Headset
FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat
Saddle
BIXS VL-3534
Seatpost
BIXS SP-3D2, 350mm, 31.6mm
Motor & Battery
Motor
SHIMANO STEPS EP8, 250 WATT
Battery
DARFON, 36V, 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.815 mm | 1.787 mm | 1.76 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Stack | 688 mm | 688 mm | 688 mm |
| Reach | 379 mm | 385 mm | 391 mm |
| Top Tube Length | 590 mm | 595 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1137 mm | 1144 mm | 1150 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
