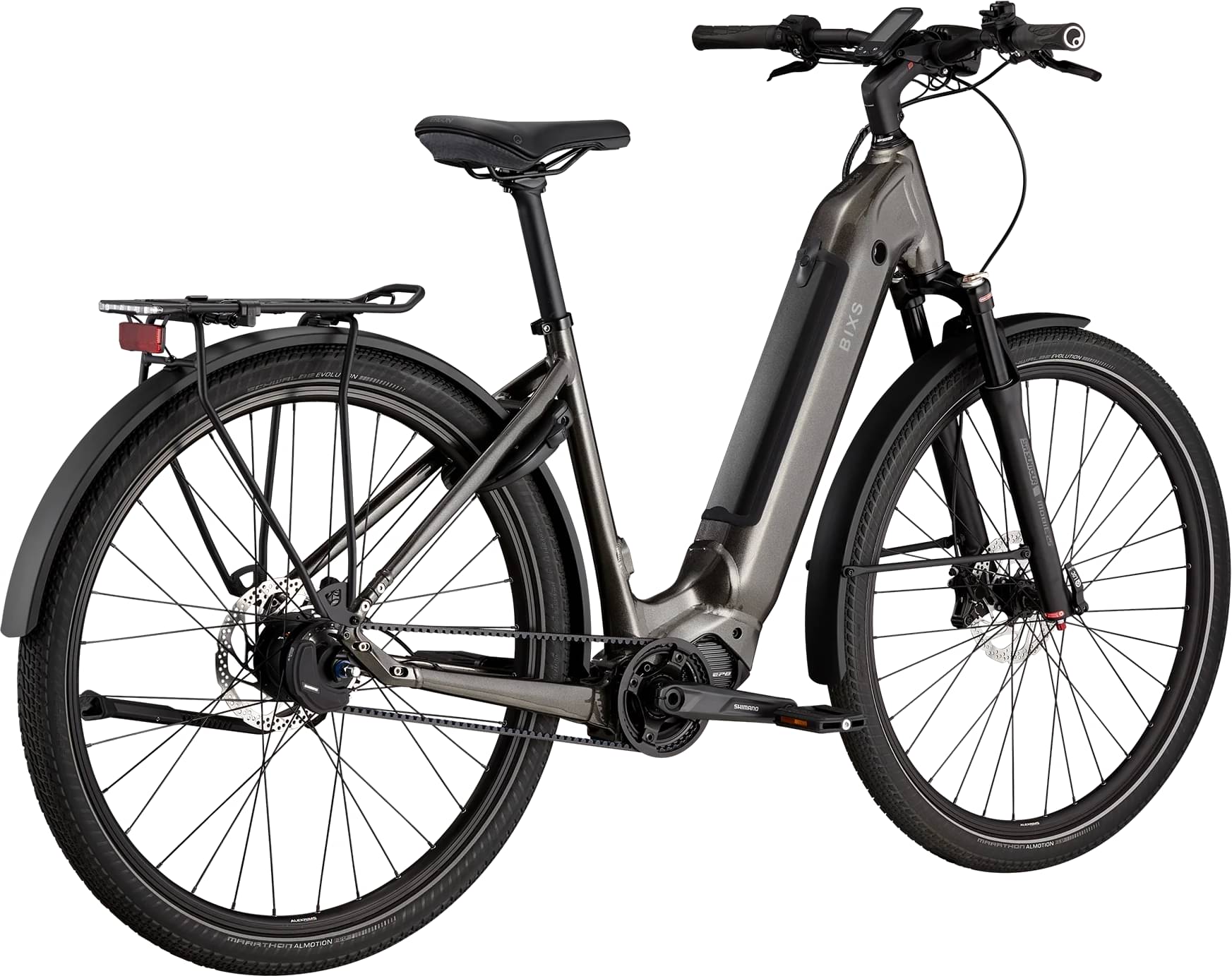

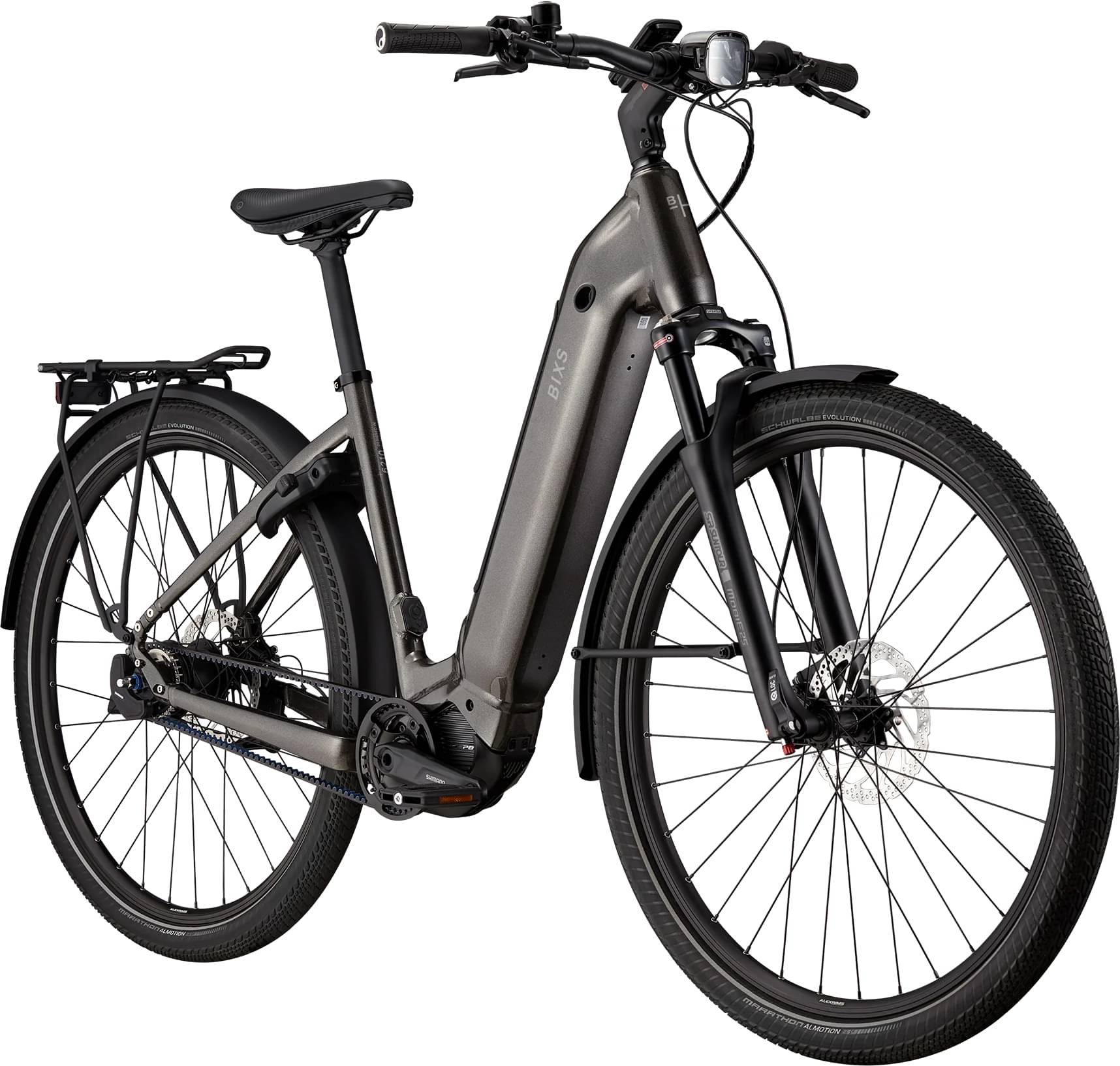

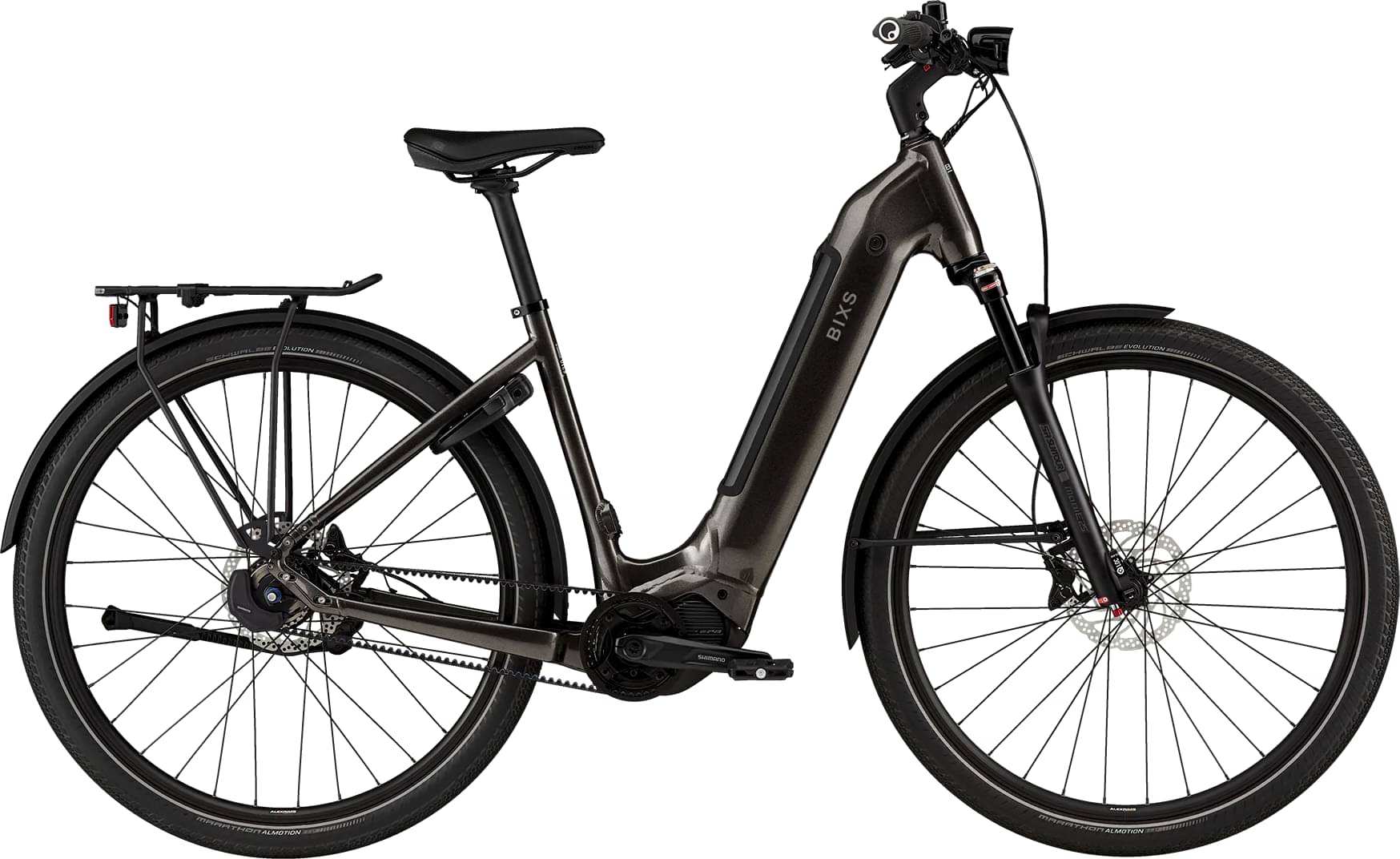

bixs Campus-EX Di Black 2025
2025 E-bike
Estimate price |
6,654$
Weight | 27.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 630Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TOURING CONCEPT, ALLOY 6061, DEEP INSTEP 700C
Suspension Fork
SUNTOUR MOBIE 25 AIR 700C, LOR, 15x100mm AXLE, TAPERED, 75mm TRAVEL, REBOUND, LOCKOUT
Drivetrain
Shift Levers
SHIMANO SW-E6010
Cassette
GATES SINGLE SPROCKET, 28 THEETH
Crank
SHIMANO STEPS FC-EM600, 39 TEETH
Bottom Bracket
STEPS, press-fit
Chain
GATES BELT DRIVE, 122 THEETH
Wheels
Front Hub
SHIMANO HB-TC500-15, 32 HOLES, 15x100mm THRU AXLE
Rear Hub
SHIMANO NEXUS Di2, SG-C7050-5D, INTERNAL HUB GEAR, 32 HOLES, QR
Tires
SCHWALBE MARATHON ALMOTION EVO, V-GUARD ADDIX, 700x55C
Brakes
Brakes
SHIMANO BR-MT420, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-MT402-3A
Cockpit
Stem
ERGOTEC BARRACUDA, BARBORE: 31.8mm, 1 1/8", ANGLE: 20°
Handlebar
BIXS HB-RB12L RIZER BAR, 720mm, 15°ANGLE, 25mm RISE, 31.8mm
Headset
FSA NO.57E/37 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat
Saddle
ERGON ST CORE EVO TWIN SHELL DESIGN
Seatpost
BIXS SP-3D2, 350mm, 31.6mm
Motor & Battery
Motor
SHIMANO STEPS EP8, 250 WATT
Battery
DARFON, 36V, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.728 mm | 1.723 mm | 1.706 mm | 1.658 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 655 mm | 665 mm | 674 mm | 683 mm |
| Reach | 379 mm | 386 mm | 395 mm | 412 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1147 mm | 1160 mm | 1170 mm | 1190 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
