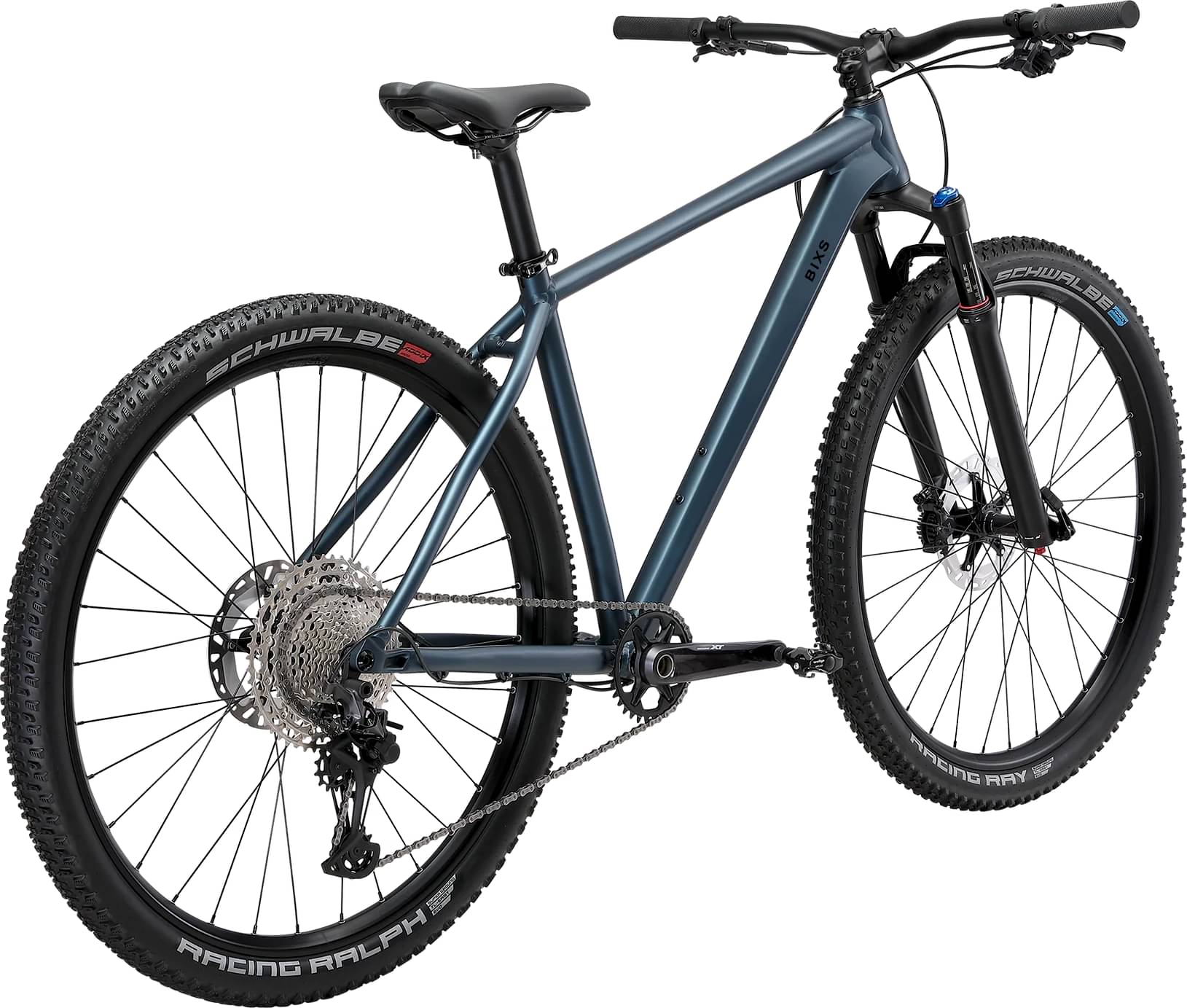

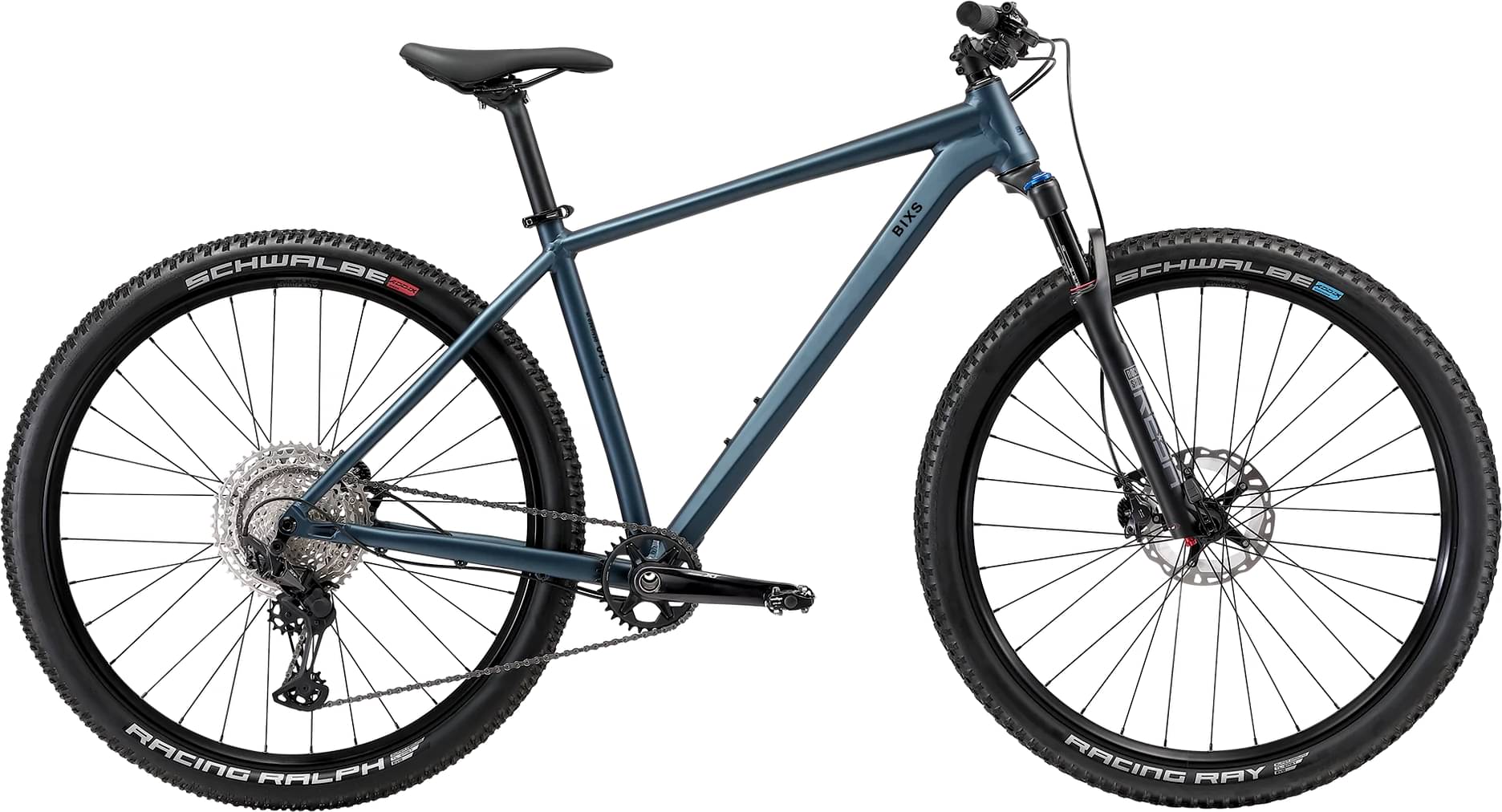

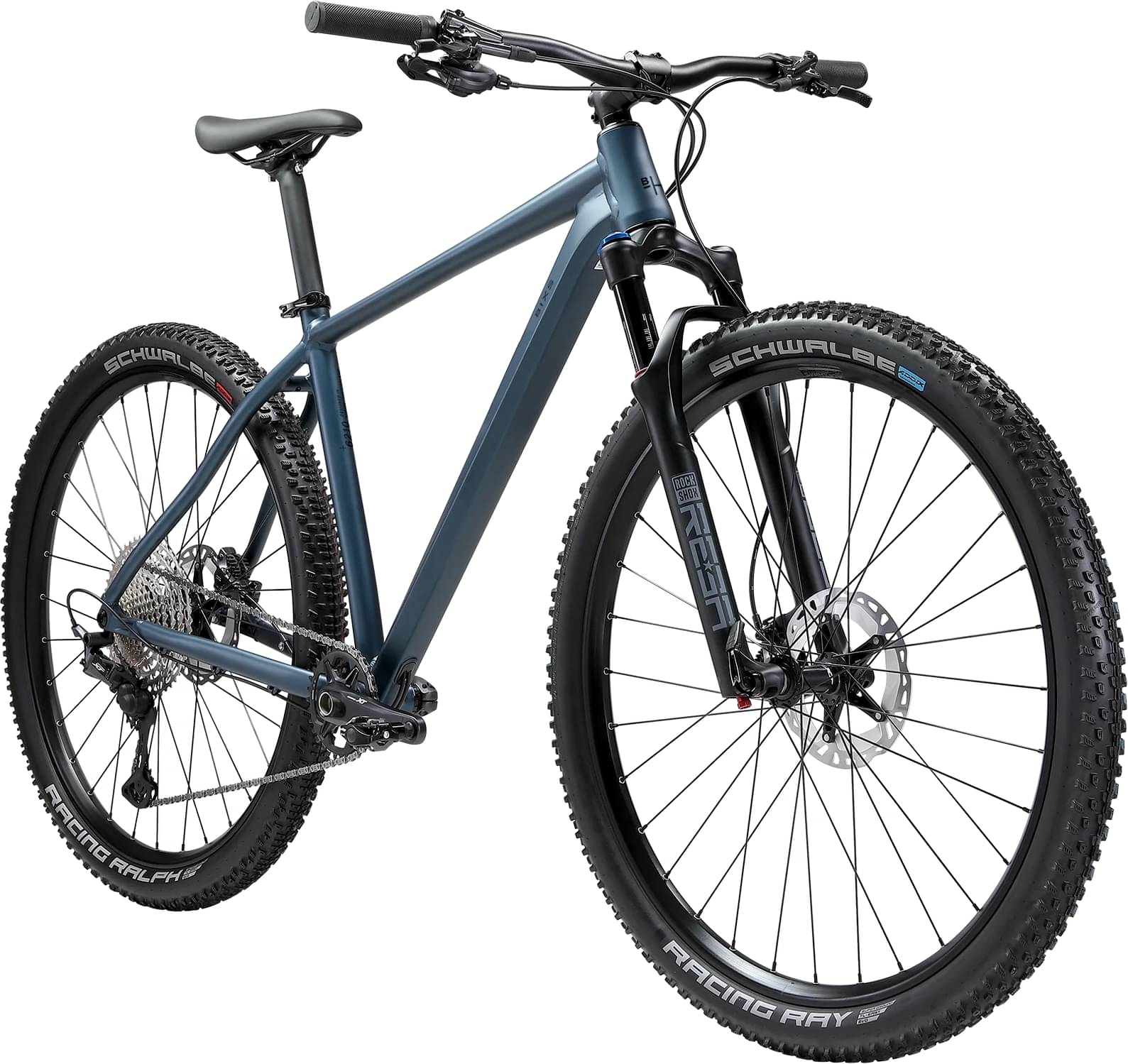

bixs Core 200 Dark Blue 2025
2025 Mountain
Estimate price |
2,654$
Weight | 11.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPORT GEOMETRY ALLOY 6061 HYDROF. T.B. 148x12mm BOOST DROPOUT, Hardtail 29"
Suspension Fork
ROCK SHOX REBA RL 29", SOLO AIR SPRING, TAPERED, 15x110mm AXLE, 100mm TRAVEL, REBOUND, LOCKOUT
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO XT FC-M8100-1, HOLLOWTECH II, 32 TEETH
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO CN-M8100 12-Speed
Wheels
Front Hub
SHIMANO XT HB-M8110-B, 32 HOLES, 15x110mm THRU AXLE
Rear Hub
SHIMANO XT FH-M8110-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Rims
ALEXRIMS MD-30, 32 HOLES, INNER WIDTH 30mm, 29"
Tires
SCHWALBE RACING RAY EVO SUPER GROUND, ADDIX SPEEDGRIP, TL EASY, 29x2.35"
Brakes
Brakes
SHIMANO XT BR-M8100, HYDRAULIC DISC BRAKE, RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO XT BL-M8100, ISPEC EV
Cockpit
Stem
BIXS AS-M03, 0°ANGLE, 31.8mm CLAMP
Handlebar
BIXS HB-RB12W RIZER BAR, 760mm, 9°ANGLE, 25mm RISE, 31.8mm
Headset
FSA NO.57, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 5.3mm TOP COVER
Seat
Saddle
BIXS VL-3533
Seatpost
BIXS SP-719, S & M: 350mm, OTHERS: 400mm, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
