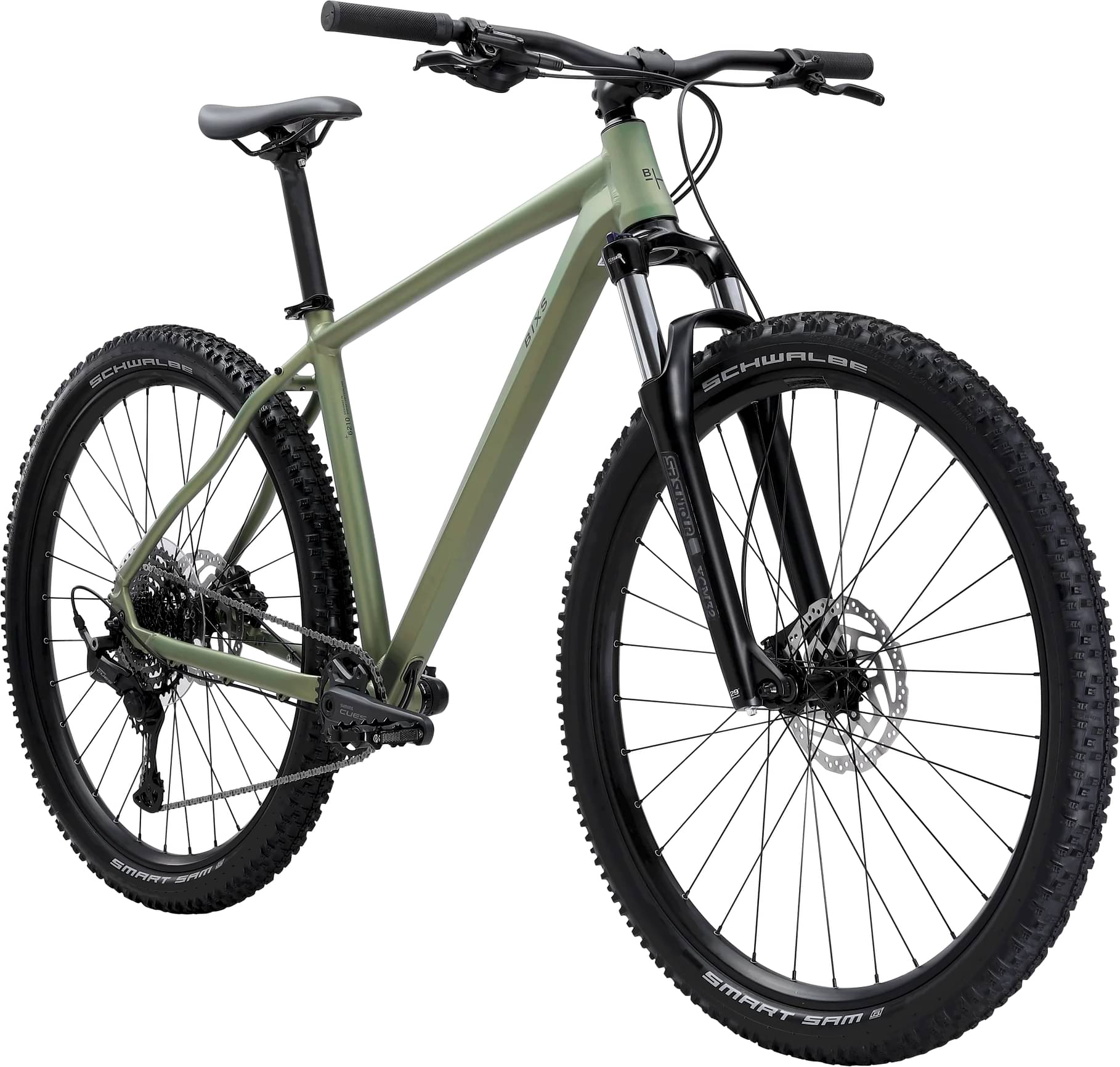

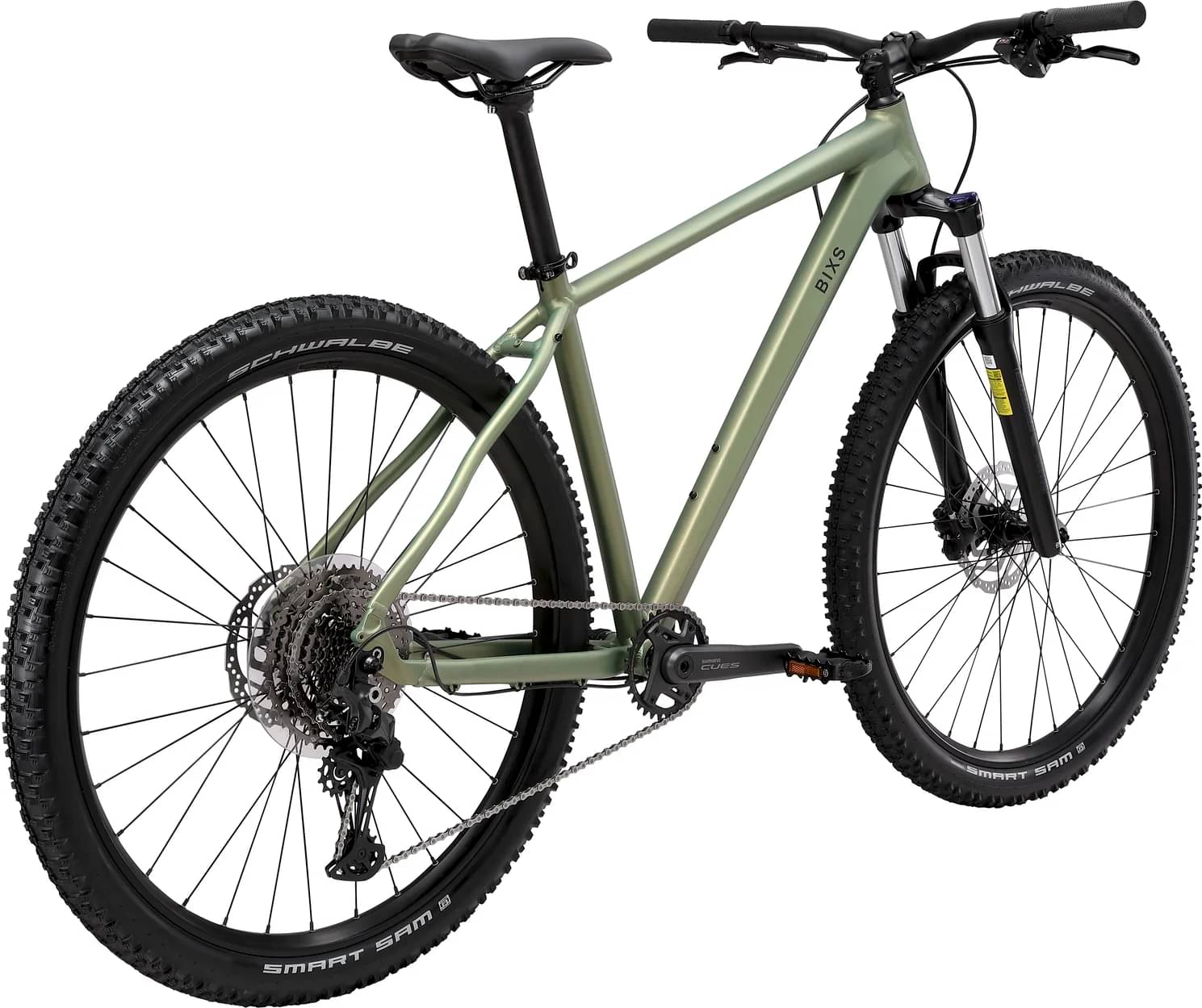

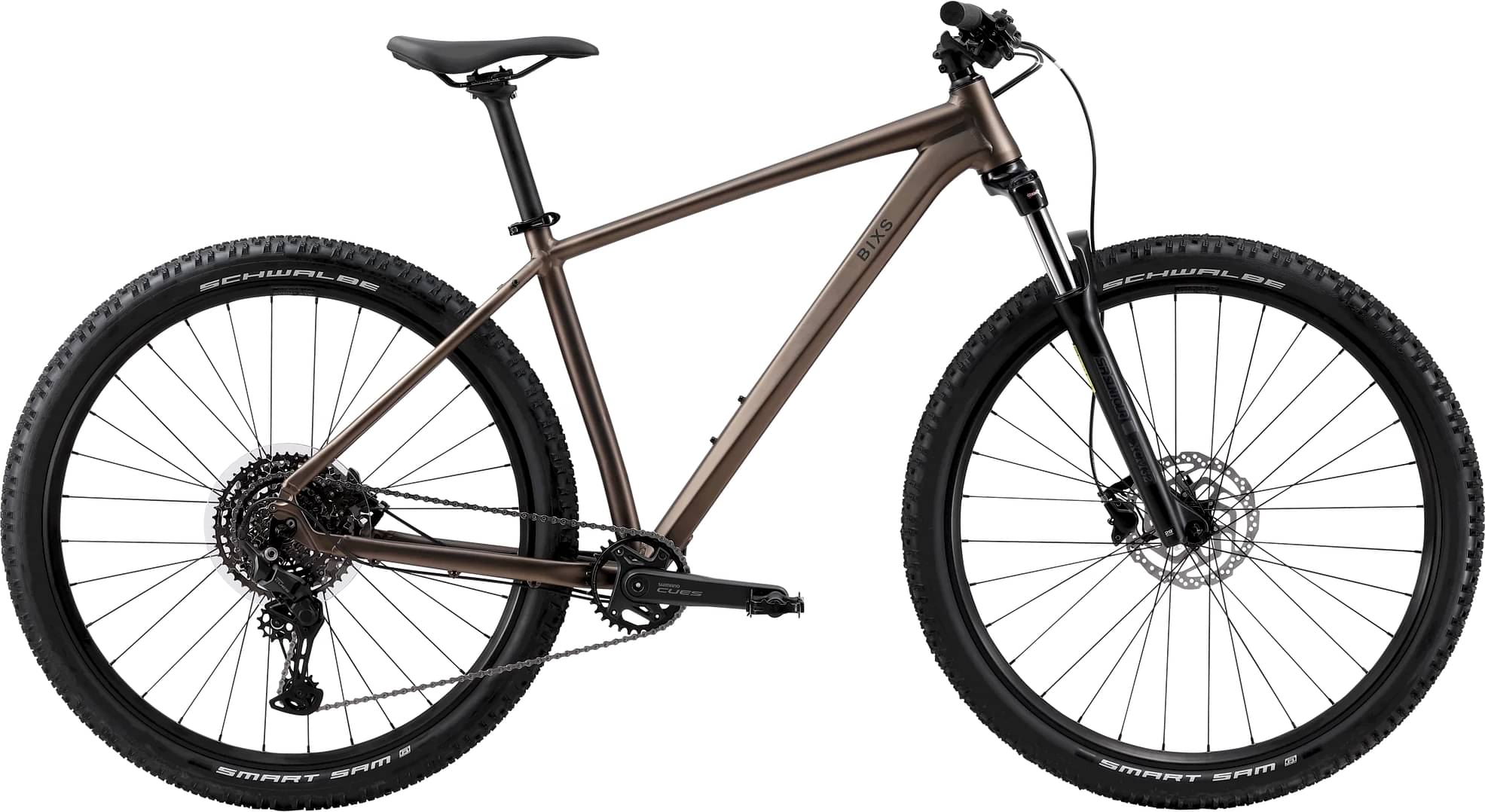

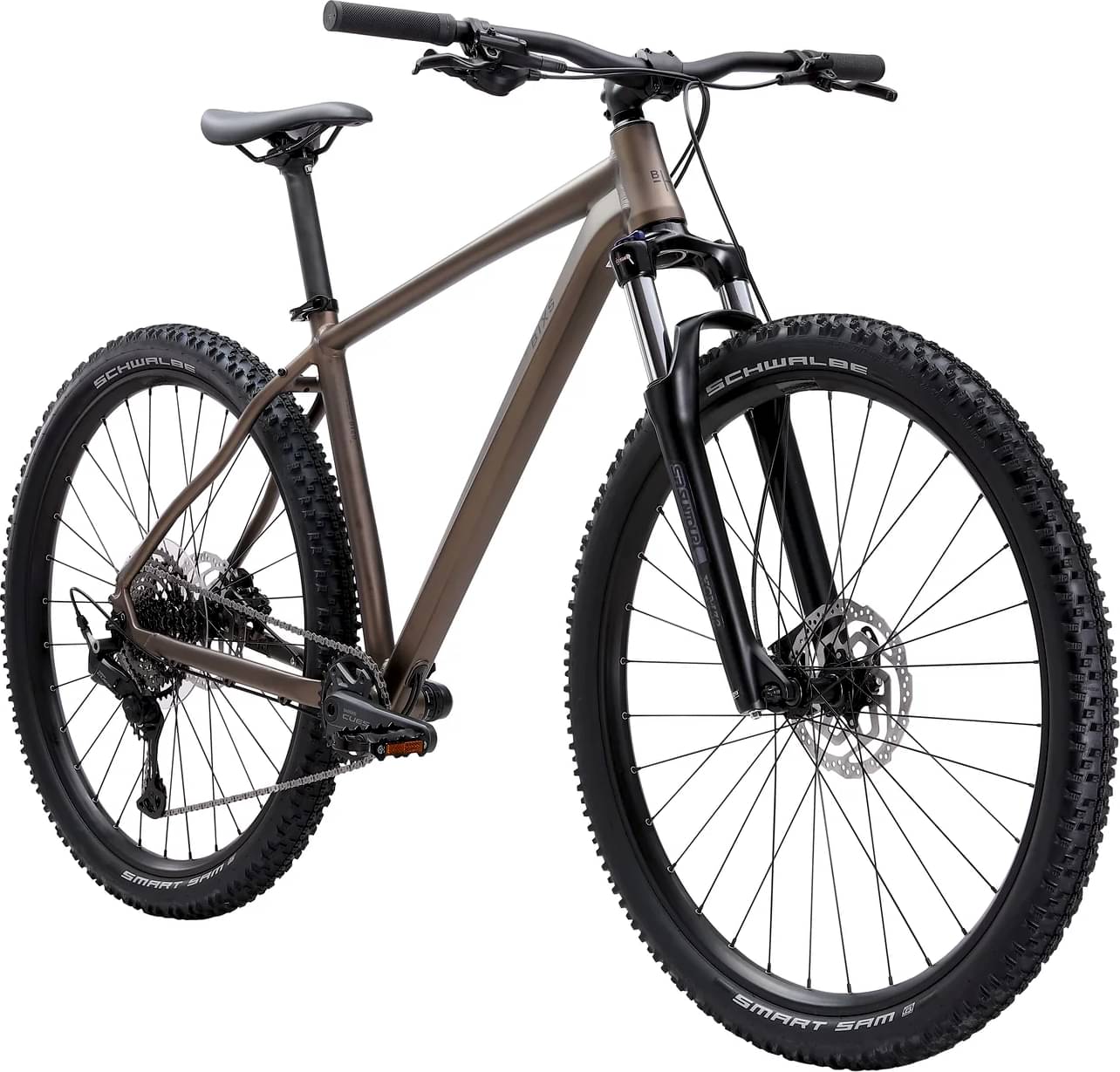

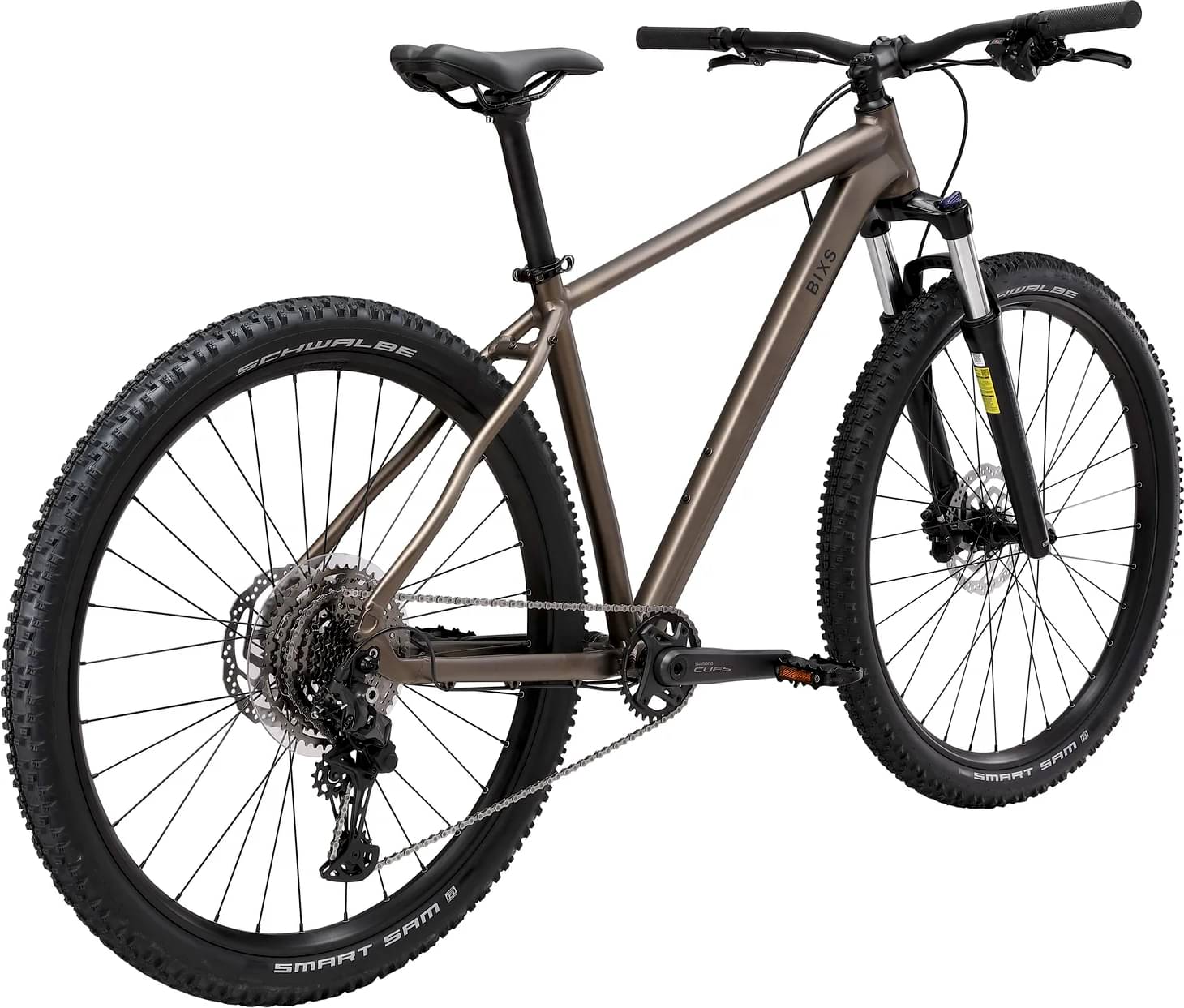

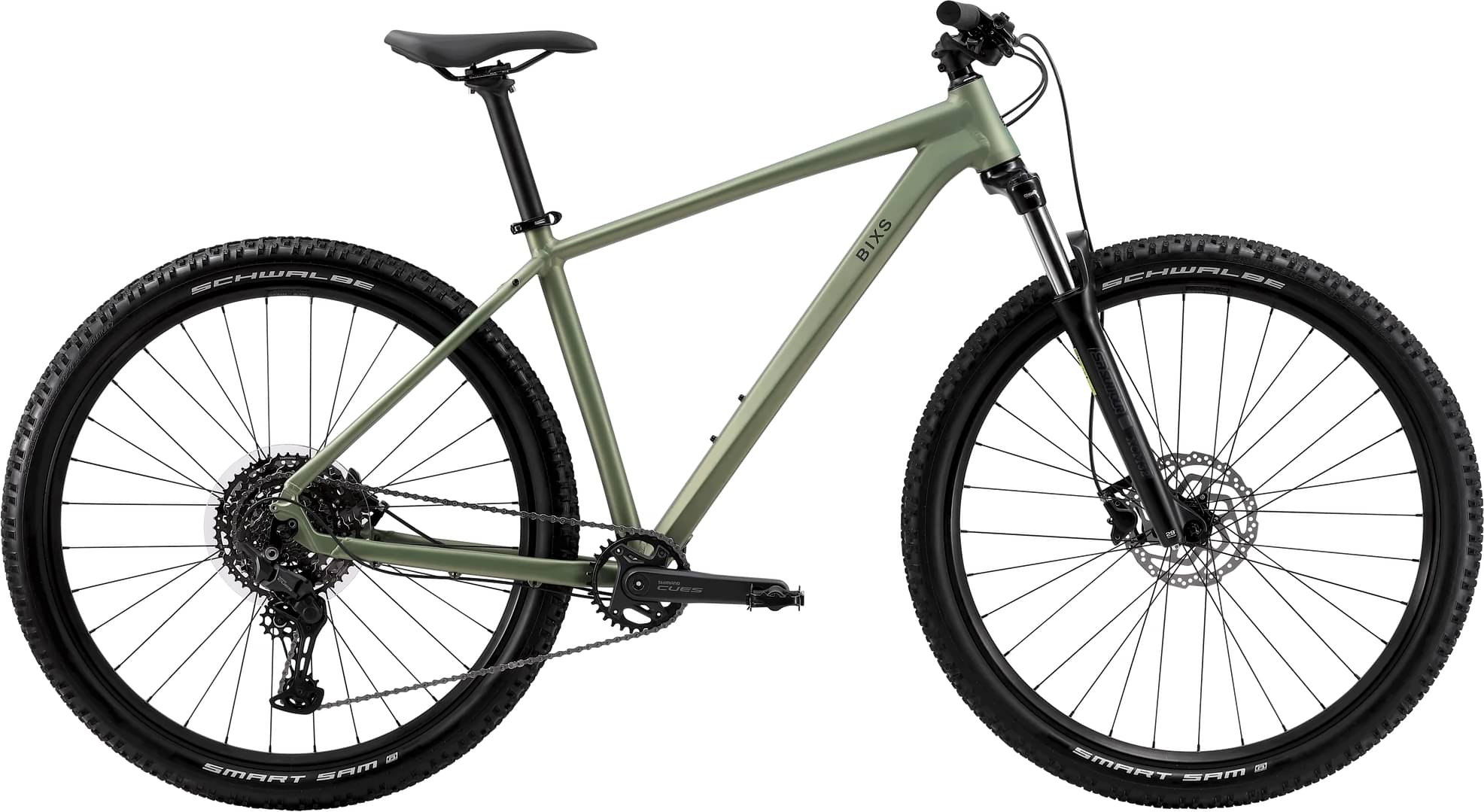

bixs Core 500 2025
2025 Mountain
Estimate price |
1,110$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CORE PREMIUM ALLOY HARDTAIL, 5X135MM
Suspension Fork
SUNTOUR SF23-XCM32 COIL, 100MM TRAVEL, 5X100MM
Drivetrain
Rear Derailleur
SHIMANO CUES RD-U6000, 10-SPEED
Shift Levers
SHIMANO CUES SL-U6000-10R
Cassette
SHIMANO CUES CS-LG400-10, 11-48T
Crank
SHIMANO CUES FC-U6000-1, CL52, 32T
Chain
SHIMANO CUES CN-LG500
Wheels
Front Hub
SHIMANO HB-QC400, 32 holes
Rear Hub
SHIMANO FH-QC400-HM, 32 HOLES
Rims
ALEXRIMS MD30, 30MM INNER WIDTH
Tires
SCHWALBE SMART SAM K-GUARD, 29X2.35"
Brakes
Brakes
SHIMANO BL-MT201, BR-MT200 2-PISTON
Cockpit
Stem
BIXS STEM, 0°, 31.8MM CLAMP
Handlebar
BIXS RIZER BAR, 25MM RISE, 740MM
Seat
Saddle
BIXS VL-3533
Seatpost
BIXS SEATPOST, Ø31.6MM, S & M: 3 50MM, L & X L: 400MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
