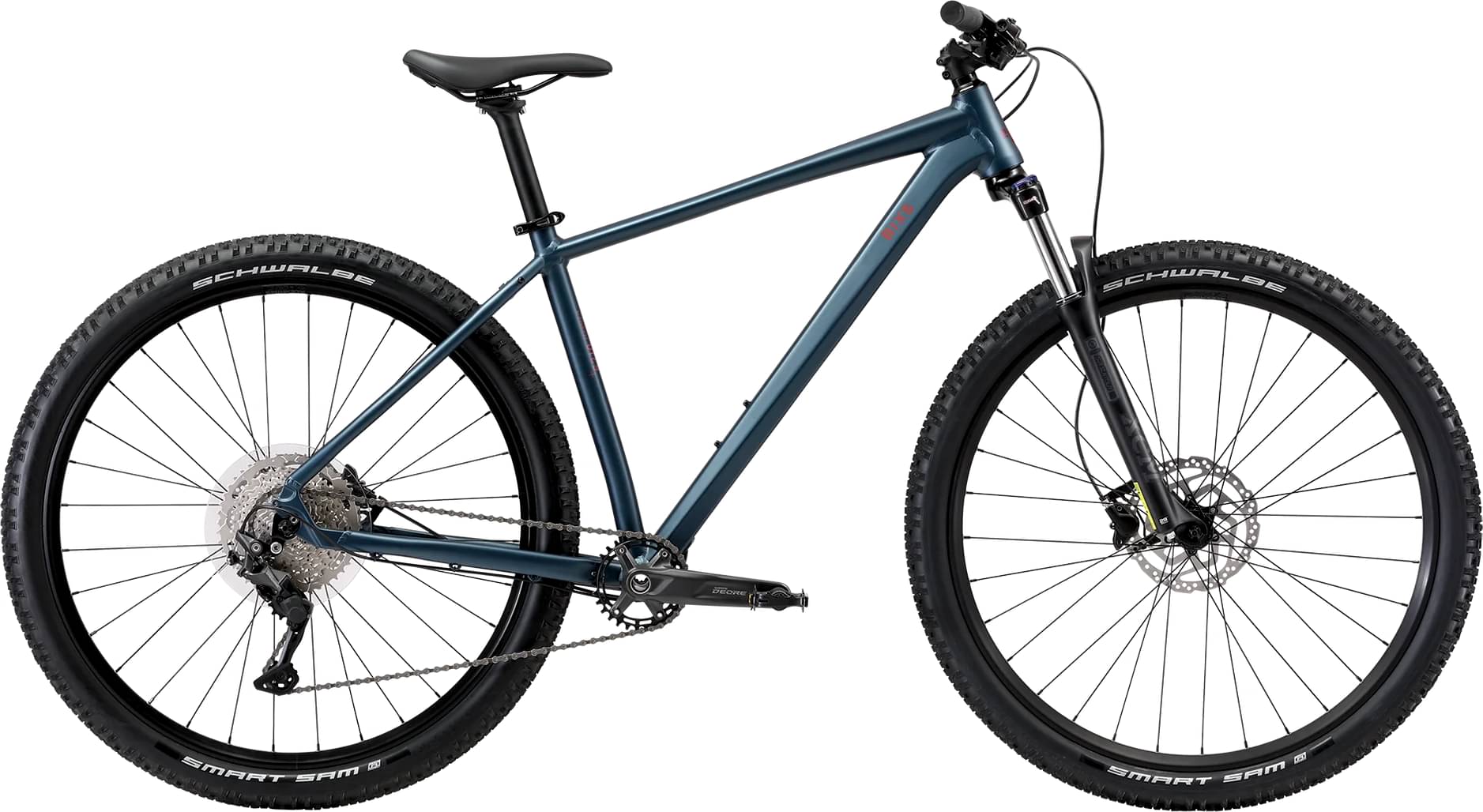

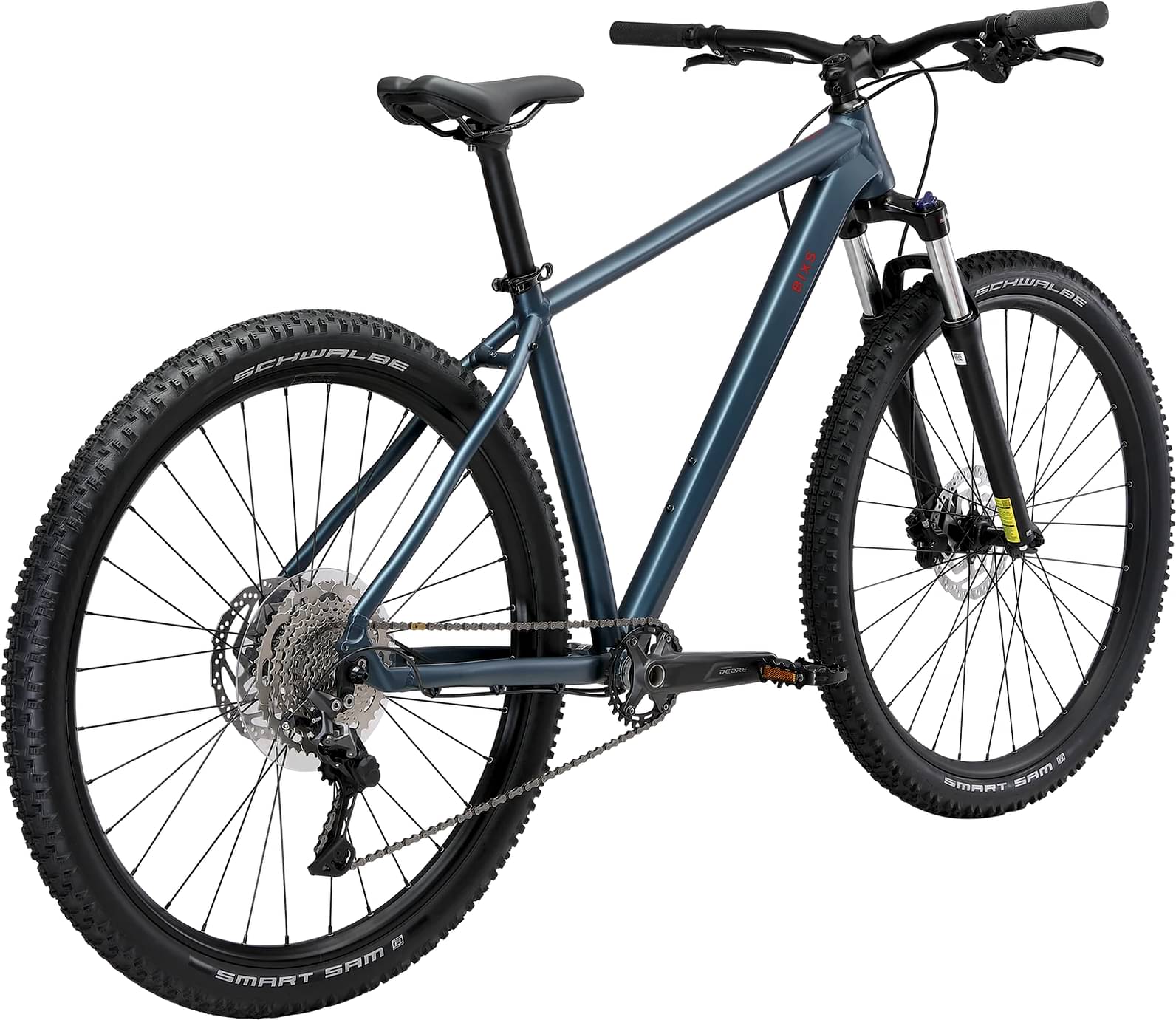

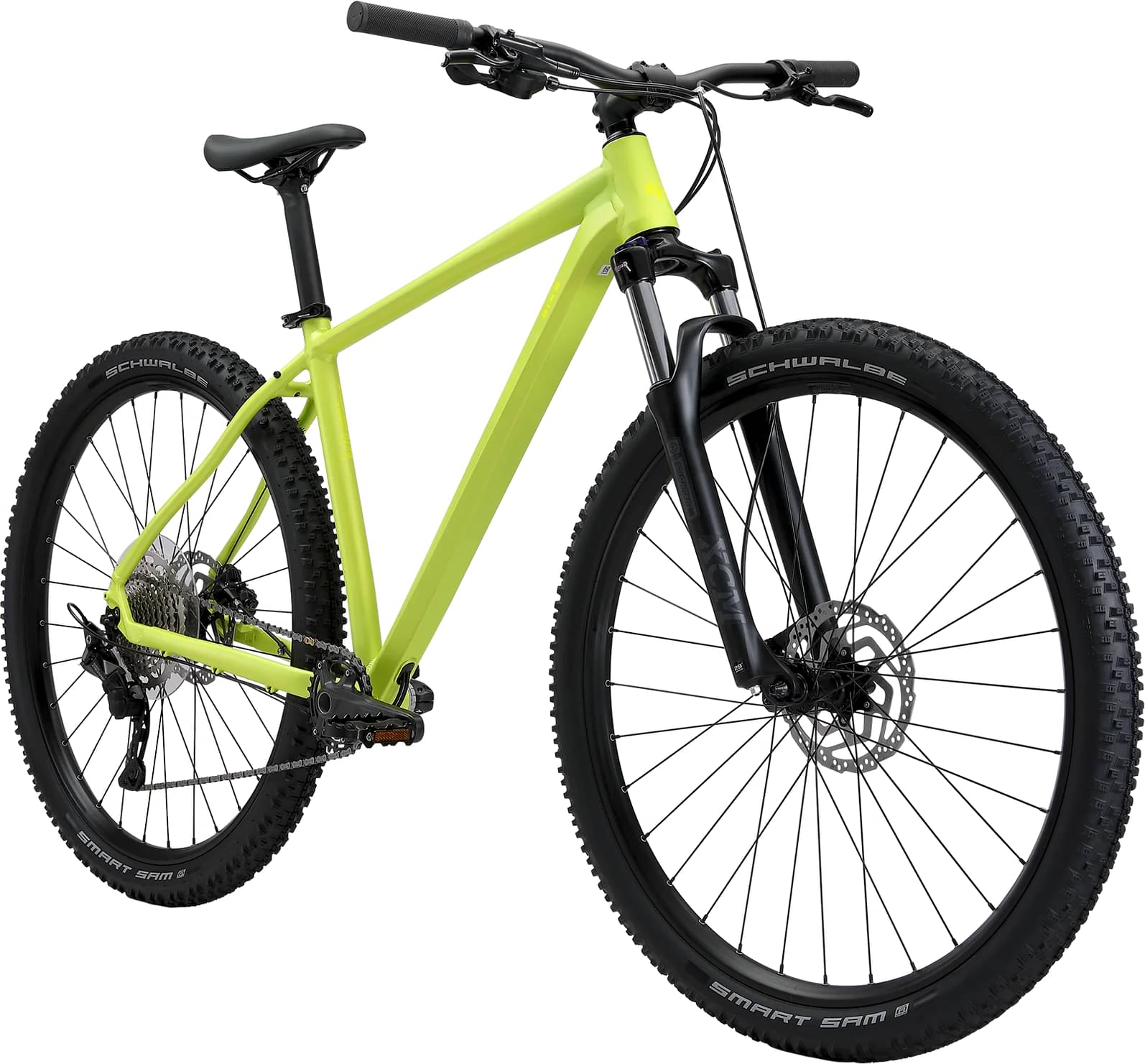

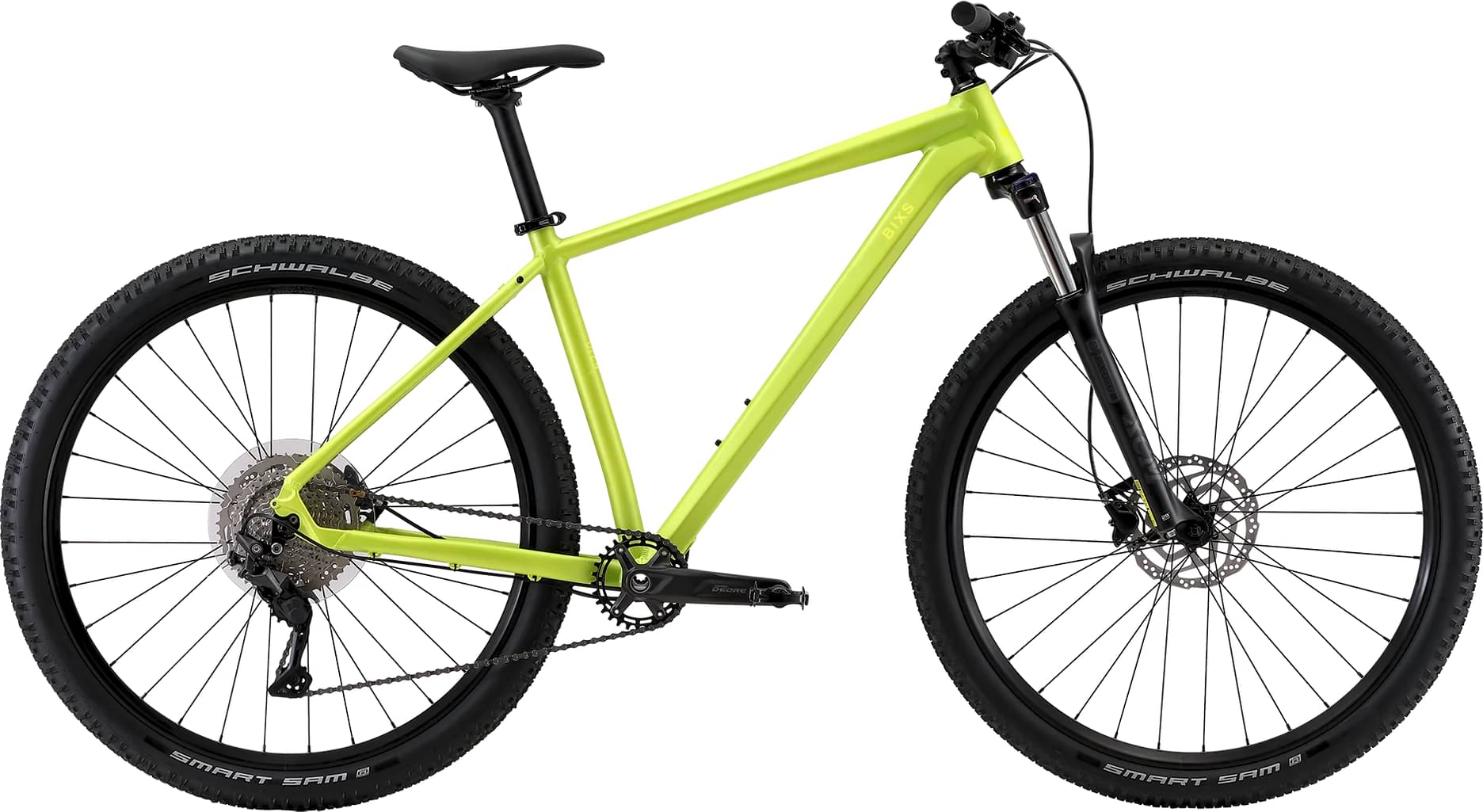

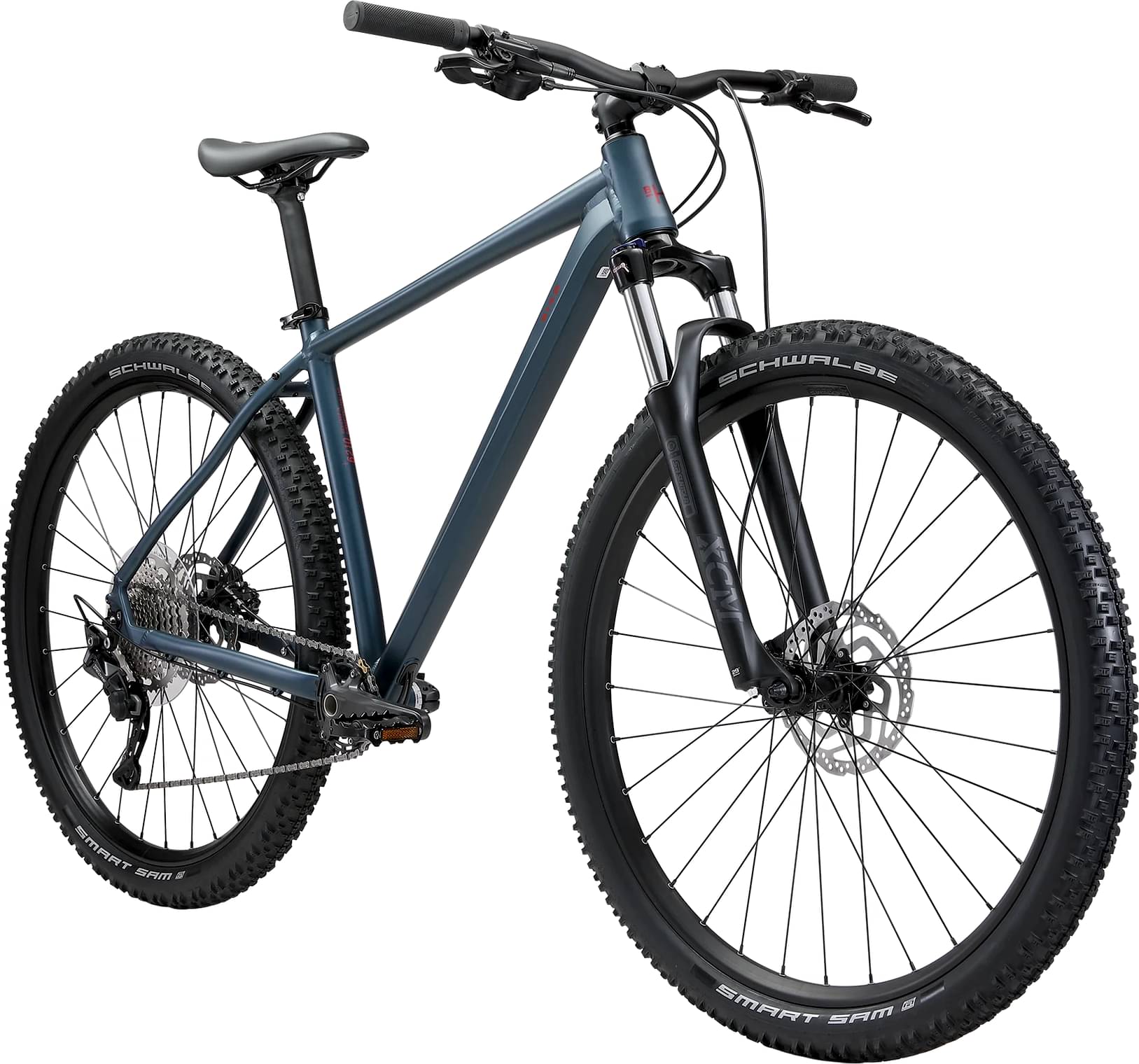

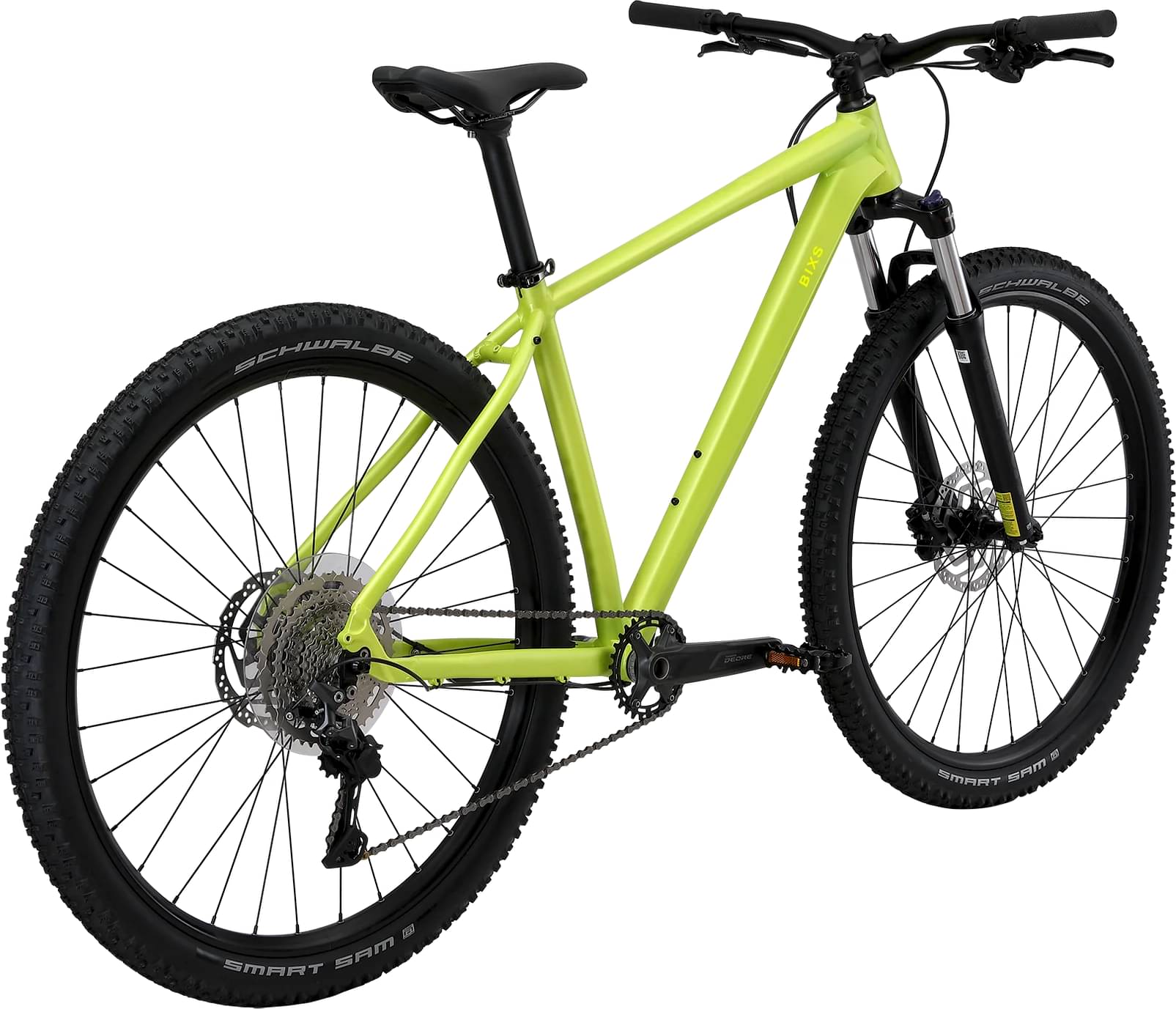

bixs Core 500 Grass Green / Dark Blue – Red 2025
2025 Mountain
Estimate price |
1,089$
Weight | 14.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPORT GEOMETRY ALLOY 6061 HYDROF. T.B. Hardtail 29"
Suspension Fork
SUNTOUR XCM DS HLO 29", COIL SPRING, TAPERED, 100mm TRAVEL, LOCKOUT
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED
Shift Levers
SHIMANO DEORE SL-M4100, WITH OPTICAL GEAR DISPLAY
Cassette
SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED
Crank
SHIMANO FC-M5100-1, 2-PIECE CRANKSET, 30 TEETH
Chain
SHIMANO CN-HG54 10-SPEED
Wheels
Front Hub
SHIMANO HB-RM35, 32 HOLES, QR
Rear Hub
SHIMANO FH-RM35, 32 HOLES, QR
Rims
ALEXRIMS MD-27, 32 HOLES, INNER WIDTH 27mm, 29"
Tires
SCHWALBE SMART SAM K-GUARD, 29x2.35"
Brakes
Brakes
SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
BIXS AS-M03, 0°ANGLE, 31.8mm CLAMP
Handlebar
BIXS HB-RB12L, 740mm, 9°ANGLE, 25mm RISE, 31.8mm
Headset
FSA NO.57B, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 8.2mm TOP COVER
Seat
Saddle
BIXS VL-3533
Seatpost
BIXS SP-3D2, S & M: 350mm, OTHERS: 400mm, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
