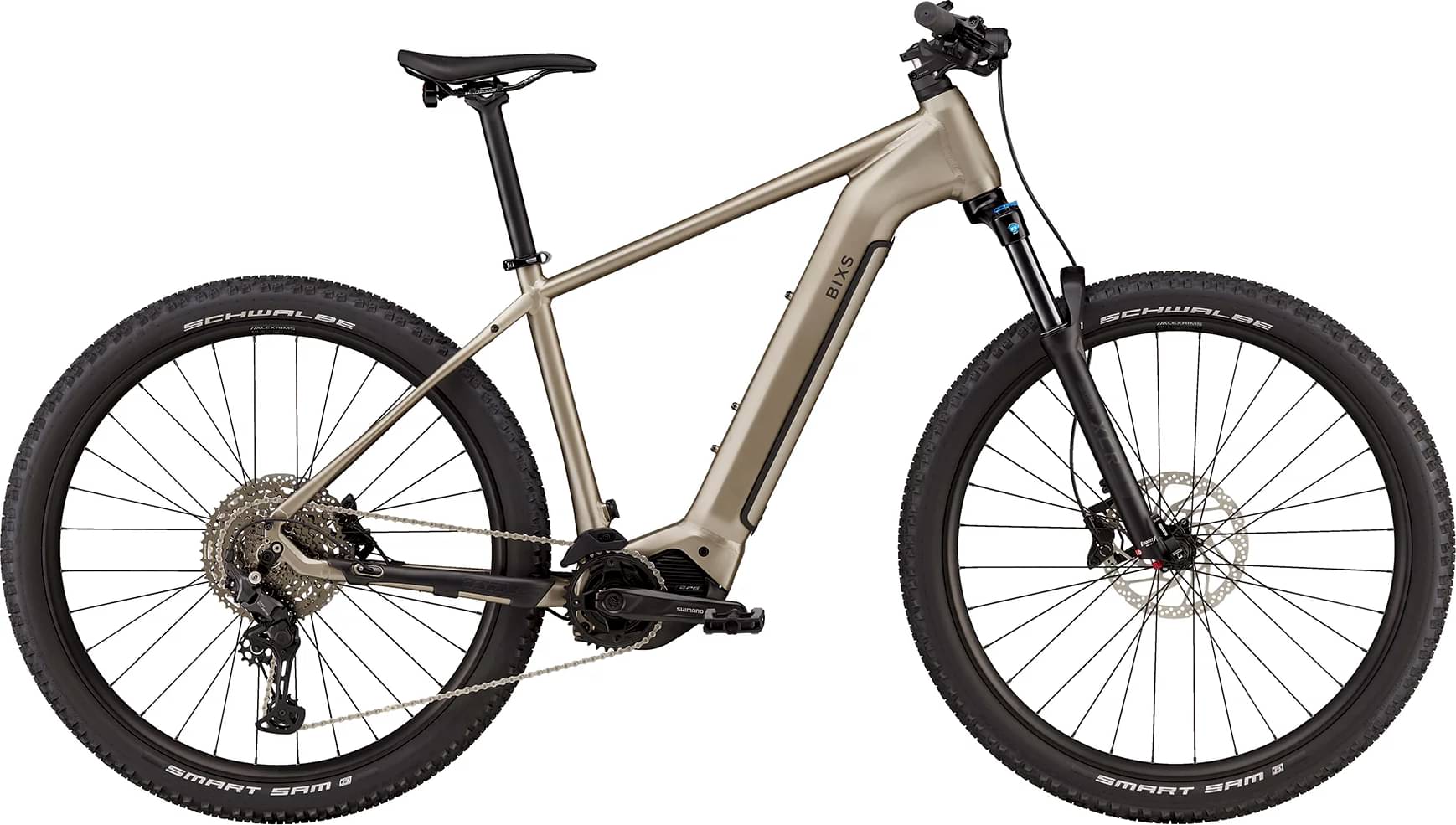

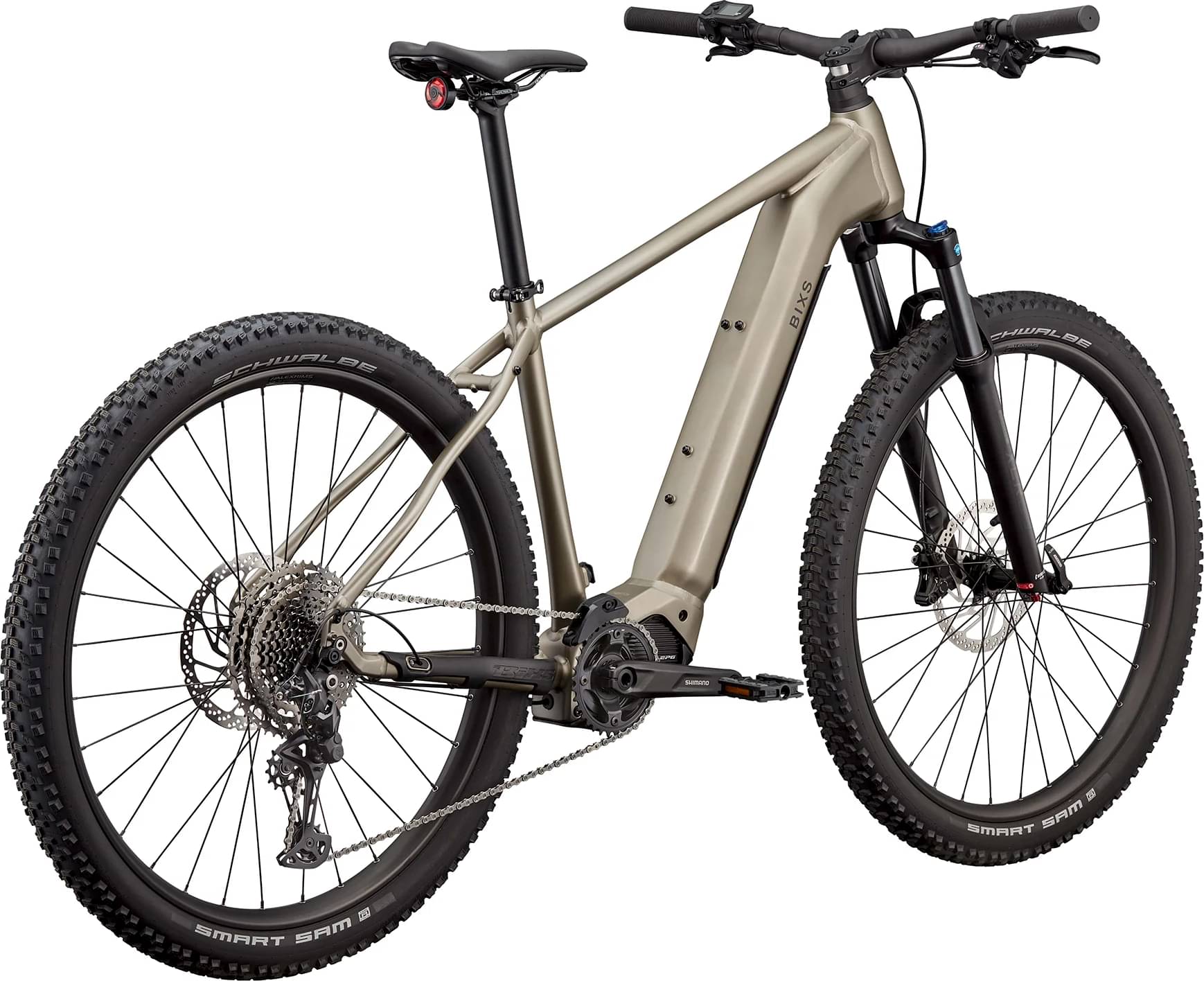

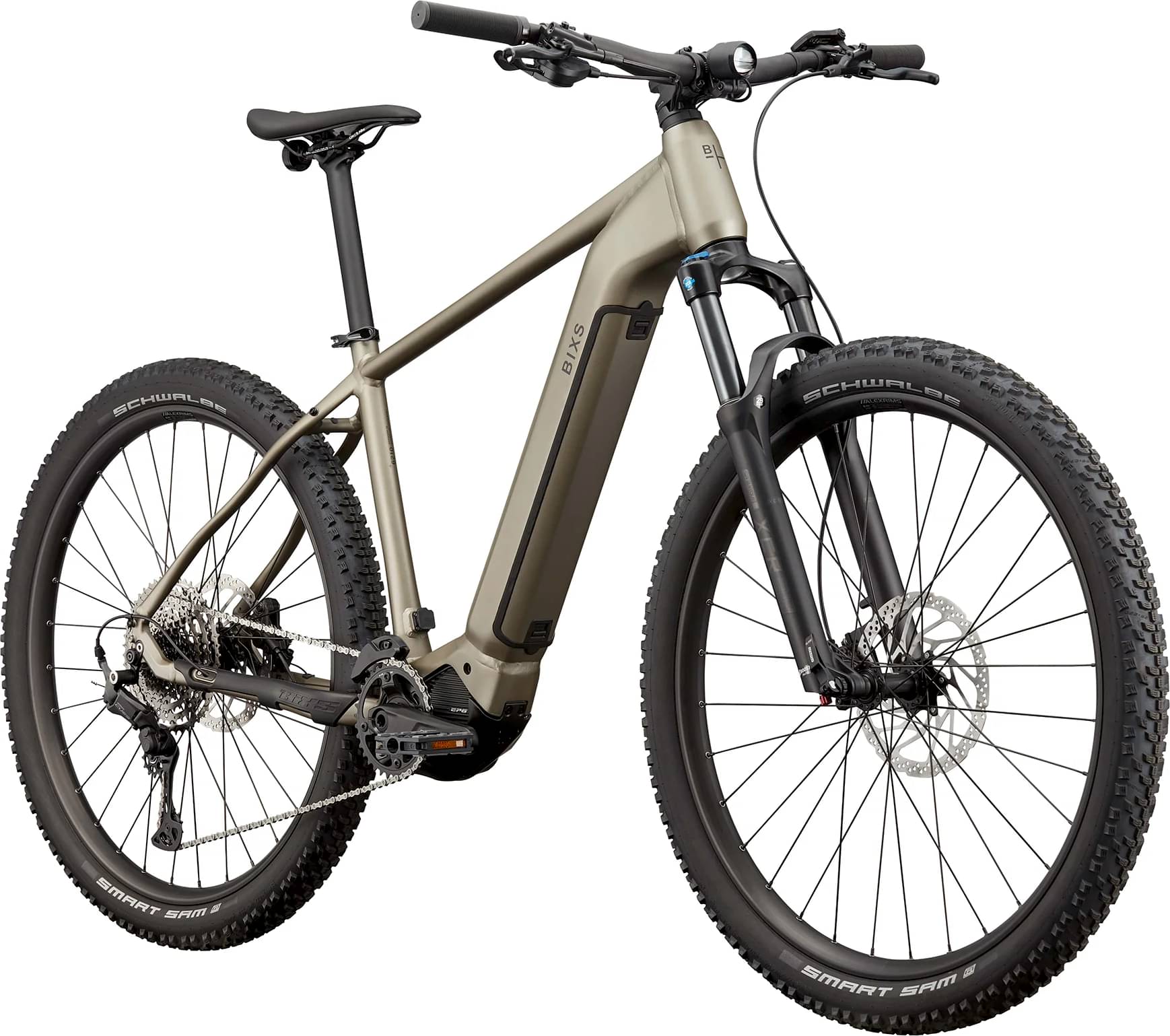

bixs Core-E22 2025
2025 E-bike
Estimate price |
4,835$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery DARFON 600WH, RANGE EXTENDER CAPABLE -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CORE-E PREMIUM ALLOY HARDTAIL, 12X148MM BOOST
Suspension Fork
SUNTOUR SF23-XCR34 DS AIR, 120MM TRAVEL, 15X110MM
Drivetrain
Rear Derailleur
SHIMANO CUES RD-U6000, 11-SPEED
Shift Levers
SHIMANO CUES SL-U6000-11R
Cassette
SHIMANO CUES CS-LG400-11, 11-50T
Crank
SHIMANO FC-EM600, SM-CRE70-B, CL53, 34T
Chain
SHIMANO CUES CN-LG500
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32 HOLES
Rear Hub
SHIMANO FH-TC500-HM-B, 32 HOLES
Rims
ALEXRIMS EM35, 35MM INNER WIDTH
Tires
SCHWALBE SMART SAM K-GUARD, 29X2.6"
Brakes
Brakes
SHIMANO BL-M4100, BR-MT420 4-PISTON
Cockpit
Stem
SATORI URSA, 0°, 35MM CLAMP
Handlebar
BIXS RIZER BAR, 25MM RISE, 760MM
Seat
Saddle
BIXS-VL-4432
Seatpost
BIXS SEATPOST, Ø31.6MM, S & M: 3 50MM, L & X L: 400MM
Motor & Battery
Motor
SHIMANO EP600, 85NM
Battery
DARFON 600WH, RANGE EXTENDER CAPABLE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
