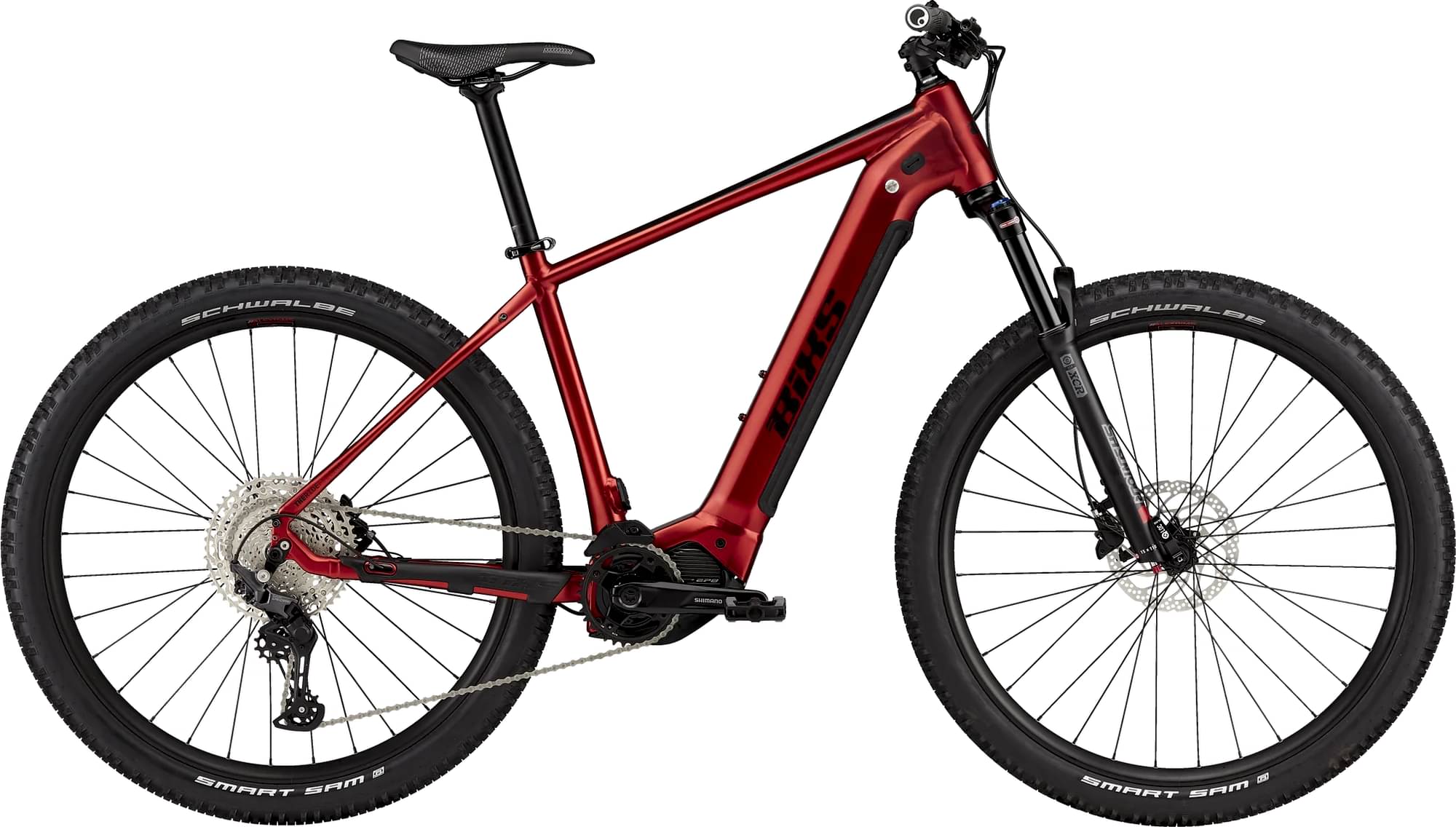

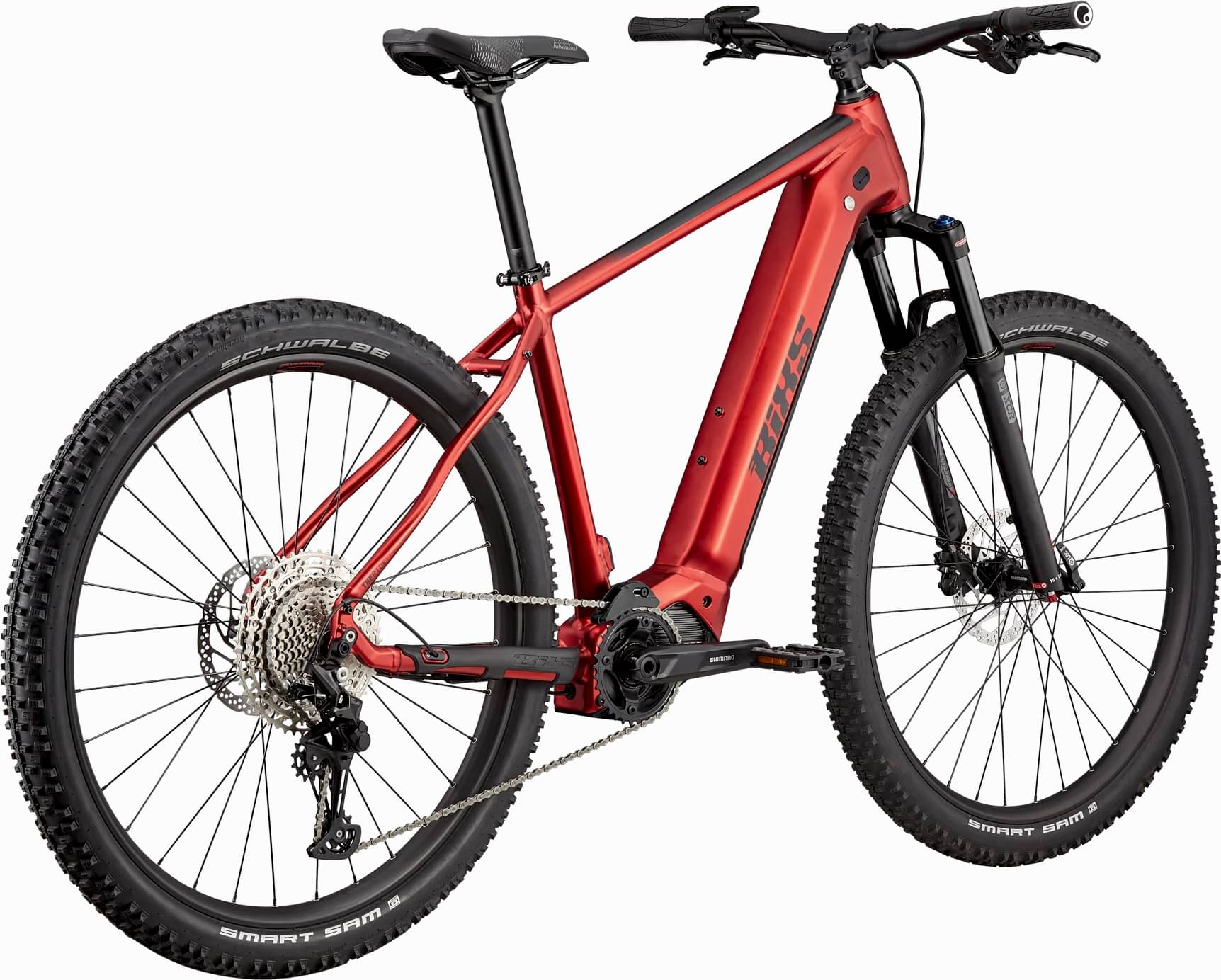

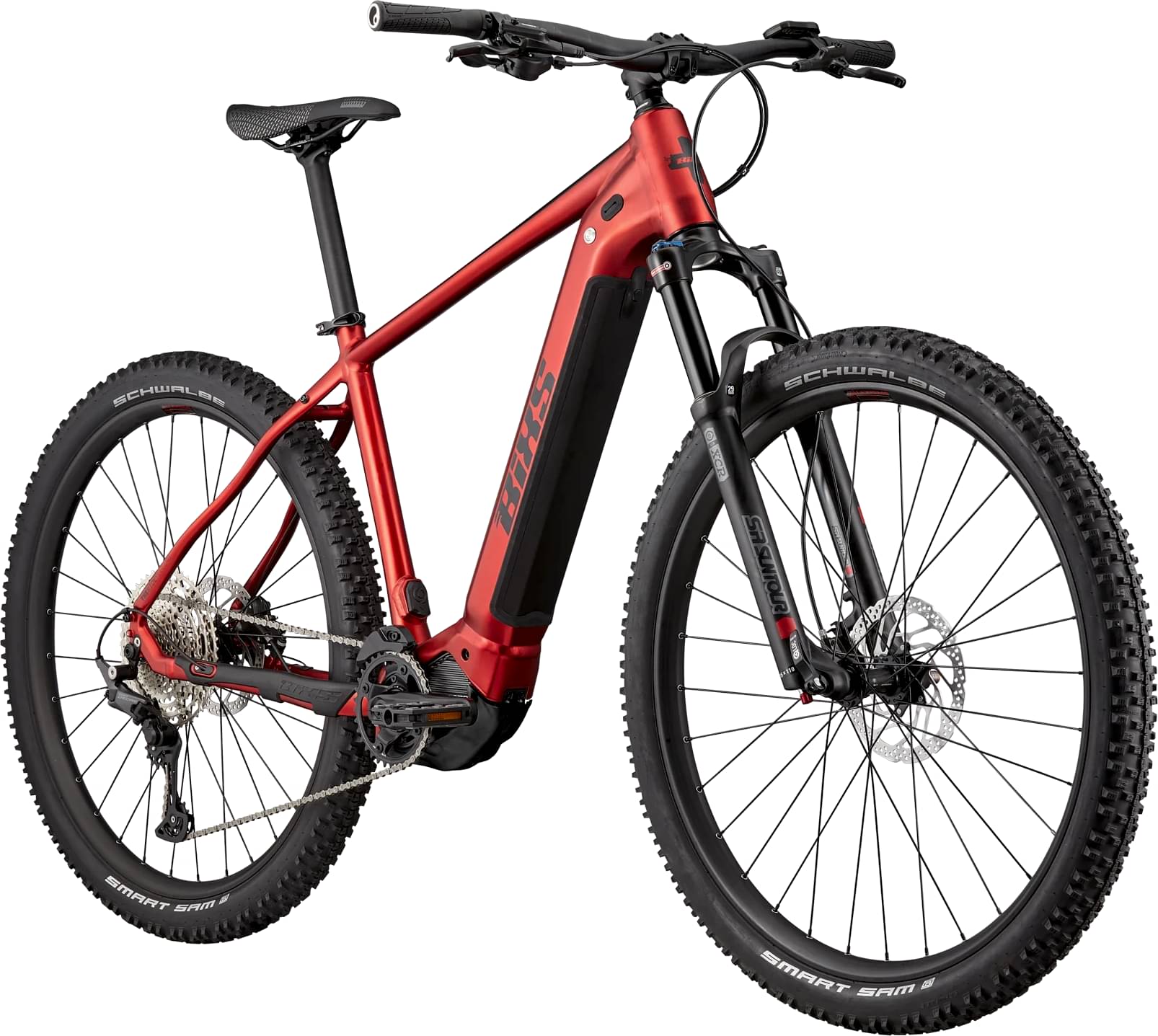

bixs Core-E22 (Sale) 2025
2025 E-bike
Estimate price |
4,185$
Weight | 22.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 500Wh -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-SPORT GEOMETRY, ALLOY 6061 HYDROFORMED D.B. TUBES, HARDTAIL, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
SUNTOUR XCR34 AIR LO-R 29", BOOST, TAPERED, AIR SPRING, 120mm TRAVEL, REBOUND, LOCKOUT
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5100 SGS SHADOW PLUS DESIGN, 11-SPEED
Shift Levers
SHIMANO DEORE SL-M5100, WITH OPTICAL GEAR DISPLAY
Cassette
SHIMANO CS-M5100, 11-51 THEETH, 11-SPEED
Crank
SHIMANO STEPS FC-EM600, 34 TEETH
Bottom Bracket
STEPS, press-fit
Chain
SHIMANO CN-HG701-11
Wheels
Front Hub
SHIMANO HB-MT400-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear Hub
SHIMANO FH-MT400-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Tires
SCHWALBE SMART SAM PERFORMANCE, ADDIX, 29x2.6"
Brakes
Brakes
SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
BIXS 0°ANGLE, 35mm CLAMP
Handlebar
BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 35mm
Headset
FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat
Saddle
BIXS VL-3533
Seatpost
BIXS, S & M: 350mm, OTHERS: 400mm, 31.6mm
Motor & Battery
Motor
SHIMANO STEPS EP8, 250 WATT
Battery
DARFON, 36V, 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.646 mm | 1.642 mm | 1.634 mm | 1.545 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 711 mm | 716 mm | 722 mm | 752 mm |
| Rake | 48 mm | 47 mm | 46 mm | 47 mm |
| Trail | 107 mm | 108 mm | 109 mm | 108 mm |
| Stack | 660 mm | 665 mm | 670 mm | 675 mm |
| Reach | 401 mm | 405 mm | 410 mm | 437 mm |
| Top Tube Length | 590 mm | 595 mm | 600 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm | 150 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1175 mm | 1180 mm | 1186 mm | 1216 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm | 59 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
