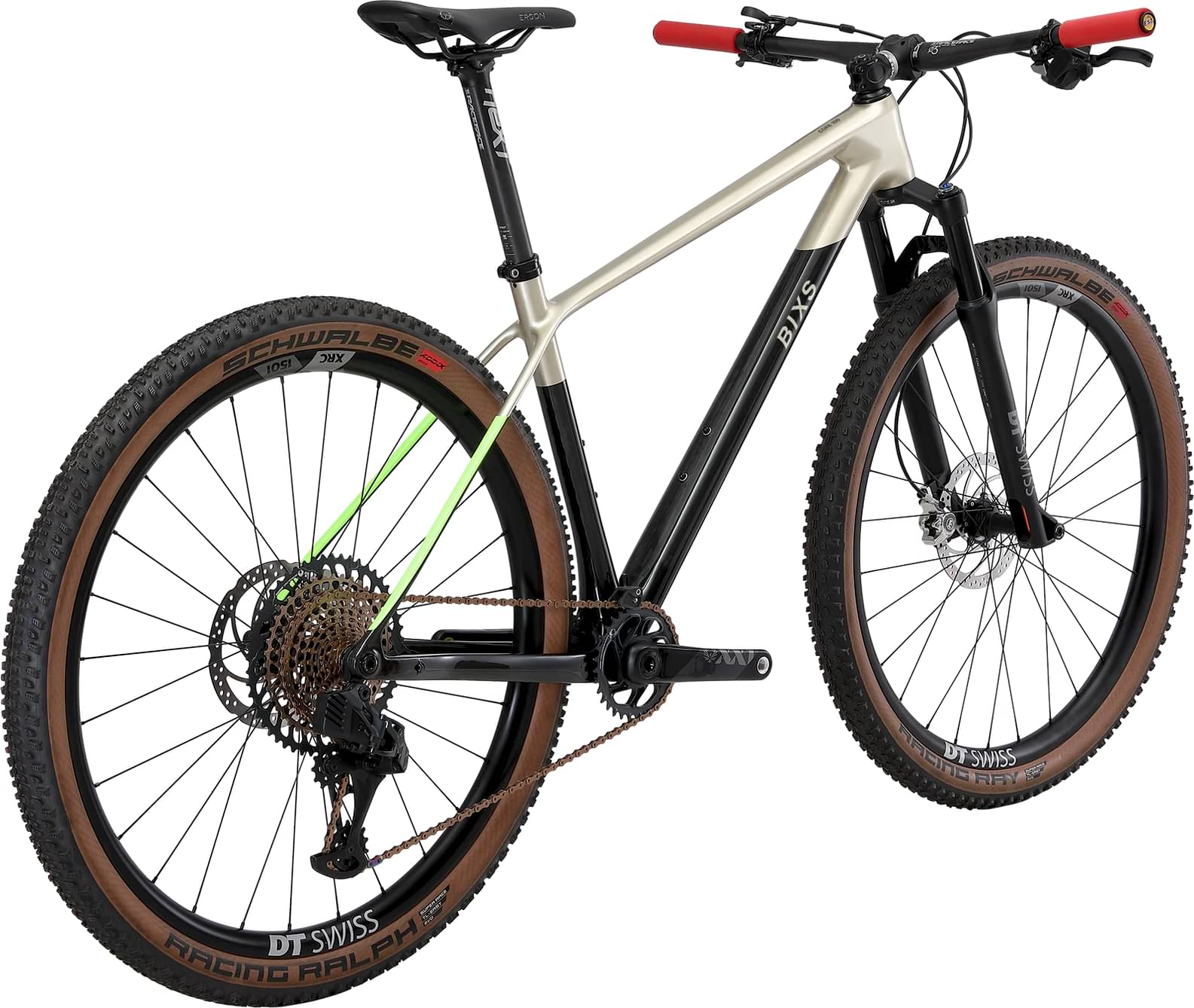

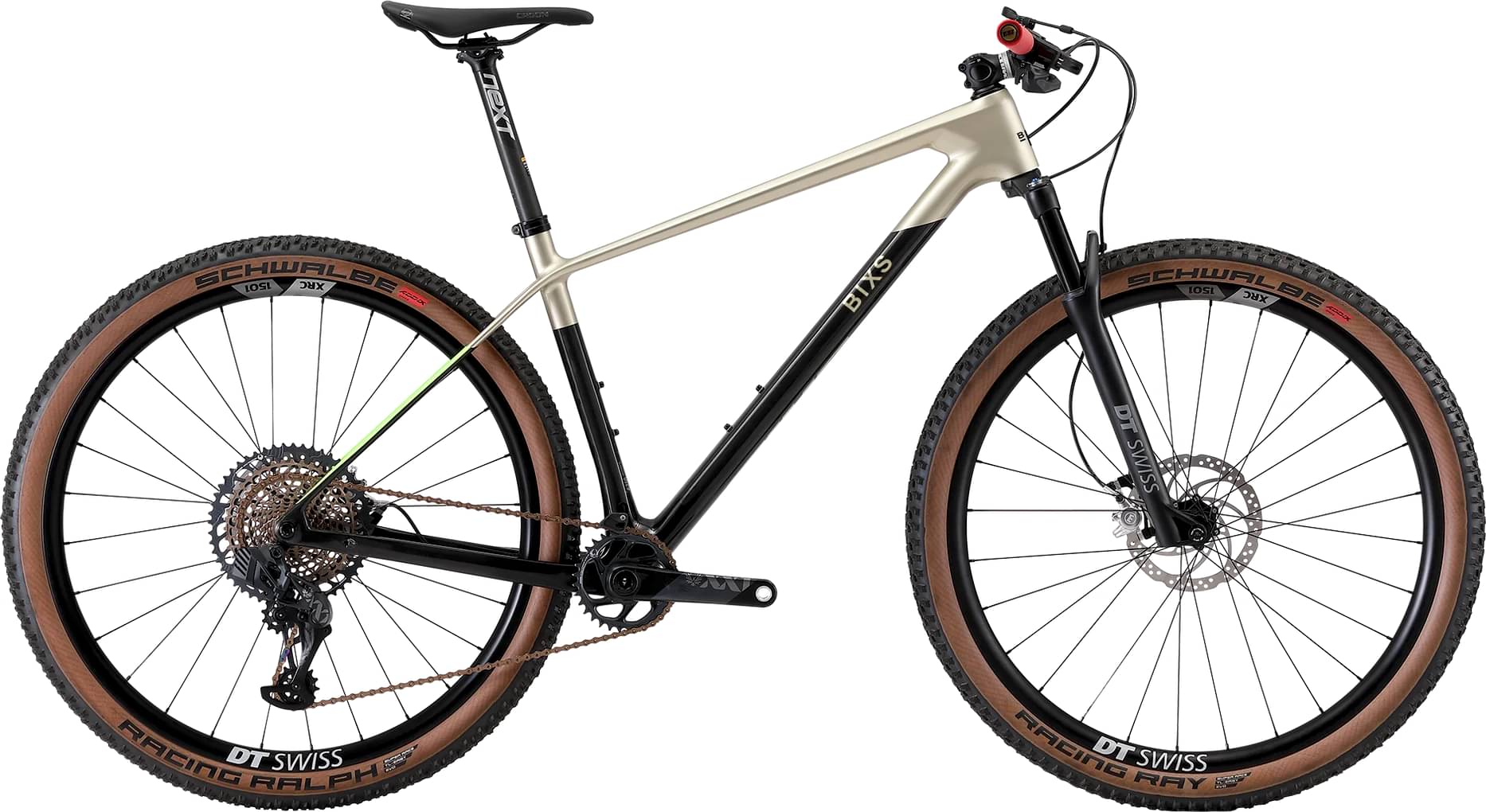

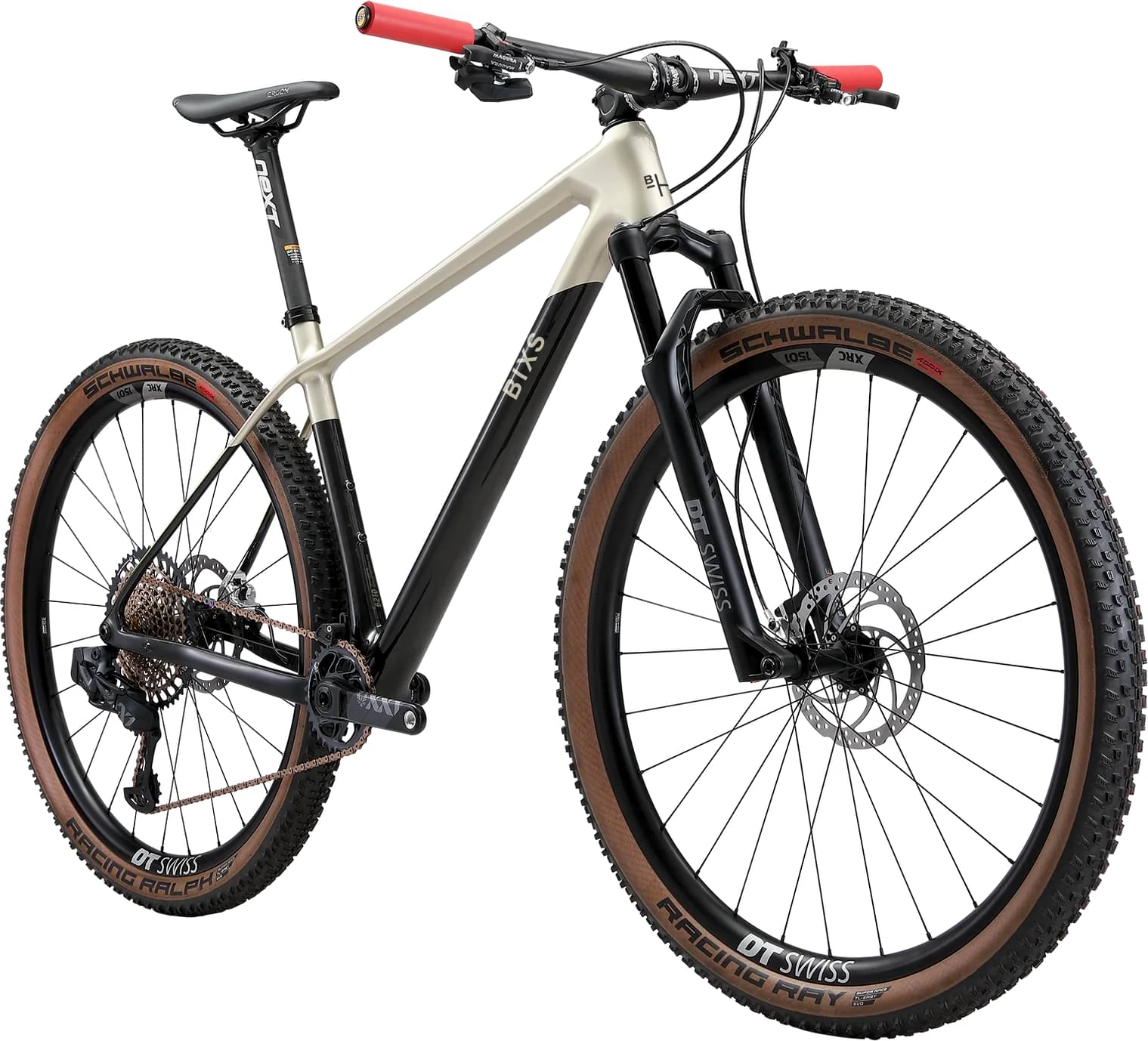

bixs Core Team Champagne – Raw Carbon 2025
2025 Mountain
Estimate price |
8,259$
Weight | 9.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork DT Swiss F 232 ONE
-
Groupset XX1 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Magura MT8 Pro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RACE GEOMETRY, SUPERLITE CARBON M40, 12x148mm BOOST DROPOUT, Hardtail 29"
Suspension Fork
DT SWISS F 232 ONE 29", 15x110mm AXLE, TAPERED, 100mm TRAVEL, TWO-IN-ONE REMOTE LEVER
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE AXS, 12-SPEED
Shift Levers
SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Cassette
SRAM XG-1299 EAGLE, 10-52 TEETH, 12-SPEED COPPER
Crank
SRAM XX1 EAGLE BOOST, DUB, 32 TEETH
Chain
SRAM CN-XX1 EAGLE COPPER
Wheels
Front Hub
DT SWISS WHEELSET SPLINE XRC-1501, CARBON, 28 HOLES, 15x110mm THRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE XRC-1501, CARBON, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE CARBON EXC-1501, 28 HOLES, INNER WIDTH 30mm, 29"
Tires
SCHWALBE RACING RAY EVO SUPER RACE, ADDIX SPEEDGRIP, TL EASY, 29x2.35"
Brakes
Brakes
MAGURA MT8 PRO, HYDRAULIC DISC BRAKE, ROTORS F:160mm, R:160mm
Brake Levers
MAGURA MT8 PRO 1-FINGER HC ALUMINUM LEVER BLADE
Cockpit
Stem
RACE FACE AEFFECT, 6°ANGLE, 35mm CLAMP
Handlebar
RACE FACE NEXT CARBON, 760mm, 10mm RISE, 8° BACKSWEEP, 35mm
Headset
FSA NO.42/48 ACB, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 8.7mm TOP COVER
Seat
Saddle
ERGON SR10 SPORT
Seatpost
RACE FACE NEXT CARBON, 400mm, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
