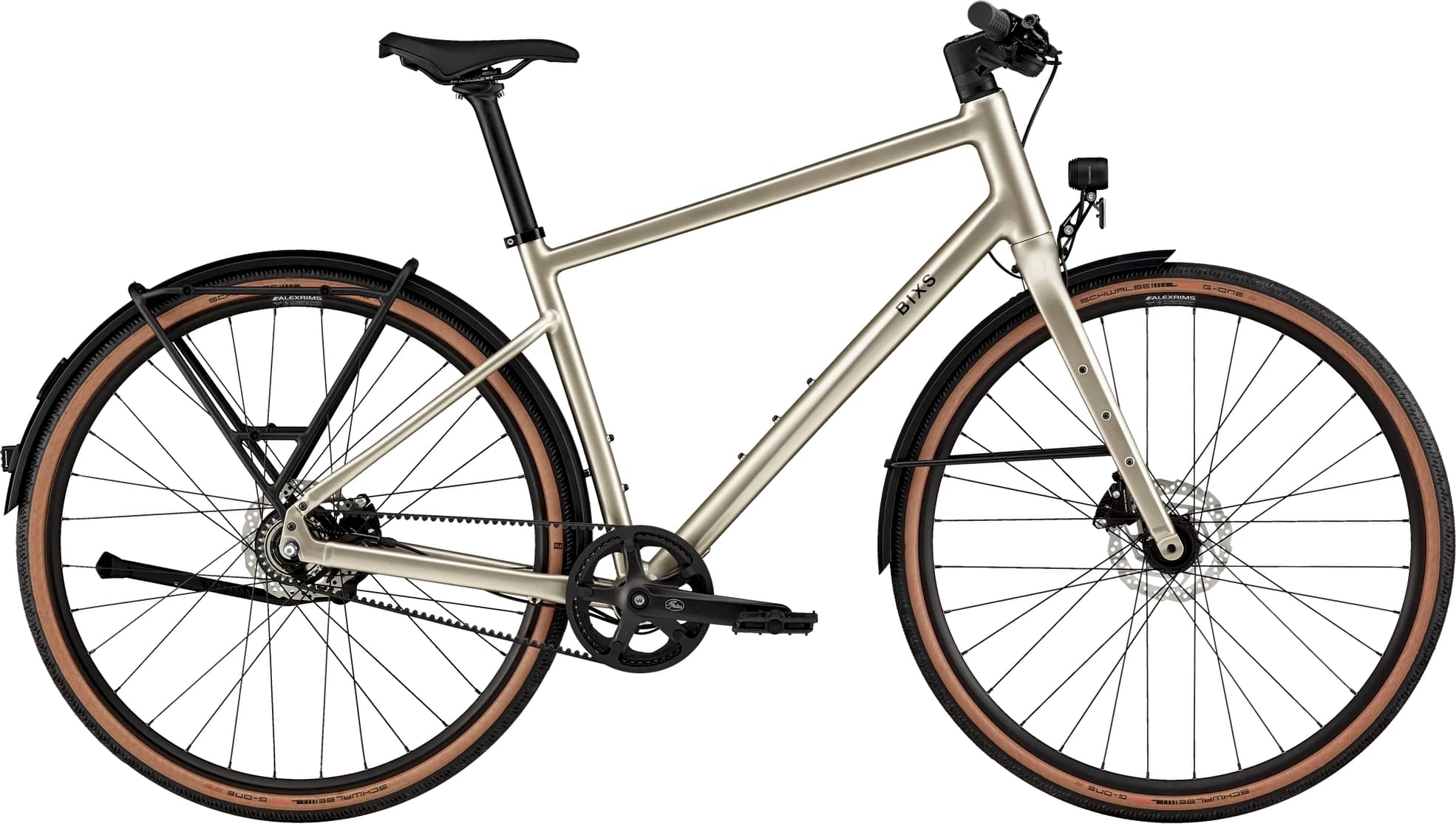

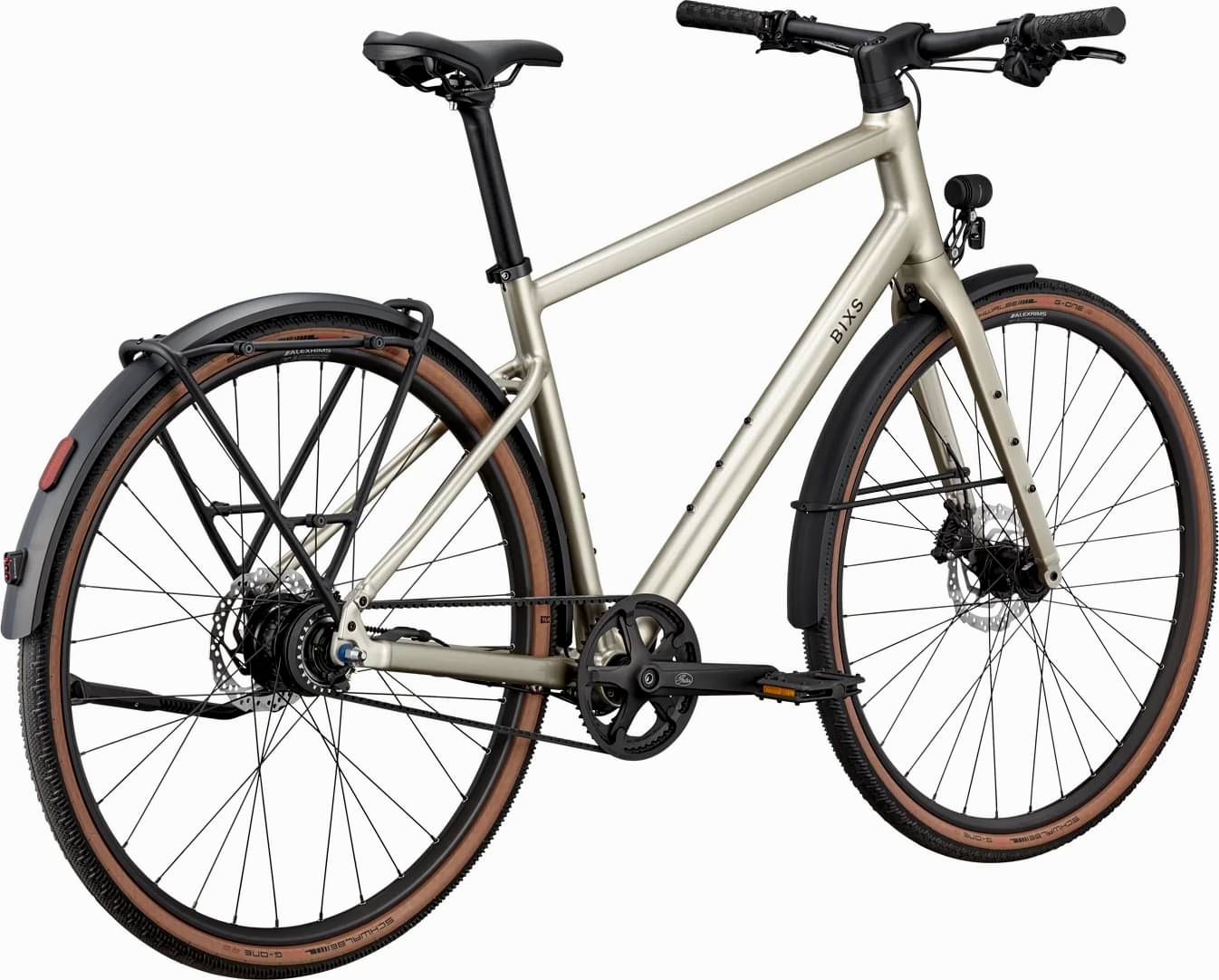

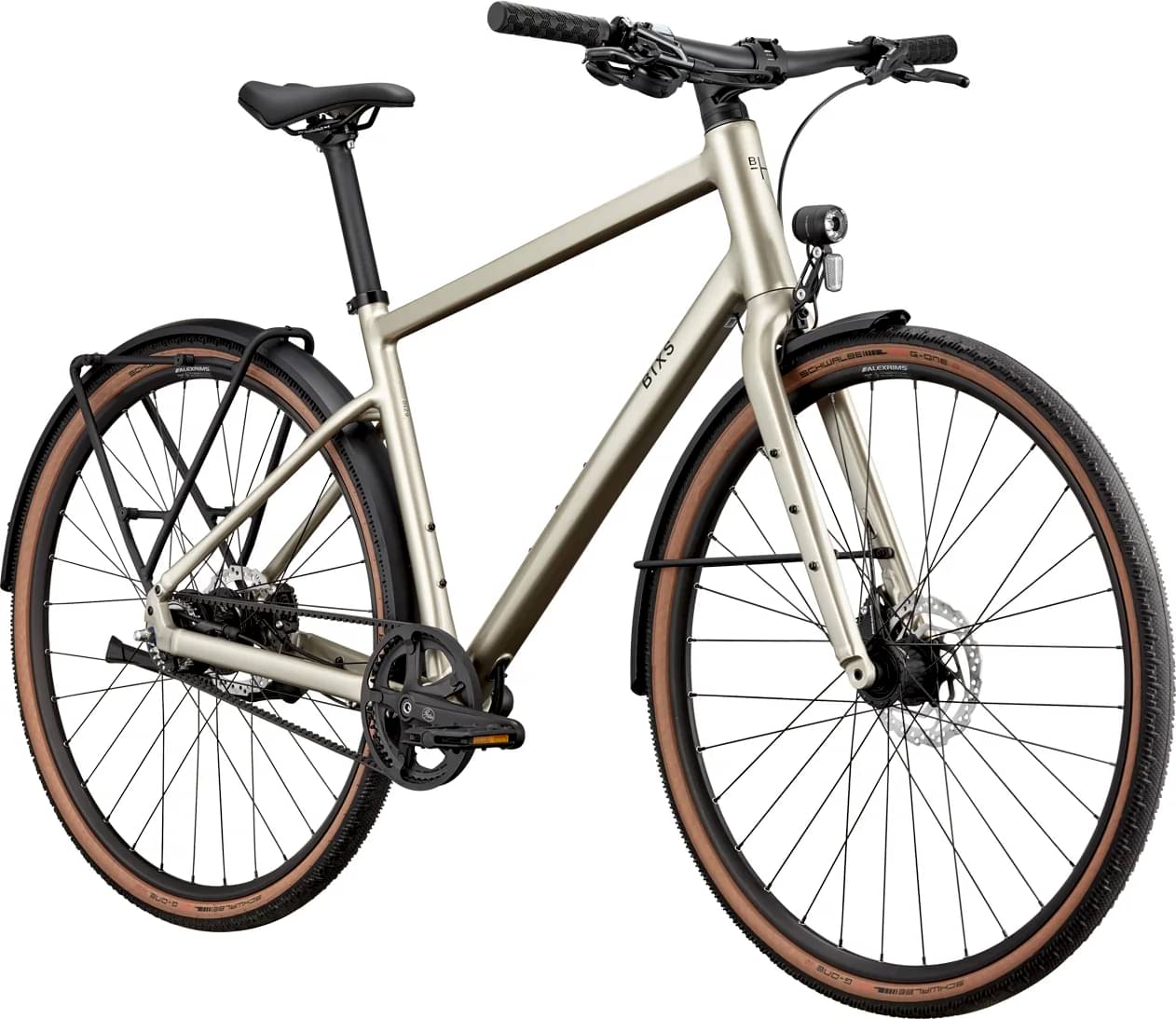

bixs District EQ 1 2025
2025 Urban
Estimate price |
2,468$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Gates CDN -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DISTRICT PREMIUM ALLOY HARDTAIL, 10X135MM BOLT, ON, FLAT MOUNT DISC
Suspension Fork
PREMIUM ALLOY RIGID FORK, 12X100MM
Drivetrain
Cassette
GATES CDN SPROCKET, 26T
Crank
GATES CDN SQUARE TAPER, CL45.5, 50T
Wheels
Front Hub
SHIMANO DH-UR705-3D DYNAMO HUB, 6V, 3W, 32 HOLES
Rear Hub
SHIMANO ALFINE SG-S7001-11, INTERNAL HUB GEAR
Rims
ALEXRIMS VOLAR 2.1, 21MM INNER WIDTH
Tires
SCHWALBE G-ONE RS EVO, SUPER RACE, V-GUARD, 700X40C
Brakes
Brakes
SHIMANO BL-RS600, BR-RS405
Cockpit
Handlebar
SATORI DEVIANT BOW, RIZER BAR, 12MM RISE, 680MM
Seat
Saddle
BIXS VL-3569
Seatpost
BIXS SEATPOST, Ø30.9MM, S & M: 3 50MM, L & X L: 400MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.443 mm | 1.439 mm | 1.438 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Stack | 587 mm | 606 mm | 626 mm | 647 mm |
| Reach | 395 mm | 420 mm | 435 mm | 450 mm |
| Top Tube Length | 569 mm | 599 mm | 620 mm | 642 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 415 mm | 445 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 145 mm | 165 mm | 185 mm | 205 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1053 mm | 1085 mm | 1102 mm | 1118 mm |
| Wheels | 700 | 700 | 700 | 700 |
