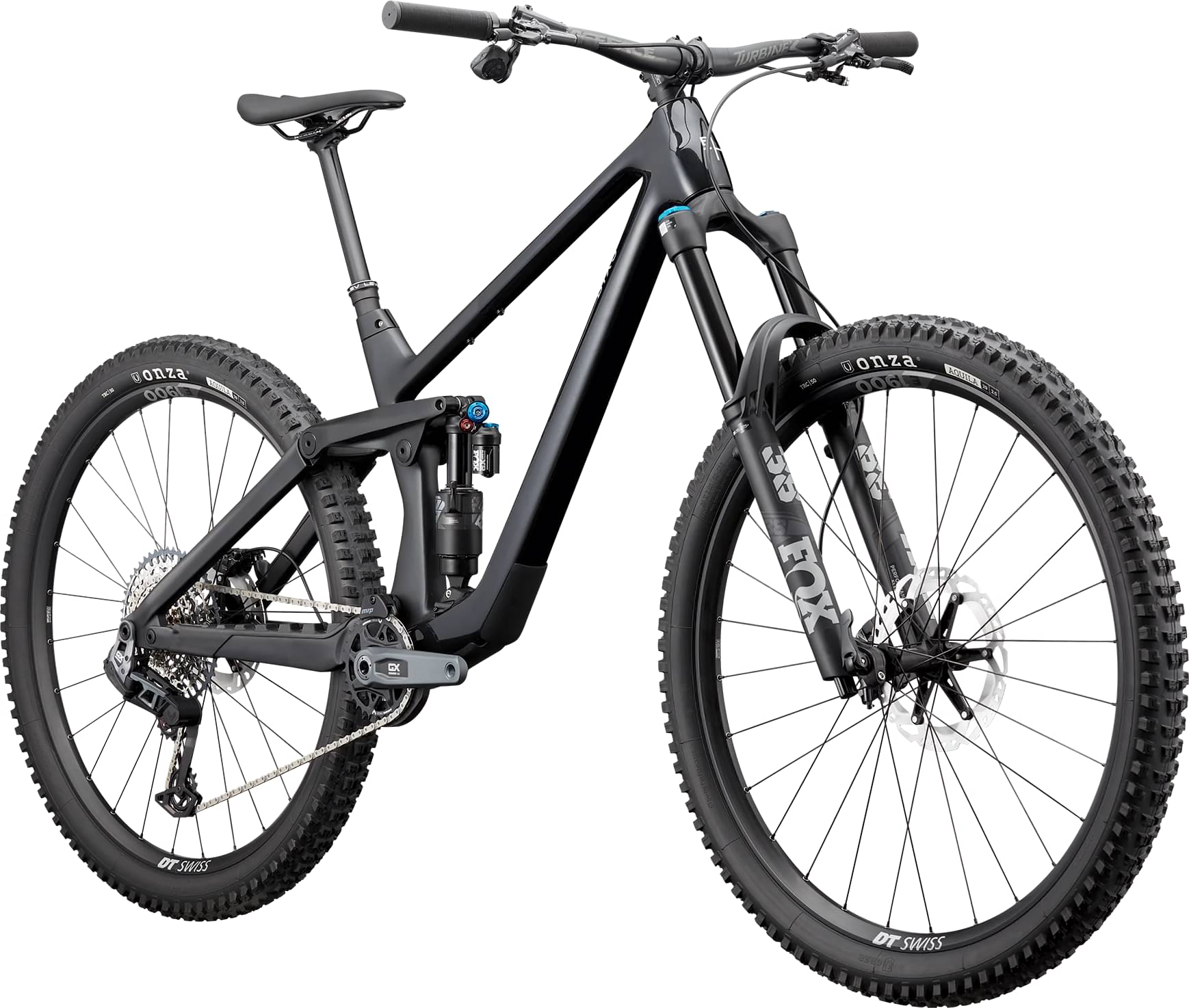

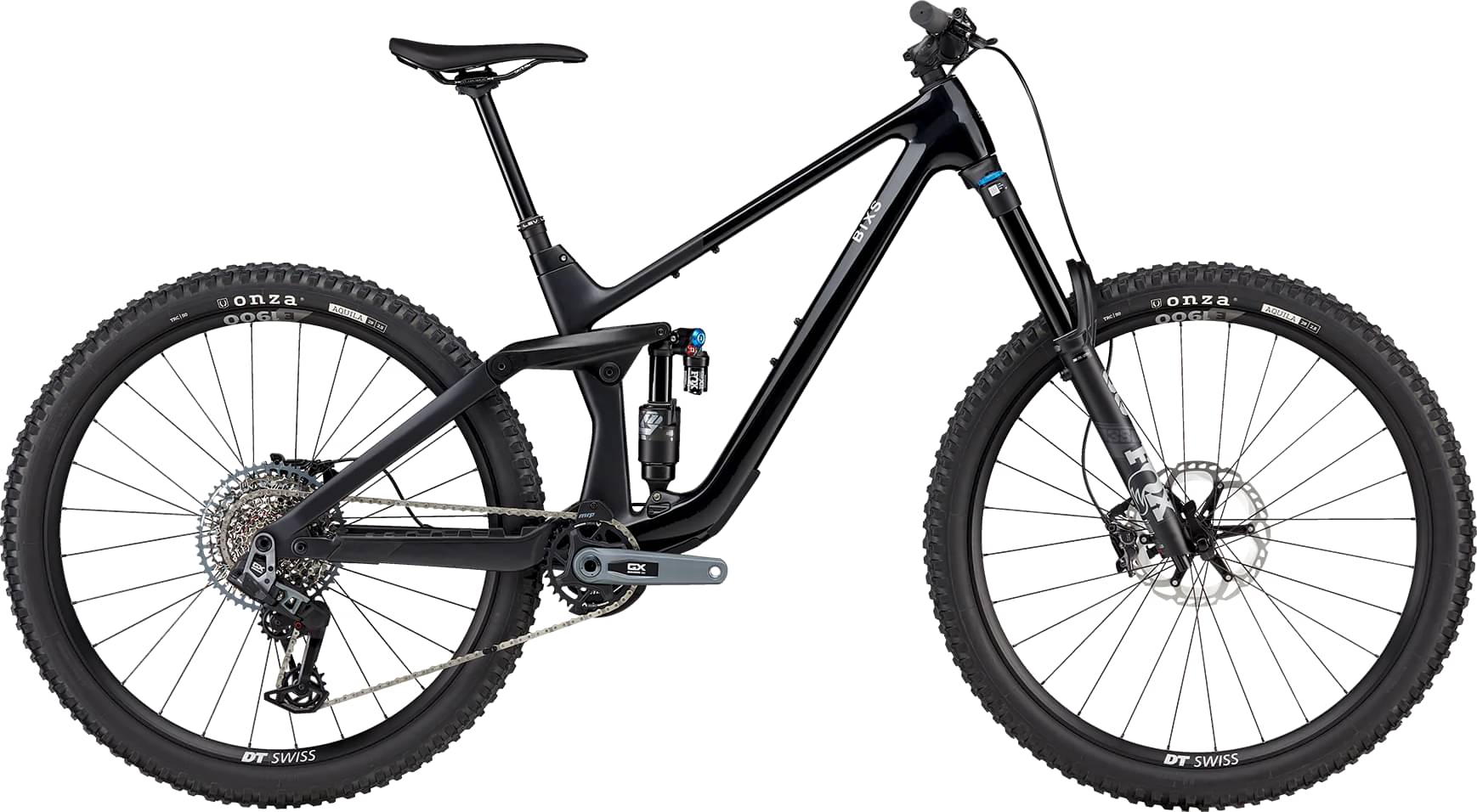

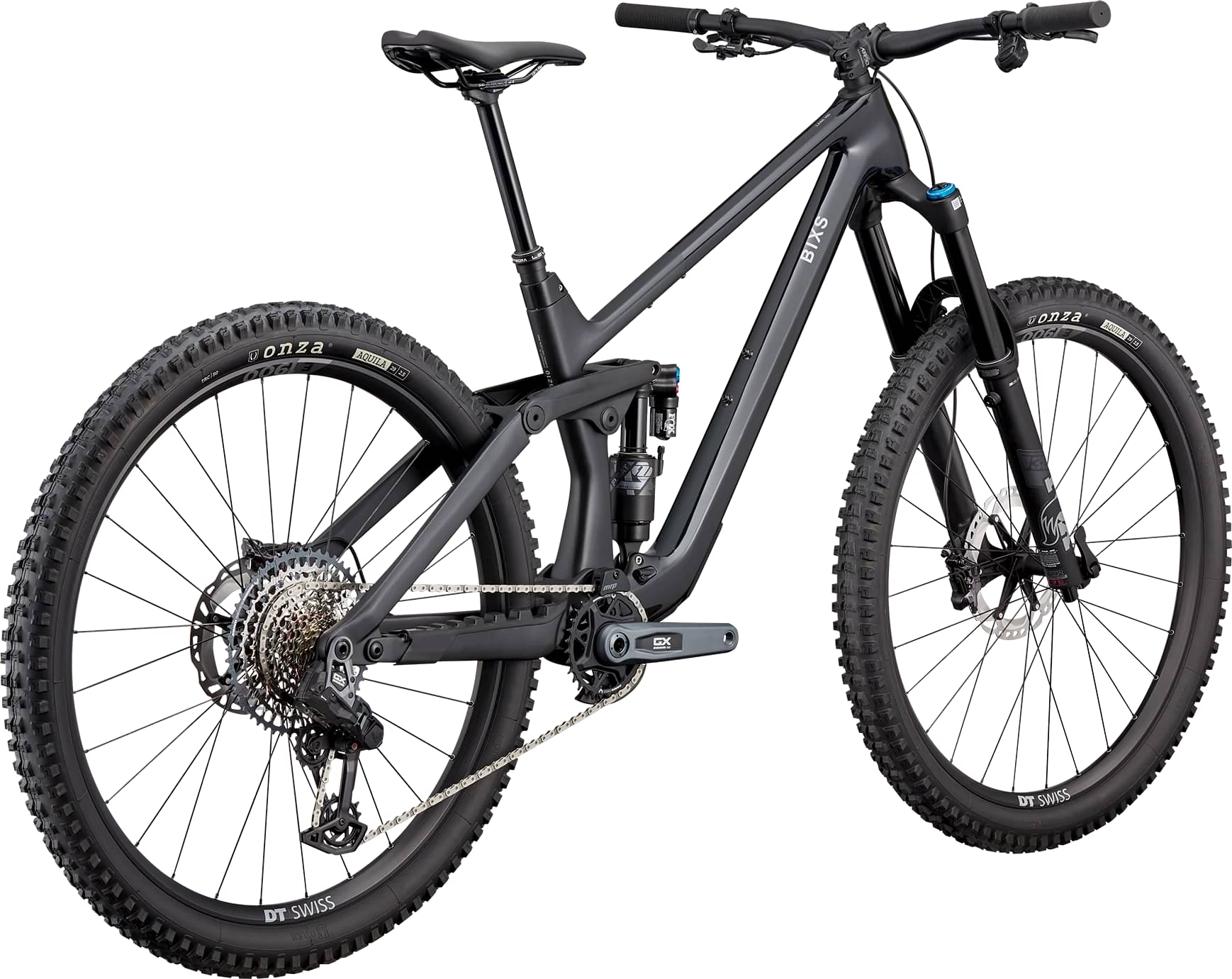

bixs Lane 160 2025
2025 Mountain
Estimate price |
8,629$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LANE CARBON FULLSUSPENSION, 160MM TRAVEL, 12X148MM BOOST
Suspension Fork
FOX 38 FLOAT PERFORMANCE ELITE GRIP2, 170MM TRAVEL, 15X110MM
Rear Shock
FOX FLOAT X2 PERFORMANCE, 2 POSITION LEVER, 230X65MM
Drivetrain
Rear Derailleur
SRAM GX EAGLE AXS T-TYPE, 12-SPEED
Shift Levers
SRAM AXS CONTROLLER
Cassette
SRAM XS-1275 T-TYPE, 10-52T
Crank
SRAM GX EAGLE T-TYPE, CL55, DUB, S: 30T, M-XL: 32T
Chain
SRAM GX T-TYPE
Wheels
Tires
ONZA AQUILA, 29X2.5", TRC
Brakes
Brakes
SHIMANO XT BL-M8100, BR-M8120 4-PISTON
Cockpit
Stem
RACE FACE AEFFECT R 35, 0°, 35MM CLAMP
Handlebar
RACE FACE TURBINE R 35, 20MM RISE, S & M: 7 80MM, L & XL: 800MM
Seat
Saddle
BIXS-VL-4432
Seatpost
KIND SHOCK LEV INTEGRA, Ø31.6MM, S: 125MM, M: 150MM, L: 175MM, XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
