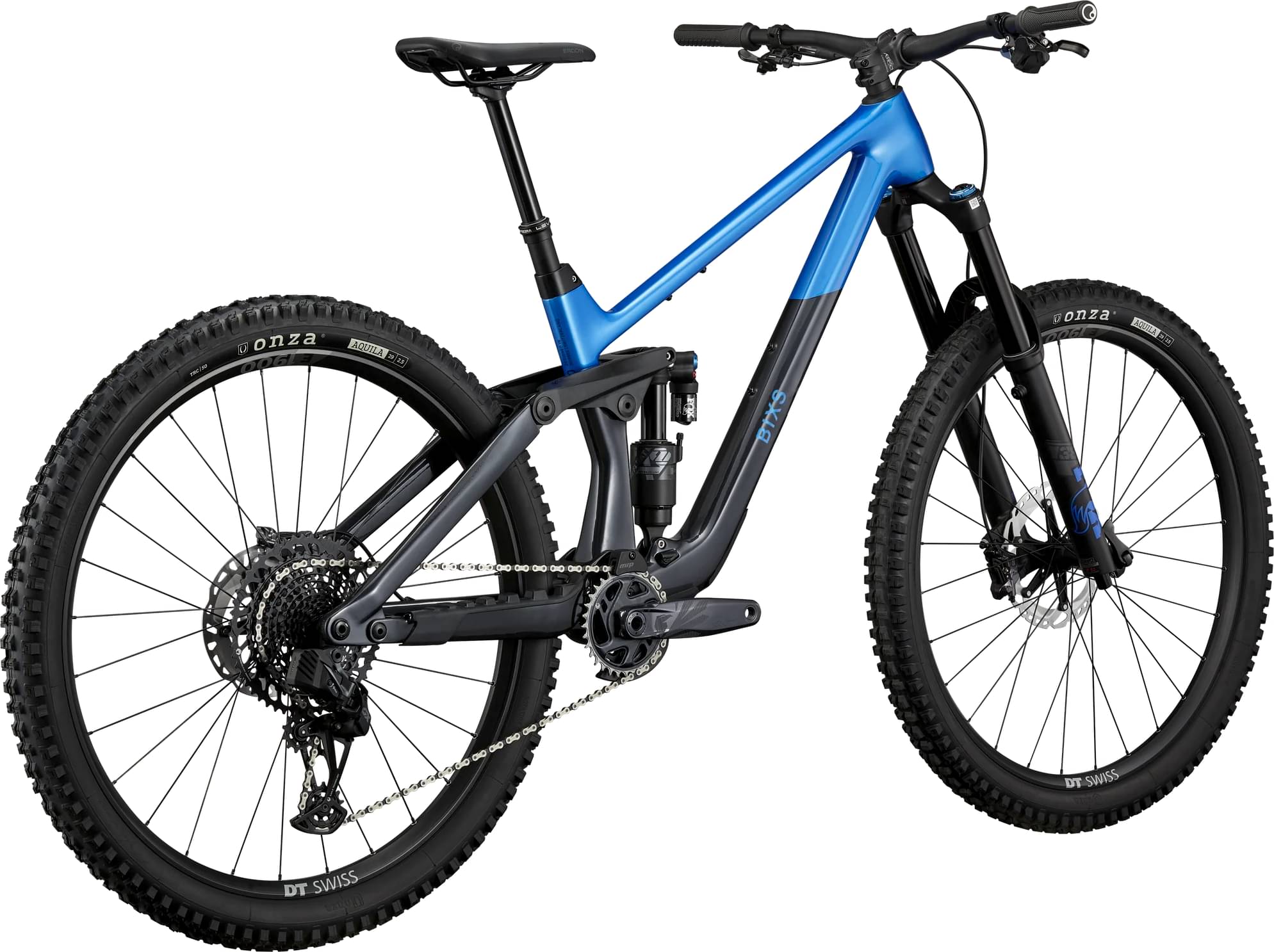

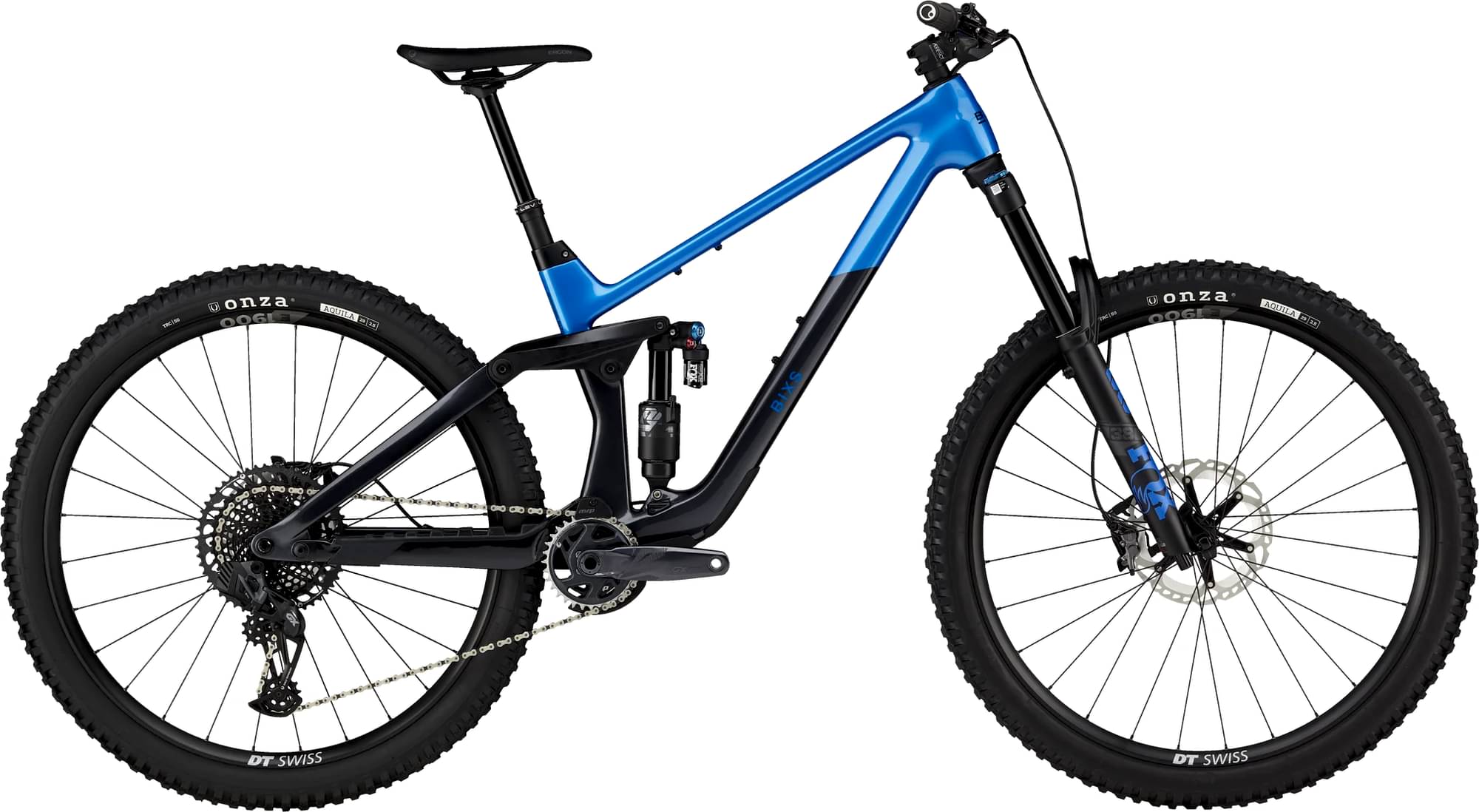

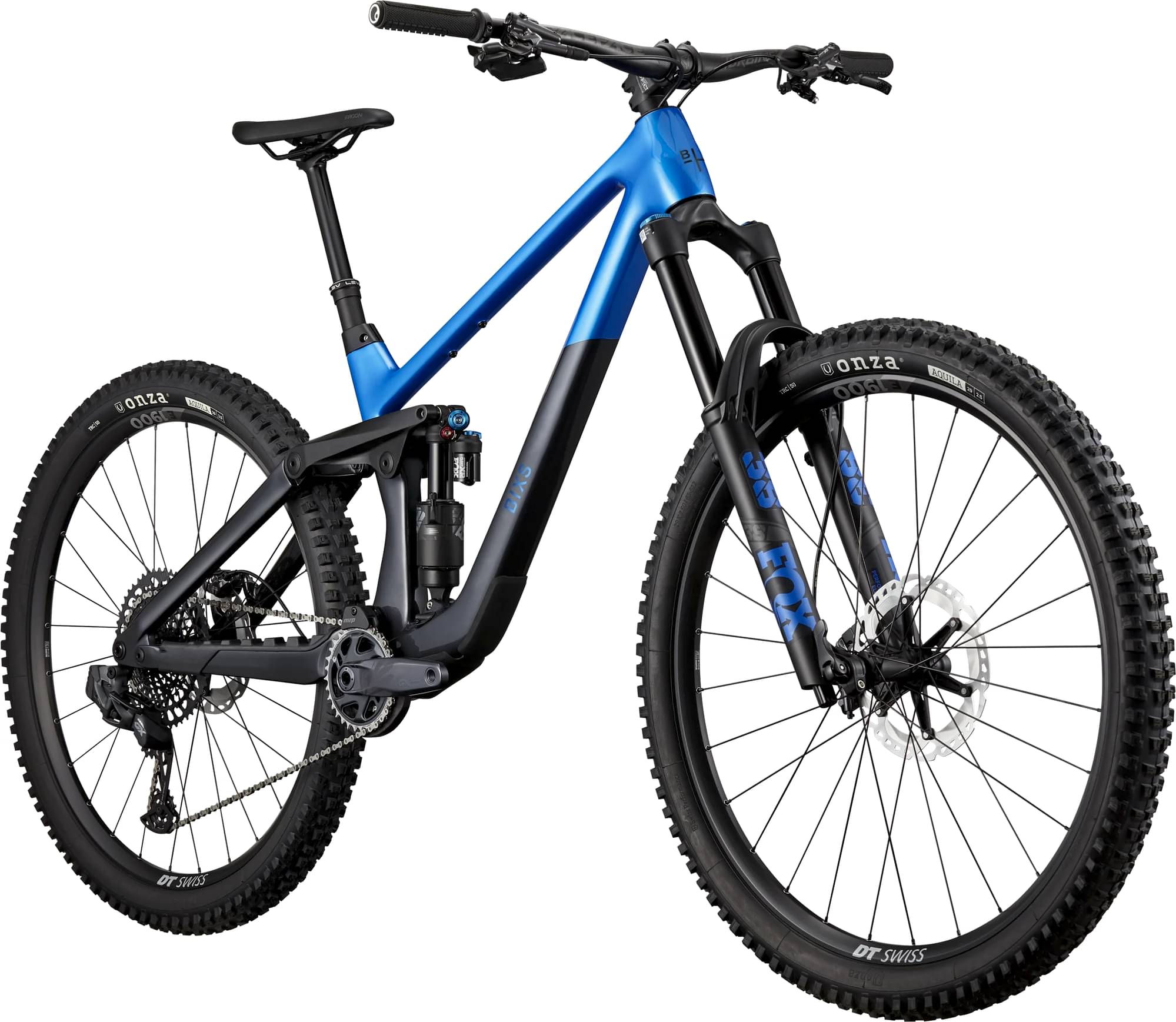

bixs Lane 160 Blue Metallic – Anthracite 2025
2025 Mountain
Estimate price |
8,629$
Weight | 15.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ENDURO GEOMETRY, FULL CARBON FRAME, 160mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
FOX 38 FLOAT PERFORMANCE, 15x110mm AXLE, TAPERED, GRIP2, TRAVEL: 170mm, 4-WAY ADJUSTABILITY
Rear Shock
FOX FLOAT X2 PERFORMANCE, 2 POSITION LEVER 230x65, HARDWARE: 30/20mmx8mm
Drivetrain
Rear Derailleur
SRAM GX EAGLE AXS, 12-SPEED
Shift Levers
SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Cassette
SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK
Crank
SRAM GX EAGLE BOOST, DUB, S: 30, OTHERS 32 TEETH
Chain
SRAM CN-GX EAGLE 12-SPEED
Wheels
Front Hub
DT SWISS WHEELSET SPLINE E-1900, 28 HOLES, 15x110mm THRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE E-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE E-1900, 28 HOLES, INNER WIDTH 30mm, 29"
Tires
ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Brakes
Brakes
SHIMANO XT BR-M8120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:180mm ROTORS, ICE TECH
Brake Levers
SHIMANO XT BL-M8100
Cockpit
Stem
RACE FACE AEFFECT R, 0°ANGLE, 35mm CLAMP
Handlebar
RACE FACE TURBINE R, 780mm/800mm, 20mm RISE, 8° BACKSWEEP, 35mm
Headset
ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat
Saddle
ERGON SM10 ENDURO
Seatpost
KIND SHOCK LEV INTEGRA, S: 100mm, M: 125mm, L: 150mm, XL: 175mm TRAVEL, SHIMANO REMOTE, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
