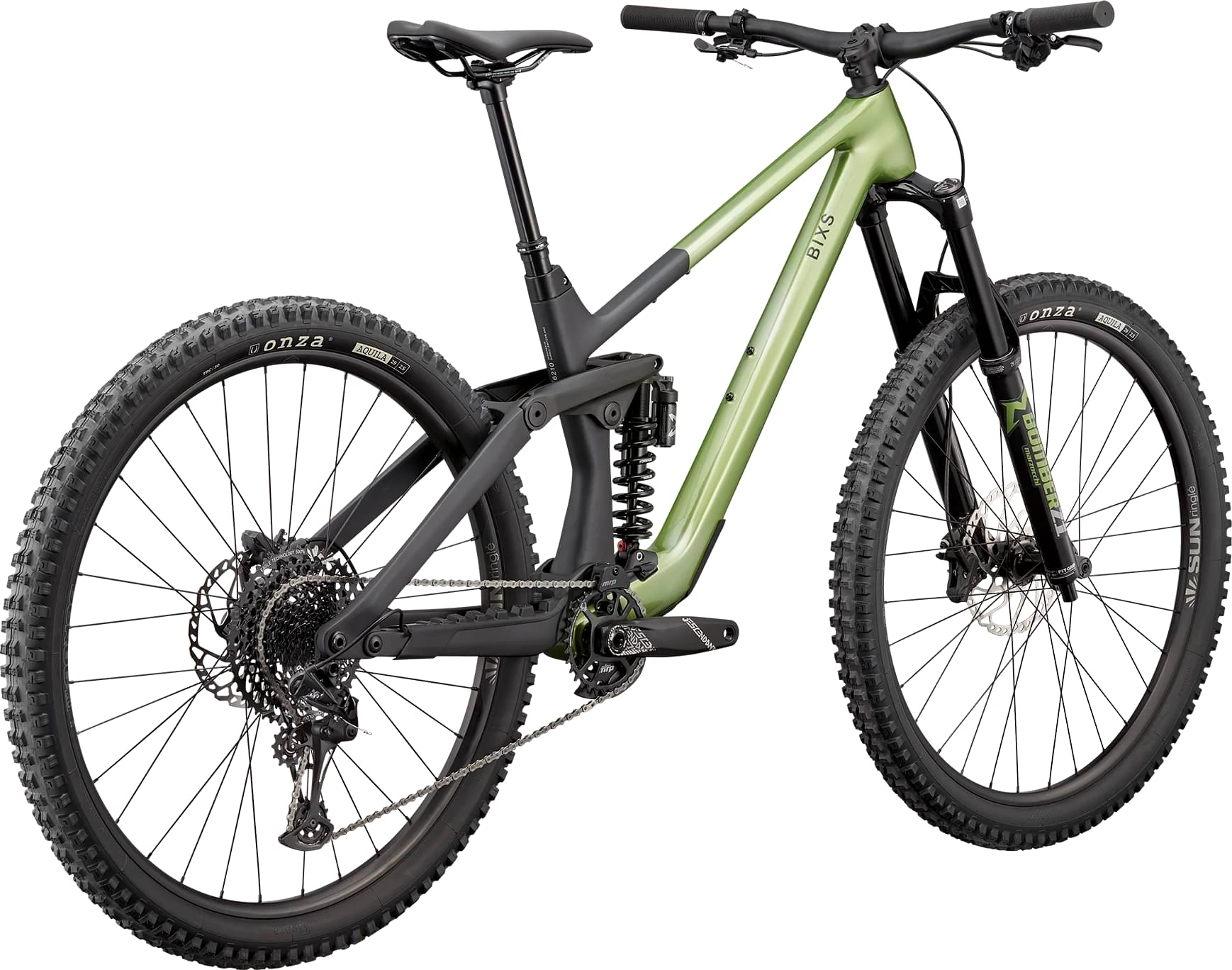

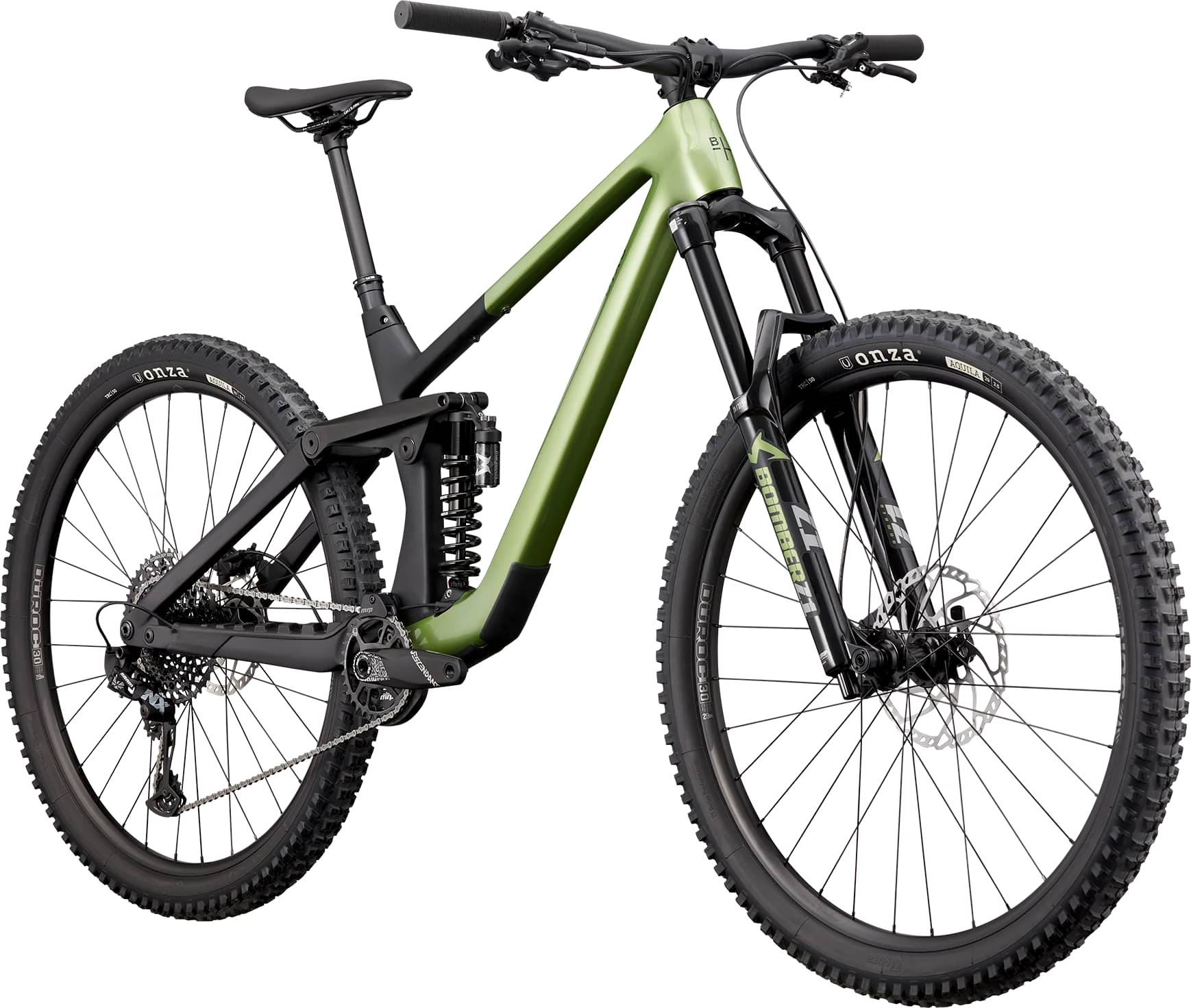

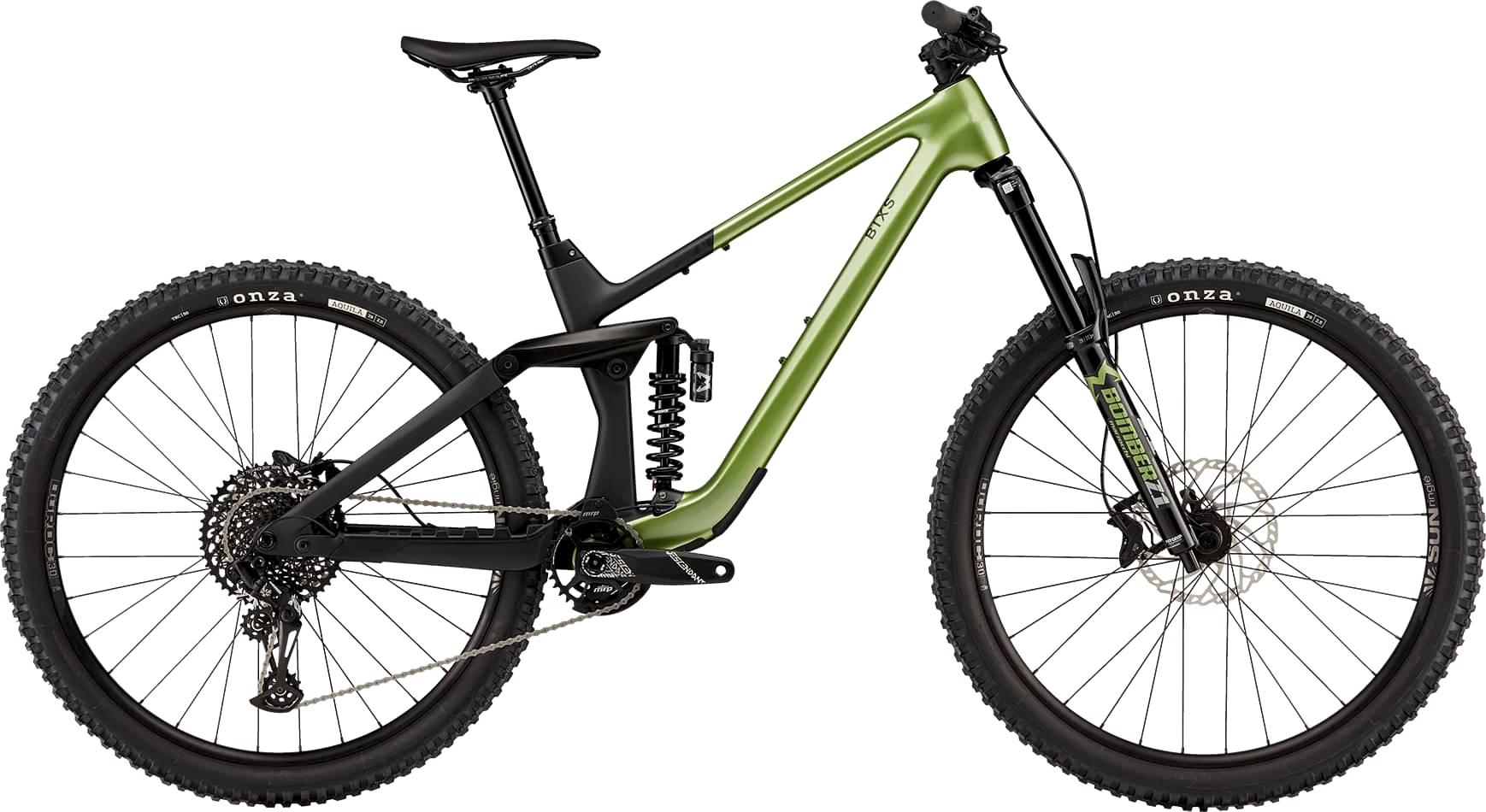

bixs Lane 260 2025
2025 Mountain
Estimate price |
5,543$
Weight | 15.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1 Coil
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LANE CARBON FULLSUSPENSION, 160MM TRAVEL, 12X148MM BOOST
Suspension Fork
MARZOCCHI BOMBER Z1 COIL, 170MM TRAVEL, 15X110MM
Rear Shock
MARZOCCHI BOMBER CR, 230X65MM
Drivetrain
Rear Derailleur
SRAM NX EAGLE, 12-SPEED
Shift Levers
SRAM NX EAGLE TRIGGER
Cassette
SRAM XG-1275 EAGLE, 10-50T
Crank
SRAM DESCENDANT 6K EAGLE, CL55, S: 30T, M-XL: 32T
Chain
SRAM NX EAGLE
Wheels
Tires
ONZA AQUILA, 29X2.5", TRC
Brakes
Brakes
SHIMANO DEORE BL-M6100, BR-M6120 4-PISTON
Cockpit
Stem
BIXS STEM, 0°, 35MM CLAMP
Handlebar
BIXS RIZER BAR, 15MM RISE, 780MM
Seat
Saddle
BIXS-VL-4432
Seatpost
KIND SHOCK RAGE-I, Ø31.6MM, S: 125MM, M: 150MM, L: 170MM, XL: 170MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
