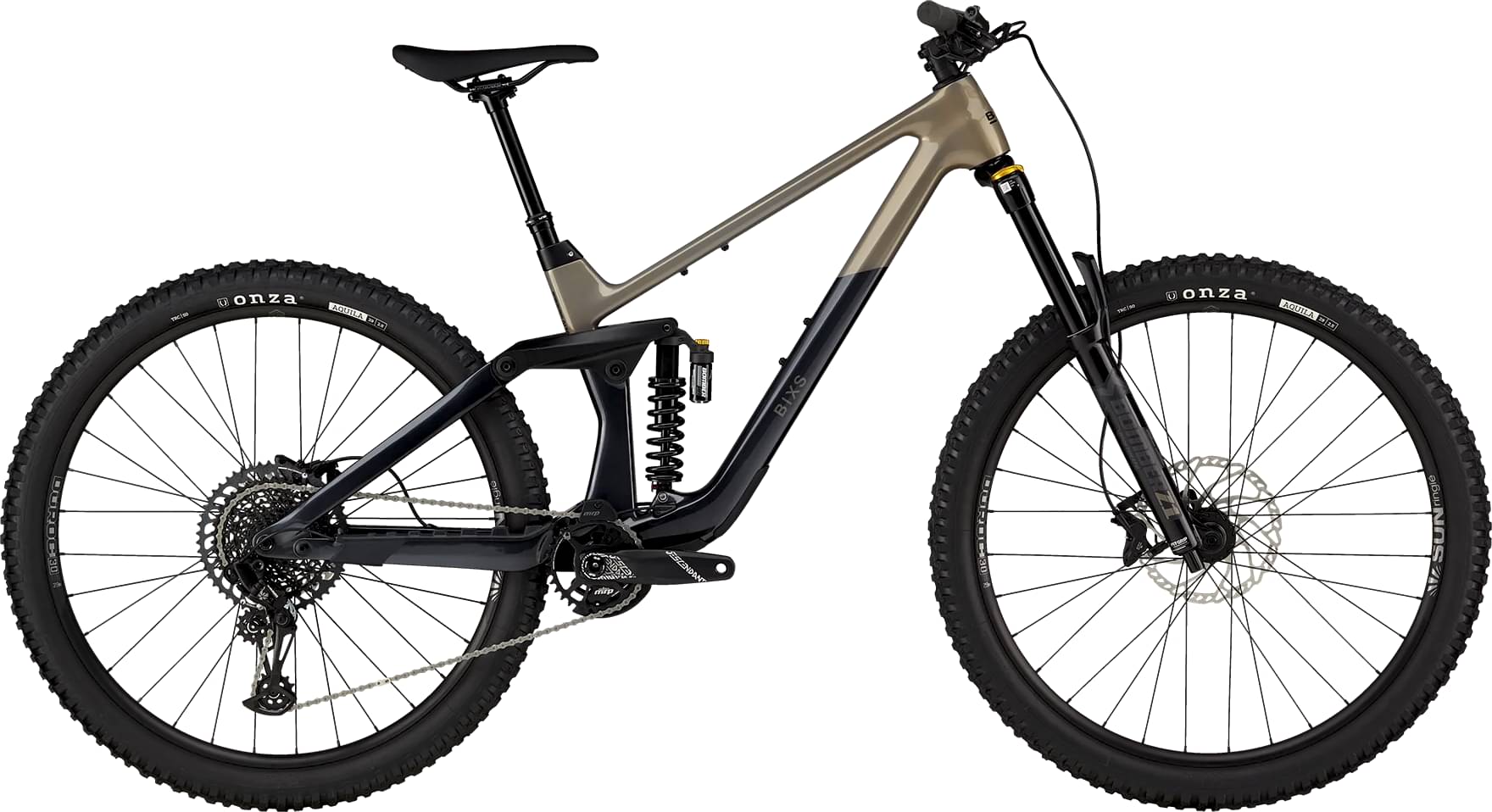

bixs Lane 260 Sand Metallic – Anthracite 2025
2025 Mountain
Estimate price |
5,543$
Weight | 16.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1 Coil
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ENDURO GEOMETRY, FULL CARBON FRAME, 160mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
MARZOCCHI Z1 WITH DIFFRENT COILSETTING/SIZE, 15x110mm AXLE, TAPERED, GRIP, TRAVEL: 170mm, SWEEP-ADJ.
Rear Shock
MARZOCCHI BOMBER CR, ADJUSTABLE LOW SPEED COMPRESSIO & REBOUND, 230x65, HARDWARE: 30/20mmx8mm
Drivetrain
Rear Derailleur
SRAM NX EAGLE, 12-SPEED
Shift Levers
SRAM SL NX EAGLE SINGLE CLICK TRIGGER 12-SPEED
Cassette
SRAM XG-1275 EAGLE, 10-52 TEETH, 12-SPEED
Crank
SRAM DESCENDANT EAGLE BOOST, DUB, S: 30 THEETH, OTHERS 32 TEETH
Chain
SRAM CN-NX EAGLE 12-SPEED
Wheels
Front Hub
SUNRINGLE WHEELSET DUROC 30 COMP, 28 HOLES, 15x110mm THRU AXLE
Rear Hub
SUNRINGLE WHEELSET DOROC COMP, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
SUNRINGLE WHEELSET DUROC 30 COMP, TLR, 28 HOLES, INNER WIDTH 26mm, 29"
Tires
ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Brakes
Brakes
SHIMANO DEORE BR-M6120/BR-M6100, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:203mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-M6100
Cockpit
Stem
BIXS 0°ANGLE, 35mm CLAMP
Handlebar
BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm
Headset
ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat
Saddle
BiXS VL-1831
Seatpost
KIND SHOCK RAGEi, S: 100mm, M: 125mm, L: 150mm, XL: 170mm TRAVEL, SHIMANO REMOTE, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
