Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset XT, FSA -
Suspension Full -
Motor Yamaha 250W mid-drive -
Battery SIMPLO, 36V, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-ENDURO GEOMETRY, ALLOY 6061, 160MM TRAVEL, ALLOY ROCKER, DROPOUT 148X12MM BOOST, 29"
Suspension Fork
FOX 38 FLOAT PERFORMANCE, 15X110MM AXLE, TAPERED, GRIP, TRAVEL: 170MM, 3-POS. LEVER
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SRAM PG-1210 EAGLE, 11-50 TEETH, 12-SPEED
Crank
FSA CK762 WIDER, ISIS, BOOST, STEEL CHAINRING, 34 TEETH
Chain
KMC E12 SPORT, EPT ANTI-RUST
Wheels
Front Hub
DT SWISS WHEELSET SPLINE HX-1700, 15X110MM THRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE HX-1700, 12X148MM BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE HX 1700 TLR, INNER WIDTH 30MM, 29"
Tires
ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29X2.5", GRC
Brakes
Brakes
SHIMANO XT BR-M8120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS
Brake Levers
SHIMANO XT BL-M8100, ISPEC EV
Cockpit
Stem
RACE FACE TURBINE R, 0°ANGLE, 35mm CLAMP
Handlebar
RACE FACE TURBINE R, 780mm/800mm, 35mm RISE, 8° BACKSWEEP, 35mm
Seat
Saddle
ERGON SM10 E MOUNTAIN
Seatpost
KIND SHOCK LEV SI, S: 100MM, M: 125MM, L: 150MM, XL: 175MM TRAVEL, SHIMANO REMOTE LEVER, 31.6MM
Motor & Battery
Motor
YAMAHA PW-X 3 SERIES, 250 WATT
Battery
SIMPLO, 36V, 630Wh
Fit data

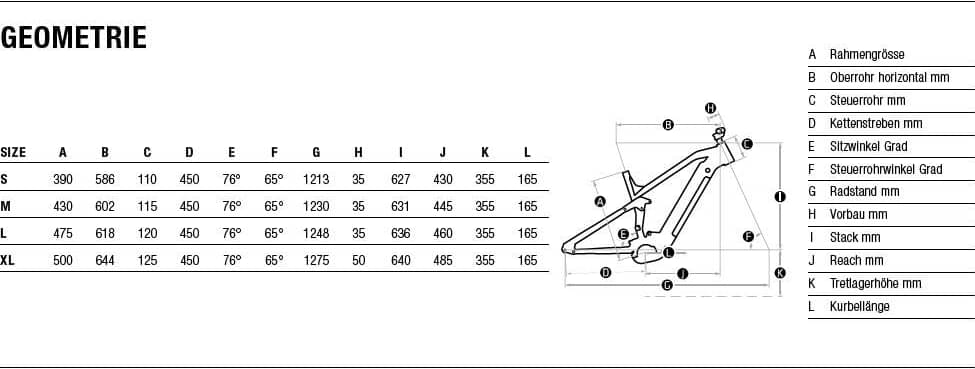

Geometry
Numbers for sizing and ride feel.
| Size | XL | LG | MD | SM |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
About this model

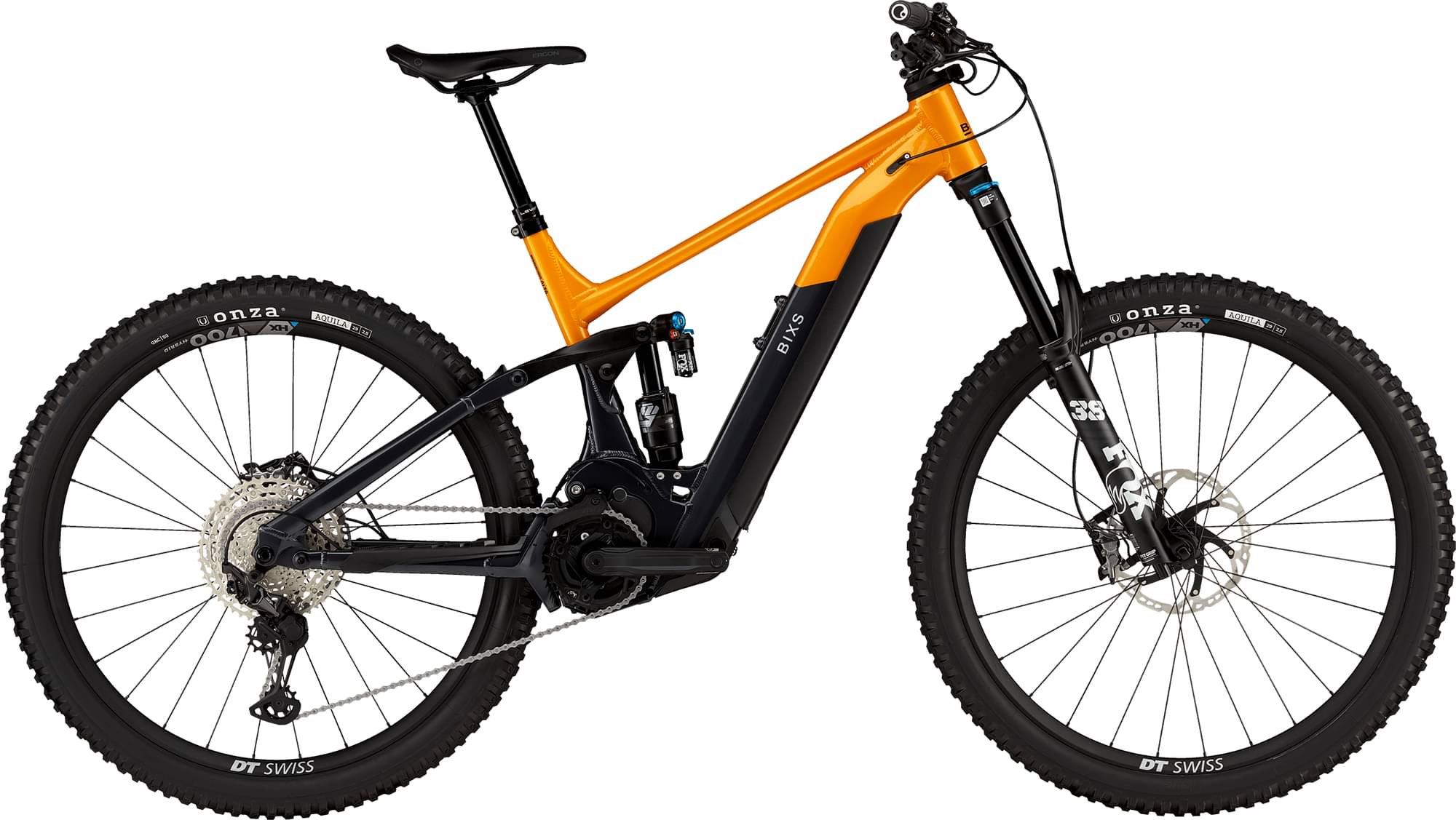

LANE-E16 completes the Bixs E Lane E16 model. 1 e-bike variation carries this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 8557$. If we compare this with the average Enduro e-bike cost we notice that the price is 78.83% more expensive.
LANE-E16 components
Fork
This e-bike has the Fox Performance Float 38 fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The LANE-E16 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LANE-E16 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
The BiXS model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
