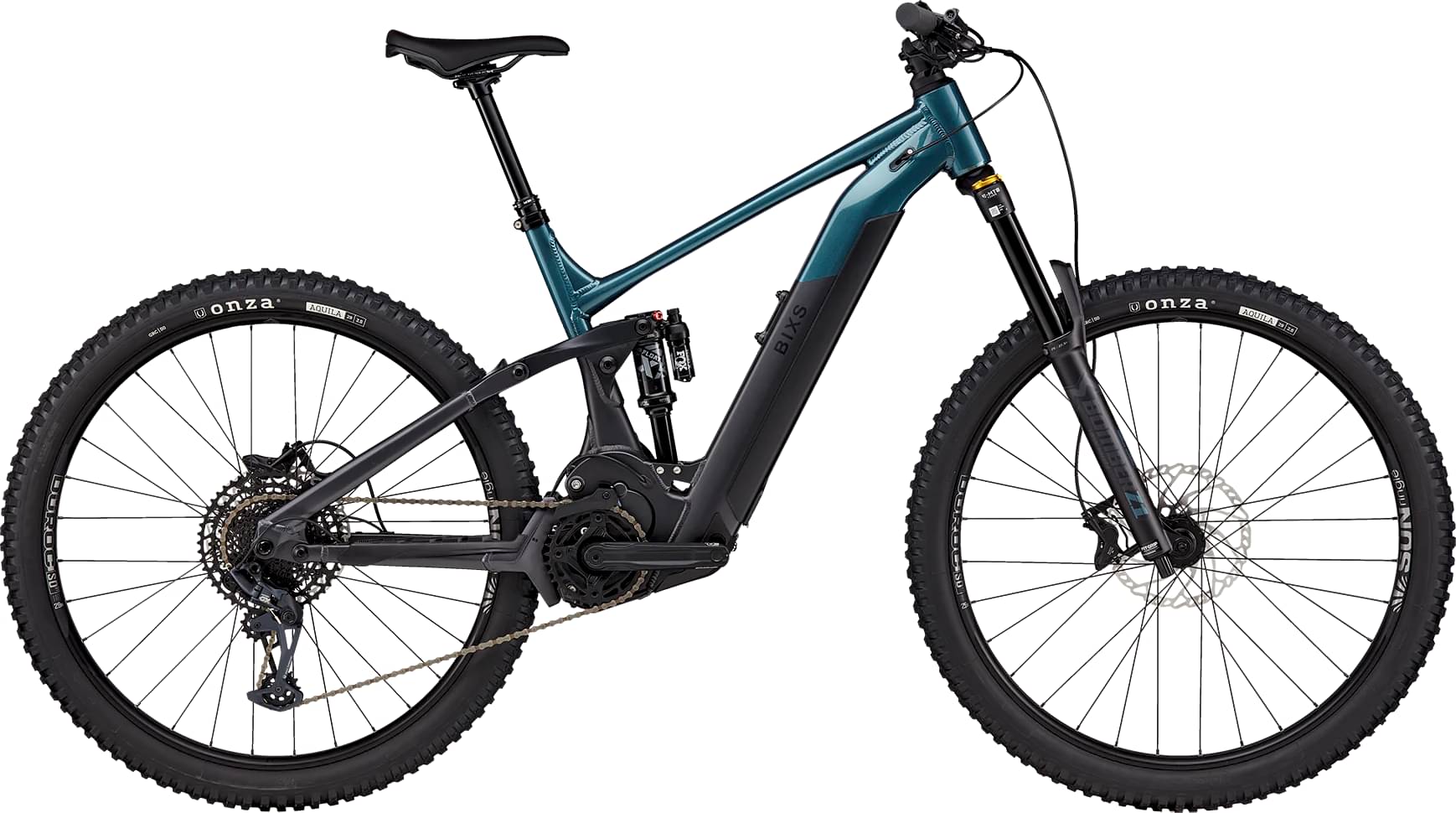

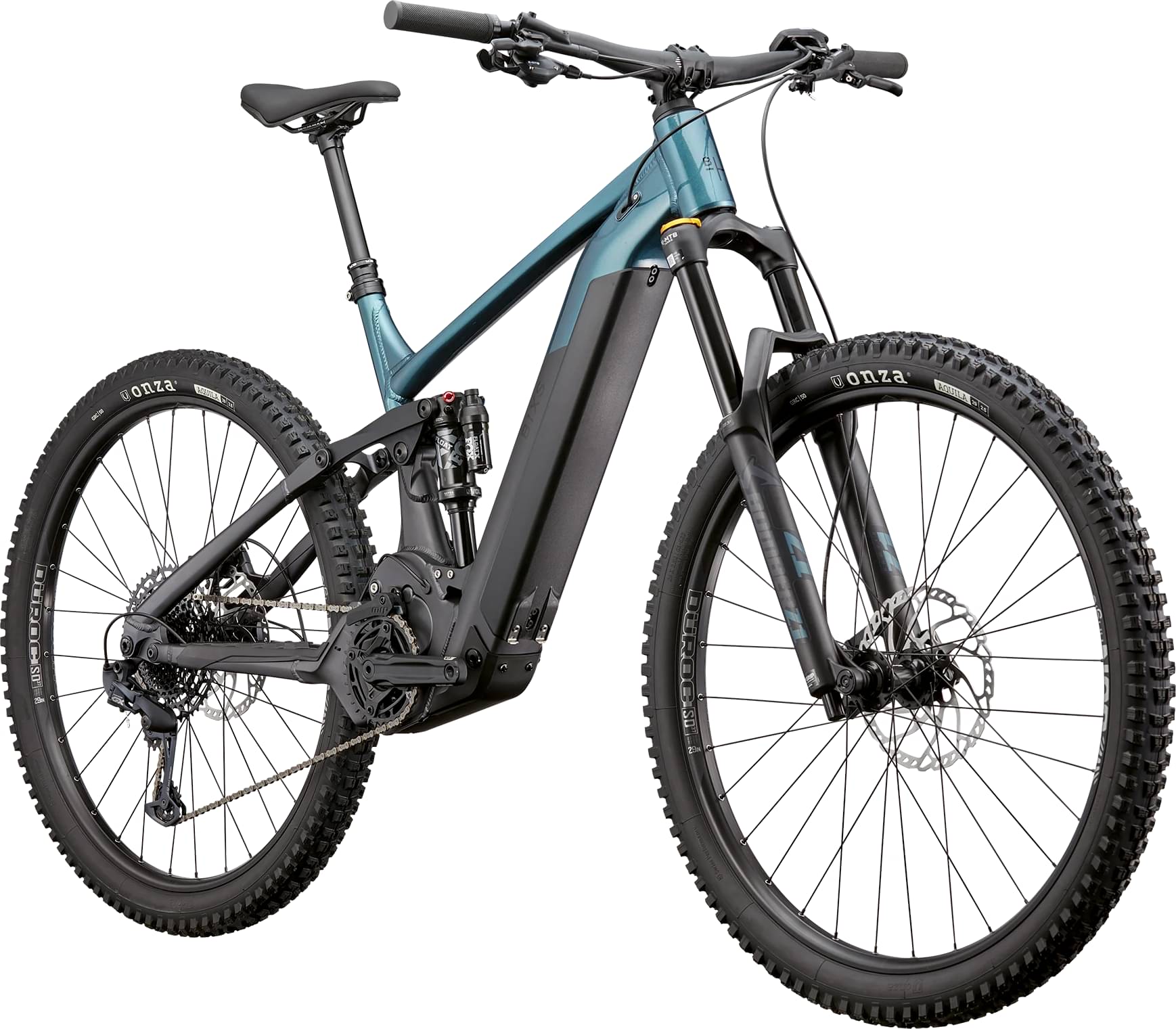

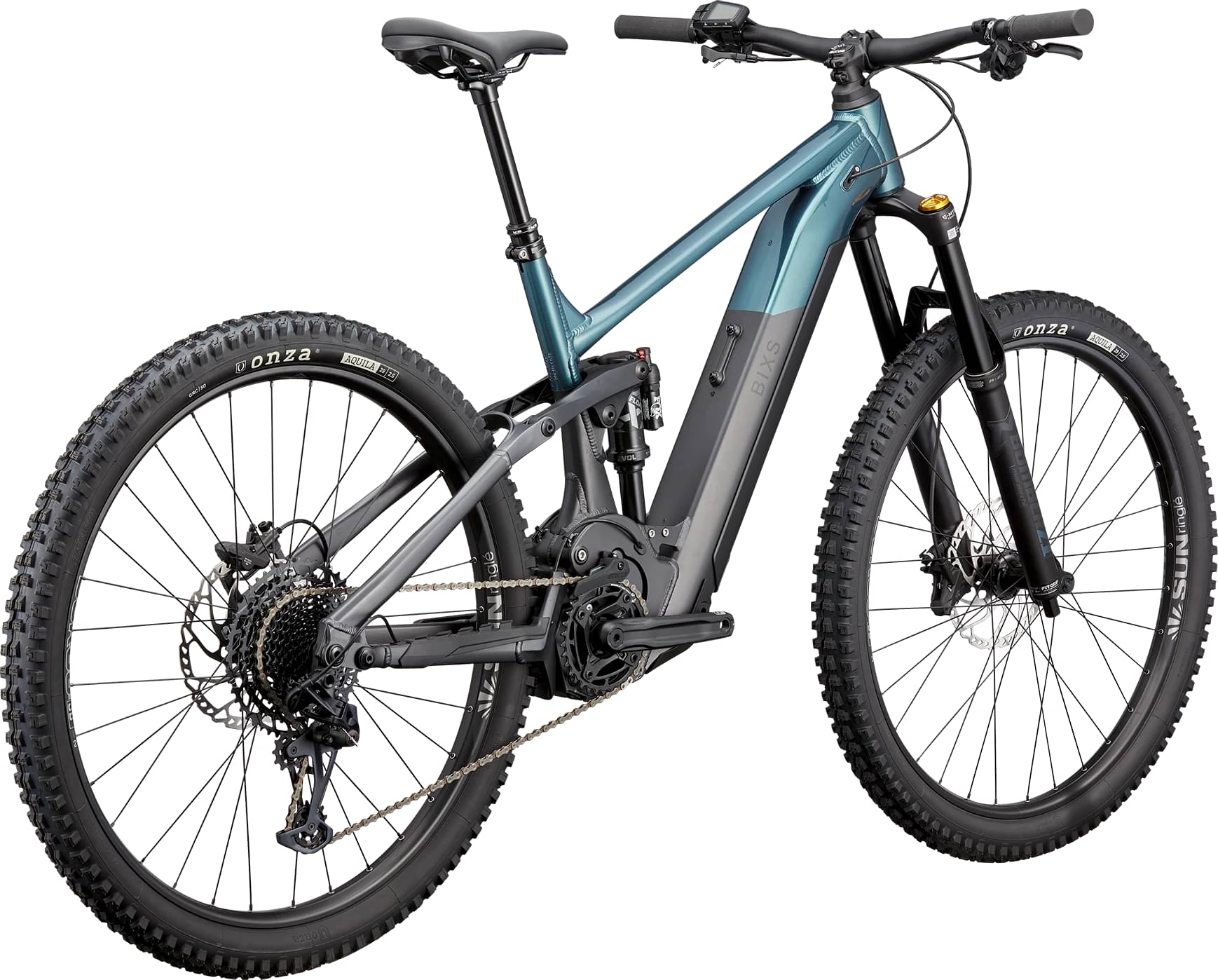

bixs Lane-E26 Green – Anthrazit 2025
2025 E-bike
Estimate price |
7,395$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1
-
Groupset EX1, GX Eagle -
Suspension Full -
Motor Yamaha 250W mid-drive -
Battery SIMPLO, 36V, 630WH -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-ENDURO GEOMETRY, ALLOY 6061, 160MM TRAVEL, ALLOY ROCKER, DROPOUT 148X12MM BOOST, 29"
Suspension Fork
MARZOCCHI Z1 AIR, 15X110MM AXLE, TAPERED, GRIP, TRAVEL: 170MM, SWEEP ADJ.
Rear Shock
FOX FLOAT X PERFORMANCE, 2 POSITION LEVER, 205X65, TRUNNION MOUNT, HARDWARE: 20MMX8MM
Drivetrain
Rear Derailleur
SRAM GX EAGLE, 12-SPEED
Shift Levers
SRAM SL NX EAGLE SINGLE CLICK TRIGGER 12-SPEED
Cassette
SRAM PG-1210 EAGLE, 11-50 TEETH, 12-SPEED
Crank
SRAM EX1 EAGLE X-SYNC, 34 TEETH
Chain
SRAM CN-SX EAGLE
Wheels
Front Hub
SUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 15X110MM THRU AXLE
Rear Hub
SUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 12X148MM BOOST, THRU AXLE
Tires
ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29X2.5", GRC
Brakes
Brakes
SHIMANO BR-M6120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203MM, R:203MM ROTORS
Brake Levers
SHIMANO BL-M6100
Cockpit
Stem
BIXS 0°ANGLE, 35MM CLAMP
Handlebar
BIXS RIZER BAR, 780MM, 9° BACKSWEEP, 15MM RISE, 35MM
Headset
ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat
Saddle
BIXS VL-3575
Seatpost
KIND SHOCK RAGEI, S: 100MM, M: 125MM, L: 150MM, XL: 170MM TRAVEL, WESTY LEVER REMOTE, 31.6MM
Motor & Battery
Motor
YAMAHA PW-X 3 SERIES, 250 WATT
Battery
SIMPLO, 36V, 630WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
