Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle AXS, SRAM -
Suspension Full -
Motor Yamaha 250W mid-drive -
Battery SIMPLO, 36V, 630Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-ENDURO GEOMETRY, ALLOY 6061, 160MM TRAVEL, ALLOY ROCKER, DROPOUT 148X12MM BOOST, 29"
Suspension Fork
FOX 38 FLOAT FACTORY, KASHIMA, 15x110mm AXLE, TAPERED, GRIP2, TRAVEL: 170mm, 4-WAY ADJUSTABILITY
Drivetrain
Rear Derailleur
SRAM X01 EAGLE AXS, 12-SPEED
Shift Levers
SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Cassette
SRAM XG-1275 EAGLE, 10-52 TEETH, 12-SPEED
Crank
SRAM EX1 EAGLE X-Sync, 34 TEETH
Chain
SRAM CN-SX EAGLE
Wheels
Front Hub
DT SWISS WHEELSET SPLINE HX-1501, 15x110mm THRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE HX-1501, 12x148mm BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE HX 1501 TLR, INNER WIDTH 30mm, 29"
Tires
ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29X2.5", GRC
Brakes
Brakes
MAGURA MT7, 4-PISTON HYDRAULIC DISC BRAKE, F:220MM, R:203MM ROTORS
Brake Levers
MAGURA MT7, 1-FINGER HC ALUMINUM LEVER BLADE
Cockpit
Stem
FIBERWERK FULL CARBON COCKPIT
Handlebar
FASERWERK FULL CARBON COCKPIT, 800MM, 9° ANGLE, 15MM RISE
Seat
Saddle
ERGON SM10 E MOUNTAIN
Seatpost
ROCK SHOX REVERB AXS, S: 100MM, M: 125MM, L: 150MM, XL: 170MM TRAVEL, WIRELESS REMOTE, 31.6MM
Motor & Battery
Motor
YAMAHA PW-X 3 SERIES, 250 WATT
Battery
SIMPLO, 36V, 630Wh
Fit data

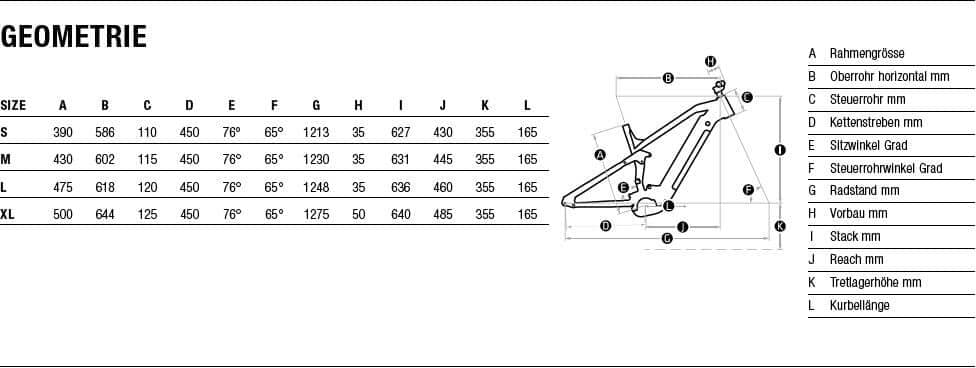

Geometry
Numbers for sizing and ride feel.
| Size | XL | LG | MD | SM |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
About this model
LANE-EX belongs to the Bixs E Lane Ex model. BiXS released 1 e-bike variation of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When BiXS released this model in 2023, its price was 10338$. Doing a quick comparison, we notice that LANE-EX price is 116.05% higher than the average cost of an Enduro e-bike.
LANE-EX components
Fork
The LANE-EX comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the LANE-EX e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. BiXS LANE-EX has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
BiXS LANE-EX includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
