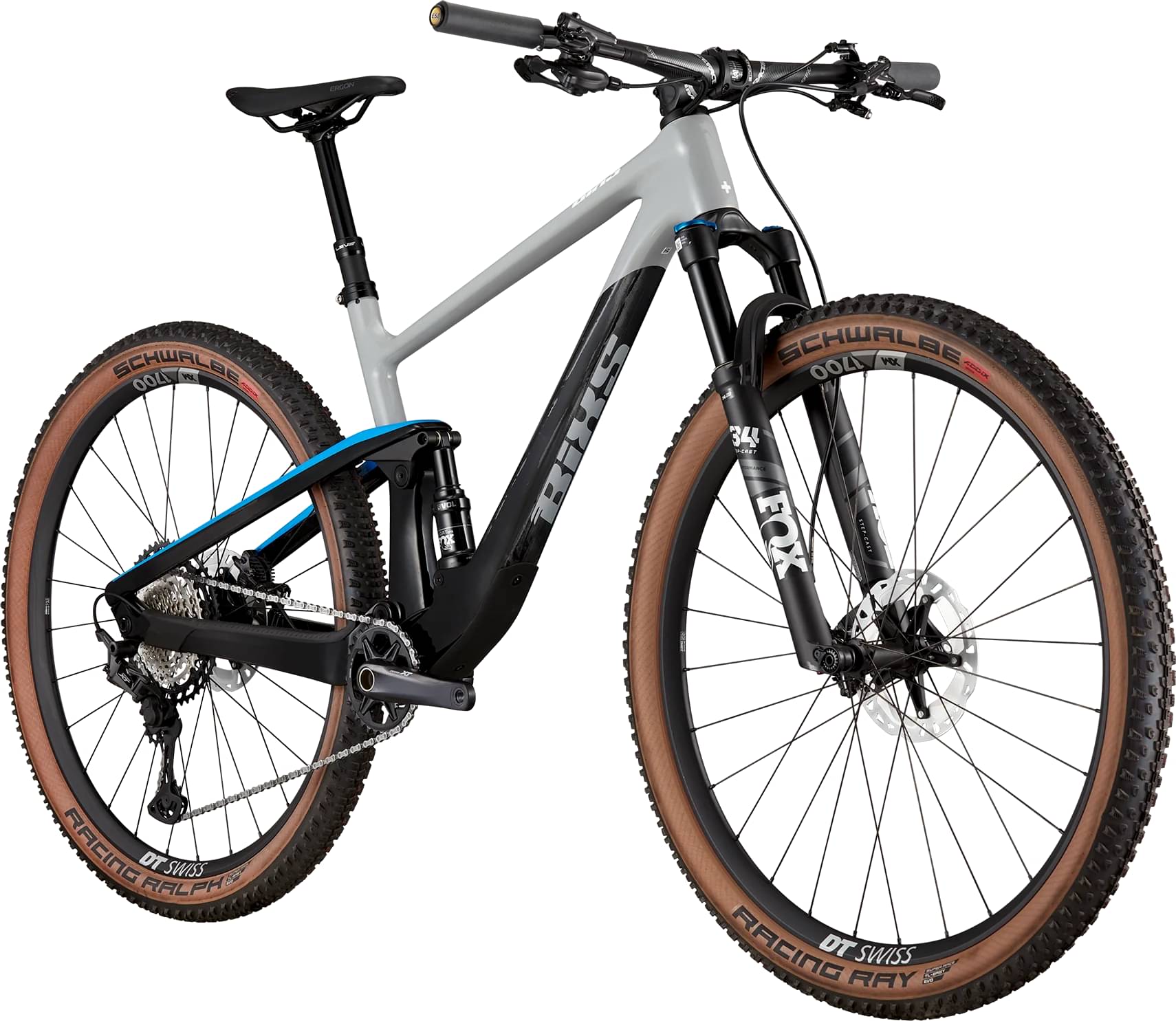

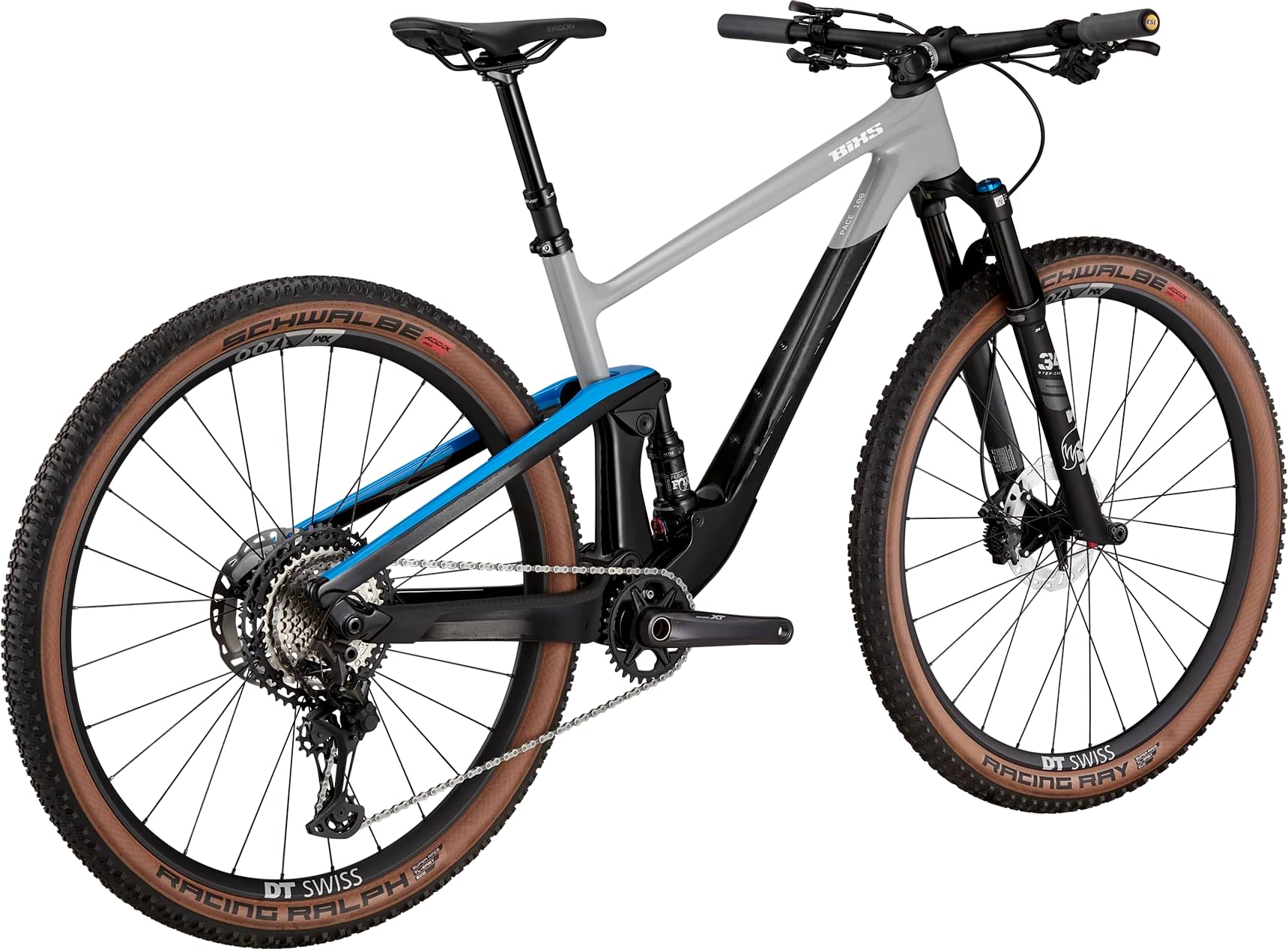

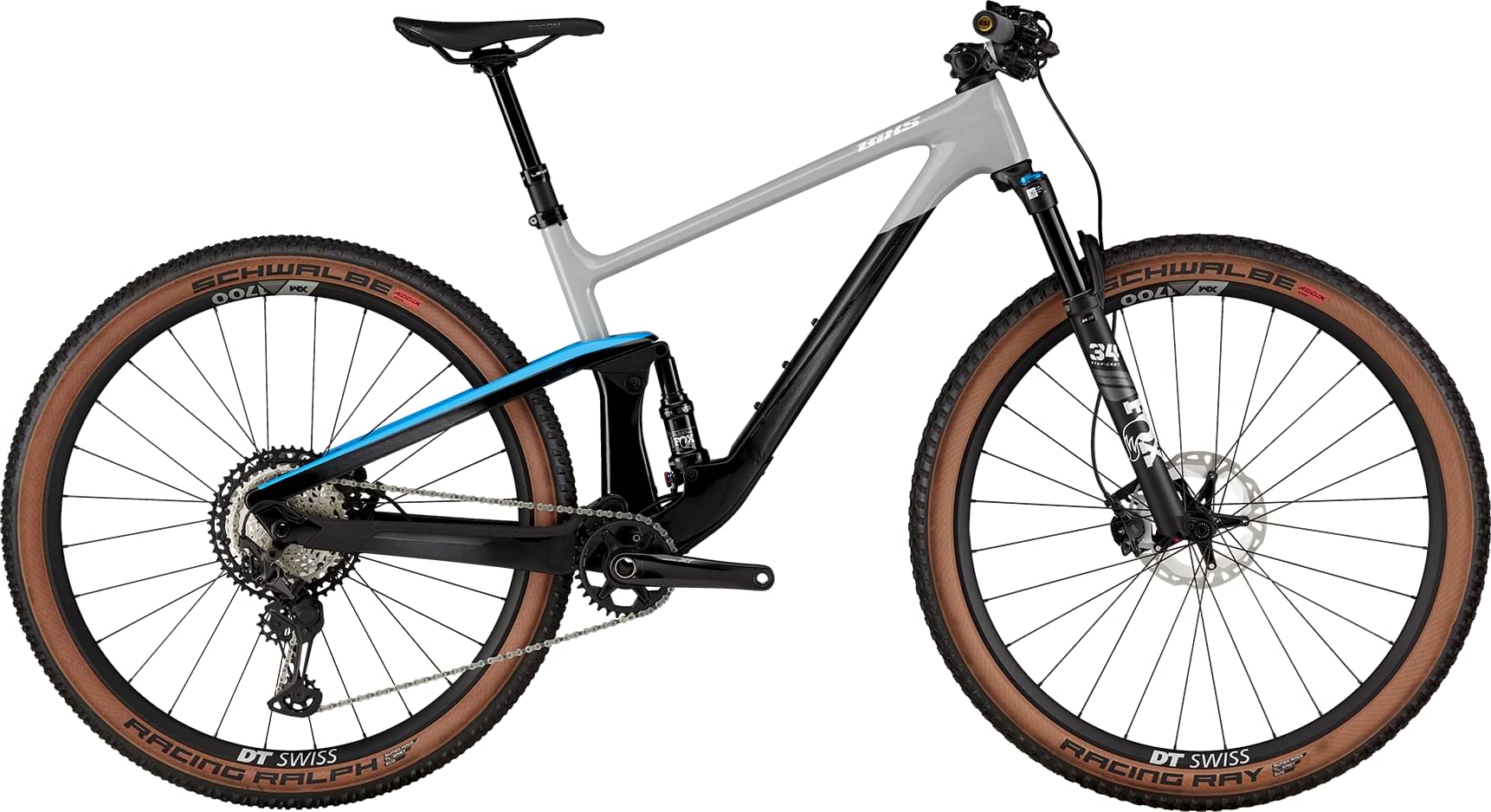

bixs Pace 100 Grey – Raw Carbon 2025
2025 Mountain
Estimate price |
6,773$
Weight | 12.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 100mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RACE GEOMETRY, FULL CARBON FRAME, 100mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
FOX 34 FLOAT SC PERFORMANCE 29", 15x110mm AXLE, TAPERED, GRIP, 110mm TRAVEL, 3-POS. LEVER
Rear Shock
FOX FLOAT DPS PERFORMANCE ELITE, LV, EVOL, 2 POS REMOTE, 165x40, TRUNNION MOUNT, HARDWARE: 25mmx8mm
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-M8100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO XT FC-M8100-1, HOLLOWTECH II, 32 TEETH
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO CN-M8100 12-Speed
Wheels
Front Hub
DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 15x110mmTHRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 30MM INNER WIDTH 29"
Tires
SCHWALBE RACING RAY EVO SUPER RACE, ADDIX SPEEDGRIP, TL EASY, 29x2.35"
Brakes
Brakes
SHIMANO XT BR-M8100, HYDRAULIC DISC BRAKE, RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO XT BL-M8100, ISPEC EV
Cockpit
Stem
RACE FACE AEFFECT, 6°ANGLE, 35mm CLAMP
Handlebar
RACE FACE AEFFECT R, 760mm, 20mm RISE, 8° BACKSWEEP, 35mm
Headset
STSF17 INTEGRATED WITH CABLE INTEGRAGTION AND CABLE ENTRY DUSTCAP 1.5" UPPER AND LOWER BEARING
Seat
Saddle
ERGON SR10 SPORT
Seatpost
KIND SHOCK LEV SI, S: 100mm, M & L: 125mm, XL: 150mm TRAVEL, SHIMANO REMOTE LEVER, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
