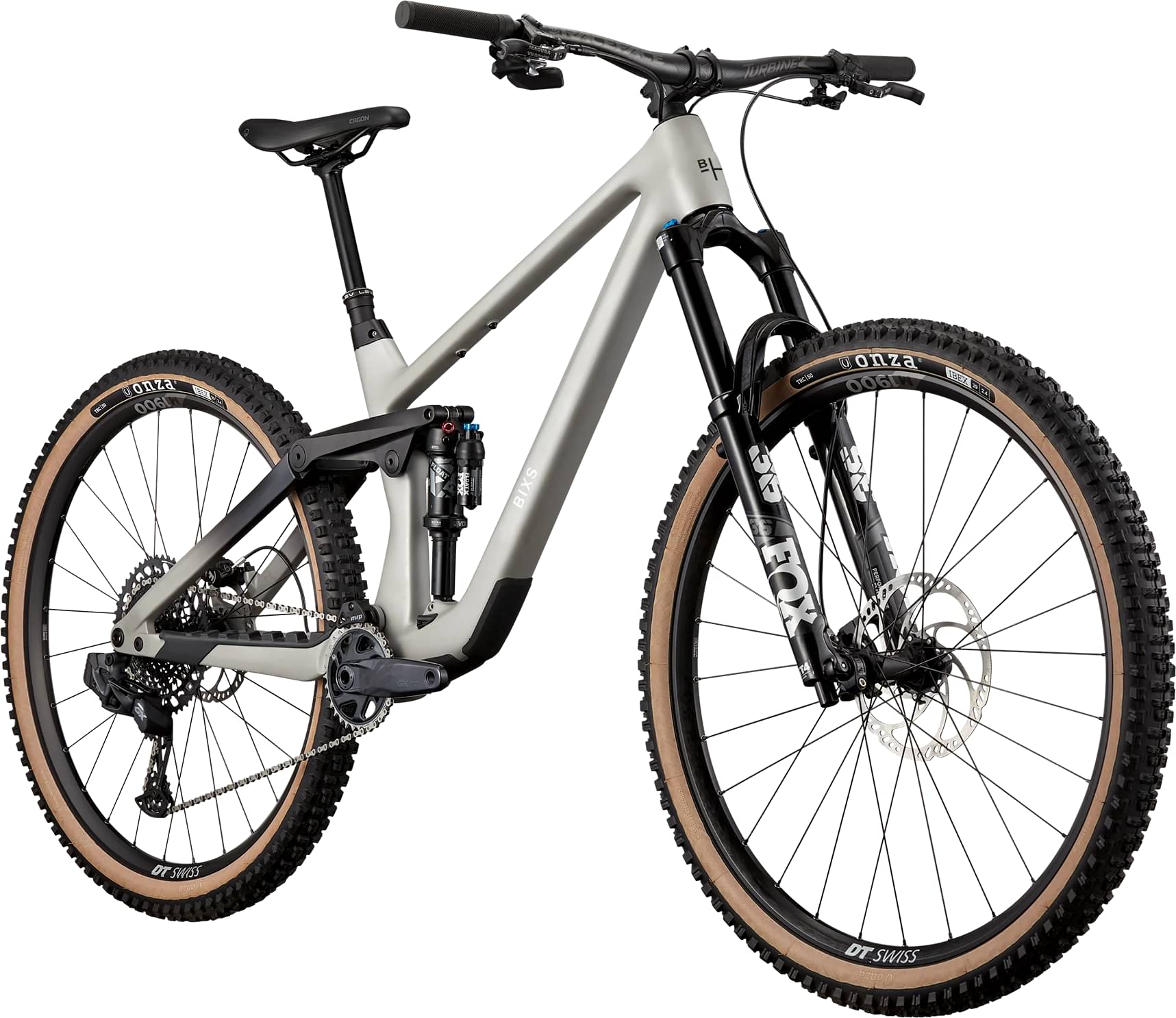

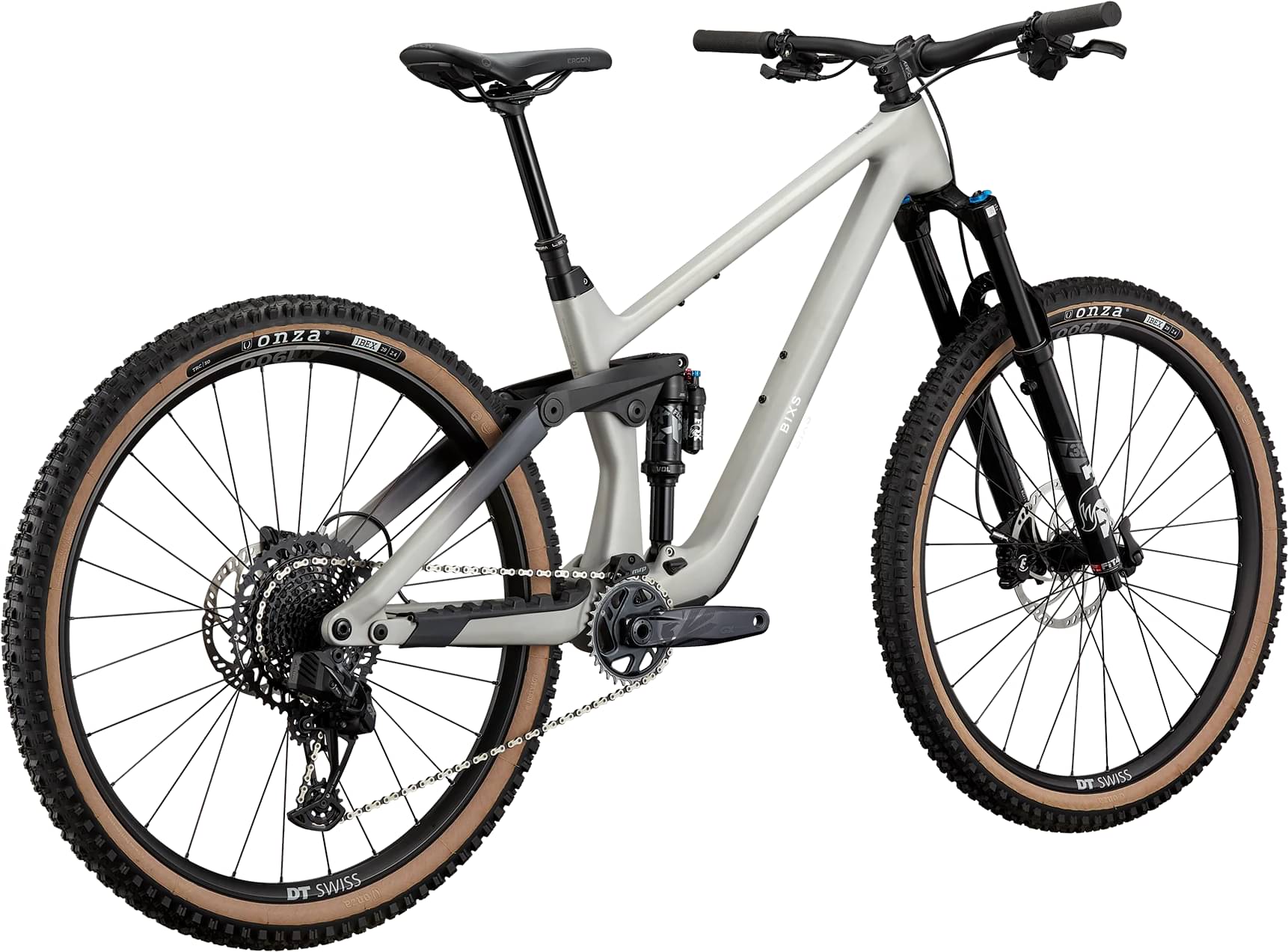

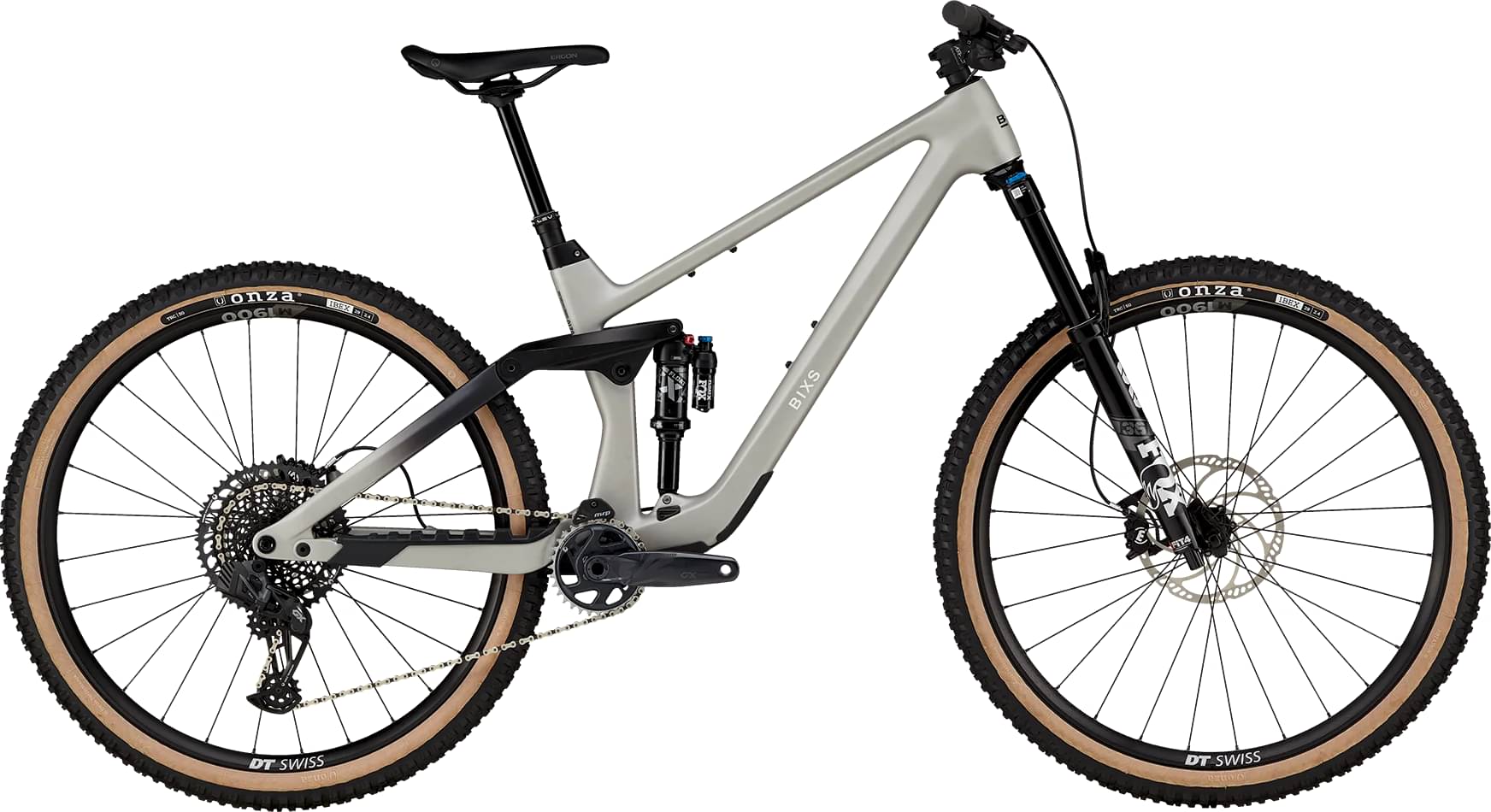

bixs Peak 140 Silver Matt 2025
2025 Mountain
Estimate price |
8,470$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Magura MT5 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRAIL GEOMETRY, FULL CARBON FRAME, 140mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
FOX 36 FLOAT FACTORY, KASHIMA, 15x110mm AXLE, TAPERED, FIT4, TRAVEL: 150mm, 3-POS. LEVER
Rear Shock
FOX FLOAT X PERFORMANCE ELITE, 2 POSITION LEVER 230x57.5, HARDWARE: 30/20mmx8mm
Drivetrain
Rear Derailleur
SRAM GX EAGLE AXS, 12-SPEED
Shift Levers
SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Cassette
SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK
Crank
SRAM GX EAGLE BOOST, DUB, S: 30, OTHERS 32 TEETH
Chain
SRAM CN-GX EAGLE 12-SPEED
Wheels
Front Hub
DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 15x110mm THRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE M-1900 TLR, 28 HOLES, INNER WIDTH 30mm, 29"
Tires
ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Brakes
Brakes
MAGURA MT5, 4-PISTON HYDRAULIC DISC BRAKE, ROTORS F:203mm, R:180mm
Brake Levers
MAGURA MT5, 1-FINGER HC ALUMINUM LEVER BLADE
Cockpit
Stem
RACE FACE AEFFECT R, 0°ANGLE, 35mm CLAMP
Handlebar
RACE FACE TURBINE R, 780mm, 20mm RISE, 8° BACKSWEEP, 35mm
Headset
ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat
Saddle
ERGON SM10 SPORT MAN
Seatpost
KIND SHOCK LEV INTEGRA, S: 100mm, M: 125mm, L: 150mm, XL: 175mm TRAVEL, SHIMANO REMOTE, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
