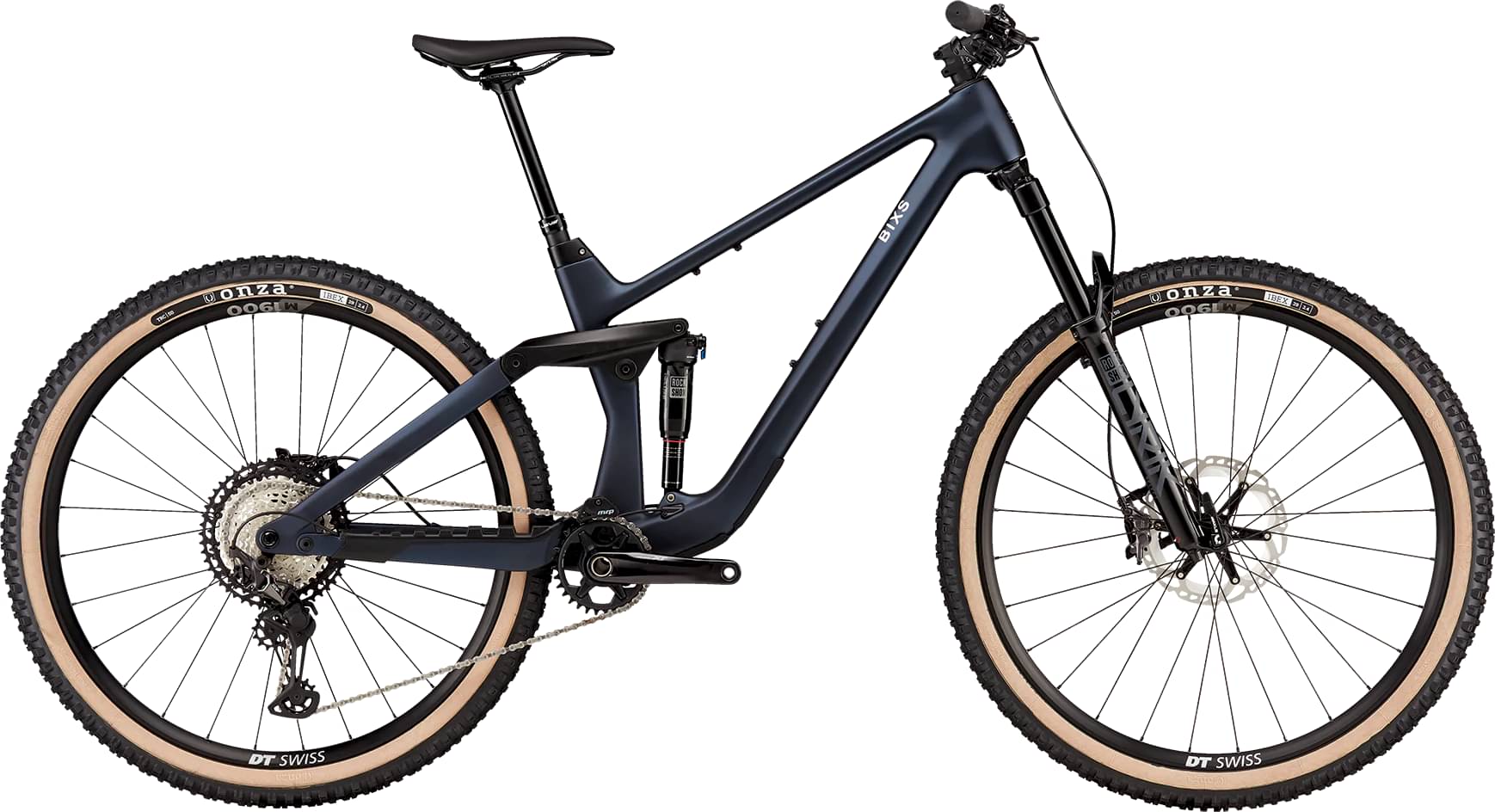

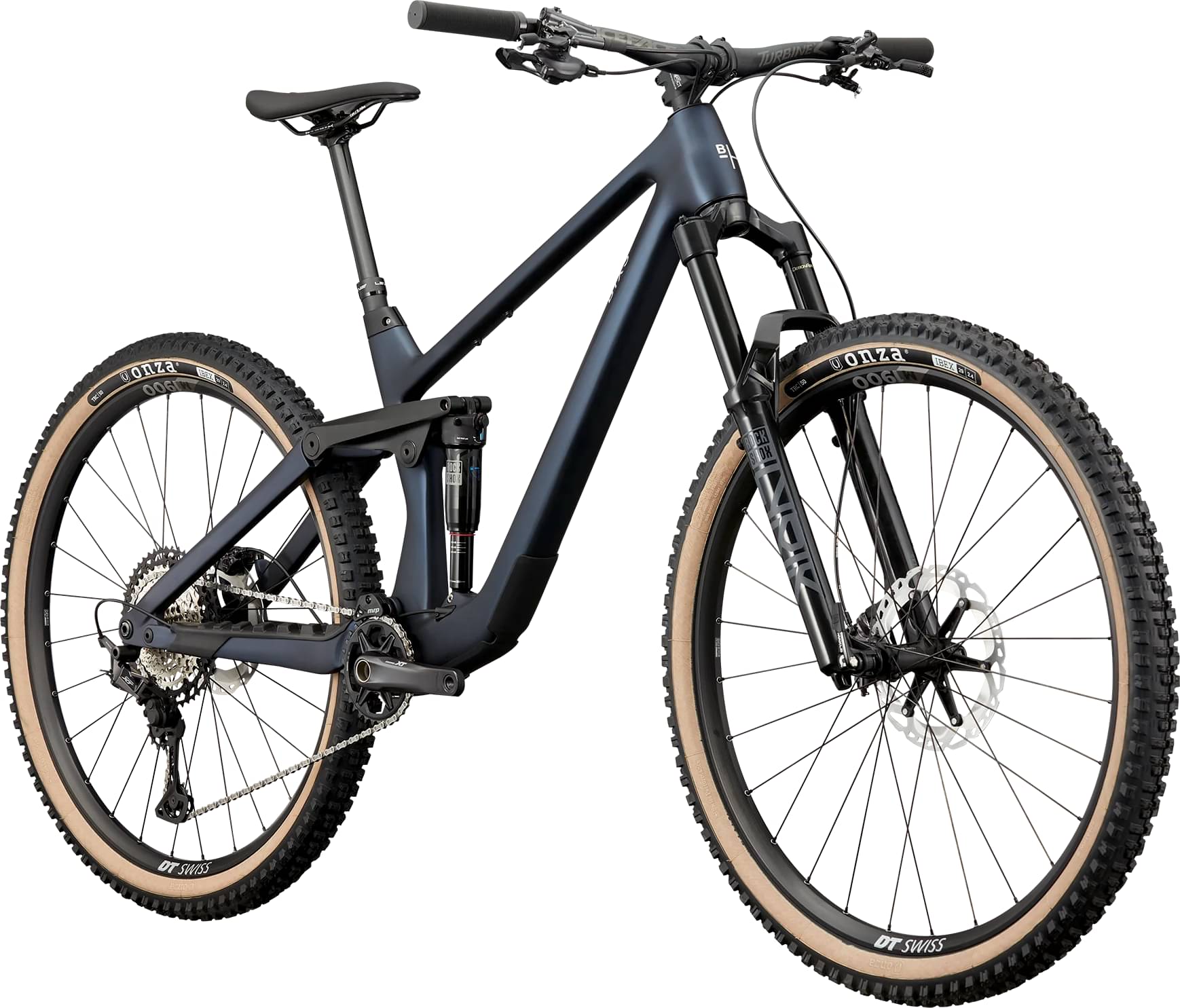

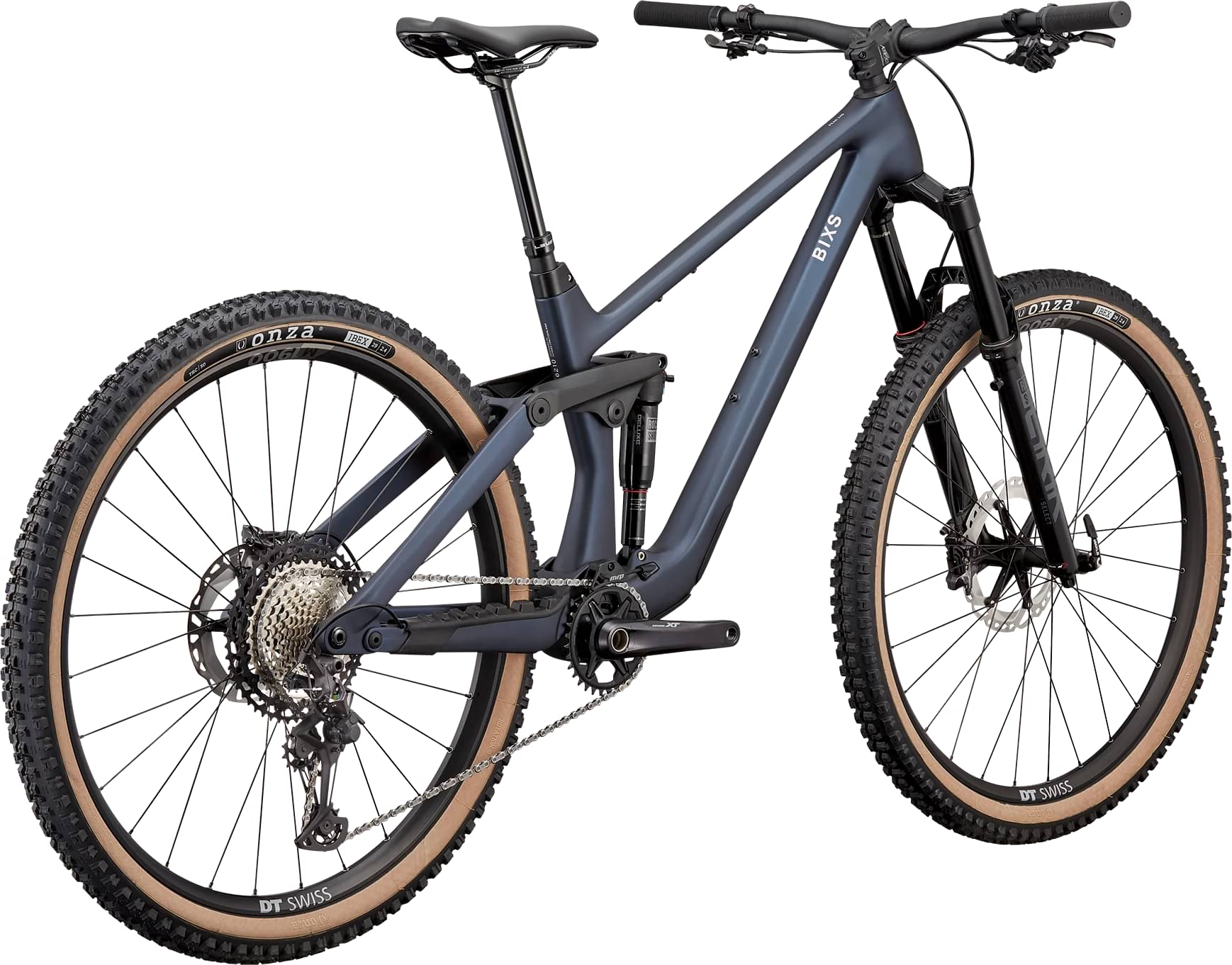

bixs Peak 240 2025
2025 Mountain
Estimate price |
5,683$
Weight | 13.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Select
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
PEAK CARBON FULLSUSPENSION, 140MM TRAVEL, 12X148MM BOOST
Suspension Fork
ROCK SHOX LYRIK SELECT, 150MM TRAVEL, 15X110MM
Rear Shock
ROCK SHOX DELUXE SELECT+, 2 POSITION LEVER, STANDARD MOUNT, 230X57.5 MM
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100-SGS, 12-SPEED
Shift Levers
SHIMANO XT SL-M8100-IR
Cassette
SHIMANO XT CS-M8100-12, 10-51T
Crank
SHIMANO XT FC-M8120-1, CL55, S: 30T, M-XL: 32T
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO XT CN-M8100
Wheels
Tires
ONZA IBEX SKINWALL, 29X2.4", TRC
Brakes
Brakes
SHIMANO XT BL-M8100, BR-M8120 4-PISTON
Cockpit
Stem
RACE FACE AEFFECT R 35, 0°, 35MM CLAMP
Handlebar
RACE FACE TURBINE R 35, 20MM RISE, 780MM
Seat
Saddle
BIXS-VL-4432
Seatpost
KIND SHOCK LEV-SI, Ø31.6MM, S: 125MM, M: 150MM, L: 175MM, XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
