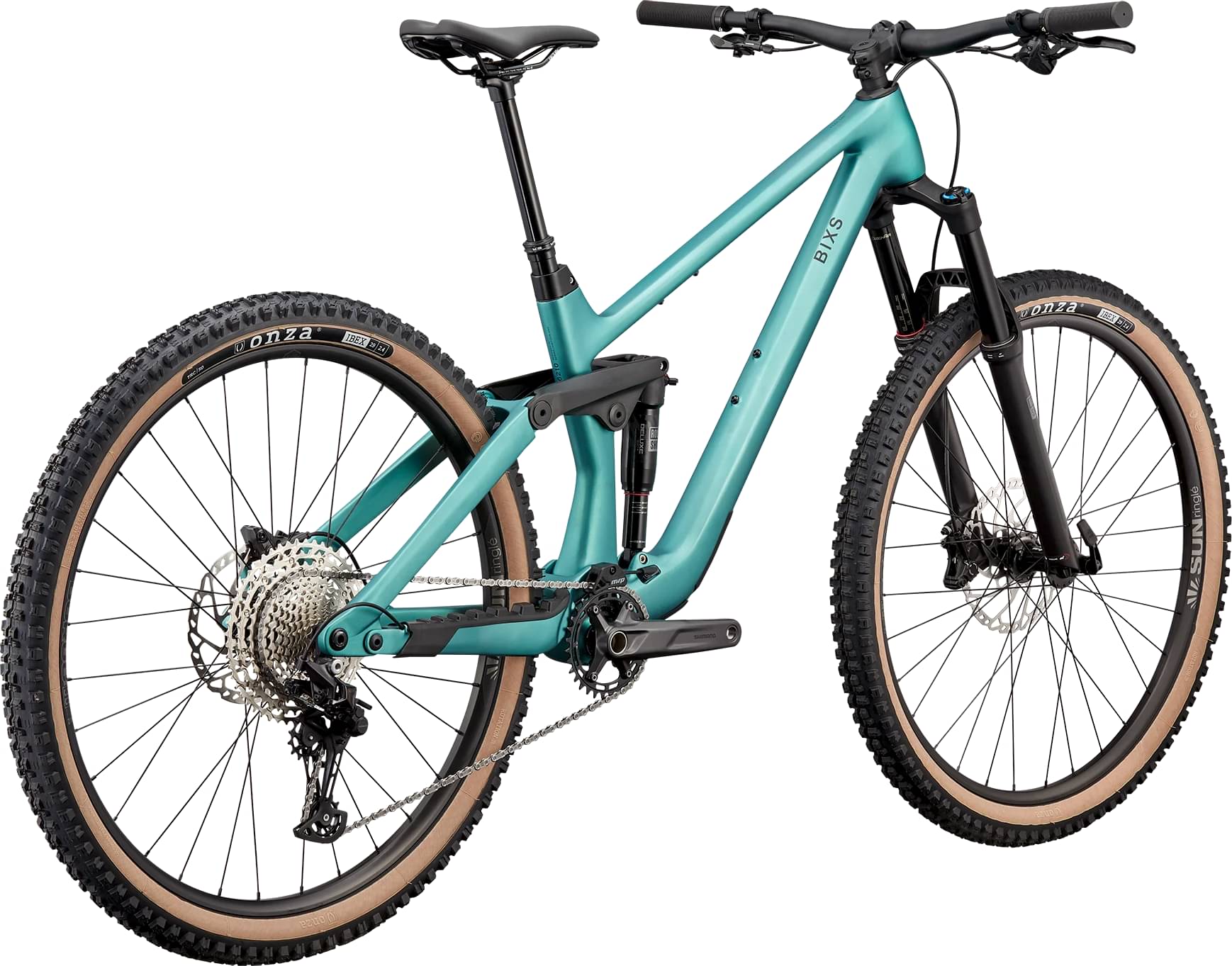

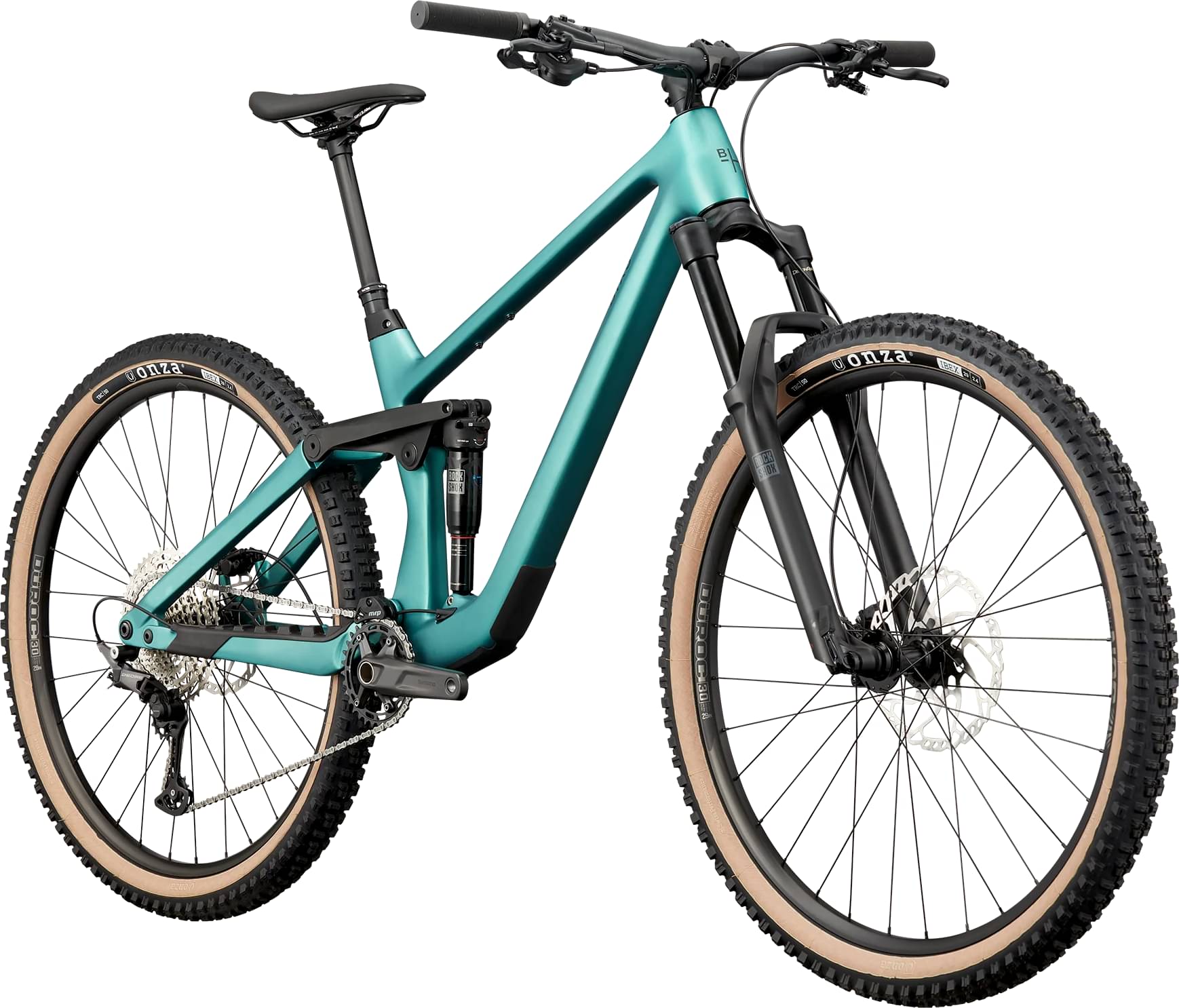

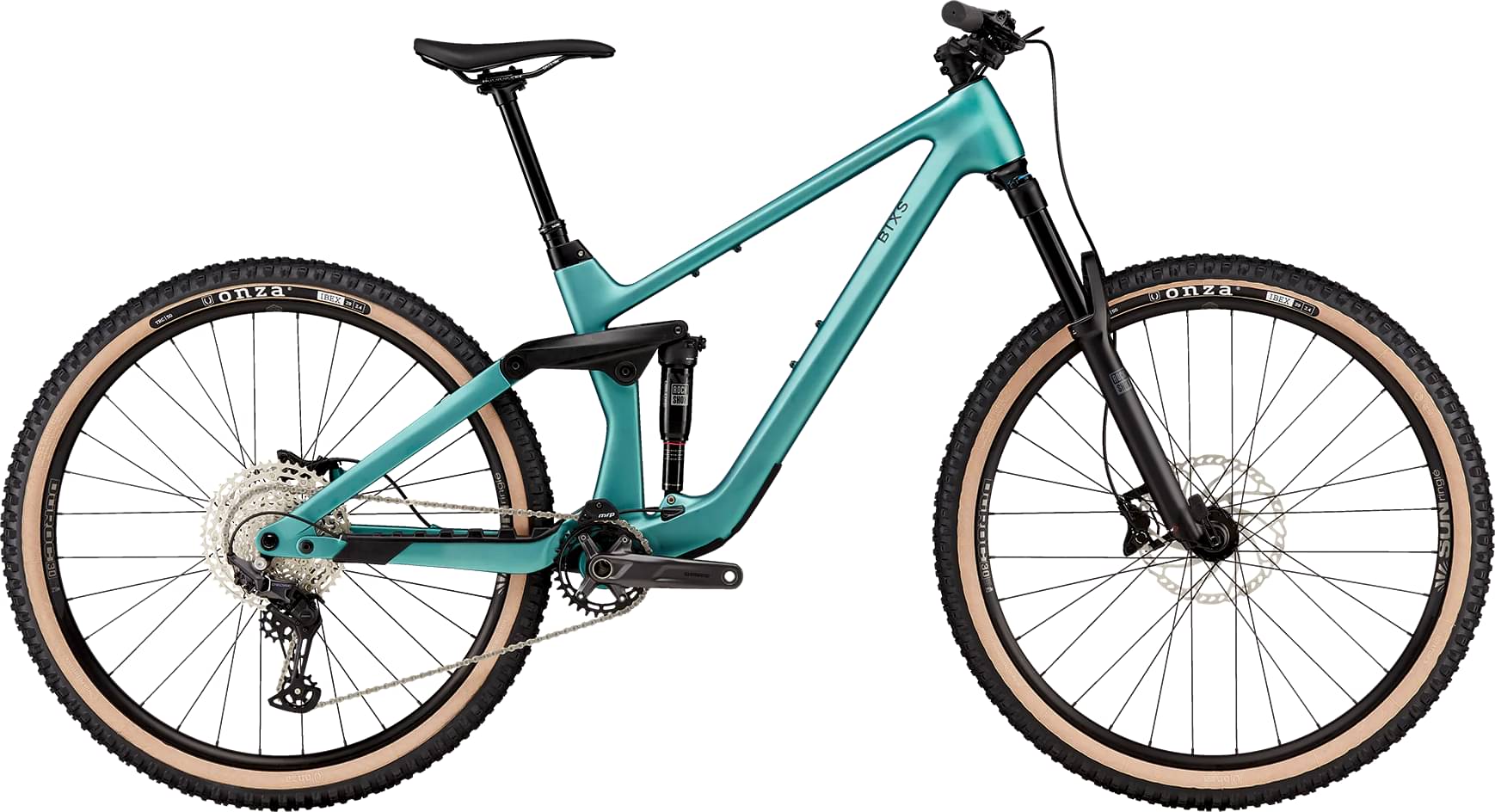

bixs Peak 340 2025
2025 Mountain
Estimate price |
4,350$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Psylo
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
PEAK CARBON FULLSUSPENSION, 140MM TRAVEL, 12X148MM BOOST
Suspension Fork
ROCK SHOX PSYLO GOLD RC, 150MM TRAVEL, 15X110MM
Rear Shock
ROCK SHOX DELUXE SELECT+, 2 POSITION LEVER, 230X57.5MM
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100-SGS, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100-IR
Cassette
SHIMANO DEORE CS-M6100-12, 10-51T
Crank
SHIMANO FC-MT512-1, CL55, S: 30T, M-XL: 32T
Chain
SHIMANO DEORE CN-M6100
Wheels
Tires
ONZA IBEX SKINWALL, 29X2.4", TRC
Brakes
Brakes
SHIMANO BL-M4100, BR-MT420 4-PISTON
Cockpit
Stem
BIXS STEM, 0°, 35MM CLAMP
Handlebar
BIXS RIZER BAR, 15MM RISE, 780MM
Seat
Saddle
BIXS-VL-4432
Seatpost
KIND SHOCK RAGE-I, Ø31.6MM, S: 125MM, M: 150MM, L: 170MM, XL: 170MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
