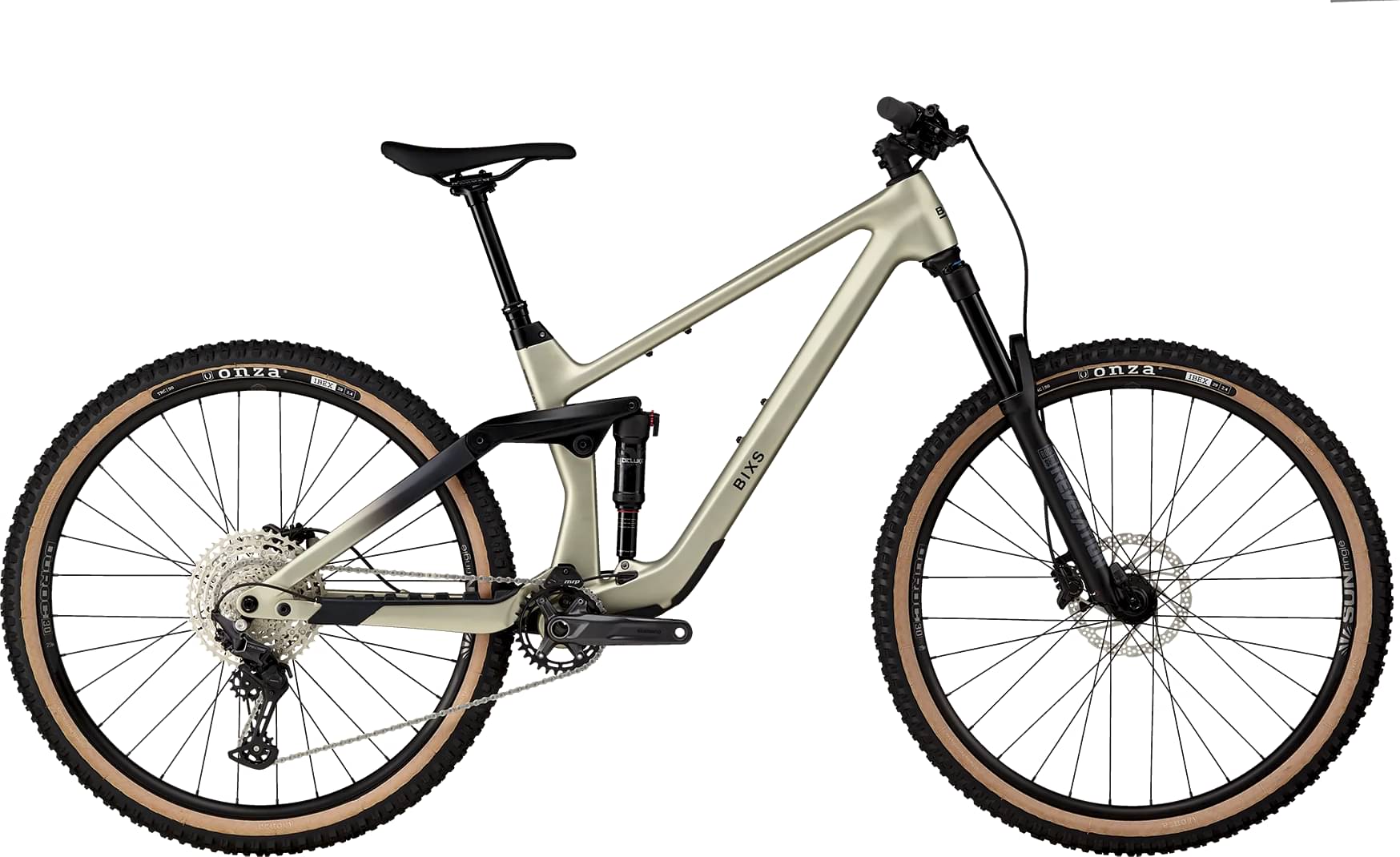

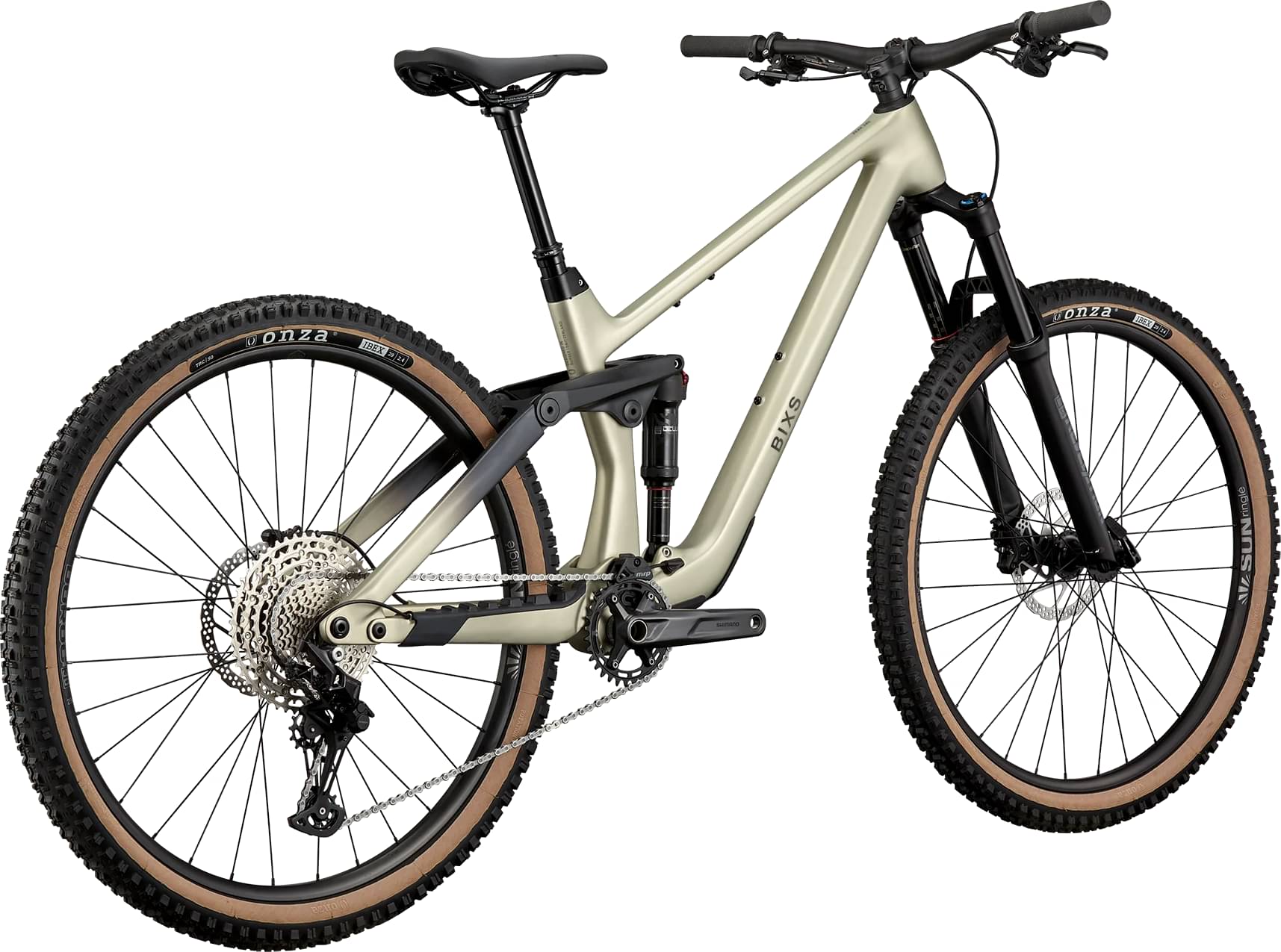

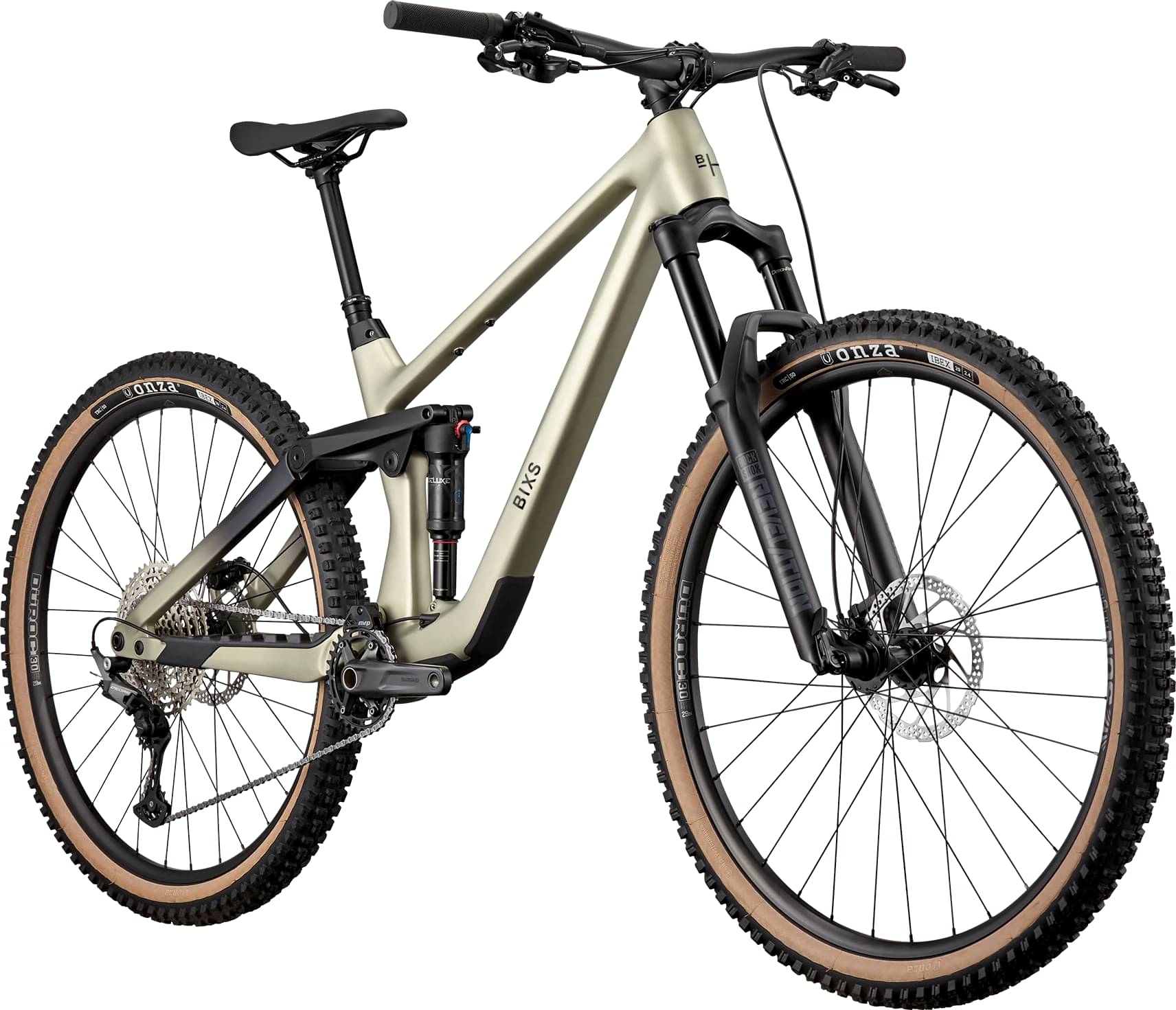

bixs Peak 340 Golden Sand Metallic 2025
2025 Mountain
Estimate price |
4,835$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRAIL GEOMETRY, FULL CARBON FRAME, 140mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
ROCK SHOX REVELATION RC, 15x110mm AXLE, TAPERED, 150mm TRAVEL, REBOUND, COMPRESSION TO LOCK
Rear Shock
ROCK SHOX DELUX SELECT+ RT, LEVER, 185x55, TRUNNION MOUNT, HARDWARE: 20mmx8mm
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100, CLAMP TYPE
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO FC-MT512, 2-PIECE CRANKSET, S: 30 THEETH, OTHERS 32 TEETH
Chain
SHIMANO CN-M6100 12-SPEED
Wheels
Front Hub
SUNRINGLE WHEELSET DUROC 30 COMP, 28 HOLES, 15x110mm THRU AXLE
Rear Hub
SUNRINGLE WHEELSET DOROC COMP, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
SUNRINGLE WHEELSET DUROC 30 COMP, TLR, 28 HOLES, INNER WIDTH 26mm, 29"
Tires
ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Brakes
Brakes
SHIMANO BR-MT500, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-MT501
Cockpit
Stem
BIXS 0°ANGLE, 35mm CLAMP
Handlebar
BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm
Headset
ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat
Saddle
BiXS VL-1831
Seatpost
KIND SHOCK RAGEi, S: 100mm, M: 125mm, L: 150mm, XL: 170mm TRAVEL, SOUTHPAW REMOTE LEVER, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD | Körpergrösse | Rahmengrösse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
