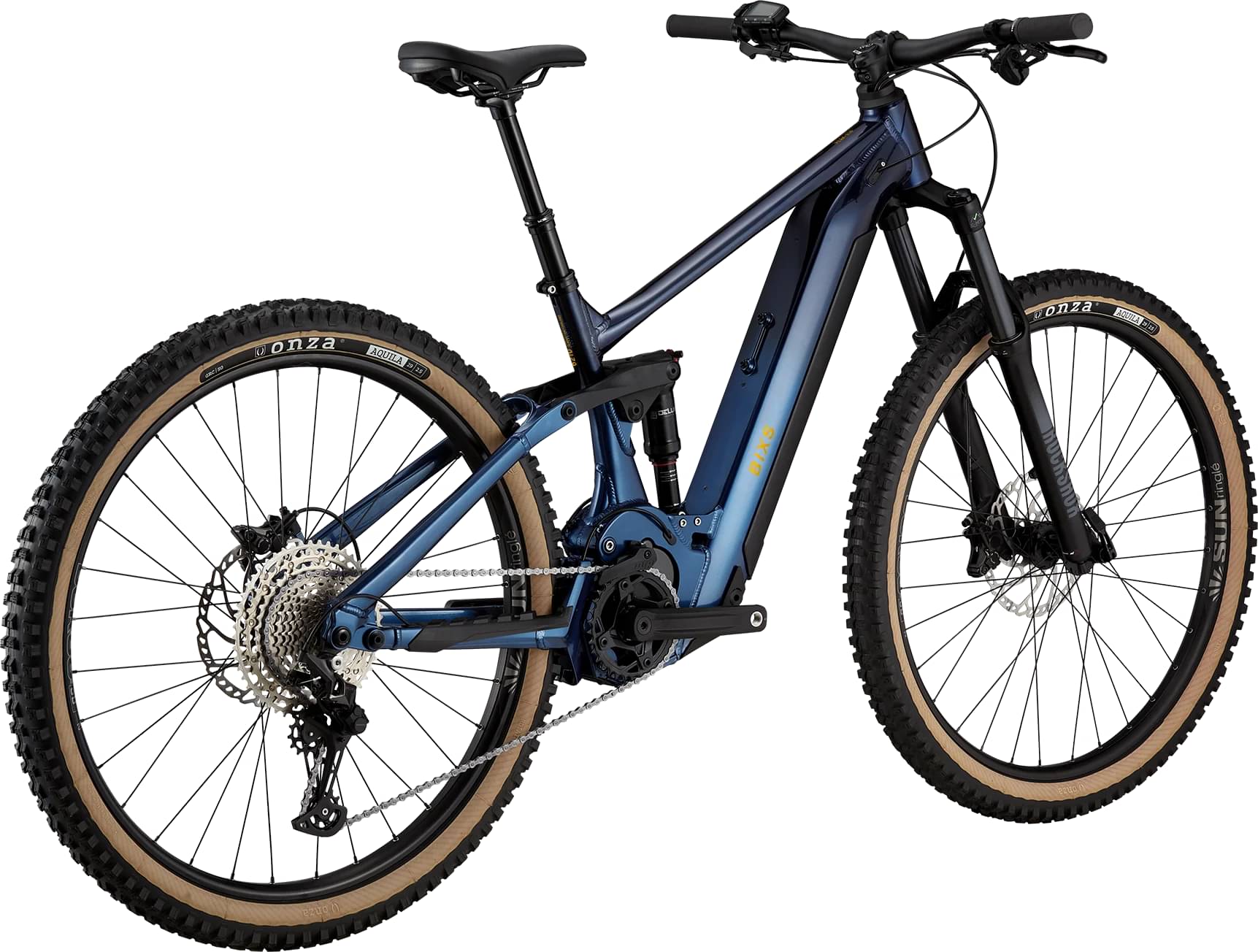

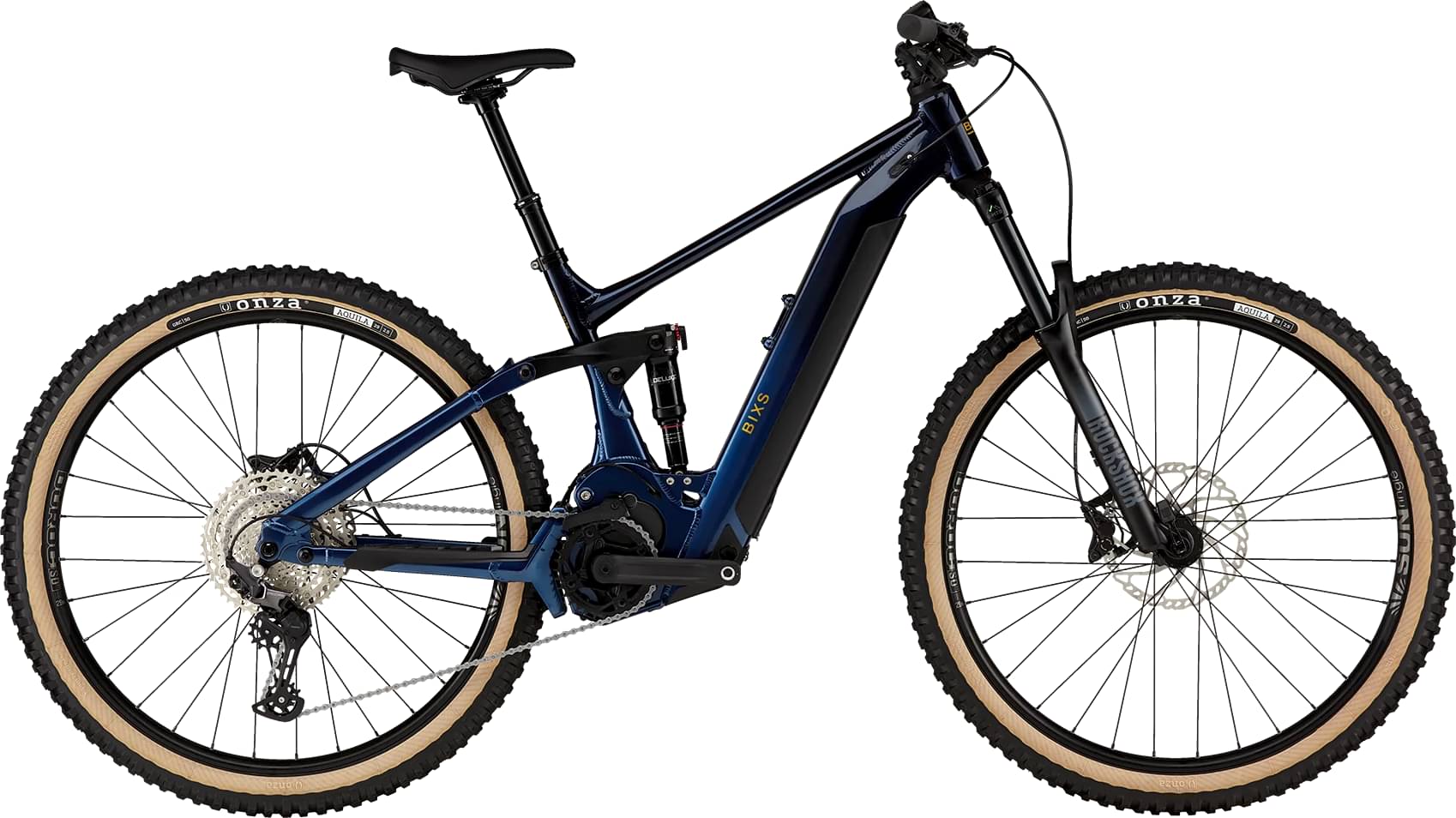

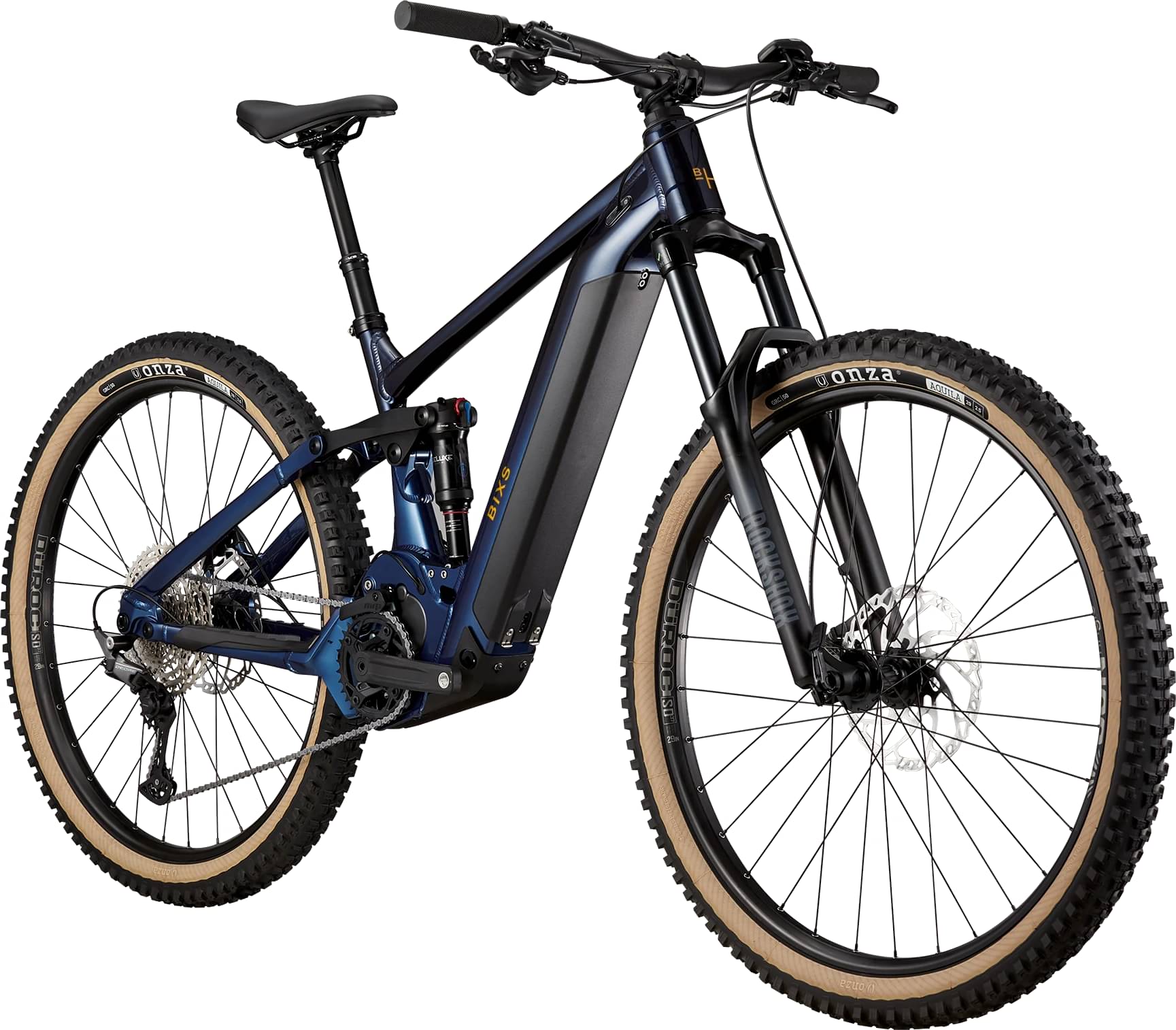

bixs Peak-E14 2025
2025 E-bike
Estimate price |
6,160$
Weight | 26.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W mid-drive -
Battery SIMPLO, 36V, 630Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TRAIL GEOMETRY, ALLOY 6061, 140mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
ROCK SHOX 35 SILVER TK SOLO AIR 29", 15x110mm AXLE, TAPERED, 150mm TRAVEL, REBOUND, COMP. TO LOCK
Rear Shock
ROCK SHOX DELUX SELECT+ RT, LEVER, 185x55mm, TRUNNION MOUNT, HARDWARE: 20mmx8mm
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
FSA CK320, ISIS, BOOST, STEEL CHAINRING, 34 TEETH
Chain
KMC E12 SPORT, EPT ANTI-RUST
Wheels
Front Hub
SUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 15x110mm THRU AXLE
Rear Hub
SUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 12x148mm BOOST, THRU AXLE
Tires
ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.5",GRC, SKINWALL
Brakes
Brakes
SHIMANO BR-MT420, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS
Brake Levers
SHIMANO BL-M4100, ISPEC EV
Cockpit
Stem
BIXS 0°ANGLE, 35MM CLAMP
Handlebar
BIXS RIZER BAR, 780MM, 9° BACKSWEEP, 15MM RISE, 35MM
Headset
ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat
Saddle
BIXS VL-3575
Seatpost
KIND SHOCK RAGEi, S: 100mm, M: 125mm, L: 150mm, XL: 170mm TRAVEL, WESTY LEVER REMOTE, 31.6mm
Motor & Battery
Motor
YAMAHA PW-X 3 SERIES, 250 WATT
Battery
SIMPLO, 36V, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.418 mm | 1.383 mm | 1.32 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 758 mm | 775 mm | 792 mm | 819 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 627 mm | 631 mm | 636 mm | 640 mm |
| Reach | 430 mm | 445 mm | 460 mm | 485 mm |
| Top Tube Length | 586 mm | 602 mm | 618 mm | 644 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 430 mm | 475 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1207 mm | 1224 mm | 1241 mm | 1268 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
