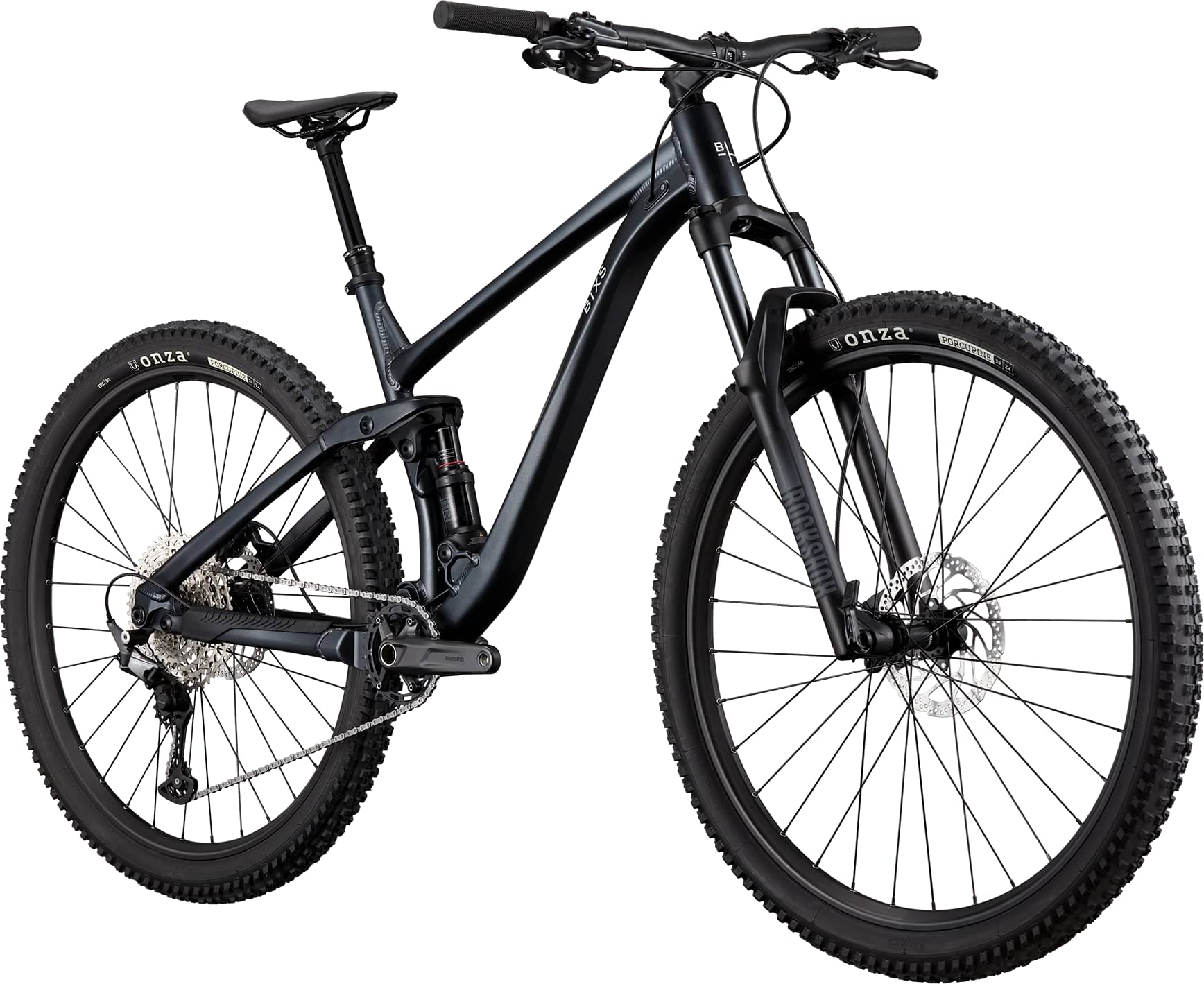

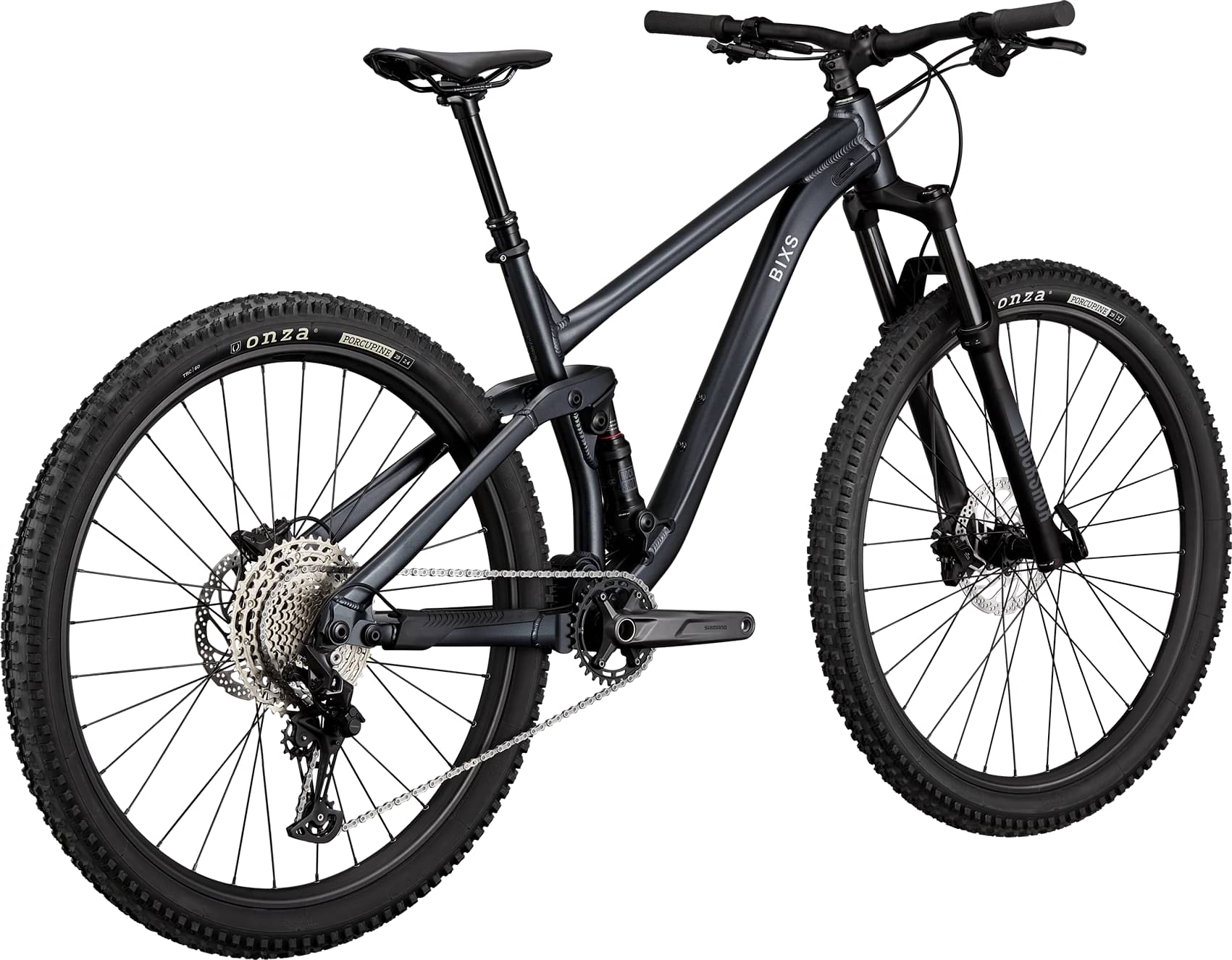

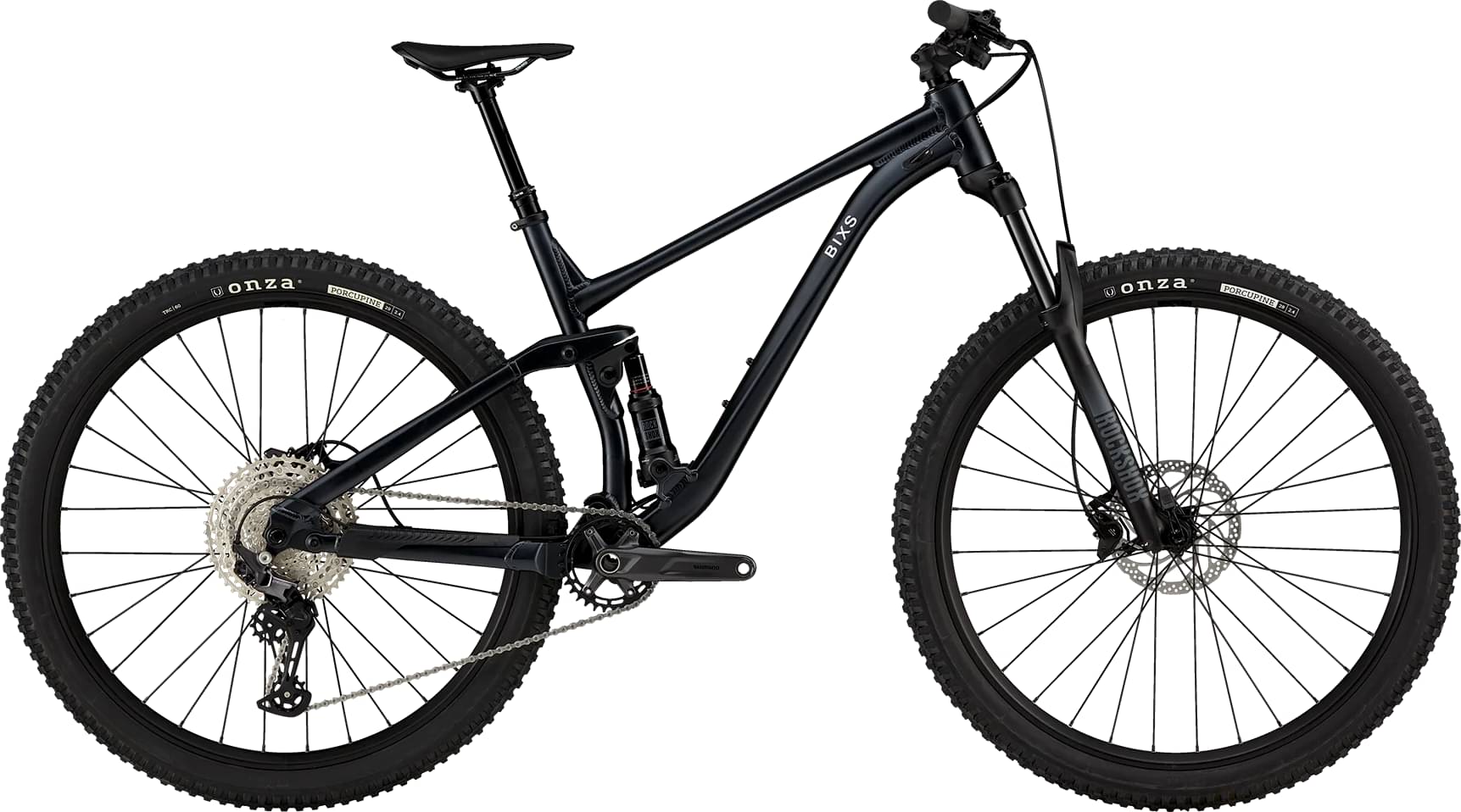

bixs Sign 520 2025
2025 Mountain
Estimate price |
2,411$
Weight | 15.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRAIL GEOMETRY, ALLOY 6061, 120mm TRAVEL, DROPOUT FOR 148x12mm BOOST, 29"
Suspension Fork
ROCK SHOX RECON SILVER RL 29", 15x110mm AXLE, TAPERED, 130mm TRAVEL, REBOUND, COMP. TO LOCK
Rear Shock
ROCK SHOX DELUXE SELECT, LEVER, REBOUND, 165x45, TRUNNION MOUNT, HARDWARE: 22.2x8mm
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO FC-MT511, 2-PIECE CRANKSET, 32 TEETH
Chain
SHIMANO CN-M6100 12-SPEED
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear Hub
SHIMANO FH-TC500-MS-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Rims
ALEXRIMS MD-30, 32 HOLES, INNER WIDTH 30mm, 29"
Tires
ONZA PORCUPINE, KEVLAR FOLDABLE, TUBELESS READY, 29x2.40"
Brakes
Brakes
SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-M4100, ISPEC EV
Cockpit
Stem
BIXS S-104, 7°ANGLE, 31.8mm CLAMP
Handlebar
BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 31.8mm
Headset
FSA NO.55R 1.5" / 558
Seat
Saddle
BIXS VL-1A47
Seatpost
KIND SHOCK RAGEi, S: 100mm, M & L: 125mm, XL: 150mm TRAVEL, SOUTHPAW REMOTE LEVER, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.513 mm | 1.462 mm | 1.407 mm | 1.351 mm |
| Stack | 605 mm | 614 mm | 619 mm | 628 mm |
| Reach | 400 mm | 420 mm | 440 mm | 465 mm |
| Top Tube Length | 573 mm | 596 mm | 617 mm | 645 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1122 mm | 1154 mm | 1167 mm | 1195 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
