Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eTRAIL GEOMETRY, ALLOY 6061, D.R.T. 130mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
FOX 34 FLOAT PERFORMANCE 29", 15x110mm AXLE, TAPERED, GRIP, TRAVEL: 130mm, 3-POSITION LEVER
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-M7100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO STEPS FC-EM600, 34 TEETH
Bottom Bracket
STEPS, press-fit
Chain
SHIMANO CN-M8100 12-SPEED
Wheels
Front Hub
DT SWISS WHEELSET SPLINE H-1900, 28 HOLES, 15x110mm THRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE H-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE H-1900 TLR, 28 HOLES, INNER WIDTH 30mm, 29"
Tires
SCHWALBE F: NOBBY NIC, R: HANS DAMPF, SUPER TRAIL, ADDIX SPEEDGRIP, TL EASY, 29x2.6"
Brakes
Brakes
SHIMANO SLX BR-M7120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS
Brake Levers
SHIMANO SLX BL-M7100, ISPEC EV
Cockpit
Stem
RACE FACE AFFECT R, 0°ANGLE, 35mm CLAMP
Handlebar
RACE FACE AFFECT R, 780mm, 20mm RISE, 8° BACKSWEEP, 35mm
Seat
Saddle
ERGON SM10 E-MOUNTAIN SPORT MEN
Seatpost
KIND SHOCK LEV SI, 15": 75mm, 17": 100mm, 19": 125mm, 21": 150m TRAVEL, SHIMANO REMOTE LEVER, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS EP8, 250 WATT
Battery
DARFON, 36V, 630Wh
Fit data

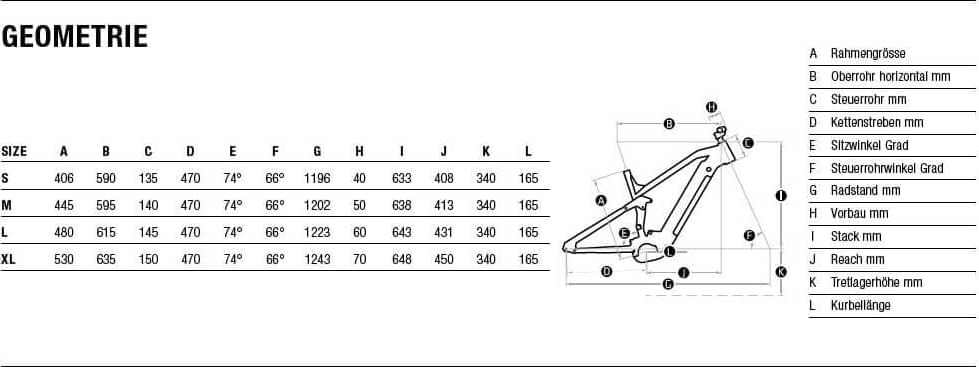

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SIGN-E13 is a Bixs E Sign E13 model. 1 e-bike variation carries this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 7556$. Doing a quick comparison, we notice that SIGN-E13 price is 124.55% more expensive than the average cost of a Trail e-bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the SIGN-E13 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The SIGN-E13 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
BiXS SIGN-E13 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
