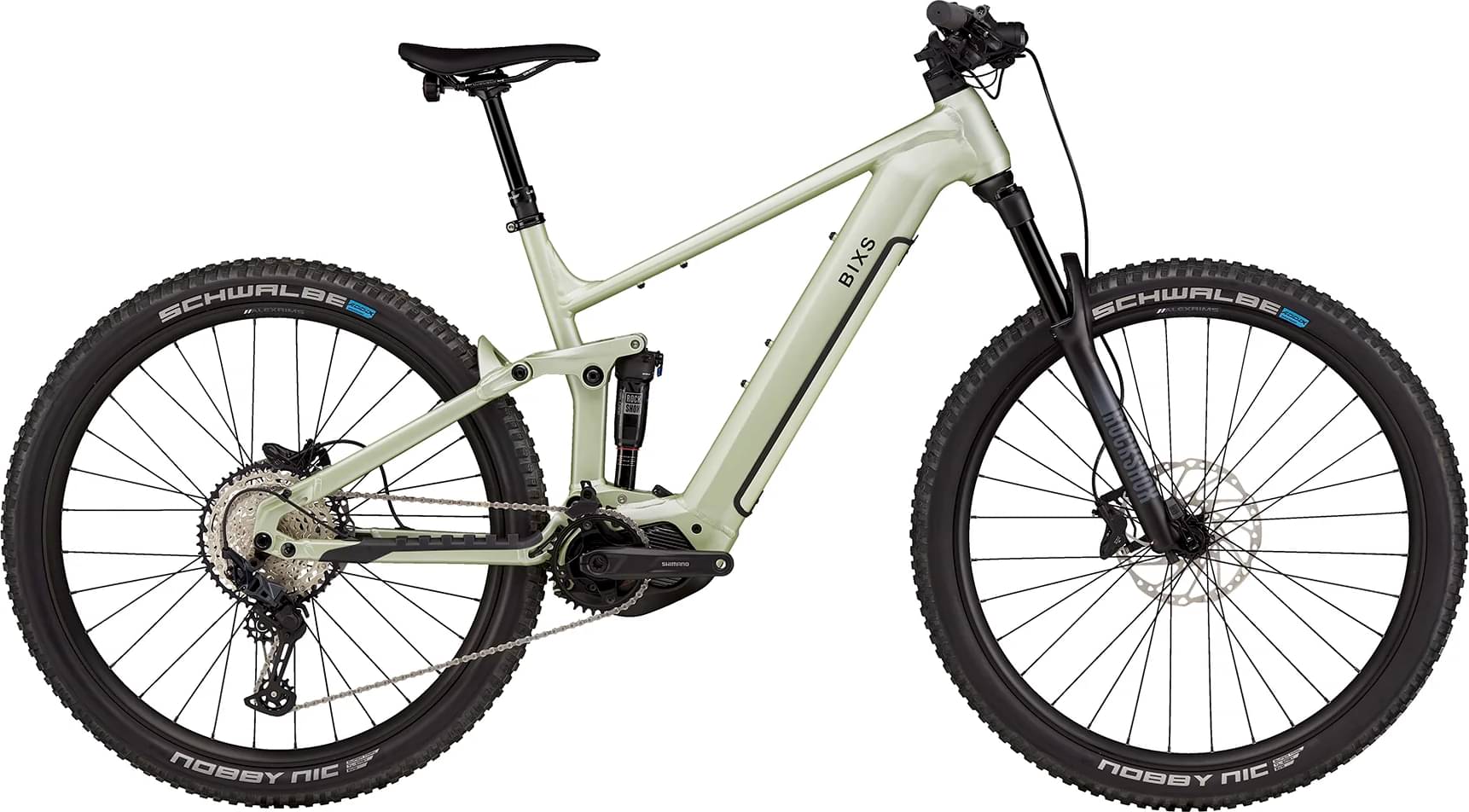

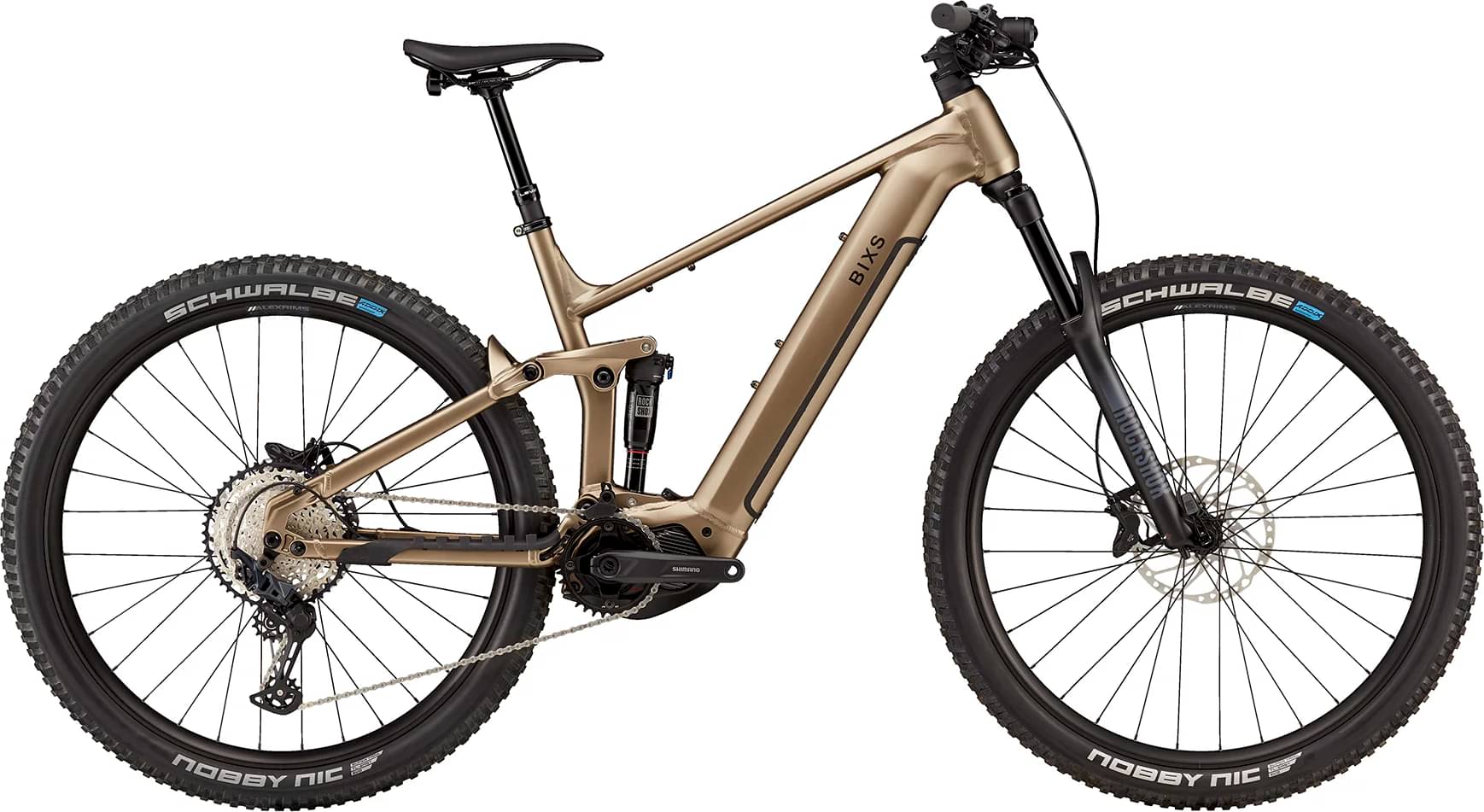

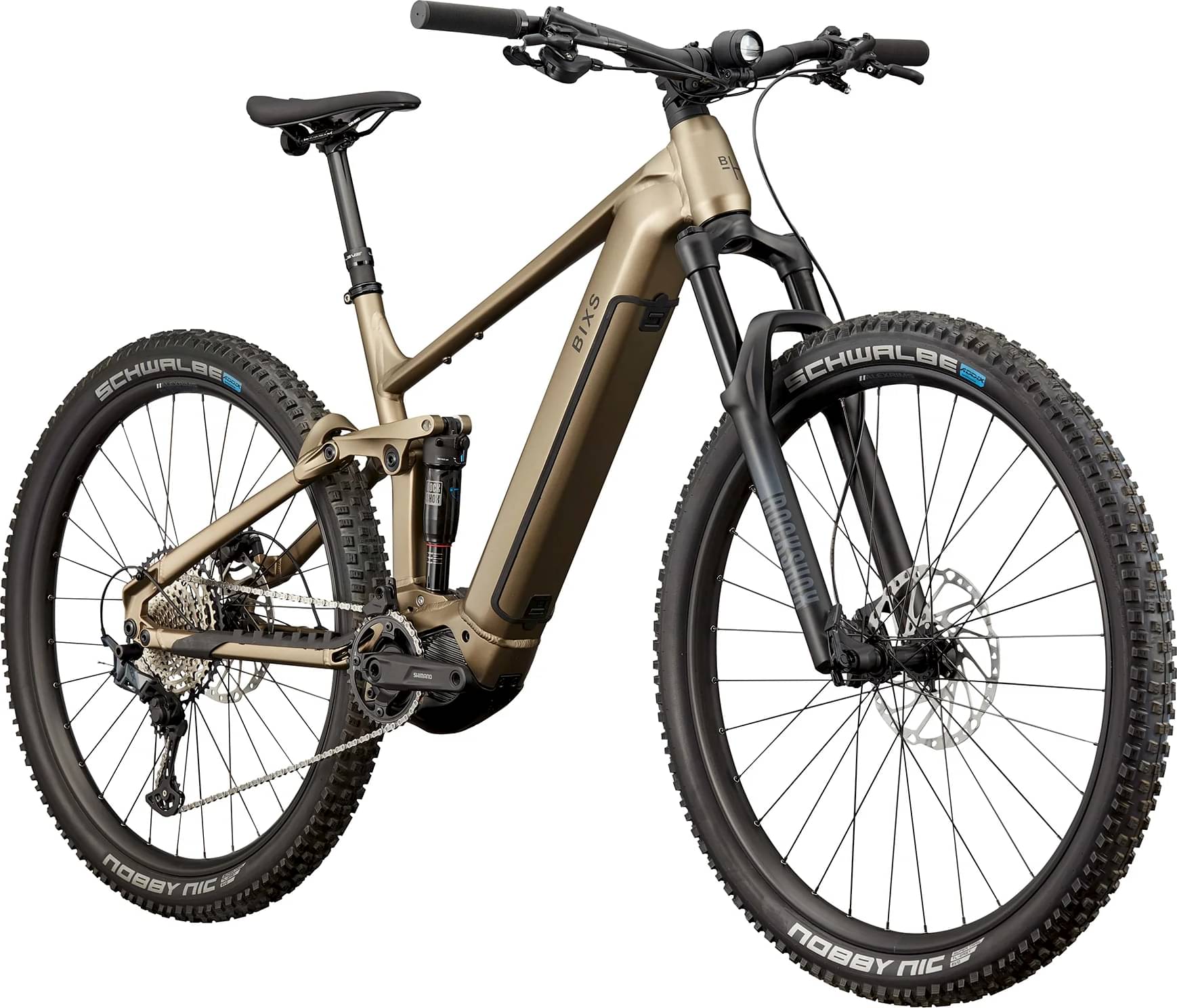

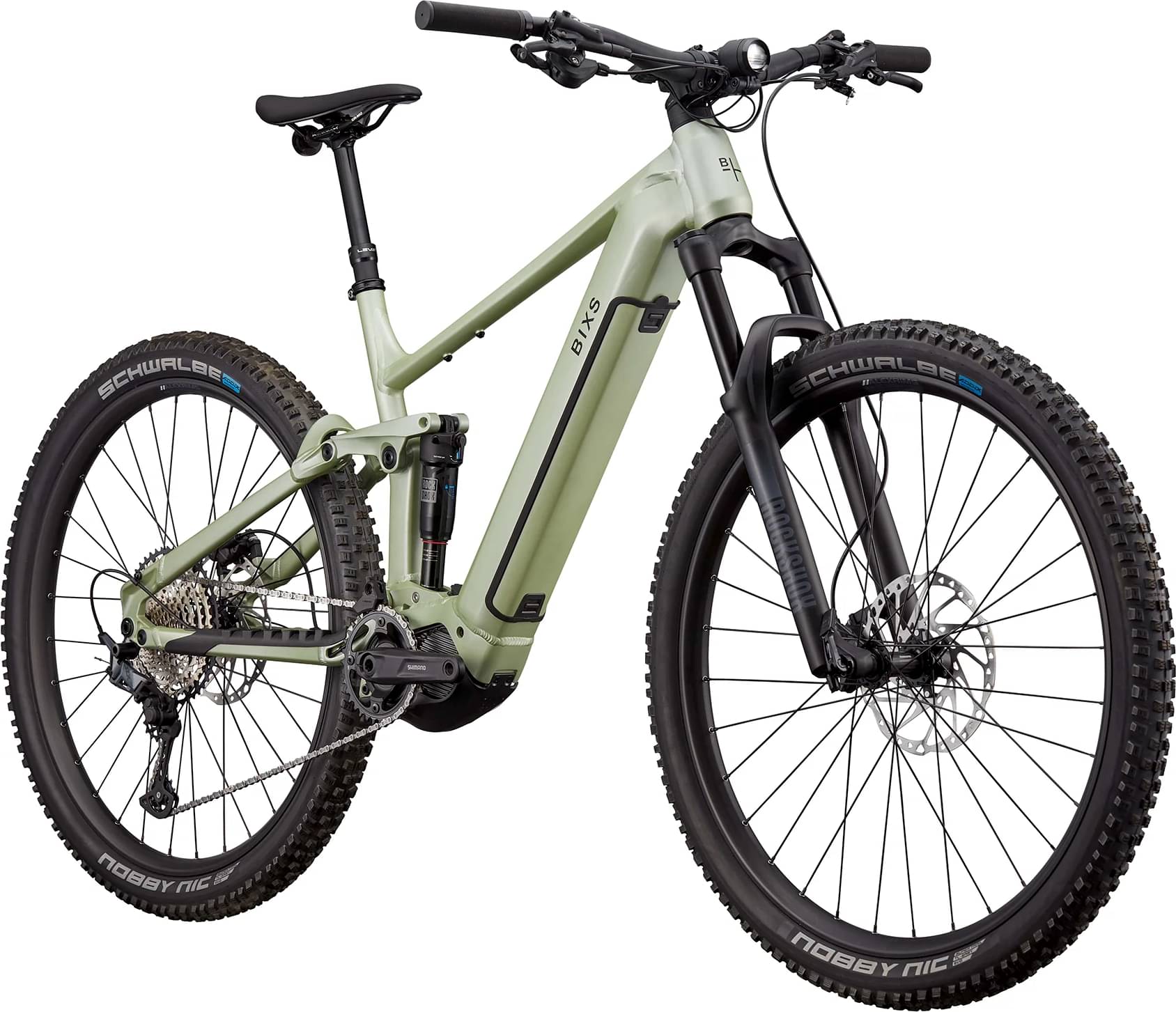

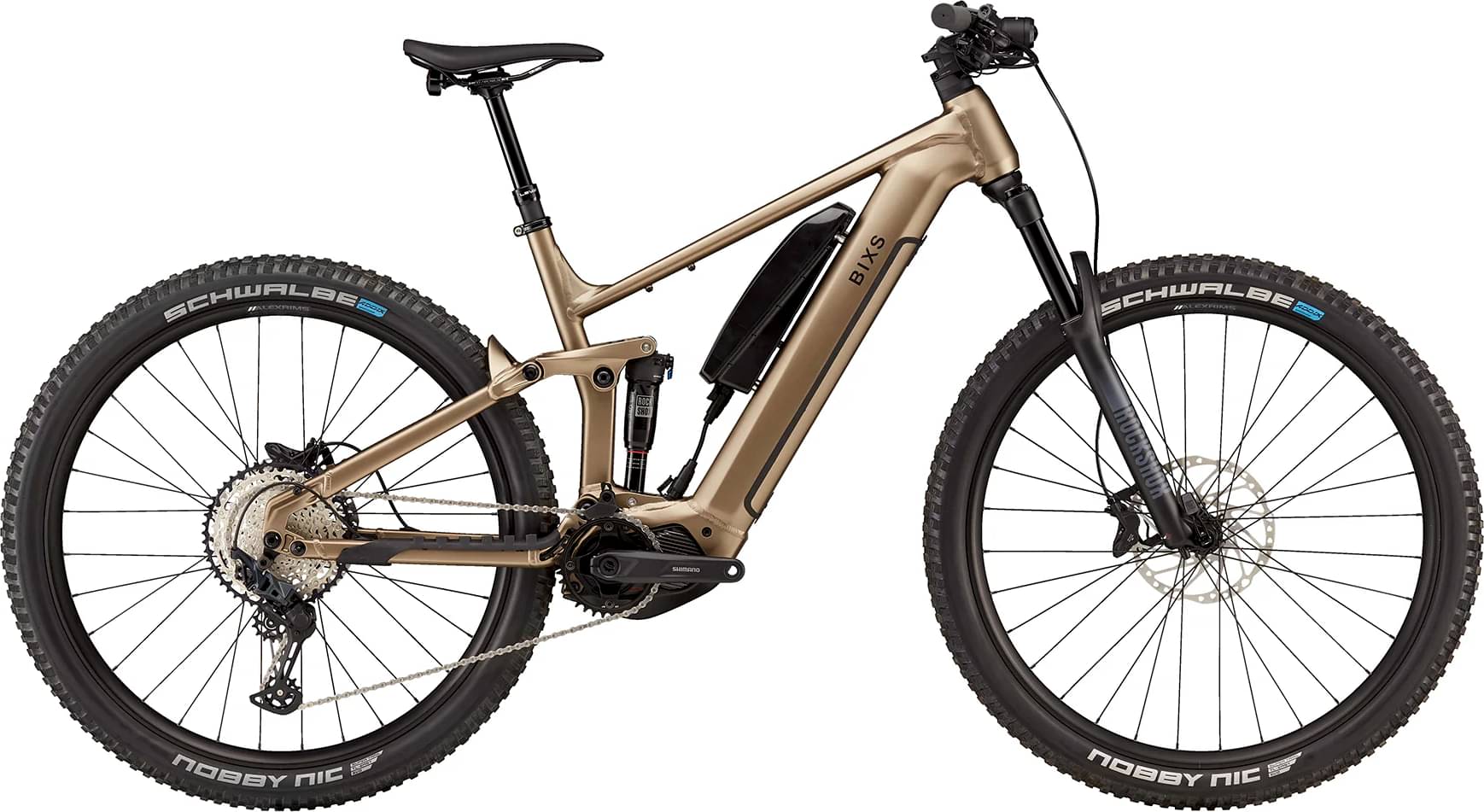

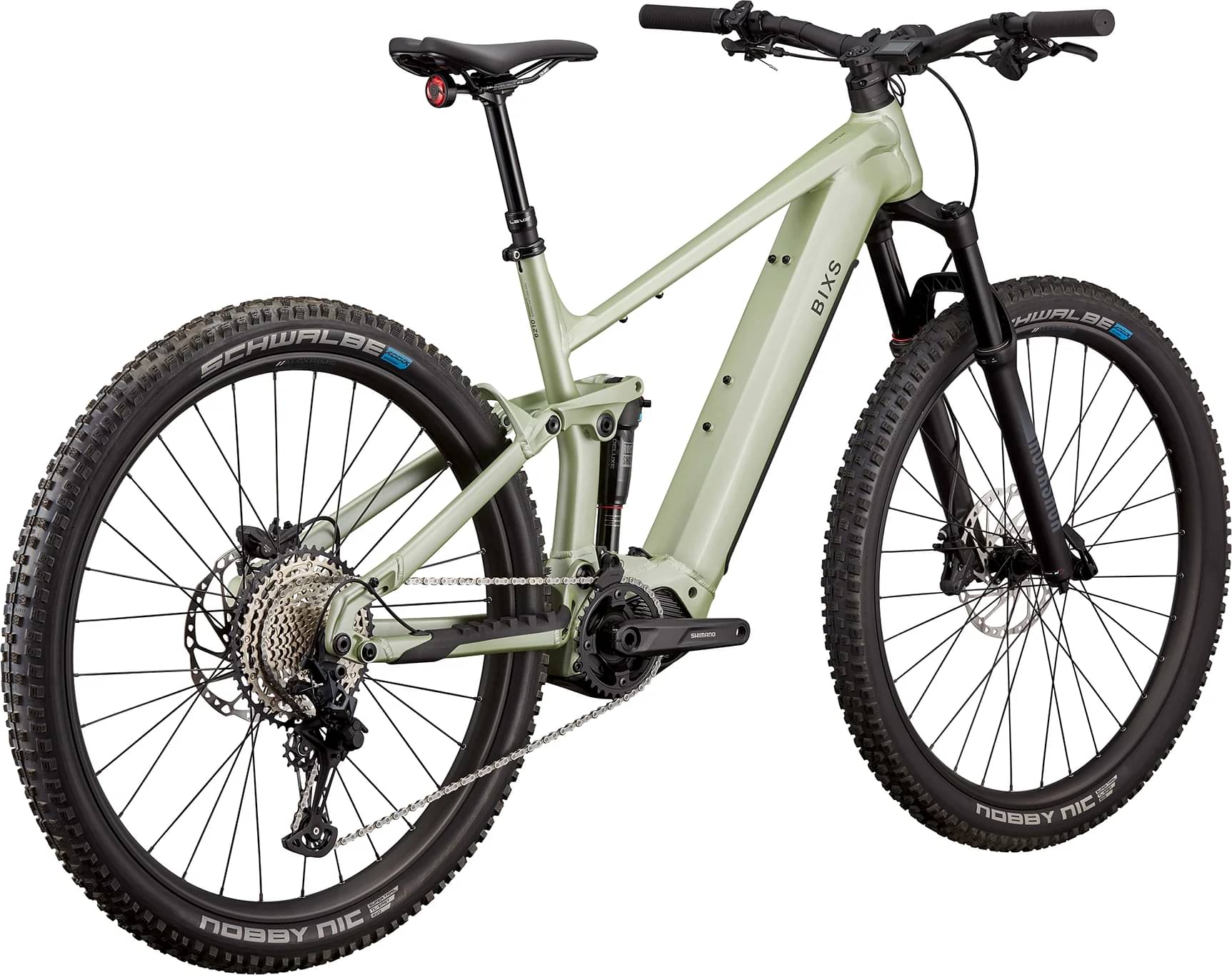

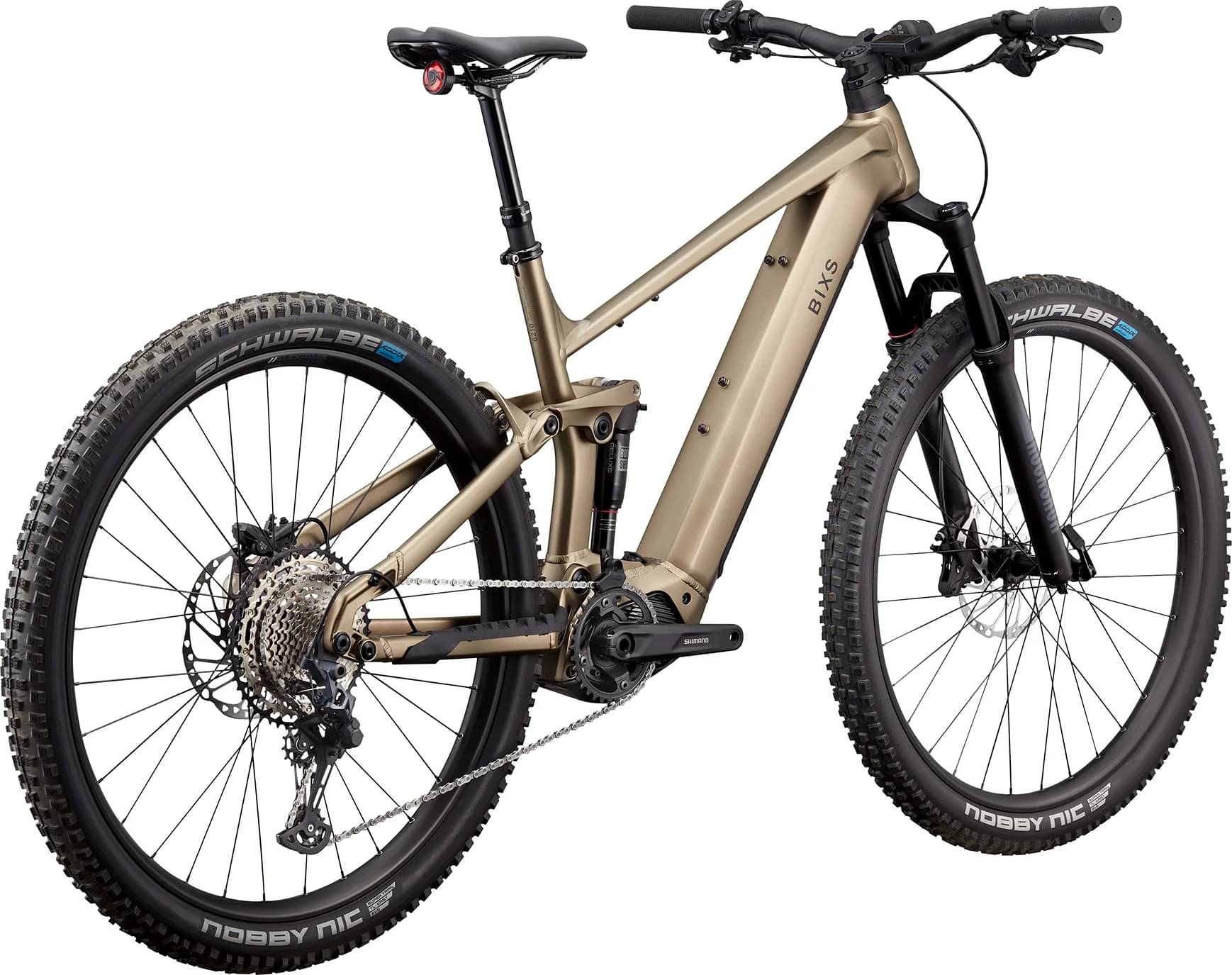

bixs Sign-E43 2025
2025 E-bike
Estimate price |
7,258$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Gold RL
-
Groupset SLX -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery DARFON 600WH, RANGE EXTENDER CAPABLE -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SIGN-E PREMIUM ALLOY FULLSUSPENSION, 130MM TRAVEL, 12X148MM BOOST
Suspension Fork
ROCK SHOX 35 GOLD RL, 140MM TRAVEL, 15X110MM
Rear Shock
ROCK SHOX DELUXE SELECT+, 2 POSITION LEVER, 210X55MM
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100-SGS, 12-SPEED
Shift Levers
SHIMANO SLX SL-M7100-IR
Cassette
SHIMANO SLX CS-M7100-12, 10-51T
Crank
SHIMANO FC-EM600, SM-CRE80-12, CL55, 34T
Chain
SHIMANO SLX CN-M7100
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32 HOLES
Rear Hub
SHIMANO FH-TC600-MS-B, 32 HOLES
Rims
ALEXRIMS EM35, 35MM INNER WIDTH
Tires
SCHWALBE NOBBY NIC EVO, 29X2.6", SUPER TRAIL, ADDIX SPEED, 29X2.6"
Brakes
Brakes
SHIMANO DEORE BL-M6100, BR-M6120 4-PISTON
Cockpit
Stem
SATORI URSA, 0°, 35MM CLAMP
Handlebar
BIXS RIZER BAR, 25MM RISE, 780MM
Seat
Saddle
BIXS-VL-4432
Seatpost
KIND SHOCK LEV-SI, Ø30.9MM, S: 75MM, M: 100MM, L: 125MM, XL: 150MM
Motor & Battery
Motor
SHIMANO EP801, 85NM
Battery
DARFON 600WH, RANGE EXTENDER CAPABLE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG | MD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
