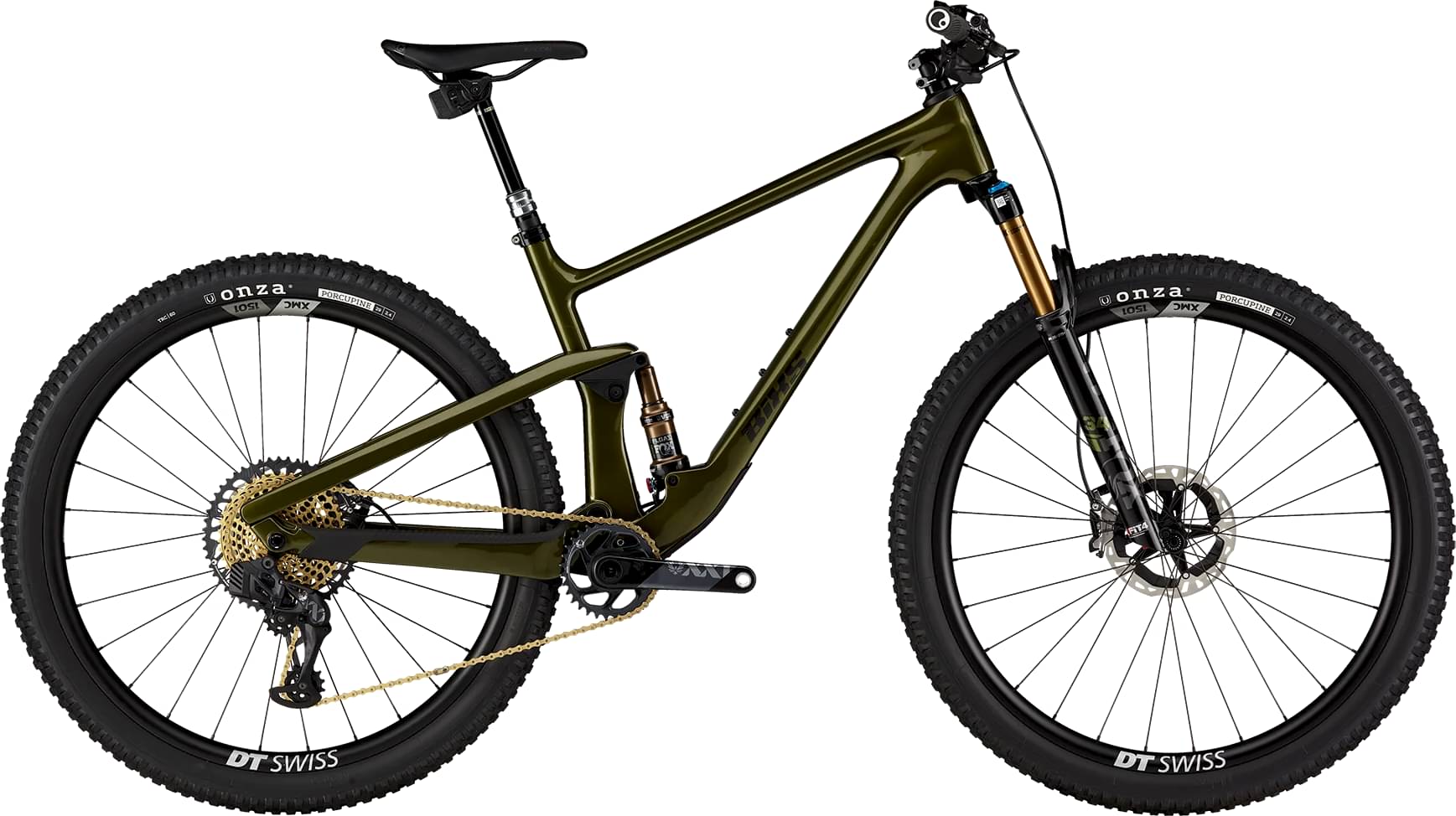

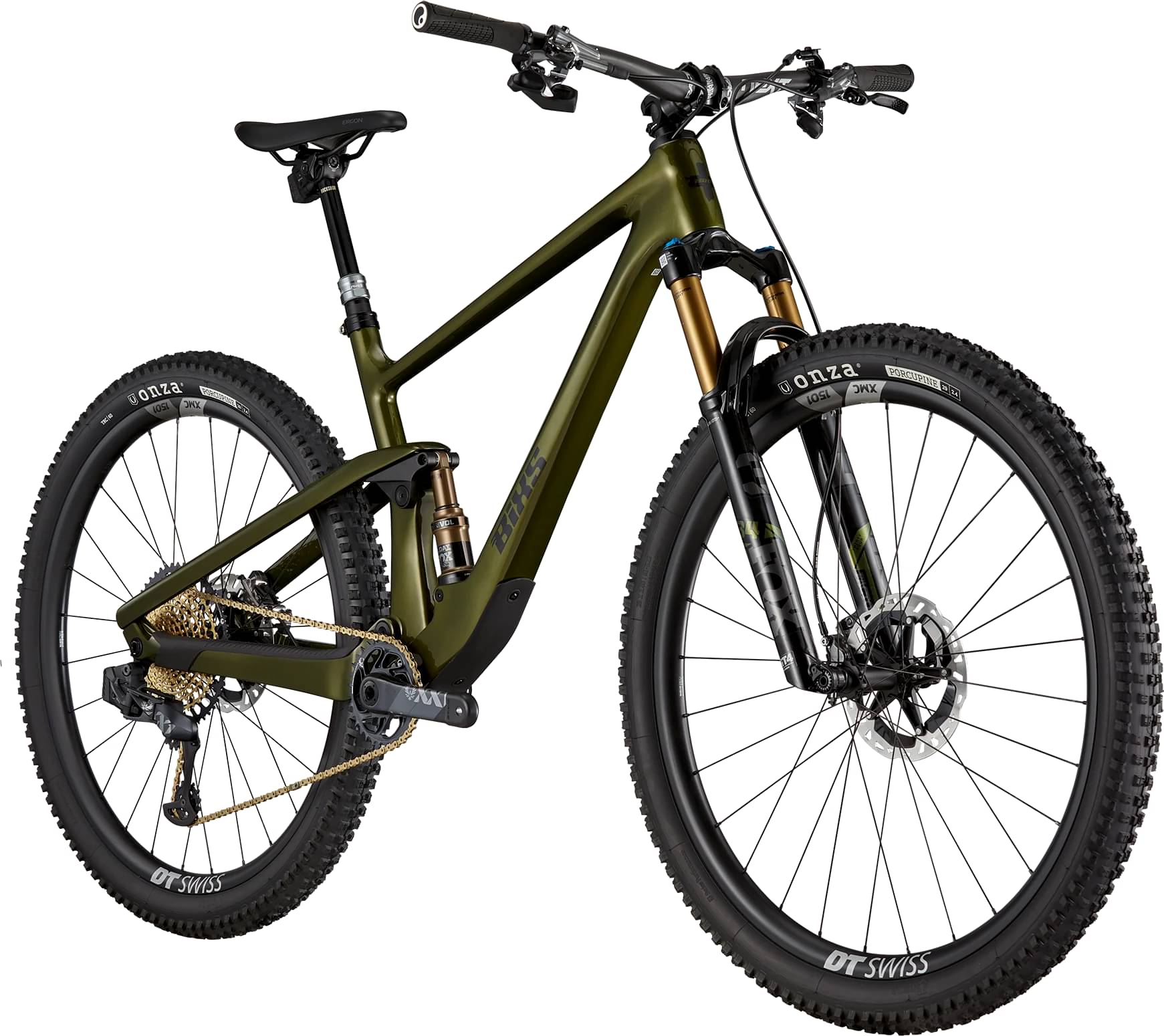

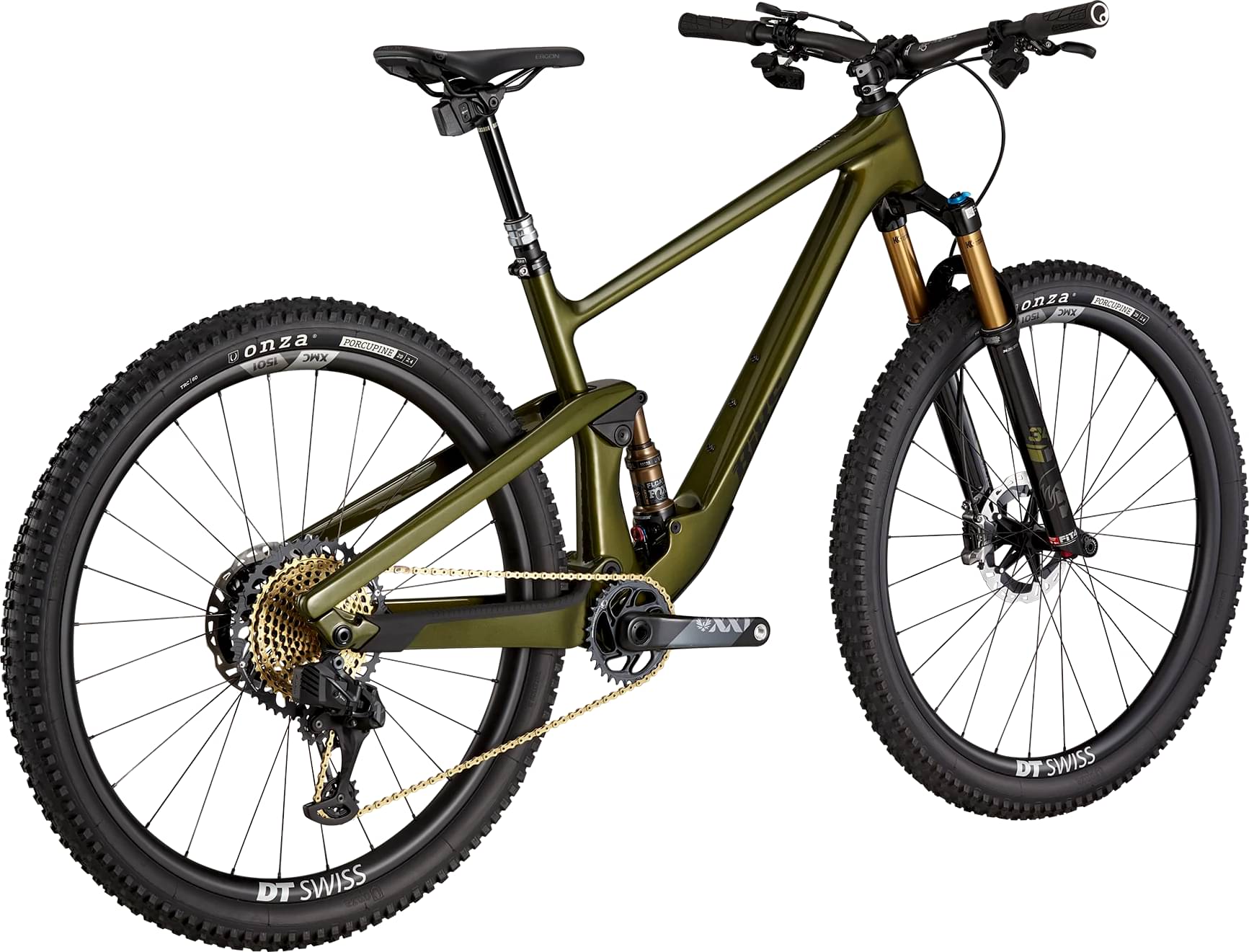

bixs Sign X 2025
2025 Mountain
Estimate price |
11,469$
Weight | 12.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRAIL GEOMETRY, FULL CARBON FRAME, 120mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Suspension Fork
FOX 34 FLOAT FACTORY 29", KASHIMA, 15x110mm AXLE, TAPERED, FIT4, TRAVEL: 130mm, 3-POSITION LEVER
Rear Shock
FOX FLOAT DPS FACTORY, KASHIMA, LV, EVOL, 2 POS REMOTE, 165x45, TRUNNION MOUNT, HARDWARE: 25mmx8mm
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE AXS, 12-SPEED
Shift Levers
SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Cassette
SRAM XG-1299 EAGLE, 10-52 TEETH, 12-SPEED GOLD
Crank
SRAM XX1 EAGLE BOOST, DUB, 32 TEETH
Chain
SRAM CN-XX1 EAGLE GOLD 12-SPEED
Wheels
Front Hub
DT SWISS WHEELSET SPLINE XMC-1501 CARBON, 15X110mm THRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE XMC-1501 CARBON, 12X148MM BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE CARBON XMC-1501, 28 HOLES, INNER WIDTH 30mm, 29"
Tires
ONZA PORCUPINE, KEVLAR FOLDABLE, TUBELESS READY, 29x2.40"
Brakes
Brakes
SHIMANO XTR BR-M9120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:180mm, R:180mm ROTORS, ICE TECH
Brake Levers
SHIMANO XTR TRAIL BL-M9120, ISPEC EV
Cockpit
Stem
RACE FACE TURBINE R, 0°ANGLE, 35mm CLAMP
Handlebar
RACE FACE NEXT 35 CARBON, 760mm, 20mm RISE, 35mm CLAMP
Headset
STSF17 INTEGRATED WITH CABLE INTEGRAGTION AND CABLE ENTRY DUSTCAP 1.5" UPPER AND LOWER BEARING
Seat
Saddle
ERGON SM10 SPORT MAN
Seatpost
ROCK SHOX REVERB AXS, S: 100mm, M & L: 125mm, XL: 150mm TRAVEL, WIRELESS REMOTE, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.516 mm | 1.448 mm | 1.405 mm | 1.357 mm |
| Stack | 599 mm | 608 mm | 618 mm | 631 mm |
| Reach | 395 mm | 420 mm | 440 mm | 465 mm |
| Top Tube Length | 558 mm | 587 mm | 610 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1122 mm | 1151 mm | 1175 mm | 1206 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
