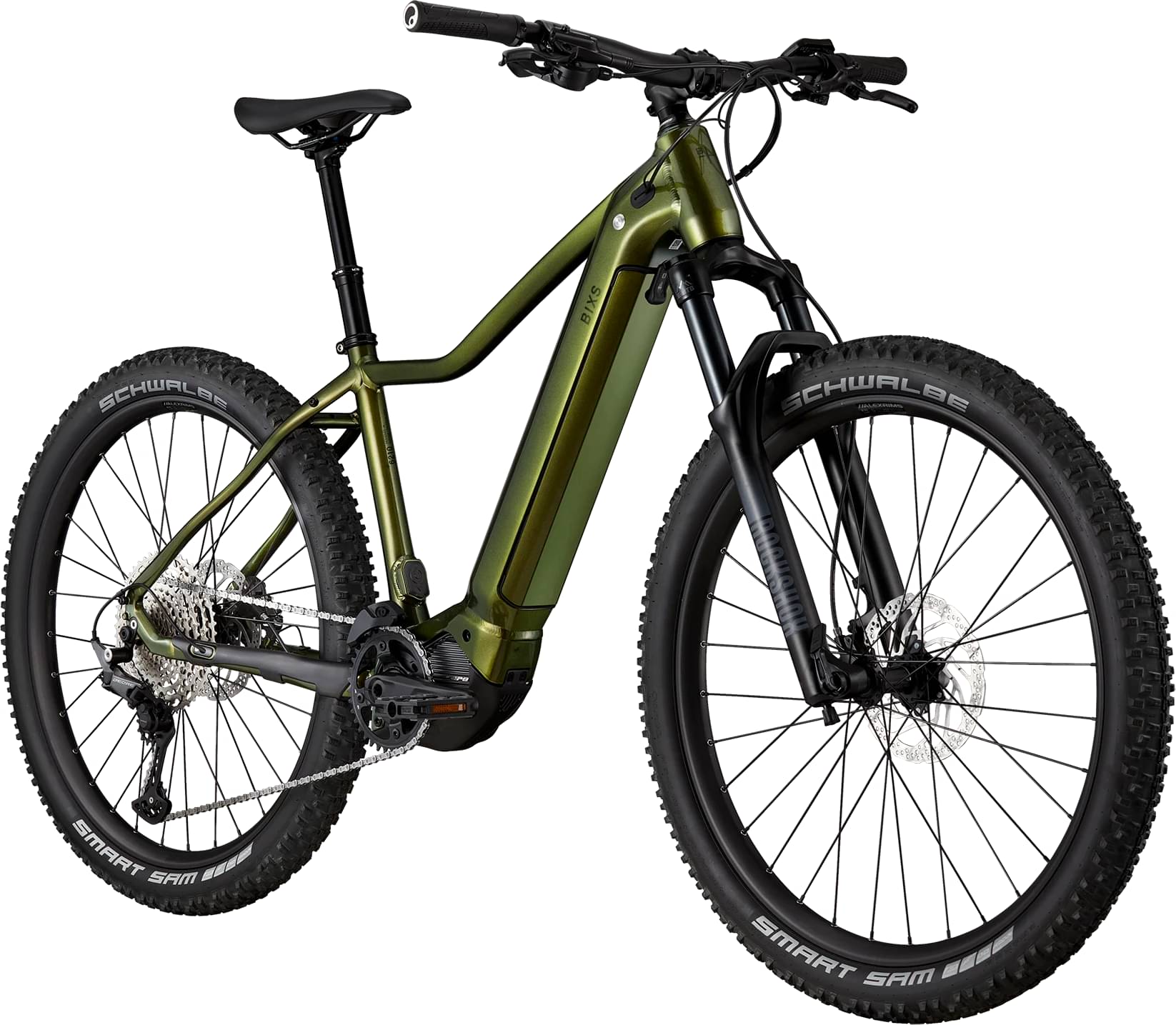

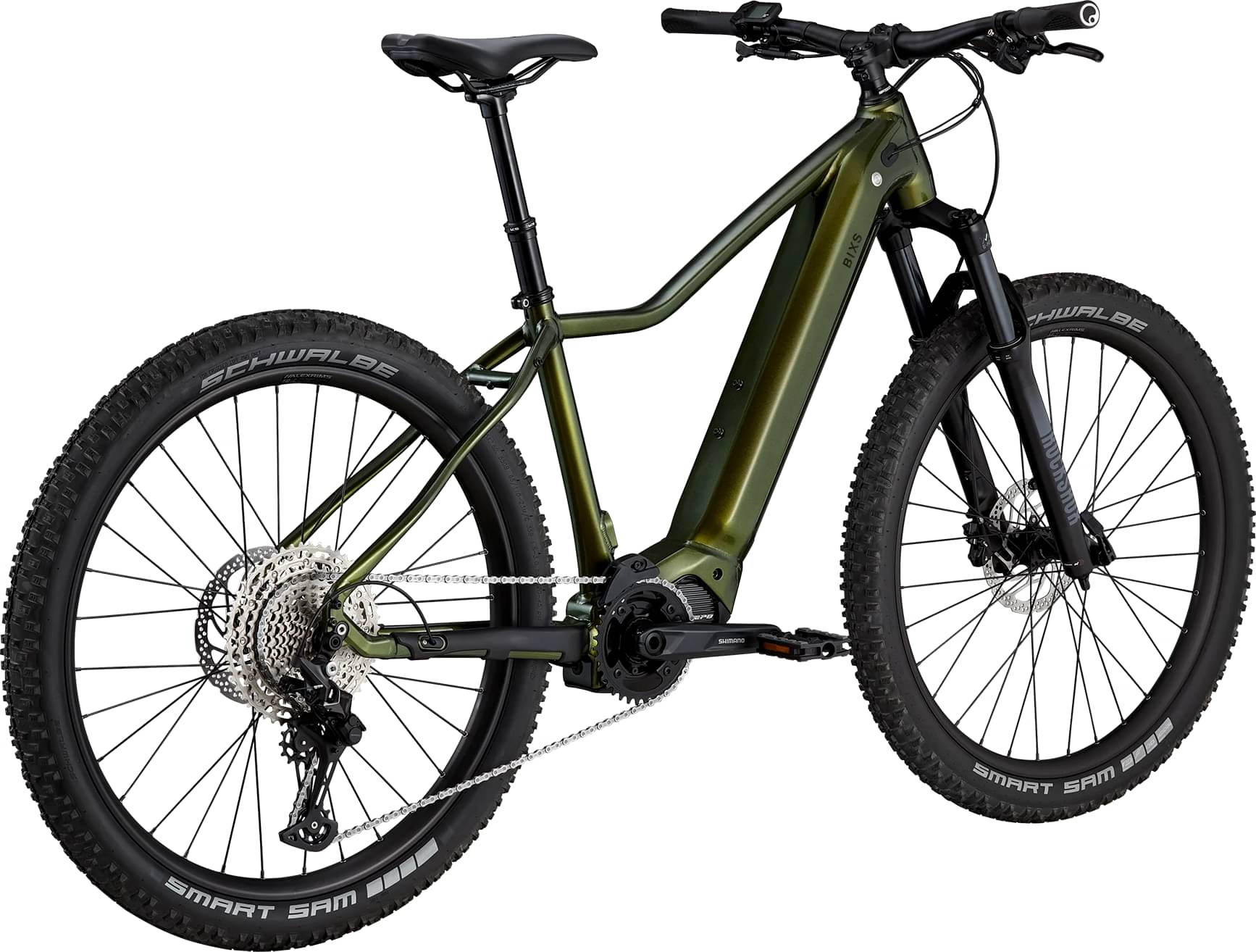

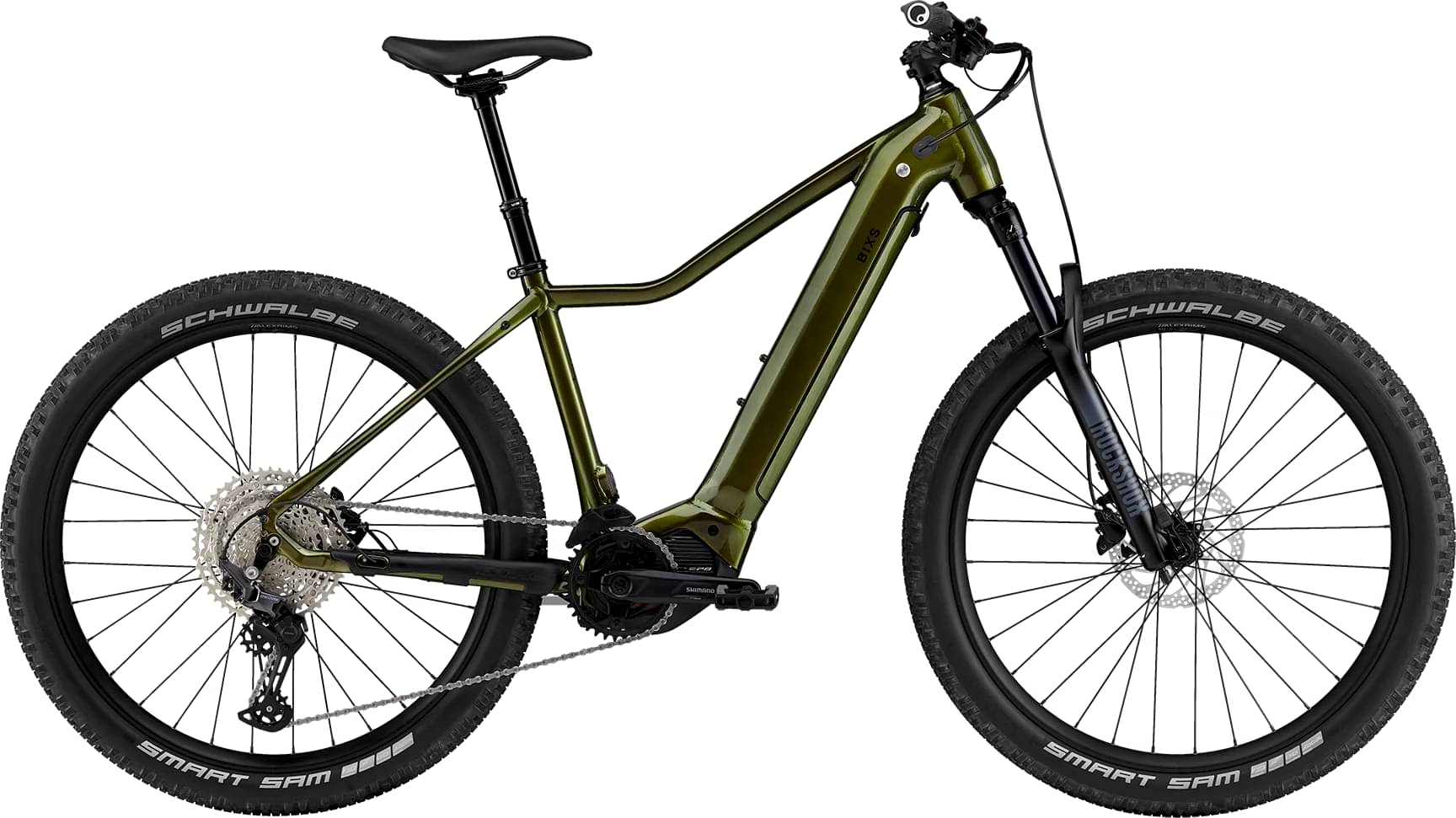

bixs Splash-E12 Crystal Magic Green 2025
2025 E-bike
Estimate price |
5,420$
Weight | 23 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 630Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-SPORT GEOMETRY, ALLOY 6061 HYDROFORMED D.B. TUBES, Hardtail, DROPOUT 148x12mm BOOST, 27.5"
Suspension Fork
ROCK SHOX 35 SILVER TK SOLO AIR 27.5", 15x110mm AXLE, TAPERED, 120mm TRAVEL, REBOUND, COMP. TO LOCK
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100, WITH OPTICAL GEAR DISPLAY
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO FC-EM600, 36 TEETH
Chain
SHIMANO CN-M6100 12-SPEED
Wheels
Front Hub
SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear Hub
SHIMANO FH-TC500-MS-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Rims
ALEXRIMS EM-35, 32 HOLES, INNER WIDTH 35mm, 27.5"
Tires
SCHWALBE SMART SAM PERFORMANCE, ADDIX, 27.5x2.6"
Brakes
Brakes
SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
BIXS 0°ANGLE, 35mm CLAMP
Handlebar
BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 35mm
Headset
FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat
Saddle
BIXS VL-3534
Seatpost
KIND SHOCK RAGEi, S: 100mm, M & L: 125mm, SOUTHPAW REMOTE LEVER, 31.6mm
Motor & Battery
Motor
SHIMANO STEPS EP8, 250 WATT
Battery
DARFON, 36V, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.521 mm | 1.518 mm | mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm |
| Front Center | 699 mm | 710 mm | 718 mm |
| Rake | 35 mm | 40 mm | mm |
| Trail | 113 mm | 107 mm | mm |
| Stack | 625 mm | 630 mm | 336 mm |
| Reach | 411 mm | 415 mm | 420 mm |
| Top Tube Length | 590 mm | 595 mm | 600 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1151 mm | 1162 mm | 1170 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
