bixs Traction 120 2025
2025 Youth
Estimate price |
3,938$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 110mm -
Travel Rear 120mm -
Fork Manitou Mattoc Comp
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRACTION PREMIUM ALLOY FULLSUSPENSION, 120mm TRAVEL, 12x148mm BOOST, POST MOUNT DISC

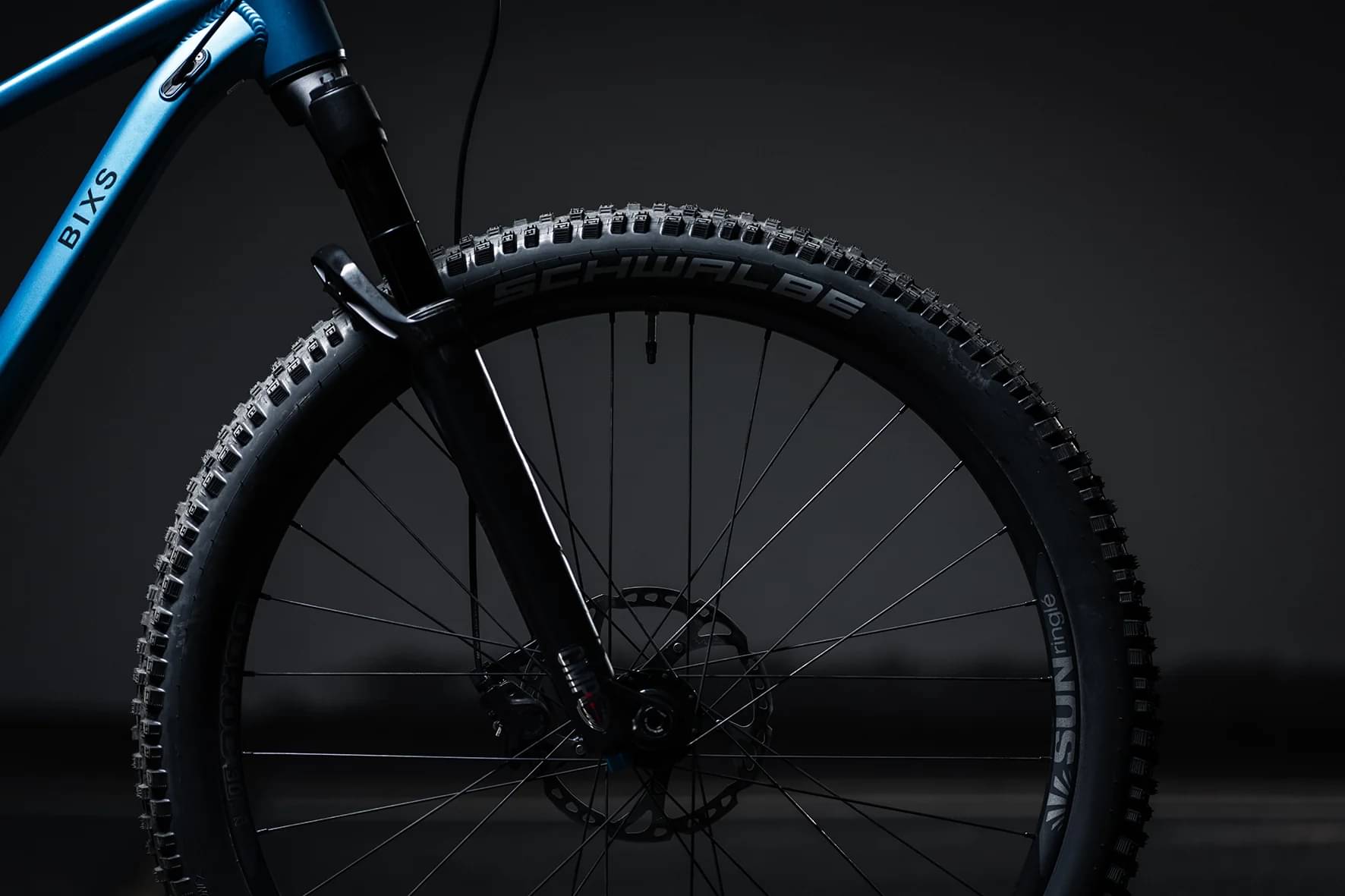

Suspension Fork
MANITOU MATTOC COMP, 110mm TRAVEL, 15x110mm, 44mm OFFSET

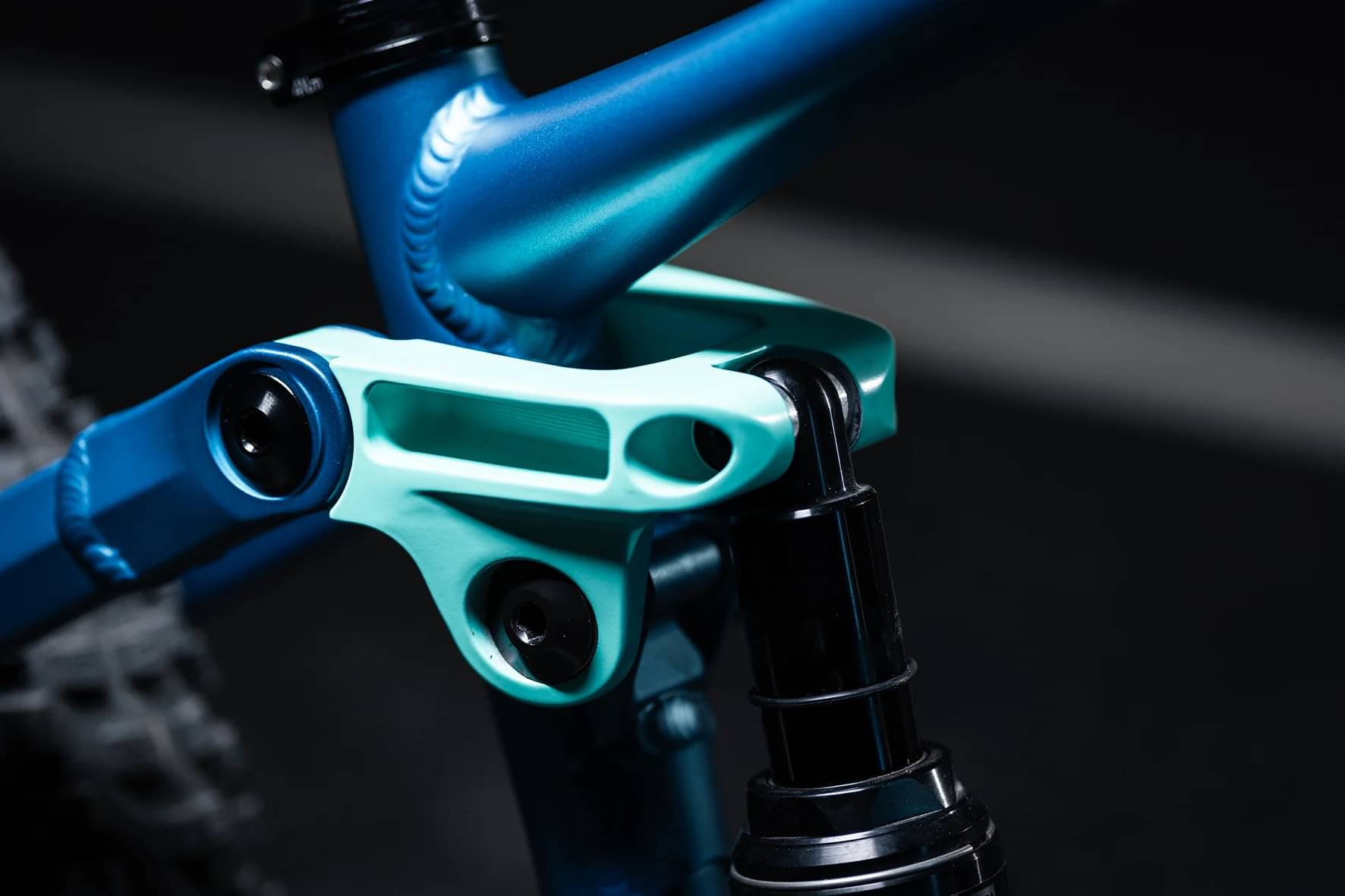

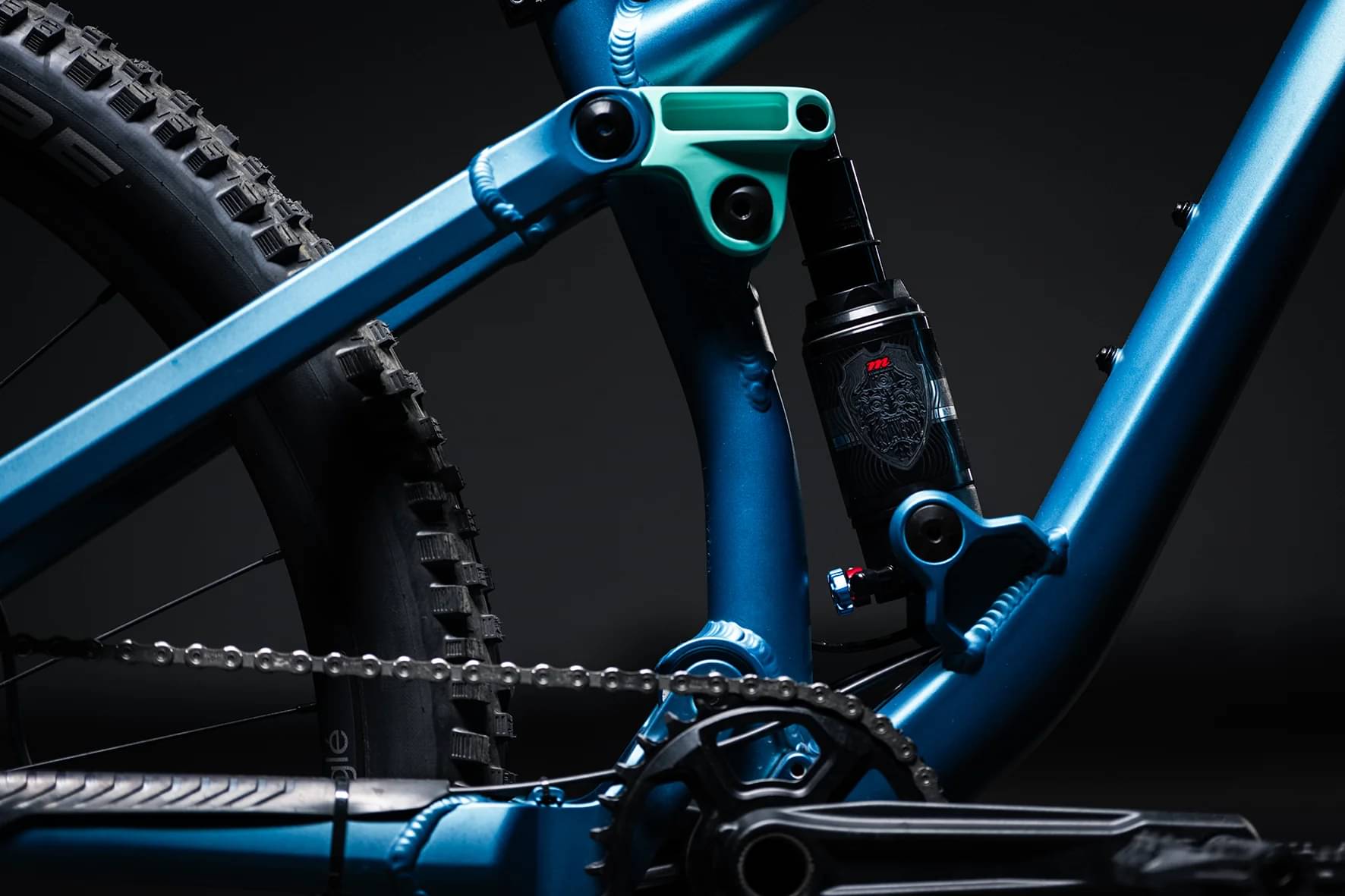

Rear Shock
MANITOU MARA, 2 POSITION LEVER, TRUNNION MOUNT, 165x45mm, HARDWARE: 22x8mm
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100-SGS, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100-R
Cassette
SHIMANO DEORE CS-M6100-12, 10-51T
Crank
PROWHEEL DMJ, CL52, 32T
Chain
SHIMANO DEORE CN-M6100
Wheels
Tires
SCHWALBE NOBBY NIC PERFORMANCE, TWINSKIN, RACEGUARD, ADDIX, 27.5x2.35", TUBELESS READY
Brakes
Brakes
SHIMANO BL-MT501, BR-MT520 4-PISTON
Cockpit
Stem
BIXS STEM, 0°, 31.8mm CLAMP
Handlebar
PROTAPER JUNIT, 25mm RISE, 680mm
Seat

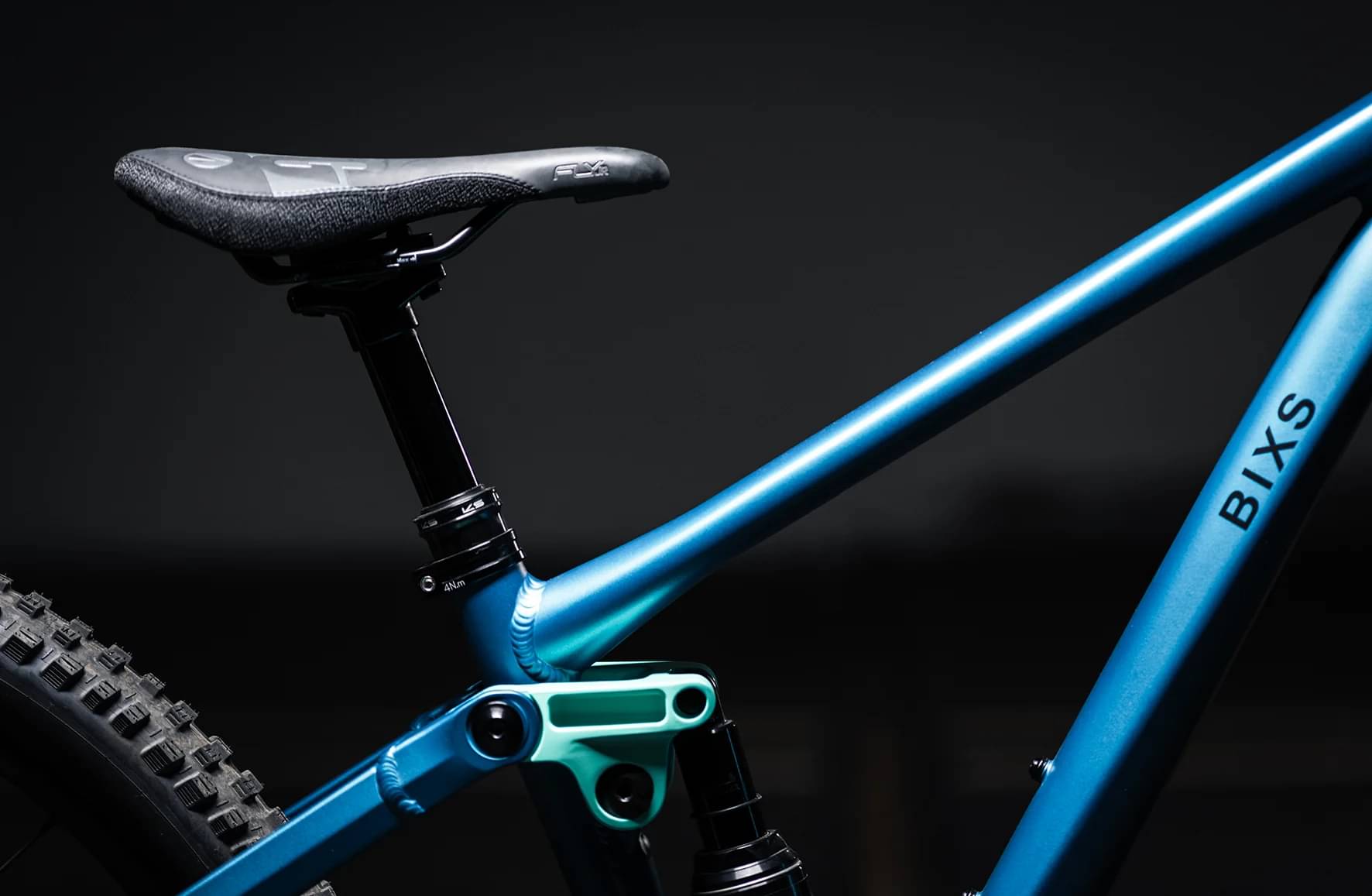

Saddle
SDG FLY JR
Seatpost
KIND SHOCK RAGE-I, ø31.6mm, 75mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | A | B | C | D | E | F | G | H | I | J | K | LG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
