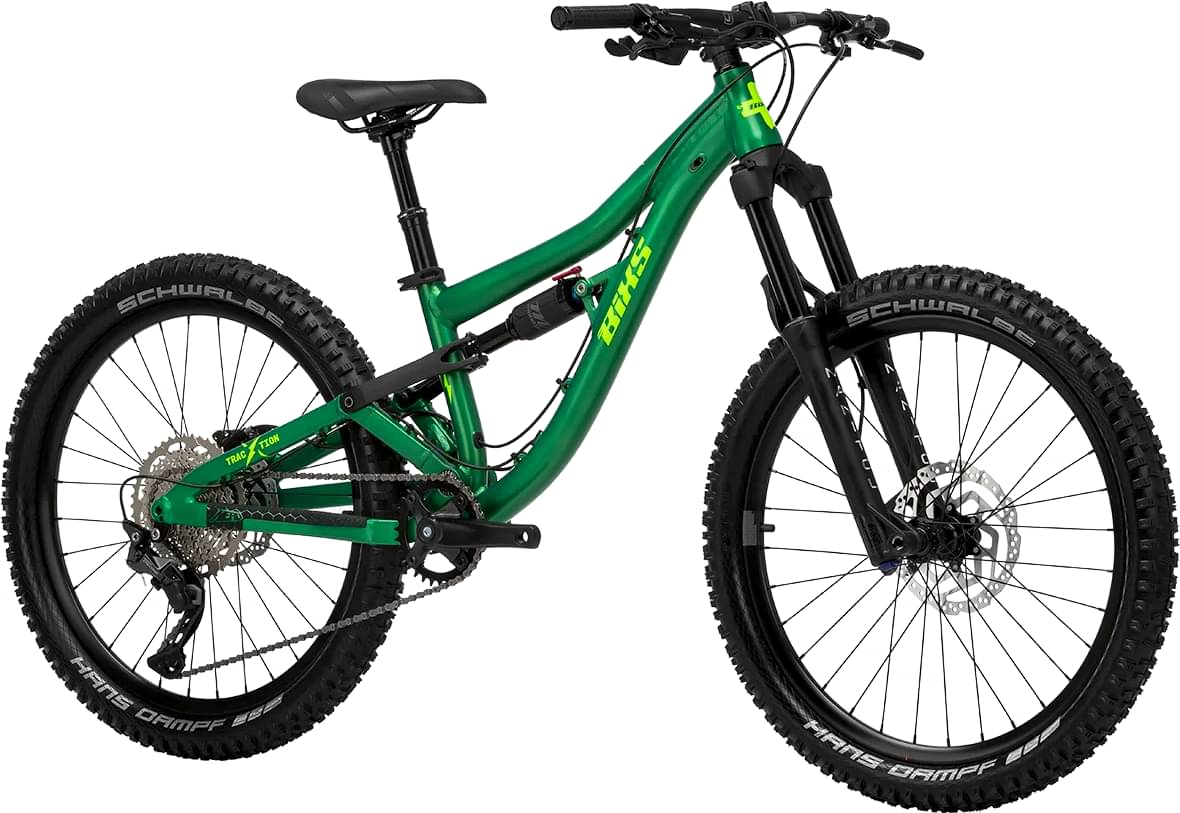

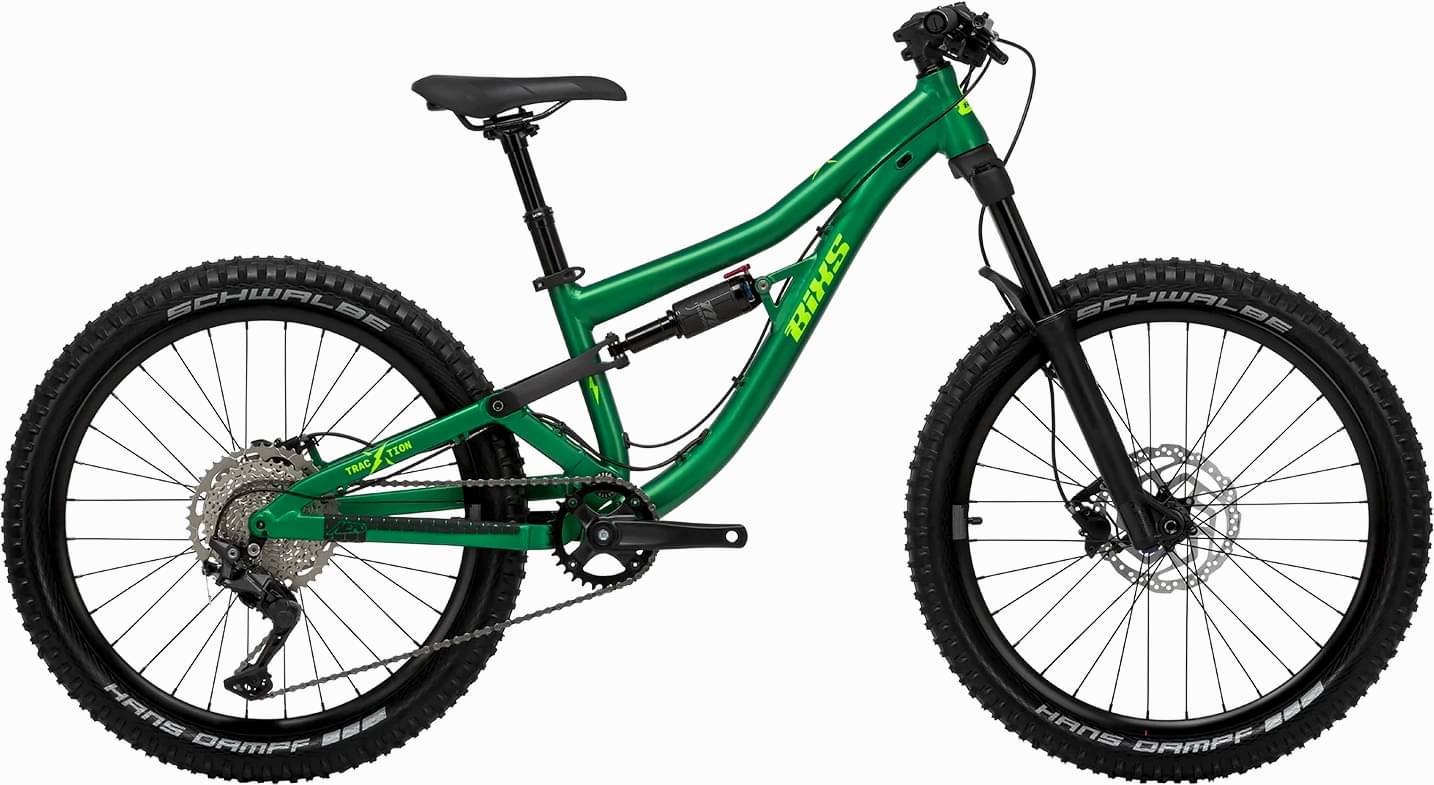

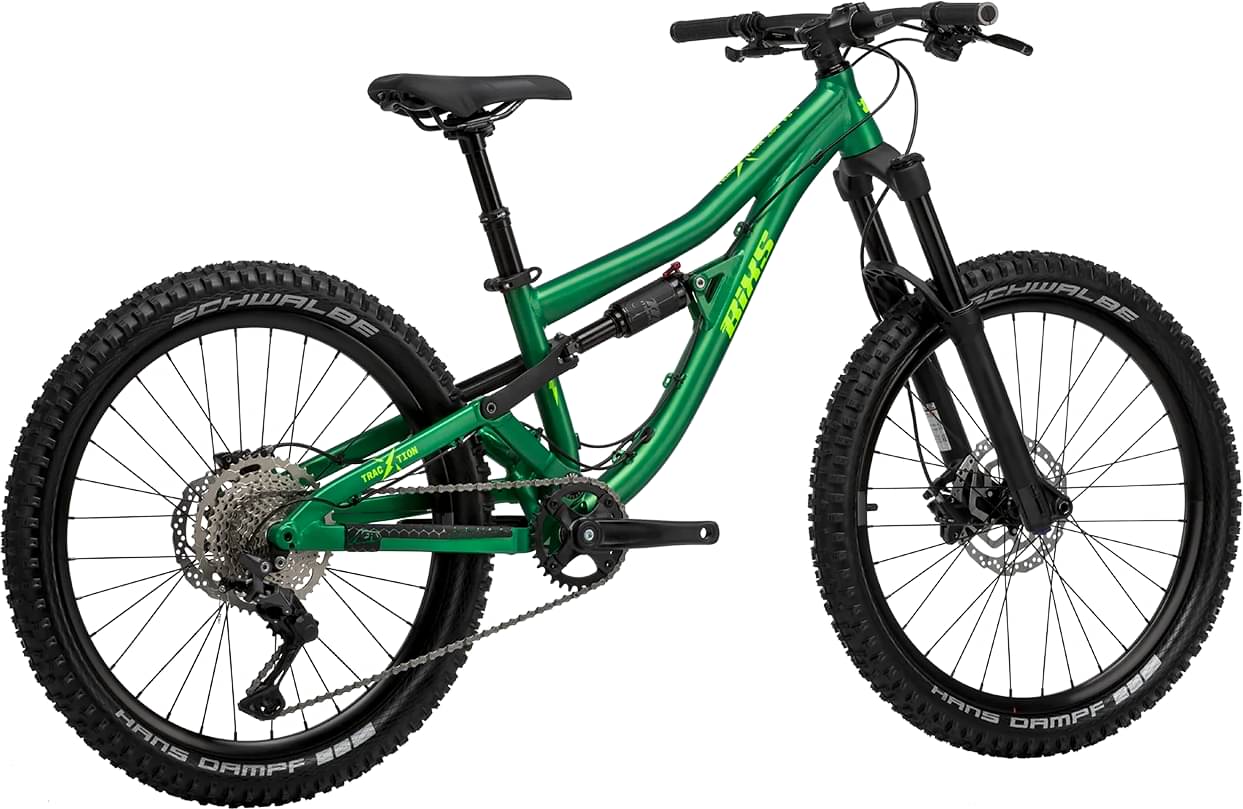

bixs Traction 240 FS 2025
2025 Youth
Estimate price |
2,517$
Weight | 13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 120mm -
Fork Manitou Machete Comp
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KIDS GEOMETRY, ALLOY 6061, 120mm TRAVEL 24"+26"
Suspension Fork
MANITOU MACHETE COMP, 26", TAPERED, AIR SPRING, 120mm TRAVEL, REBOUND, LOCKOUT, 15X100mm AXLE
Rear Shock
MANITOU RADIUM EXPERT 190mm x 40mm, KIDS SOFT TUNE
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED
Shift Levers
SHIMANO DEORE SL-M4100
Cassette
SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED
Crank
SAMOX 152mm 32T
Chain
SHIMANO CN-HG54
Wheels
Front Hub
SHIMANO HB-MT400, 32 HOLES, 15x100mm THRU AXLE
Rear Hub
SHIMANO FH-MT400, 32 HOLES, 12x142mm THRU AXLE
Tires
SCHWALBE HANS DAMPF PERF. TWINSKIN, TLR 60-507 24"
Brakes
Brakes
SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:160mm ROTORS
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
NS DROP 31.8, 50mm, ANGLE +10
Handlebar
PROTAPER JUNIT AL HB, 680mm, 1/2" RISE, Black, 31.8mm
Headset
GW INTEGRATED TAPERED IS42/52, SEALED
Seat
Saddle
SELLE ITALIA JUNIOR FEC
Seatpost
KIND SHOCK RAGEi, 31.6", 75mm TRAVEL, SOUTHPAW ALLOY DIA22.2" CLAMP REMOT
Fit data
Geometry
