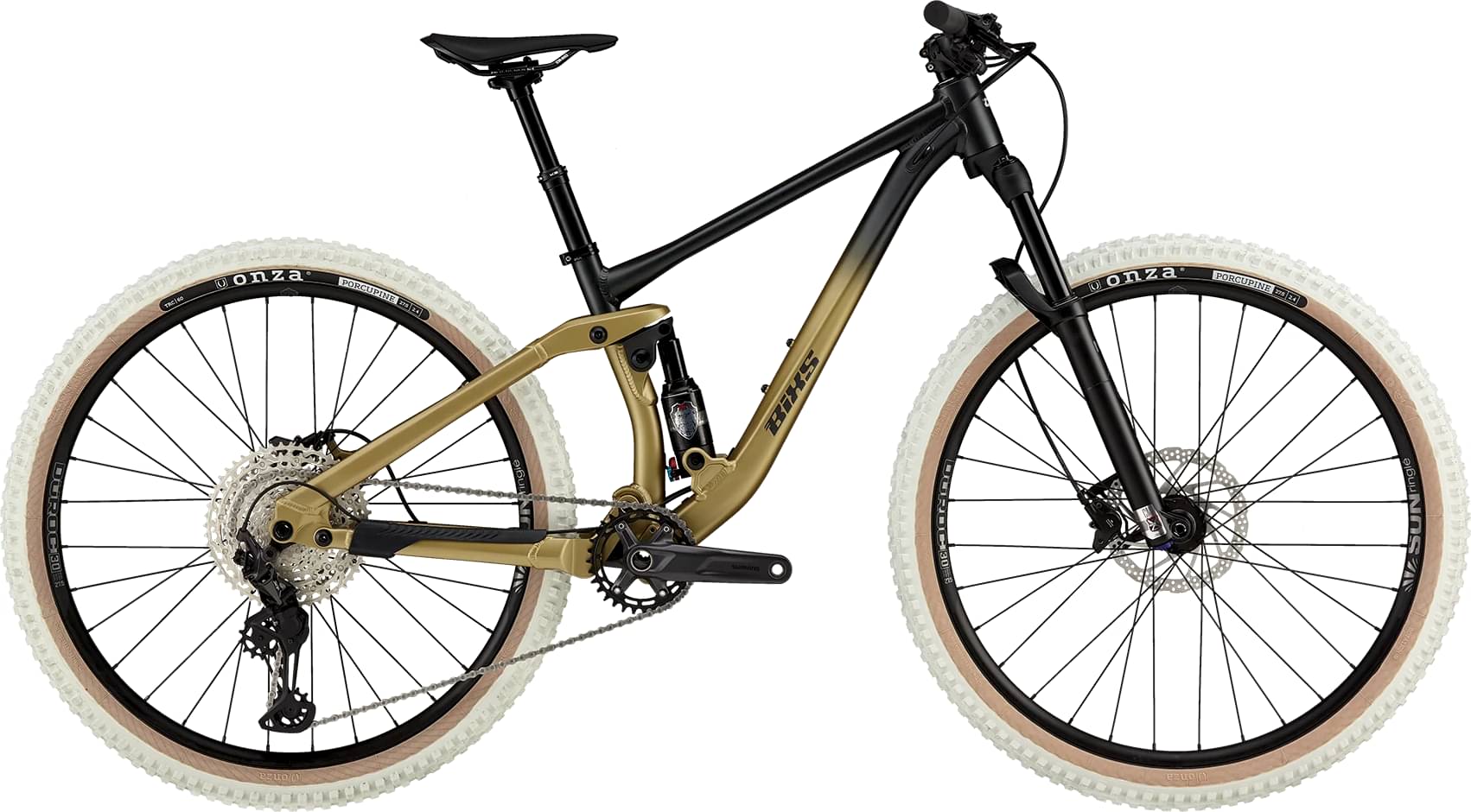

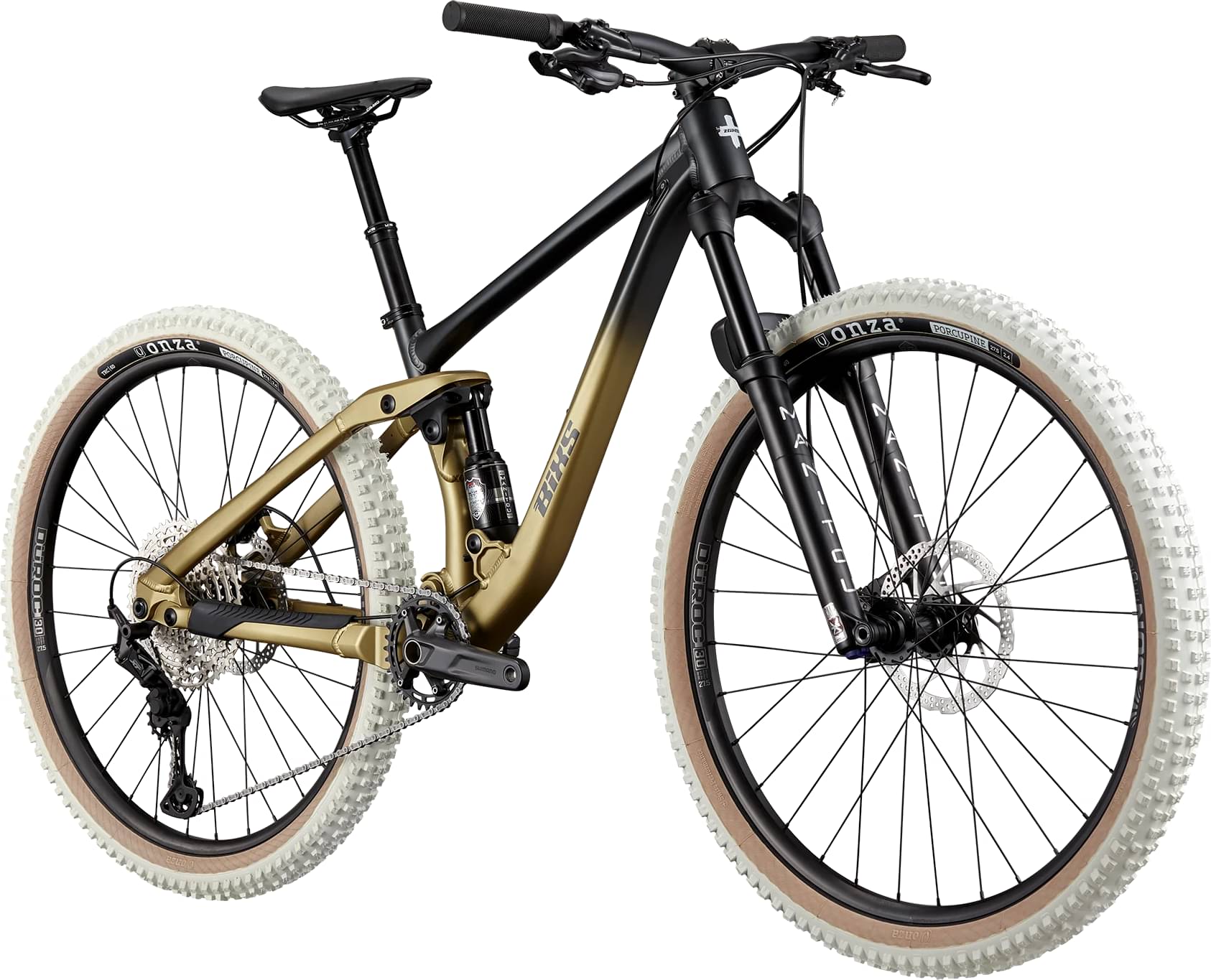

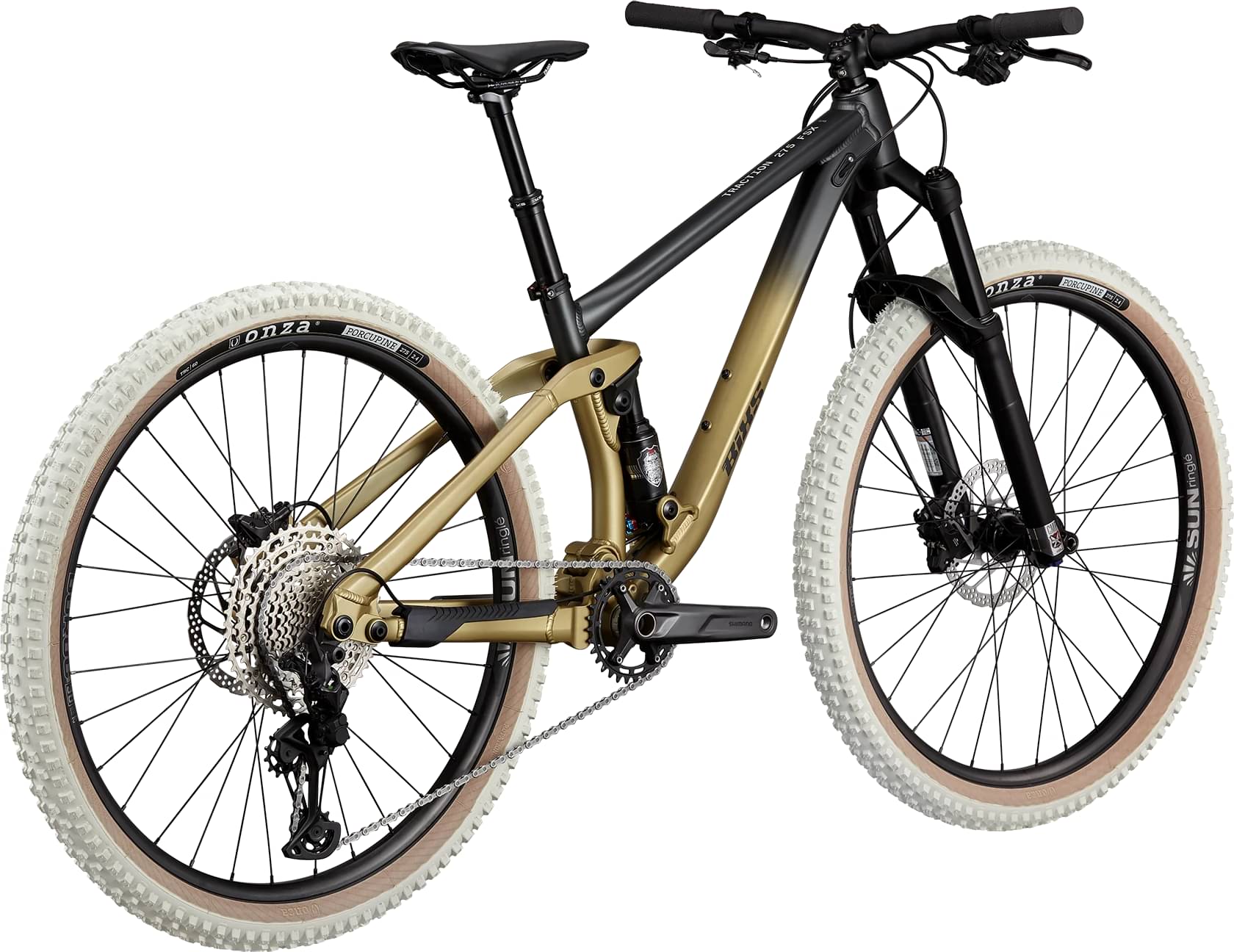

bixs Traction 275 FS X 2025
2025 Youth
Estimate price |
3,691$
Weight | 14.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 120mm -
Fork Manitou Machete Comp
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRAIL GEOMETRY, ALLOY 6061, 120mm TRAVEL, DROPOUT FOR 148x12mm BOOST, 27.5"
Suspension Fork
MANITOU MACHETE COMP, 27.5", TAPERED, AIR SPRING, 120mm TRAVEL, REBOUND, LOCKOUT
Rear Shock
MANITOU MARA, 165x45, D8x22mm, LOCK OUT, KIDS SOFT TUNE
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO FC-MT511, 2-PIECE CRANKSET, 32 TEETH
Chain
SHIMANO CN-M6100 12-SPEED
Wheels
Front Hub
SUNRINGLE WHEELSET DUROC 30 COMP, 28 HOLES, 15x110mm THRU AXLE
Rear Hub
SUNRINGLE WHEELSET DOROC COMP, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
SUNRINGLE WHEELSET DUROC 30 COMP, TLR, 28 HOLES, INNER WIDTH 26mm, 27.5"
Tires
ONZA PORCUPINE, WHT EDITION TRAIL, TUBLESS READY, WHT SKINWALL, 27.5x2.40
Brakes
Brakes
SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-M4100, ISPEC EV
Cockpit
Stem
KALLOY AS-M03, EXT 35mm, DIA 28.6mm, BAR BORE 31.8mm
Handlebar
METS METAL B-203-J, 720mm, RISE 15mm, BACKSWEEP 9°, 31.8mm
Headset
FSA NO.55R 1.5" / 558
Seat
Saddle
BIXS VL-1A47
Seatpost
KIND SHOCK RAGEi, 31.6", 100mm TRAVEL, SHIMANO REMOT LEVER SL-MT500-IL
Fit data
Geometry
