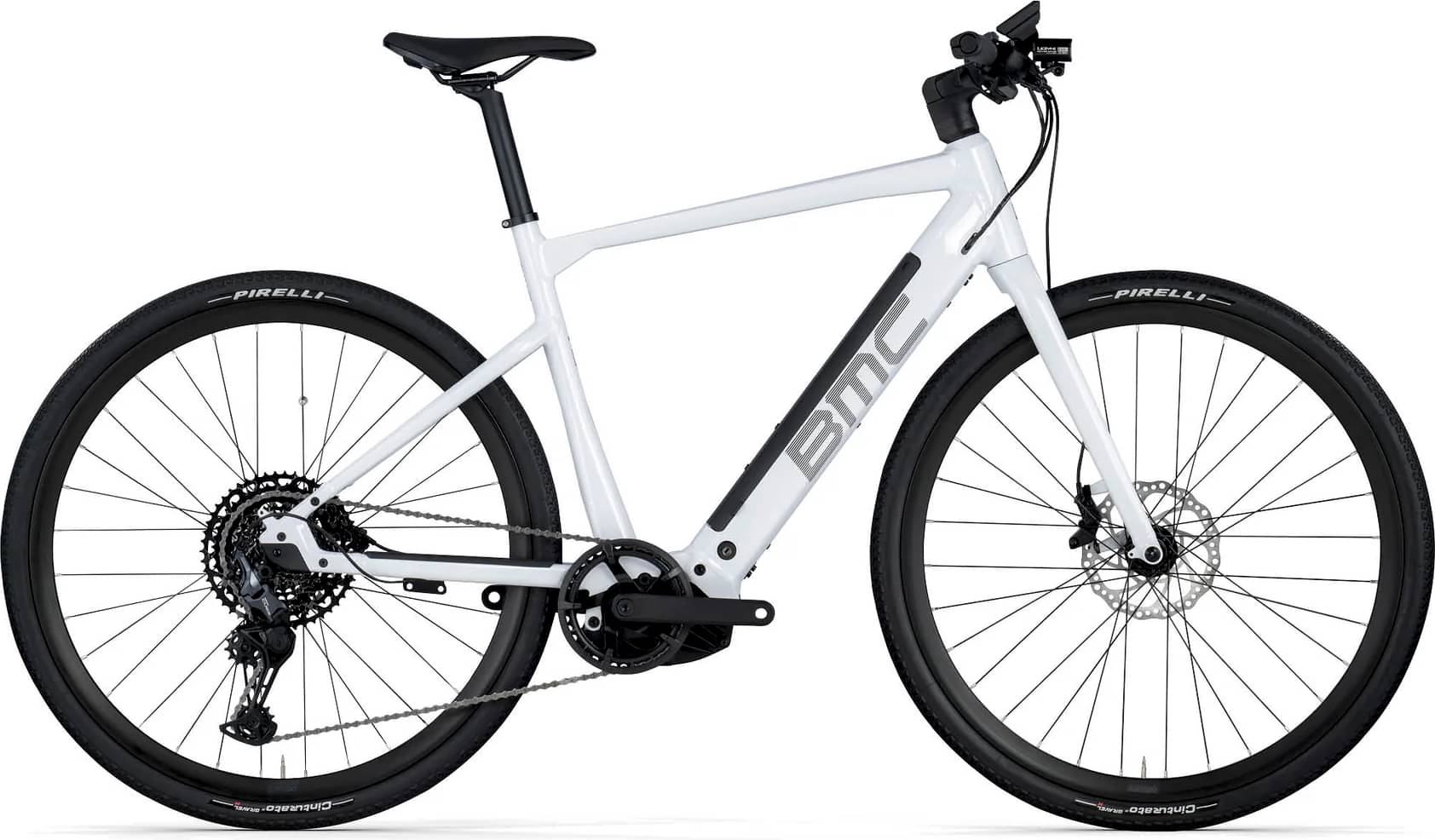

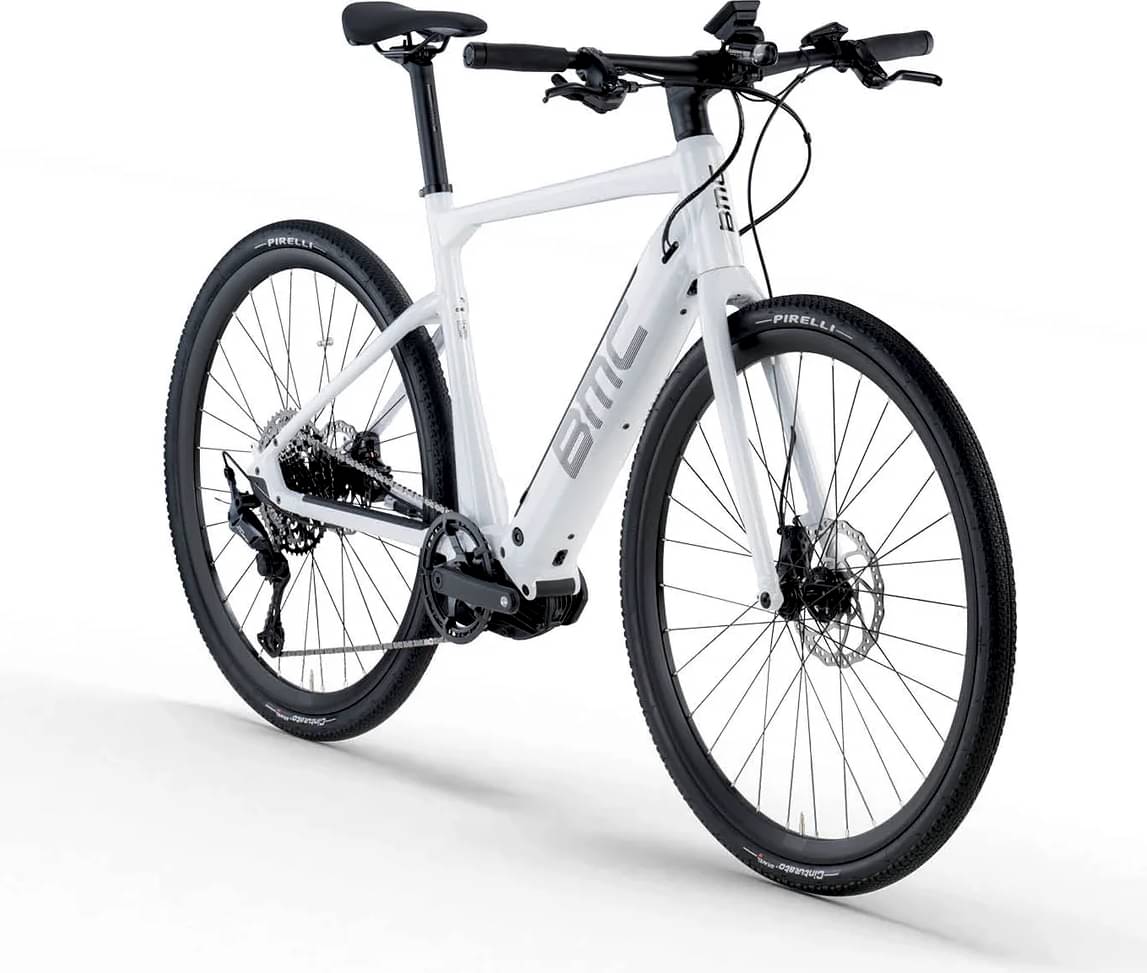

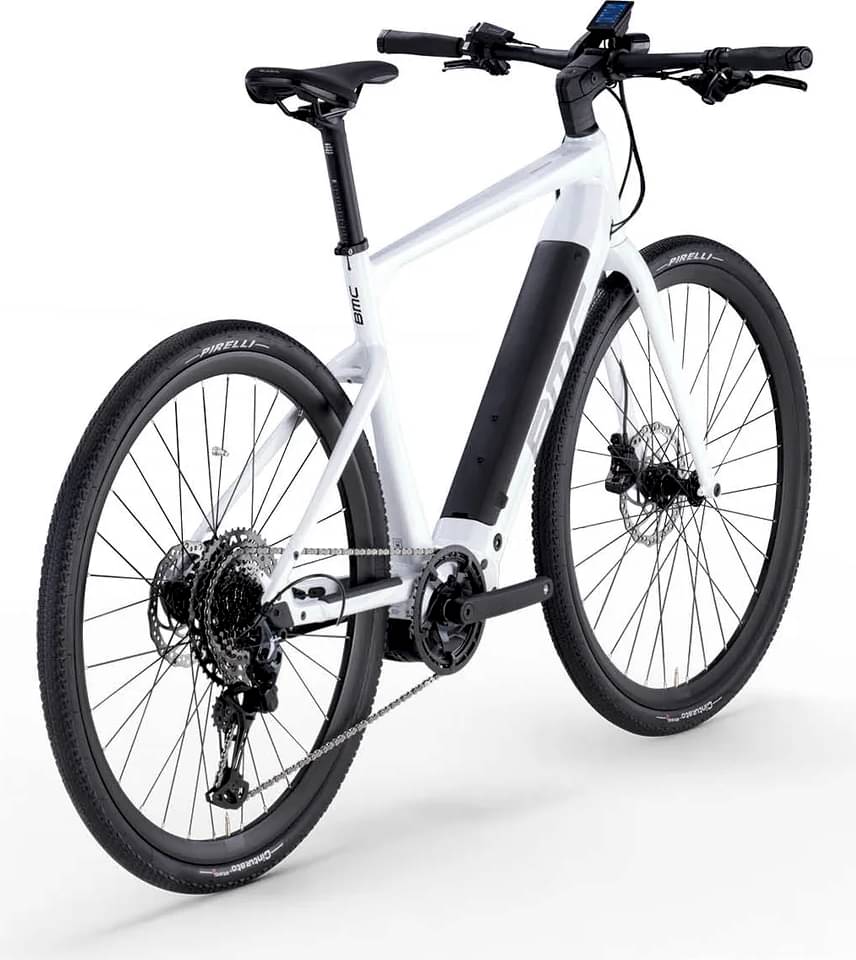

BMC Alpenchallenge AL AMP ONE 2025
2025 E-bike
Estimate price |
5,350$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube | 625 Wh | Certified by Intertek Testing Services NA, Inc. -
Drivetrain 1 × 11 -
Brakes TRP Hydraulic Disc
Sizing
Recommended size guide.
MD
167cm - 180cm
LG
178cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpenchallenge AMP Premium Aluminium | Smoothwelded | Integrated Battery | Internal Cable Routing | Powder Coat Finish | Flat Mount Disc | 12 x 142mm Thru-Axle
Suspension Fork
257 Premium Aluminium | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
Drivetrain
Rear Derailleur
SHIMANO CUES (RD-U6000)
Shift Levers
SHIMANO CUES (SL-U6000)
Cassette
SHIMANO CUES (CS-LG700-11)
Crank
Miranda Classic x Bosch
Bottom Bracket
Bosch, press-fit
Chain
SHIMANO CUES CN-LG500
Wheels
Rims
E-SRX30
Tires
Pirelli Cinturato Gravel H | 40mm
Brakes
Brakes
TRP HD-EU832 (180 / 160)
Cockpit
Stem
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology
Handlebar
BMC LSB 01
Seat
Saddle
Selle Royal Vivo
Seatpost
BMC LSP 02
Motor & Battery
Motor
Bosch Performance CX Smart System
Battery
Bosch PowerTube | 625 Wh | Certified by Intertek Testing Services NA, Inc.
Charger
Bosch 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.321 mm | 1.392 mm | 1.459 mm | 1.479 mm |
| Front Center | 655 mm | 665 mm | 677 mm | 699 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 75 mm | 75 mm | 75 mm | 75 mm |
| Stack | 560 mm | 590 mm | 620 mm | 645 mm |
| Reach | 424 mm | 424 mm | 425 mm | 436 mm |
| Top Tube Length | 574 mm | 582 mm | 591 mm | 609 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 133 mm | 165 mm | 197 mm | 225 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1085 mm | 1096 mm | 1108 mm | 1129 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 766 mm | 794 mm | 819 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 169 cm | 180 cm | 191 cm | cm |
