Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Rival, Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
166cm - 174cm
54cm
172cm - 180cm
57cm
178cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
01 Premium Carbon, TCC Race, ACE Technology,
Suspension Fork
Crossmachine CX01 Premium Carbon, TCC Race
Drivetrain
Rear Derailleur
SRAM Rival
Front Derailleur
-
Shift Levers
SRAM Rival HRD
Cassette
SRAM APEX, 11-42T
Crank
SRAM Rival 1, 40T
Chain
KMC X11-1
Wheels
Front Hub
DT Swiss X-1900 Spline, Centerlock
Rear Hub
DT Swiss X-1900 Spline, Centerlock
Rims
DT Swiss X-1900 Spline
Tires
Vittoria Terreno Dry, 33mm
Brakes
Brakes
SRAM Rival HRD-A1 w/ Centerline Rotors (160/160)*
Cockpit
Stem
BMC RSM 03
Handlebar
BMC RAB 03, ergo top shape, compact bend
Seat
Saddle
Fizik Antares R7 manganese
Seatpost
TCC 01 Premium Carbon Compliance-Post, 18mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.42 mm | 1.44 mm | 1.48 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 576 mm | 580 mm | 591 mm | 605 mm | 625 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 66 mm | 63 mm | 63 mm | 63 mm |
| Stack | 513 mm | 537 mm | 557 mm | 579 mm | 608 mm |
| Reach | 375 mm | 384 mm | 393 mm | 401 mm | 412 mm |
| Top Tube Length | 525 mm | 541 mm | 556 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 565 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 108 mm | 128 mm | 148 mm | 171 mm | 201 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1001 mm | 1004 mm | 1015 mm | 1029 mm | 1050 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 742 mm | 770 mm | 803 mm | 820 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 188 cm | cm |
Model Overview

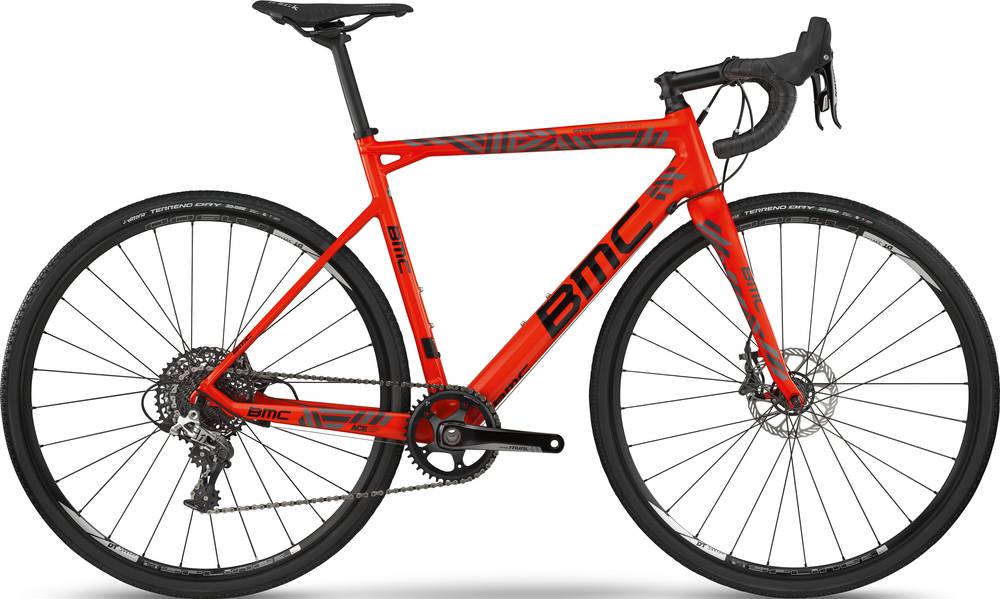

CROSSMACHINE CX01 TWO is part of the Bmc Crossmachine model. 6 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Cyclocross bikes
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, BMC CROSSMACHINE CX01 TWO price was 3299$. Comparing this to the average Cyclocross bike price, we see that the price is 63.97% more expensive.
CROSSMACHINE CX01 TWO components
Fork material
CROSSMACHINE CX01 TWO has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, BMC CROSSMACHINE CX01 TWO 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
