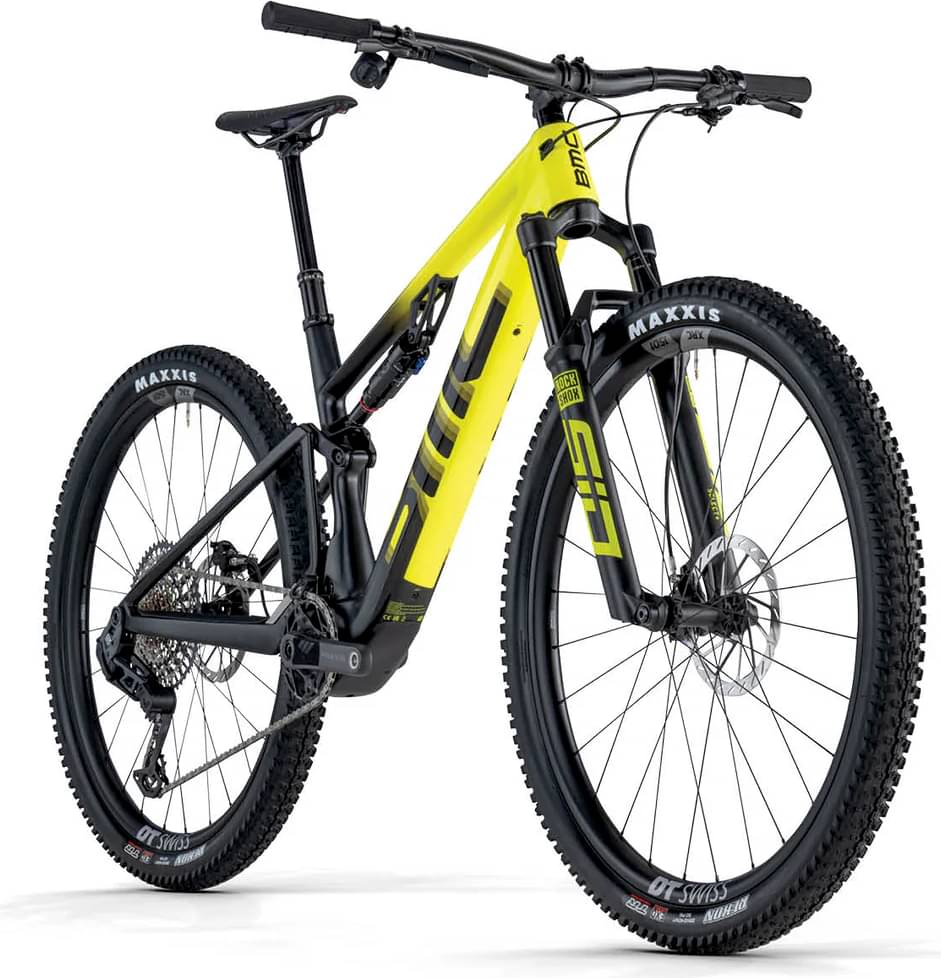

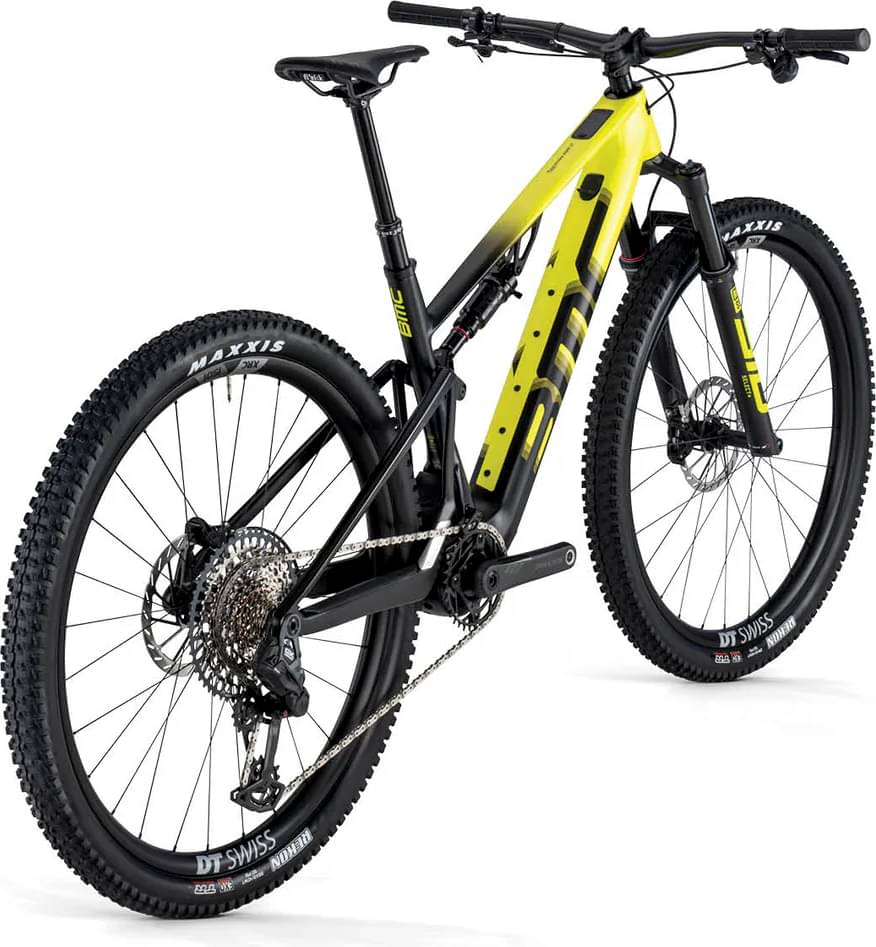

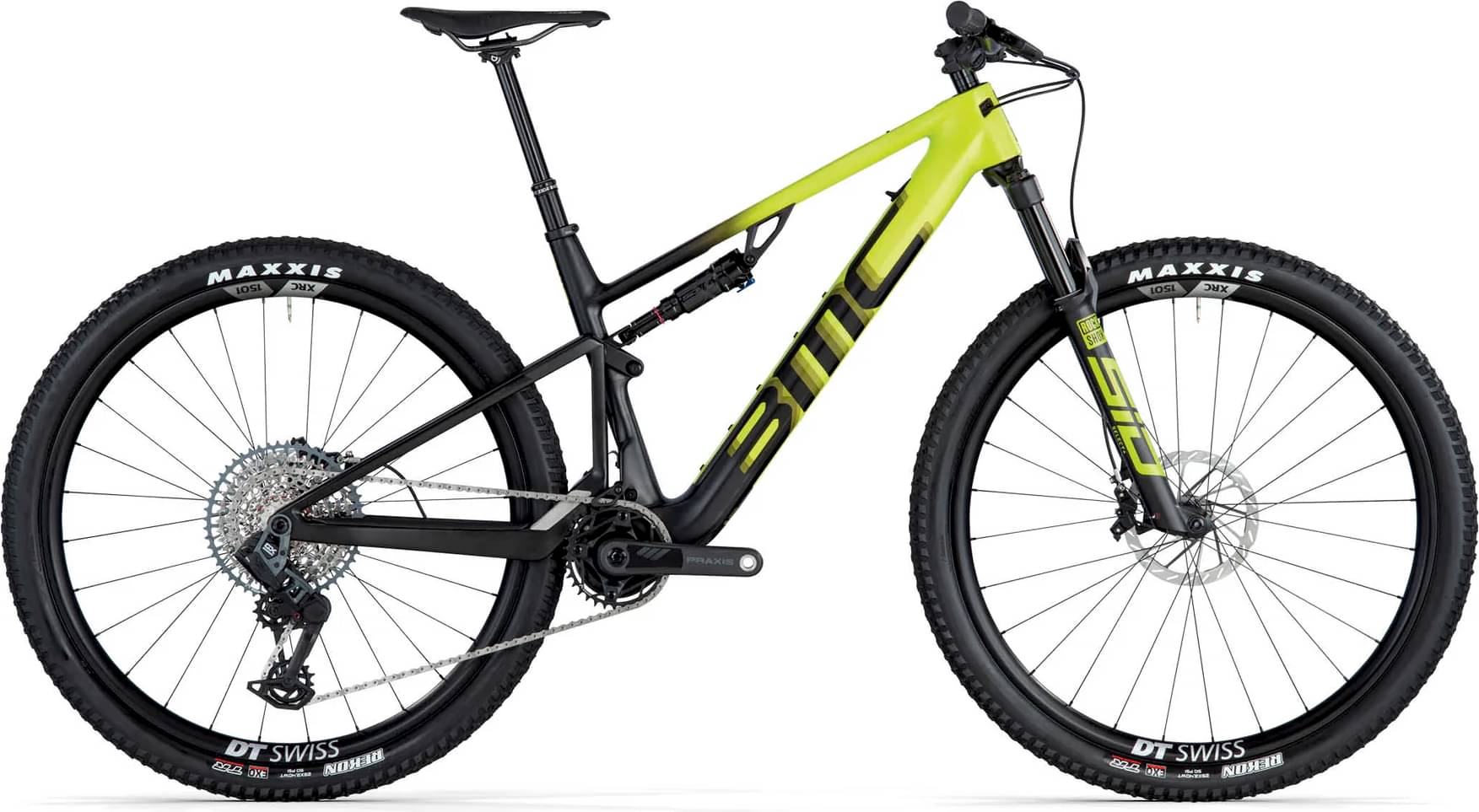

BMC Fourstroke AMP LT ONE USA 2024
2024 E-bike
Estimate price |
10,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Rear 120mm -
Fork RockShox SID Select+ -
Groupset GX Eagle Transmission -
Suspension Full -
Motor TQ mid-drive -
Battery TQ Battery | 360 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 182cm
LG
180cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fourstroke LT AMP Carbon | APS Suspension System | 120mm Travel | Integrated Battery | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Suspension Fork
RockShox SID Select+ 3P
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM GX Eagle Transmission XS-1275
Crank
Praxis Carbon eCrank | SRAM X Sync
Chain
SRAM GX Eagle Transmission Flattop
Wheels
Rims
DT Swiss XRC 1501 | 30mm Inner Width
Tires
Maxxis Rekon 2.4" | EXO TR
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Truvativ Atmos 7K
Handlebar
BMC MRB 01 Riser Bar Carbon | 760mm
Seat
Saddle
Fizik Antares R5
Seatpost
Bikeyoke Divine
Motor & Battery
Motor
TQ-HPR50 Drive Unit
Battery
TQ Battery | 360 Wh
Charger
TQ-HPR50 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.324 mm | 1.292 mm | 1.264 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 725 mm | 751 mm | 775 mm | 800 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 594 mm | 605 mm | 615 mm | 627 mm |
| Reach | 437 mm | 457 mm | 476 mm | 496 mm |
| Top Tube Length | 574 mm | 597 mm | 620 mm | 644 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 420 mm | 430 mm | 470 mm | 490 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 102 mm | 113 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1157 mm | 1178 mm | 1202 mm | 1227 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 730 mm | 730 mm | 730 mm | 730 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 173 cm | 182 cm | 189 cm | cm |
