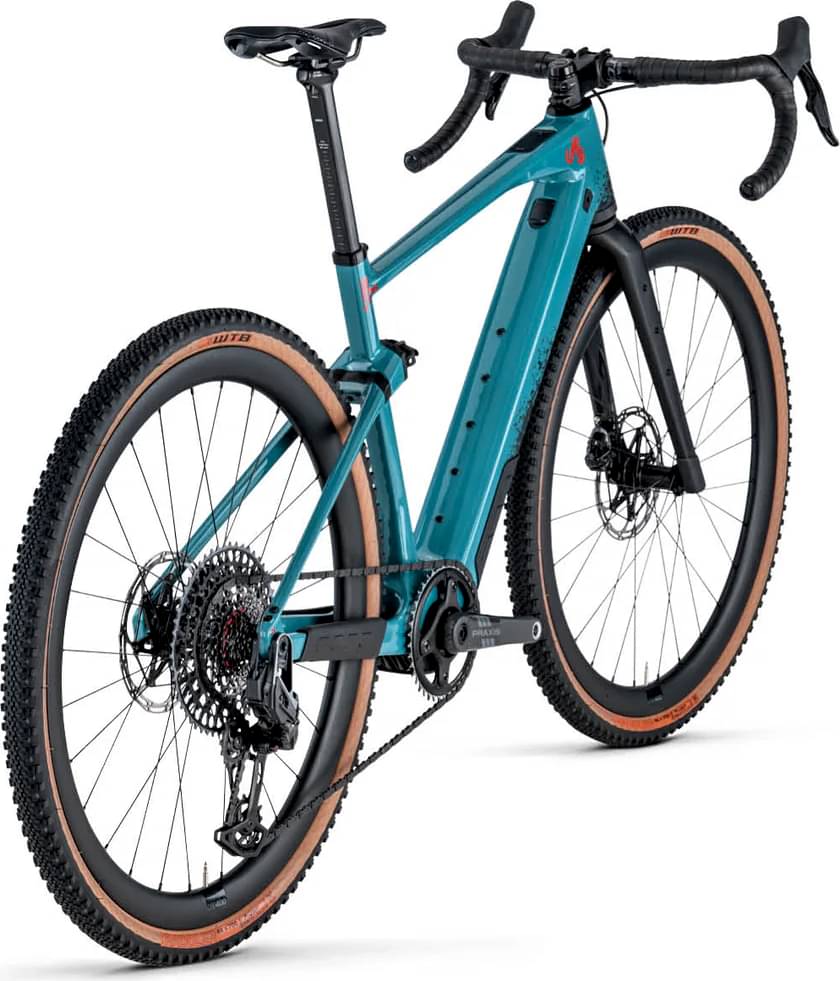

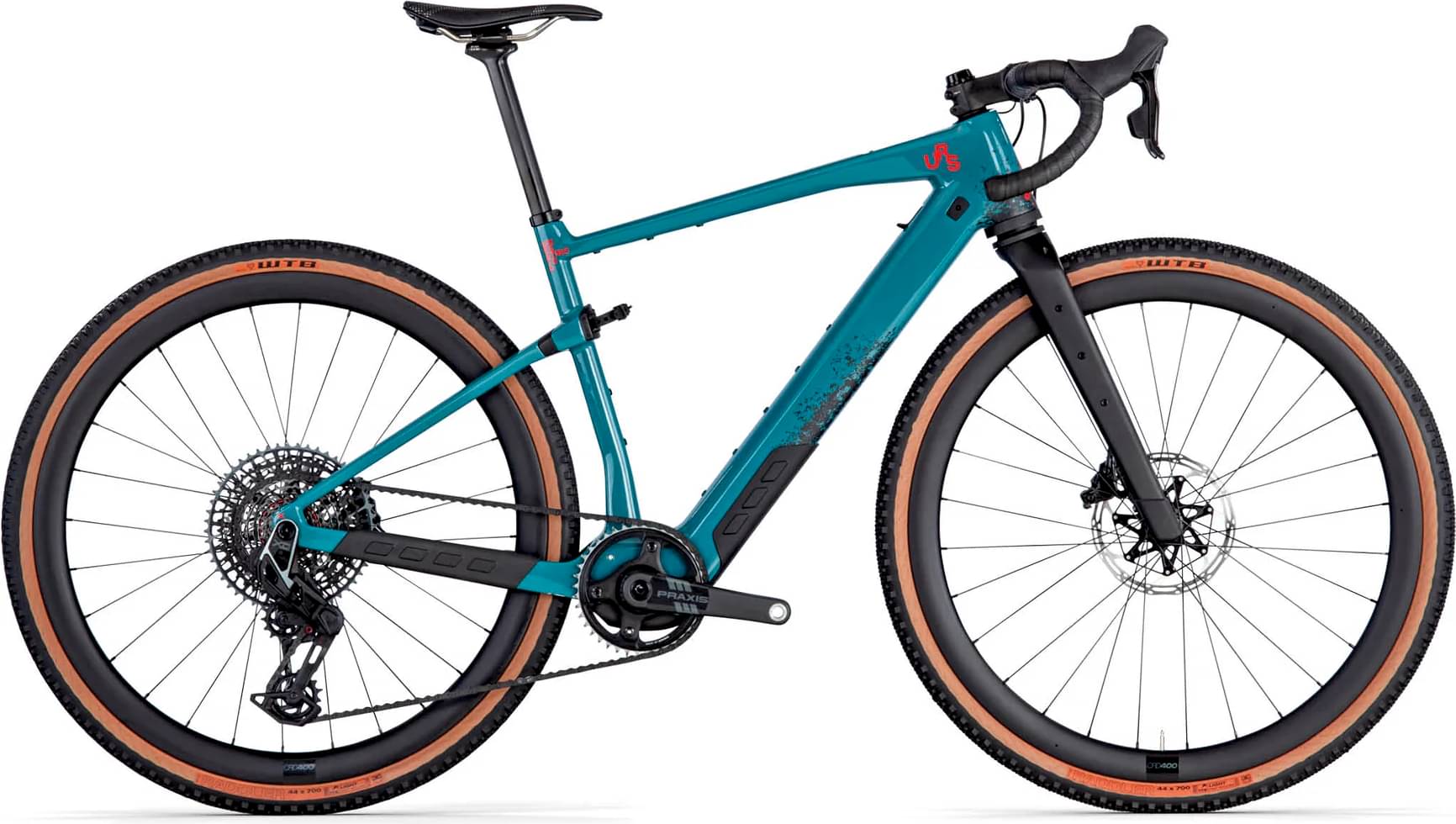

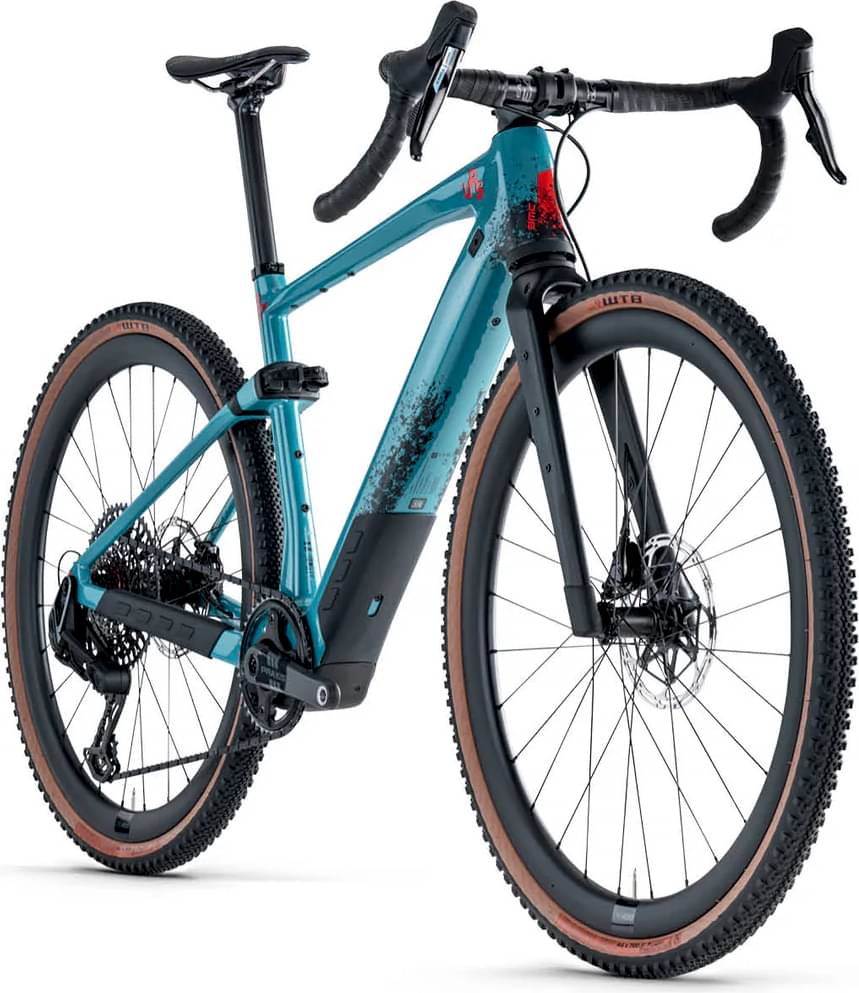

BMC URS AMP LT TWO USA 2024
2024 E-bike
Estimate price |
9,999$
Weight | 14.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset X0 Eagle Transmission, Force eTap -
Suspension Rigid -
Motor TQ mid-drive -
Battery TQ Battery | 360 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 170cm
MD
168cm - 178cm
LG
176cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URS AMP Premium Carbon with Micro Travel Technology | Gravel+ Geometry | Integrated Battery | Internal Cable Routing | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle | UDH Dropout Universal Derailleur Hanger
Suspension Fork
Micro Travel Technology Suspension Fork | Premium Carbon Blades | 20mm Travel | Coil Spring & Hydraulic Damper | Cargo Mounts | Fender Mounts | Hub-Dynamo Cable Routing
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Shift Levers
SRAM Force eTap AXS
Cassette
SRAM X0 Eagle Transmission XS-1295
Crank
Praxis eCrank Carbon Road | SRAM X-Sync
Chain
SRAM X0 Eagle Transmission Flattop
Wheels
Rims
CRD-400 Carbon | Tubeless Ready | 40mm
Tires
WTB Raddler | 44mm
Brakes
Brakes
SRAM Force eTap AXS
Cockpit
Stem
BMC MSM
Handlebar
Easton EA70 AX
Seat
Saddle
WTB Gravelier Steel SL | Medium
Seatpost
URS AMP Premium Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible
Motor & Battery
Motor
TQ-HPR50 Drive Unit
Battery
TQ Battery | 360 Wh
Charger
TQ-HPR50 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.425 mm | 1.415 mm | 1.452 mm | 1.488 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 635 mm | 644 mm | 652 mm | 673 mm | 694 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 90 mm | 90 mm | 86 mm | 86 mm | 86 mm |
| Stack | 570 mm | 570 mm | 580 mm | 610 mm | 640 mm |
| Reach | 390 mm | 400 mm | 410 mm | 420 mm | 430 mm |
| Top Tube Length | 540 mm | 551 mm | 563 mm | 582 mm | 601 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 425 mm | 439 mm | 475 mm | 505 mm | 505 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 130 mm | 133 mm | 165 mm | 197 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1061 mm | 1070 mm | 1077 mm | 1098 mm | 1119 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 170 cm | 178 cm | 189 cm | cm |
