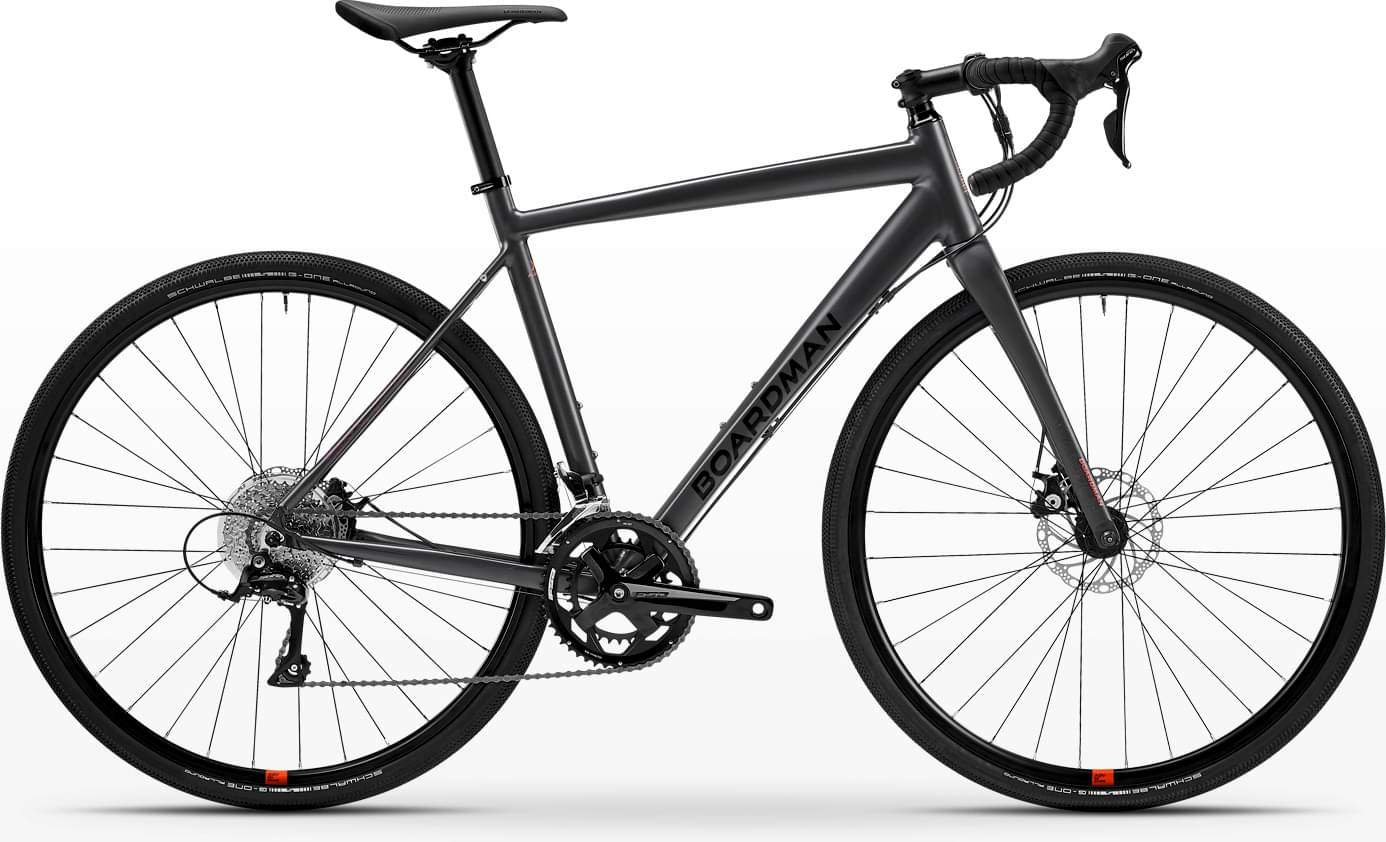

Boardman ADV 8.6 2024
2024 Road
Estimate price |
1,118$
Weight | 10.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple Butted 6061 X7 Auminium with hidden welds
Suspension Fork
C7 Carbon with Tapered Steerer
Drivetrain
Rear Derailleur
Shimano Sora, 9 speed, medium cage
Front Derailleur
Shimano Sora, double, 34.9mm clamp
Shift Levers
Shimano Sora, 2x9
Cassette
Shimano HG400, 9 speed, 11-34
Crank
FSA Velo Pro, 48/32t
Bottom Bracket
FSA cartridge 68x110.5mm
Chain
KMC Z9
Pedals
Wellgo alloy with straps, 9/16”
Wheels
Front Hub
Formula CX-20 front, CX-22 rear
Rear Hub
Formula CX-20 front, CX-22 rear
Rims
Boardman Asymmetric Adventure Tubeless Ready Rims
Tires
Schwalbe G-One Allround TLE - Addix, 700x38mm - Tubeless Ready
Brakes
Brakes
Front: Tektro MD-C510 flat mount, 160mm rotor front and rear
Cockpit
Stem
Boardman Alloy, 31.8mm clamp
Handlebar
Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated.
Seat
Saddle
Boardman ADV
Seatpost
Boardman Alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.473 mm | 1.488 mm | 1.517 mm | 1.524 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 554 mm | 573 mm | 596 mm | 608 mm |
| Reach | 376 mm | 385 mm | 393 mm | 399 mm |
| Top Tube Length | 535 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 515 mm | 530 mm | 555 mm | 575 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm | 187 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm | 195 cm |
