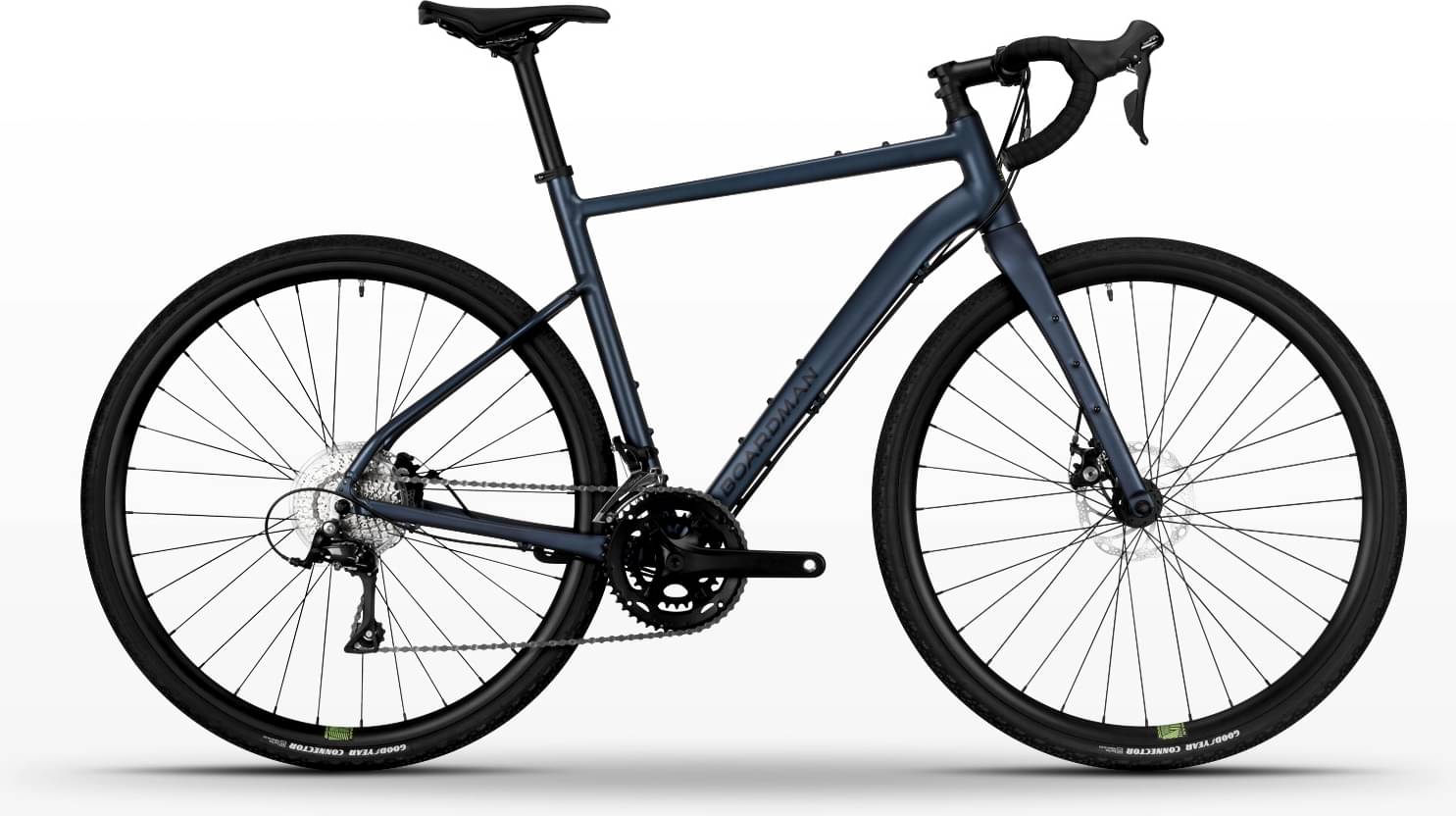

Boardman ADV 8.6 2025
2025 Road
Estimate price |
1,152$
Weight | 10.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple Butted 6061 Auminium with hidden welds
Suspension Fork
C7 Carbon with Tapered Steerer
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000-GS, 9 Speed
Front Derailleur
Shimano Sora FD-R3000, Double
Shift Levers
Shimano Sora ST-R3000, 2x9 Speed
Cassette
Shimano HG400, 9 speed, 11-34
Crank
Prowheel, 30/46T
Bottom Bracket
FSA, Square Taper, Sealed Cartridge
Chain
KMC Z9
Pedals
Alloy, Cage
Wheels
Front Hub
Formula CX-20 front, CX-22 rear
Rear Hub
Formula CX-20 front, CX-22 rear
Rims
Boardman Asymmetric Adventure Tubeless Ready Rims
Tires
Goodyear Connector, 700x40mm, Tube Type
Brakes
Brakes
Tektro MD-C511, Mechanical, 160mm Disc Rotor
Cockpit
Stem
Boardman Alloy, 31.8mm clamp
Handlebar
Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop
Headset
FSA No.42 - ACB, Integrated
Seat
Saddle
Boardman ADV
Seatpost
Boardman Alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.501 mm | 1.524 mm | 1.536 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 559 mm | 578 mm | 599 mm | 613 mm |
| Reach | 376 mm | 385 mm | 393 mm | 399 mm |
| Top Tube Length | 535 mm | 555 mm | 575 mm | 585 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 515 mm | 530 mm | 555 mm | 575 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm | 187 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm | 195 cm |
