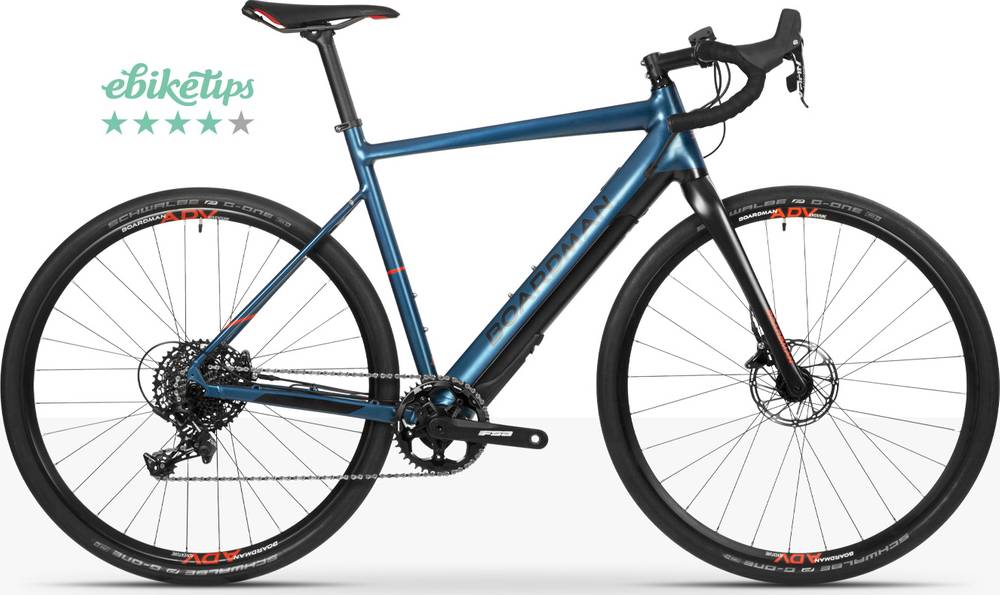

Boardman ADV 8.9e 2020
2020 E-bike
Estimate price |
3,657$
Weight | 16 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex 1, FSA -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
170cm - 180cm
LG
177cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman ADV-E 6061 Aluminium with Smooth Welds
Suspension Fork
Boardman ADV-E full Carbon, 1 1/2" to 1 1/8" tapered steerer
Drivetrain
Rear Derailleur
SRAM Apex 1
Front Derailleur
N/A
Shift Levers
SRAM Apex 1
Cassette
SRAM Apex PG1130 - 11-42T
Crank
FSA CK-746 Fazua, 170mm FSA 42T
Bottom Bracket
Fazua Evation
Chain
KMC E11
Wheels
Front Hub
Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 142x12mm Thru Axle rear
Rear Hub
Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 142x12mm Thru Axle rear
Rims
Boardman ADV-E - Tubeless Ready
Tires
Vittoria Terreno Zero 700 x 38mm
Brakes
Brakes
SRAM Apex Hydraulic Disc
Cockpit
Stem
Boardman Alloy, 80mm size SM & MD, 90mm size LG, 100mm size XL
Handlebar
Boardman Alloy, 400mm size SM, 420mm size MD, 100mm size LG & XL
Headset
FSA No. 42 ACB
Seat
Saddle
Fizik Tundra
Seatpost
Boardman Alloy 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Top Tube Length | 531 mm | 551 mm | 566 mm | 581 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 515 mm | 530 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 195 cm |
About this model
ADV 8.9e belongs to the Boardman E Adv model. Boardman released 3 e-bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel e-bikes average price
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 3283$. Comparing the average cost of a Gravel e-bike to this one, you will see that ADV 8.9e price is 10.94% lower.
Gravel e-bikes average weight
Gravel e-bikes weigh an average of 13.58 kg (29.94 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
ADV 8.9e weighs 16 kg (35.27 lbs) and is much heavier than the average. In conclusion, the average Gravel e-bike weighs 17.82% less than ADV 8.9e.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The ADV 8.9e 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Boardman ADV 8.9e is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 160 cm – 195 cm (5.25 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
