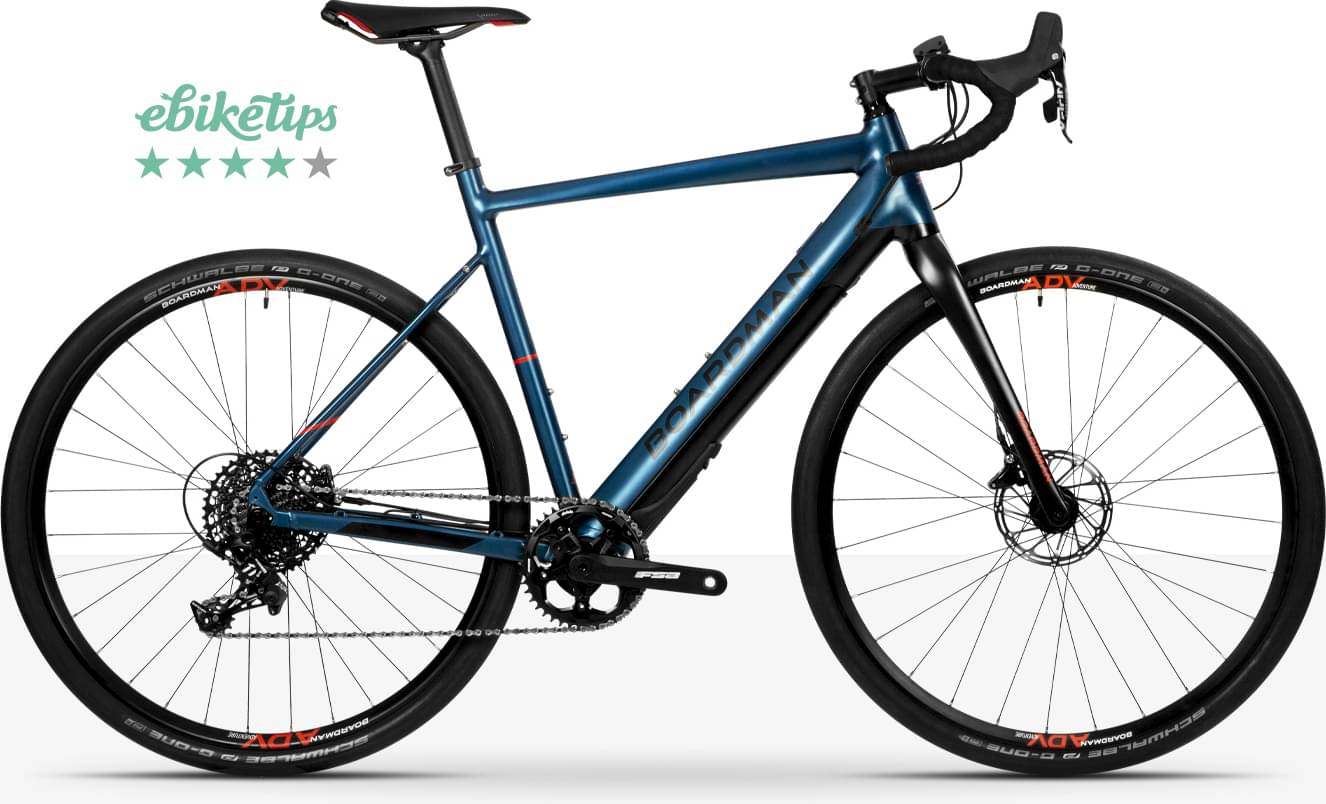

Boardman ADV 8.9e 2023
2023 E-bike
Estimate price |
3,792$
Weight | 16 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua removable integrated battery -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
170cm - 180cm
LG
177cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman ADV-E 6061 Aluminium with Smooth Welds
Suspension Fork
Boardman ADV-E full Carbon, 1 1/2" to 1 1/8" tapered steerer
Drivetrain
Rear Derailleur
SRAM Apex 1
Front Derailleur
N/A
Shift Levers
SRAM Apex 1
Cassette
SRAM Apex PG1130 - 11-42T
Crank
FSA CK-746 Fazua, 170mm FSA 42T
Bottom Bracket
Fazua Evation
Chain
KMC E11
Pedals
Wellgo with Toe Clip
Wheels
Front Hub
Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 142x12mm Thru Axle rear
Rear Hub
Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 142x12mm Thru Axle rear
Rims
28h Front, 32h Rear
Tires
Vittoria Terreno Zero 700 x 38mm
Brakes
Brakes
Front: SRAM Apex Hydraulic Disc, Rear: SRAM Apex Hydraulic Disc
Cockpit
Stem
Boardman Alloy, 80mm size SM & MD, 90mm size LG, 100mm size XL
Handlebar
Boardman Alloy, 400mm size SM, 420mm size MD, 100mm size LG & XL
Headset
FSA No. 42 ACB
Seat
Saddle
Fizik Tundra
Seatpost
Boardman Alloy 31.6mm
Motor & Battery
Motor
Fazua Evation
Battery
Fazua removable integrated battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Top Tube Length | 531 mm | 551 mm | 566 mm | 581 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 515 mm | 530 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 195 cm |
About this model
ADV 8.9e completes the Boardman E Adv model. There are 3 e-bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 3405$. Comparing the average cost of a Gravel e-bike to this one, you will see that ADV 8.9e price is 6.96% lower.
Average weight for Gravel e-bikes
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 16 kg (35.27 lbs), Boardman e-bike is much heavier than average. In other words, this model is 17.82% heavier than the average Gravel e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on ADV 8.9e are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The ADV 8.9e has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
ADV 8.9e comes in 4 sizes, that range from 160 cm – 195 cm (5.25 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
