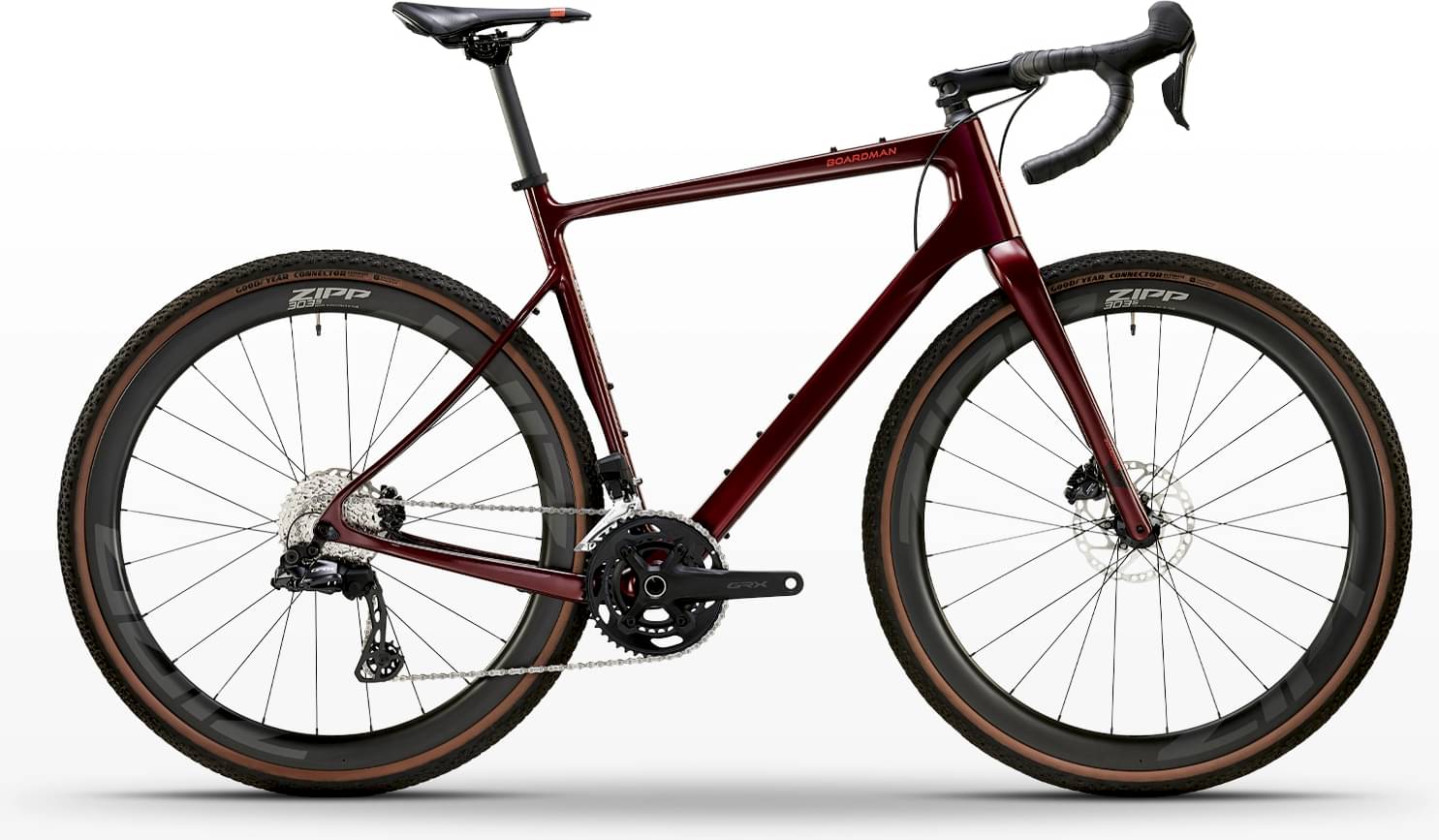

Boardman ADV 9.6 Carbon 2025
2025 Road
Estimate price |
5,149$
Weight | 8.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX Di2, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano GRX 800 Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman ADV - C10 Carbon 142x12mm Thru Axle
Suspension Fork
C10 Carbon with Tapered Steerer - 100x12mm Thru Axle
Drivetrain
Rear Derailleur
Shimano GRX Di2, RD-RX825, 12 speed
Front Derailleur
Shimano GRX Di2, FD-RX825, double
Shift Levers
Shimano GRX Di2, ST-RX825, 2x12 speed
Cassette
Shimano CS-R7101, 11-34T, 12 speed
Crank
Shimano GRX RX6102, 30/46T
Bottom Bracket
PF30, 86.5mm
Chain
Shimano CN-M7100, 12 speed
Pedals
N/A
Wheels
Front Hub
Formula RX-512 front, RX-142 rear
Rear Hub
Formula RX-512 front, RX-142 rear
Rims
Boardman Asymmetric Adventure Tubeless Ready Rims
Tires
Goodyear Connector Ultimate, Tubeless Ready, 700x40mm
Brakes
Brakes
Front: Shimano BR-RX820, Hydraulic, F 160mm - R 140mm Disc Rotors
Cockpit
Stem
Boardman Alloy, 31.8mm clamp
Handlebar
Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop, 6 degree flare
Headset
FSA No.42, 1 1/8” - 1.5” Tapered, Integrated.
Seat
Saddle
Prologo Akero AGX
Seatpost
Boardman Alloy, 27.2mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.496 mm | 1.505 mm | 1.498 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 550 mm | 570 mm | 590 mm | 605 mm |
| Reach | 368 mm | 381 mm | 392 mm | 404 mm |
| Top Tube Length | 535 mm | 555 mm | 572 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 525 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm | 187 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm | 195 cm |
