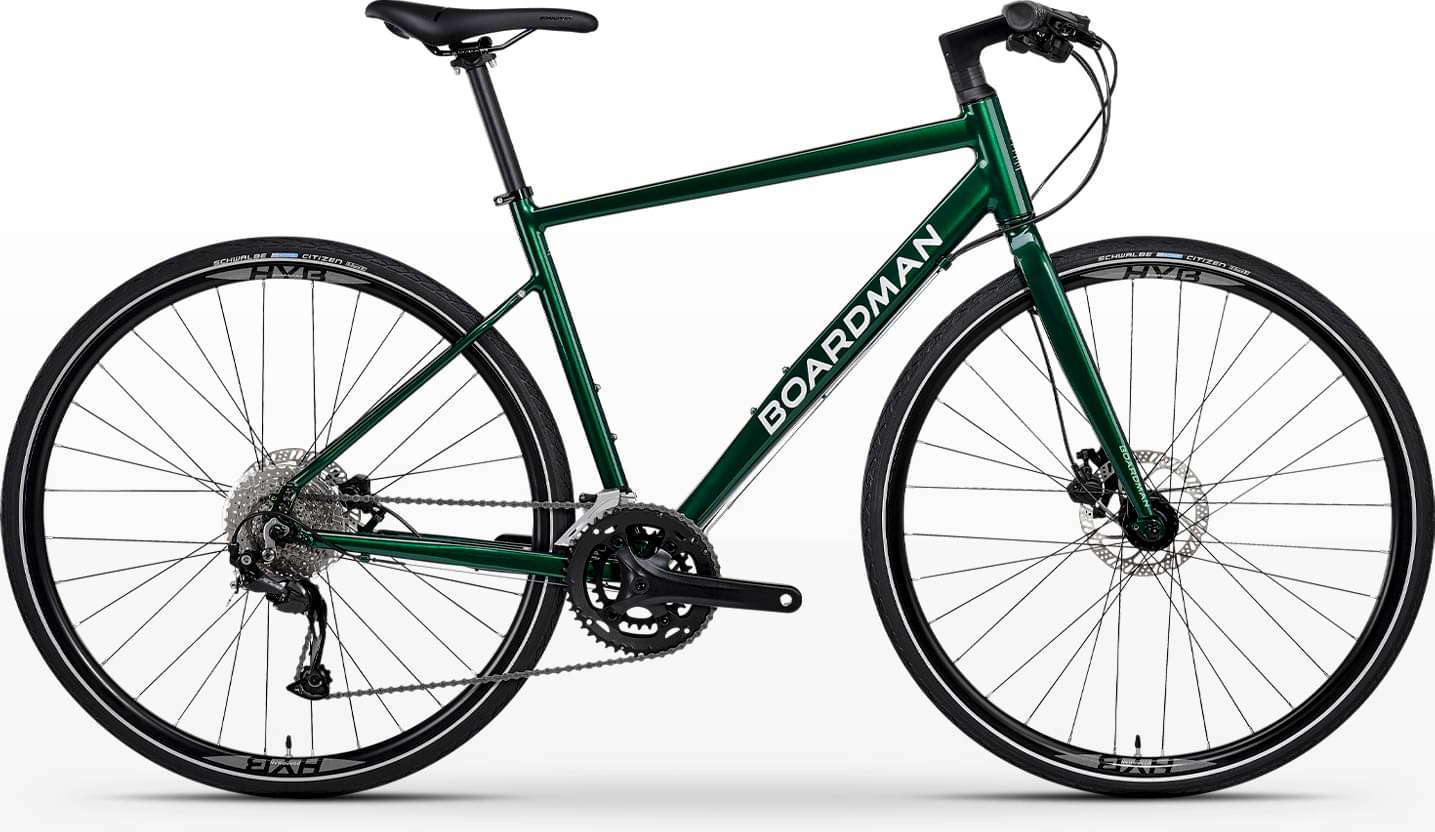

Boardman HYB 8.6 Green 2025
2025 Urban
Estimate price |
813$
Weight | 11.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Acera -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple butted 6061 Aluminium smooth welded
Suspension Fork
Alloy bladed fork, 1 1/8” cromo Steerer
Drivetrain
Rear Derailleur
Shimano Alivio M3100, 9-speed
Front Derailleur
Shimano Acera T3000, 31.8mm clamp
Shift Levers
Shimano Alivio, 2x9
Cassette
Shimano HG201, 9-speed, 11-36 Tooth
Crank
Prowheel, square taper 46/30 ToothT
Bottom Bracket
FSA BB7420, Square taper
Chain
KMC 9-Speed
Pedals
Wellgo flats, 9/16”
Wheels
Front Hub
Formula QR
Rear Hub
Formula QR
Rims
Boardman Alloy Rims 32 Hole
Tires
Schwalbe Citizen 700 x 37c, kevlar guard. Kenda presta tube
Brakes
Brakes
Front: Tektro M285 hydraulic disc, Tektro 160mm rotor, Rear: Tektro M275 hydraulic disc, Tektro 160mm rotor
Cockpit
Headset
FSA no.10, 1 1/8”, Semi Integrated
Seat
Saddle
Boardman Hybrid by Velo, steel rails
Seatpost
Boardman Alloy, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.399 mm | 1.397 mm | 1.394 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Stack | 554 mm | 577 mm | 601 mm |
| Reach | 396 mm | 413 mm | 431 mm |
| Top Tube Length | 565 mm | 590 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm |
