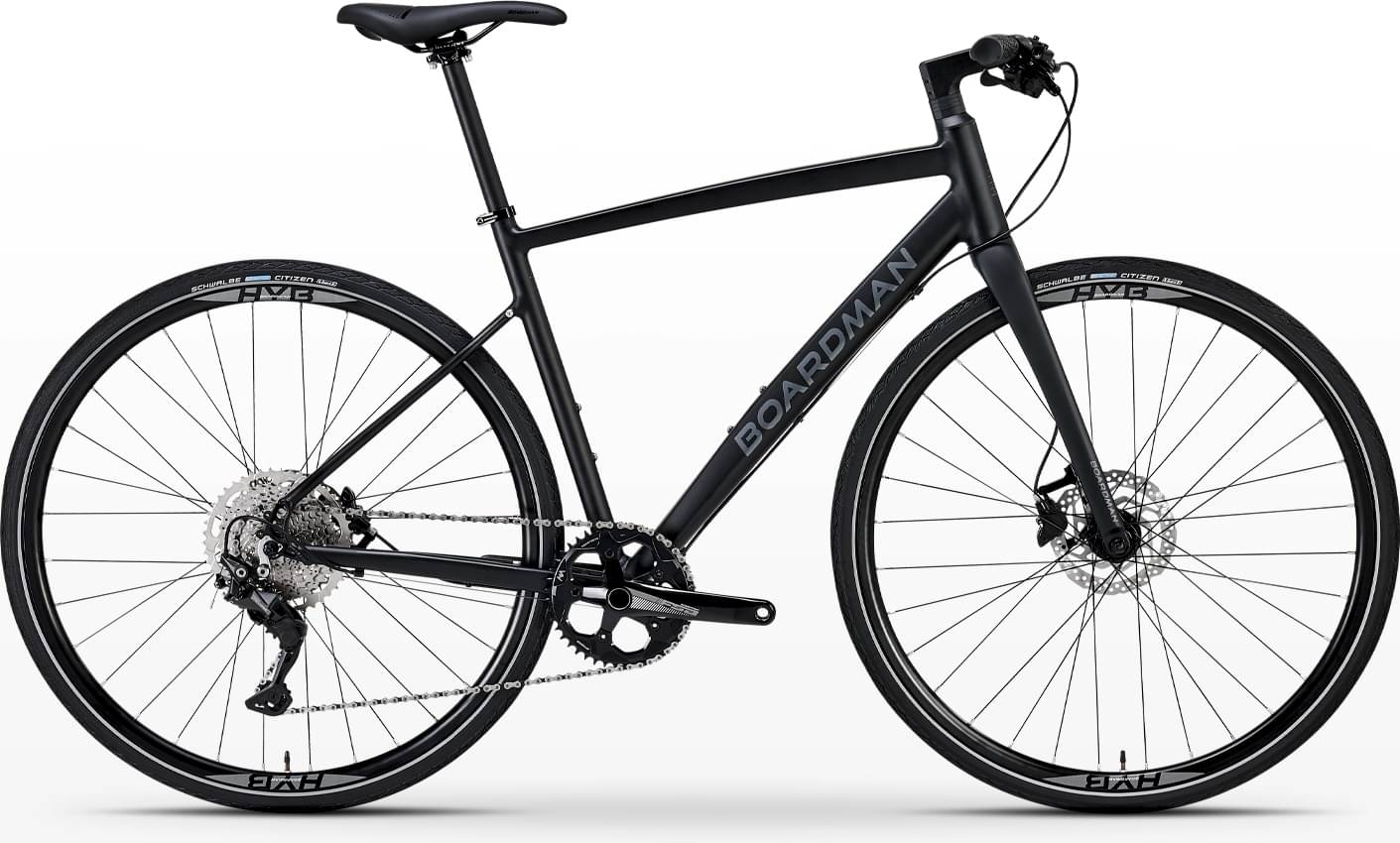

Boardman HYB 8.8 2025
2025 Urban
Estimate price |
1,152$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 X7 Aluminium with hidden welds
Suspension Fork
C7 Carbon with tapered steerer
Drivetrain
Rear Derailleur
Shimano Deore 10 Speed
Front Derailleur
N/A
Shift Levers
Shimano Deore, 10 speed
Cassette
Shimano Deore, 11-46t 10 speed
Crank
FSA Gossamer Compact Mega Exo 1x 44t
Bottom Bracket
FSA Mega Exo
Chain
KMC X10
Pedals
Flat pedals supplied
Wheels
Front Hub
Formula QR
Rear Hub
Formula QR
Rims
Boardman HYB Disc
Tires
Schwalbe Citizen 700 x 35c, reflective. Kenda presta tube
Brakes
Brakes
Front: Shimano MT200 hydraulic disc brakes, Shimano 160mm rotor
Cockpit
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” tapered, Integrated
Seat
Saddle
Boardman HYB
Seatpost
Boardman Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.399 mm | 1.397 mm | 1.394 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Stack | 554 mm | 577 mm | 601 mm |
| Reach | 396 mm | 413 mm | 431 mm |
| Top Tube Length | 565 mm | 590 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm |
