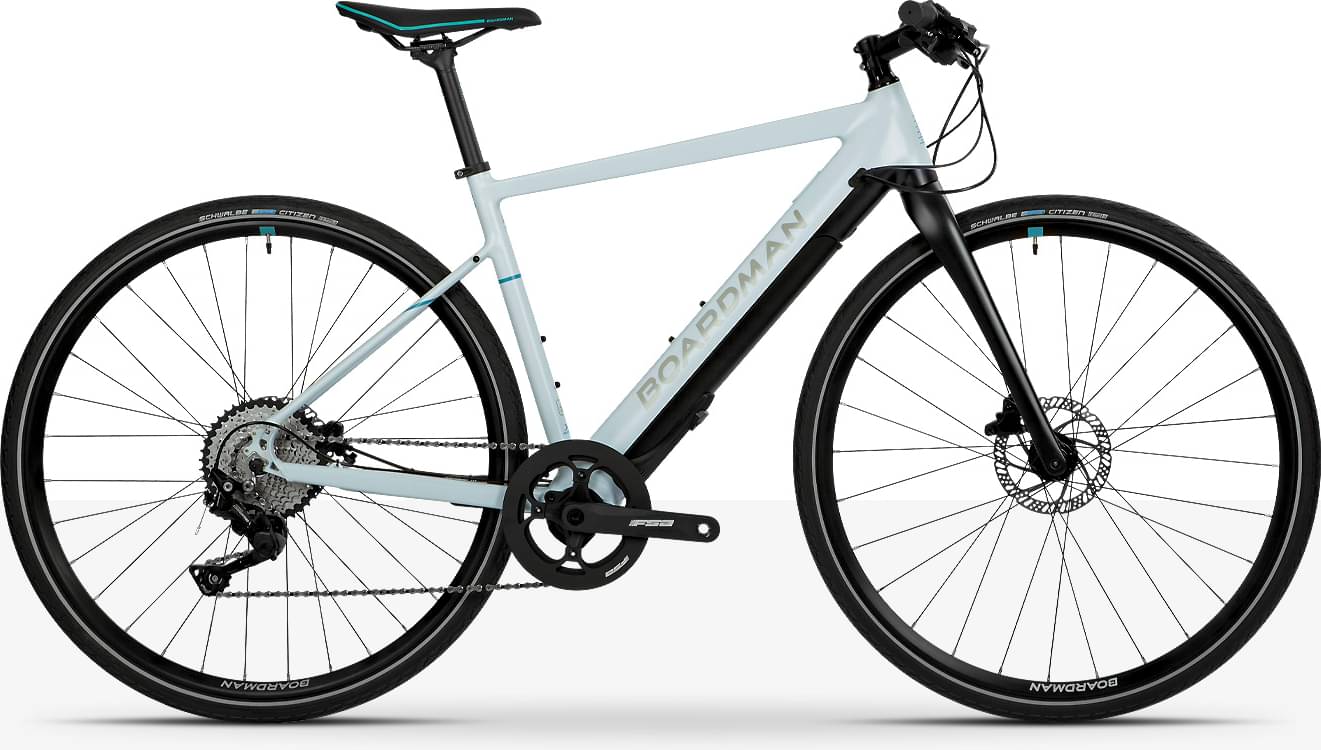

Boardman HYB 8.9e Womens 2025
2025 E-bike
Estimate price |
3,183$
Weight | 15.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor Fazua 250W 55Nm mid-drive -
Battery Fazua removable integrated battery -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
147cm - 160cm
MD
157cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman HYB-E 6061 Aluminium with Smooth Welds
Suspension Fork
Boardman HYB-E full Carbon, 1 1/2" to 1 1/8" tapered steerer
Drivetrain
Rear Derailleur
Shimano Deore M6000 10 Speed
Front Derailleur
N/A
Shift Levers
Shimano Deore M6000 10 Speed
Cassette
Sunrace MS2 - 11-42
Crank
FSA CK-746 Fazua, 170mm FSA 44T
Bottom Bracket
Fazua Evation
Chain
KMC E10
Pedals
Wellgo Flat Pedal
Wheels
Front Hub
Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 135mm QR rear
Rear Hub
Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 135mm QR rear
Rims
28h Front, 32h Rear
Tires
Schwalbe Citizen K-Guard, 700c x 35mm
Brakes
Brakes
Front: Tektro Hydraulic Disc, 160mm Rotor, Rear: Tektro Hydraulic Disc, 160mm Rotor
Cockpit
Stem
Boardman Alloy, 70mm size SM, 80mm Size MD
Handlebar
Boardman Alloy, 580mm
Headset
FSA No. 42 ACB
Seat
Saddle
Boardman Alloy, 70mm size SM, 80mm Size MD
Seatpost
Boardman Alloy 27.2mm
Motor & Battery
Motor
Fazua Evation
Battery
Fazua removable integrated battery
Fit data
Geometry
