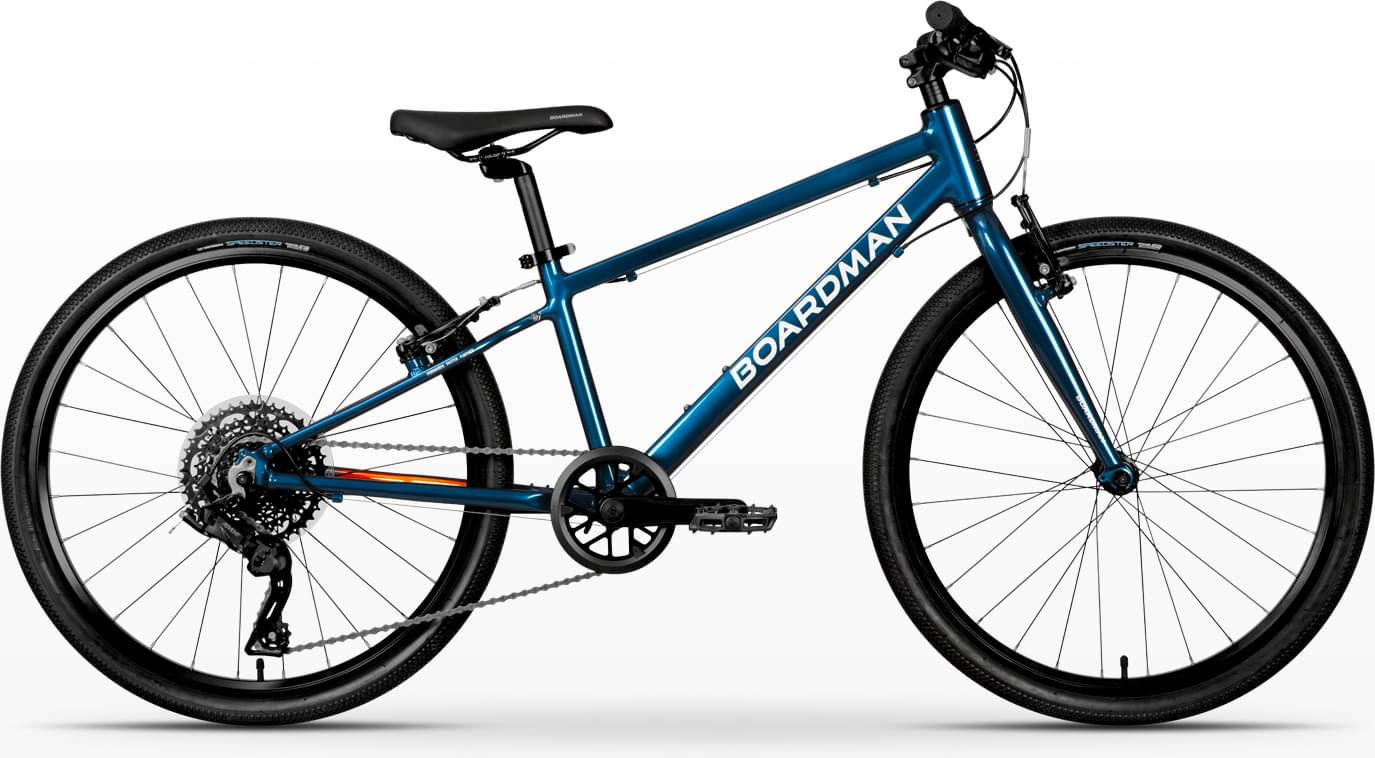

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lighhtweight Triple butted, smooth weld aluminium
Suspension Fork
1" Triple Butted, smooth weld aluminium lowers with Chromo Steerer
Drivetrain
Rear Derailleur
Microshift M6195M 9 Speed
Shift Levers
Miroshift SL-M8195 Advent 9 Speed
Cassette
Microshift CS-H093 9 Speed 11-42 Tooth
Crank
Prowheel 32 Tooth - 140mm crank and double chainguard
Bottom Bracket
FSA. - BB-7420ST
Chain
KMC Z9
Pedals
Wellgo 9/16"
Wheels
Front Hub
Formula Alloy QR
Rear Hub
Formula Alloy QR
Rims
Double Wall Alloy
Tires
Vee Rubber, Speedster 24" x 1.5"
Brakes
Brakes
Front: TEKTRO 855 AL-EN V-Brake, Rear: TEKTRO 855 AL-EN V-Brake
Brake Levers
TEKTRO TS325A
Cockpit
Stem
Boardman JNR Alloy 50mm - 10 degree rise
Handlebar
Boardman JNR Alloy - 25.4mm - 540mm wide
Headset
Semi-Inegrated NECO H124 1" Aheadset
Seat
Saddle
Boardman JNR
Seatpost
Boardman JNR Alloy 25.4mm x 250mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 12" | 16" | 20" | 24" | 26" | 26" |
|---|---|---|---|---|---|---|
| Wheels | 24" | 24" | 24" | 24" | 24" | 24" |
